Plan 46513LA
Transitional House Plan with 3-Car Garage and Lower Level Expansion - 3205 Sq Ft
Heated S.F.
3,205
Beds
3
Baths
3.5
Stories
1
Cars
3
Floor Plan

Plan 46513LA

Main Level
slide image 0
Optional Lower Level
slide image 1

Plan 46513LA

1-800-854-7852

1-262-521-4596

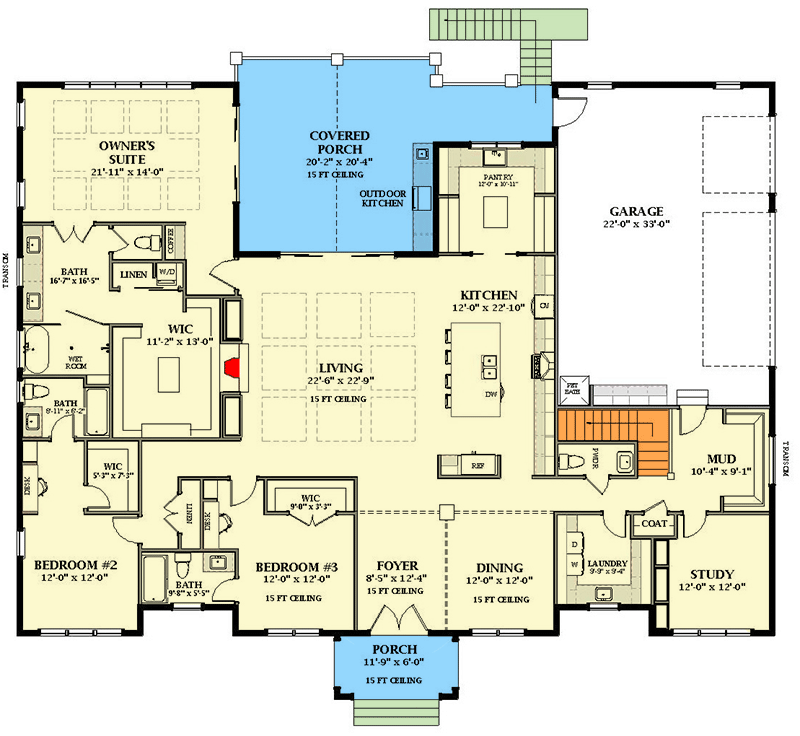

Main Level
floor plan image Main Level

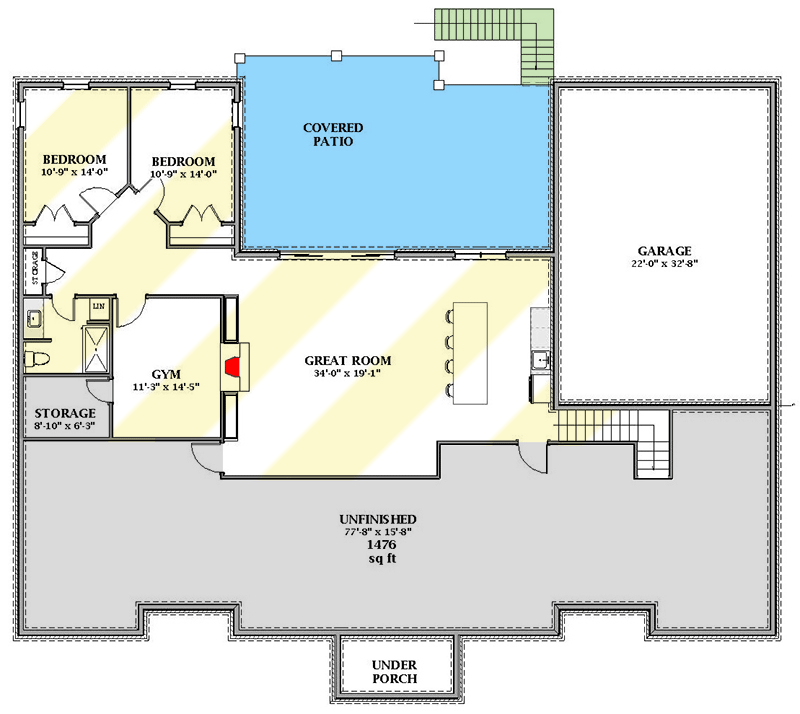

Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This 3 bed, 3.5 bath Transitional House Plan gives you 3,205 square feet of heated living with an additional 1,476 square feet of expansion in the optional finished basement.
  • The 3-car garage has 767 square feet of parking space and accesses the home by a large mud room with study or home office access.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • NOTE: Please allow 20 to 25 days for plan delivery.
What's Included
NOTE: Please allow 20 to 25 days for plan delivery.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,205 sq. ft.

1st Floor

3,205 sq. ft.

Basement Unfinished

1,476 sq. ft.

Optional Lower Level

1,639 sq. ft.

Porch, Front

79 sq. ft.

Porch, Rear

497 sq. ft.

Covered Patio

633 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

79' 0"

Depth

67' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

767 sq. ft.

Count

3 Cars

Entry Location

Rear

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

12 on 14

Framing Type

Stick

Architectural Style

European

French Country

Southern

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen
