Plan 818109JSS
Transitional House Plan with 4 Beds and a 4-Car Garage - 5,010 Sq Ft
Heated S.F.
5,032
Beds
4
Baths
3.5+
Stories
2
Cars
4
Floor Plan

Plan 818109JSS

Main Level
slide image 0
2nd Floor
slide image 1

Plan 818109JSS

1-800-854-7852

1-262-521-4596

Main Level

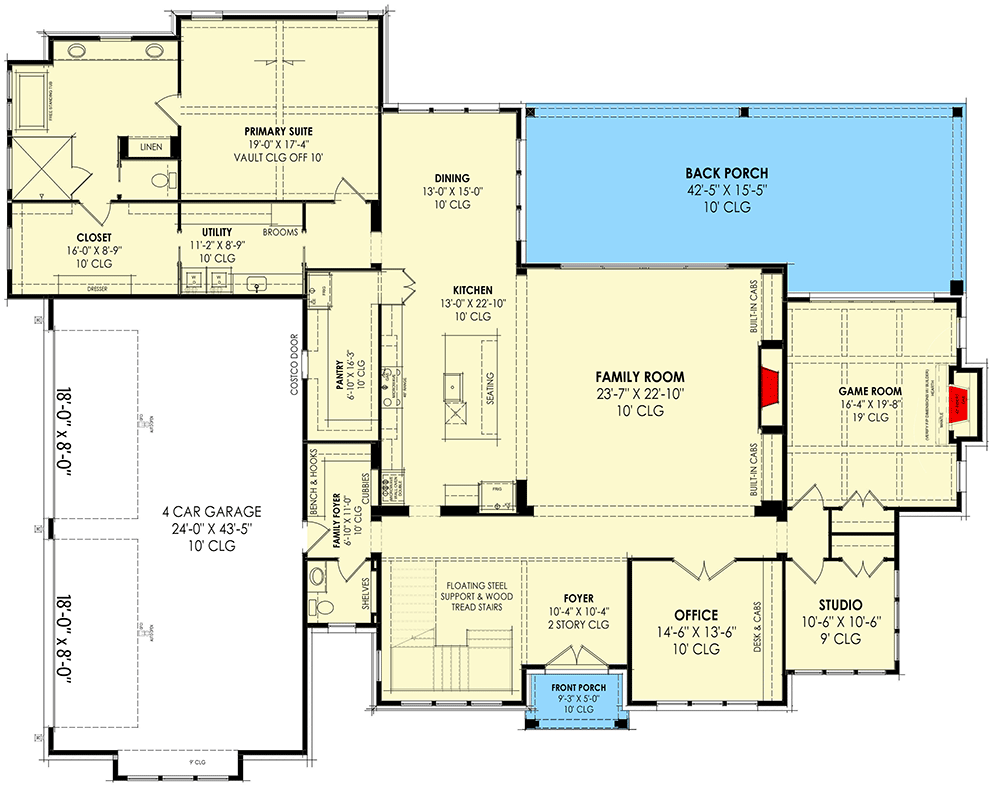

floor plan image Main Level
2nd Floor

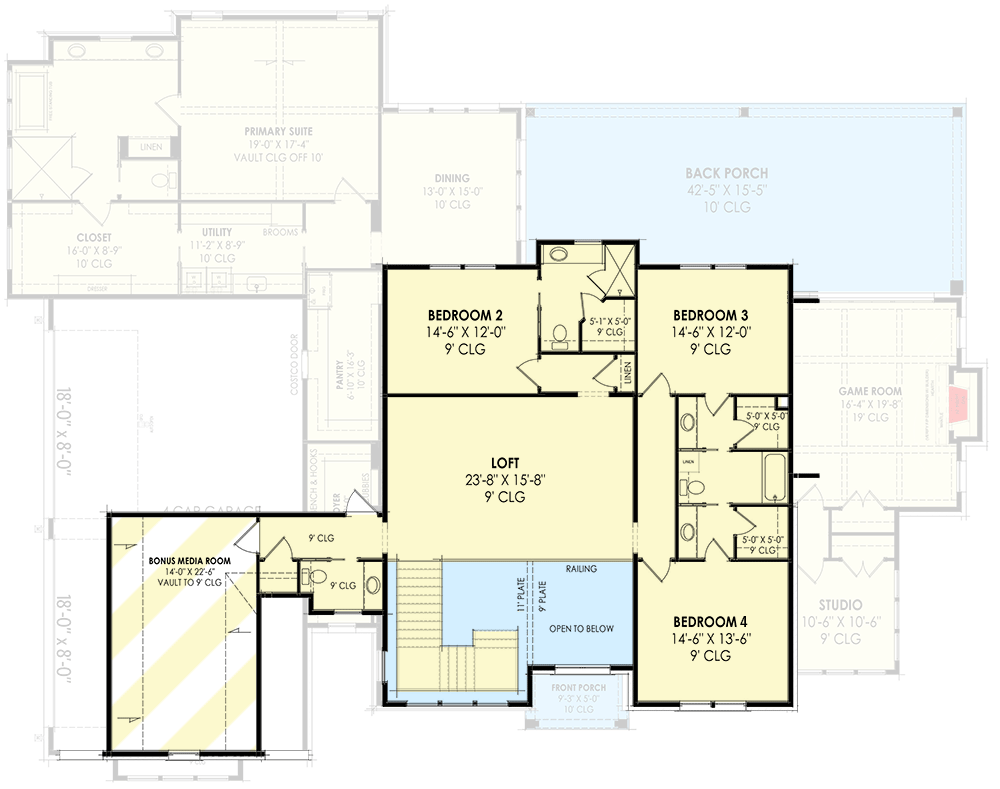

floor plan image 2nd Floor
Plan Details
  • This Transitional house plan gives you 4 beds, 3 full and 2 half baths and 5,010 square feet of heated living. A 4-car garage with two 18' by 8' overhead doors gives you 1,127 square feet of parking and accesses the home through a well-planned family foyer with built-in benches and cubbies.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation plan
  • Detailed floorplans
  • Roof plan
  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,032 sq. ft.

1st Floor

3,550 sq. ft.

2nd Floor

1,482 sq. ft.

Bonus

348 sq. ft.

Porch, Front

49 sq. ft.

Porch, Rear

704 sq. ft.

Porch, Combined

753 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 5"

Depth

74' 2"

Max Ridge Height

35' 6"

Garage

Type

Attached

Area

1127 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

16 on 12

Framing Type

Stick

Architectural Style

European

Transitional

Tudor

Special Features

Bonus Room

Butler Walk-in Pantry

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

5,032 sq. ft.

1st Floor

3,550 sq. ft.

2nd Floor

1,482 sq. ft.

Bonus

348 sq. ft.

Porch, Front

49 sq. ft.

Porch, Rear

704 sq. ft.

Porch, Combined

753 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 5"

Depth

74' 2"

Max Ridge Height

35' 6"

Garage

Type

Attached

Area

1127 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

16 on 12

Framing Type

Stick

Architectural Style

European

Transitional

Tudor

Special Features

Bonus Room

Butler Walk-in Pantry

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Plan Collections

Home Office
