Plan 90321PD
Transitional House Plan with Family and Living Rooms - 1520 Sq Ft
Heated S.F.
1,520
Beds
3
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 90321PD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 90321PD

1-800-854-7852

1-262-521-4596

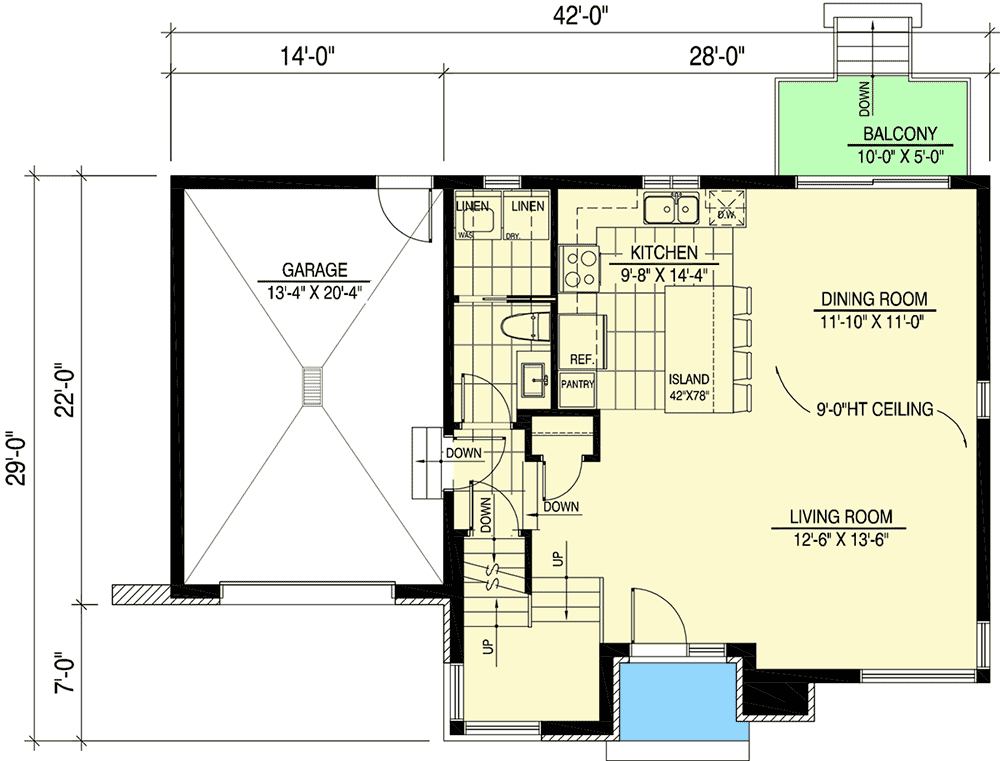

Main Level
floor plan image Main Level

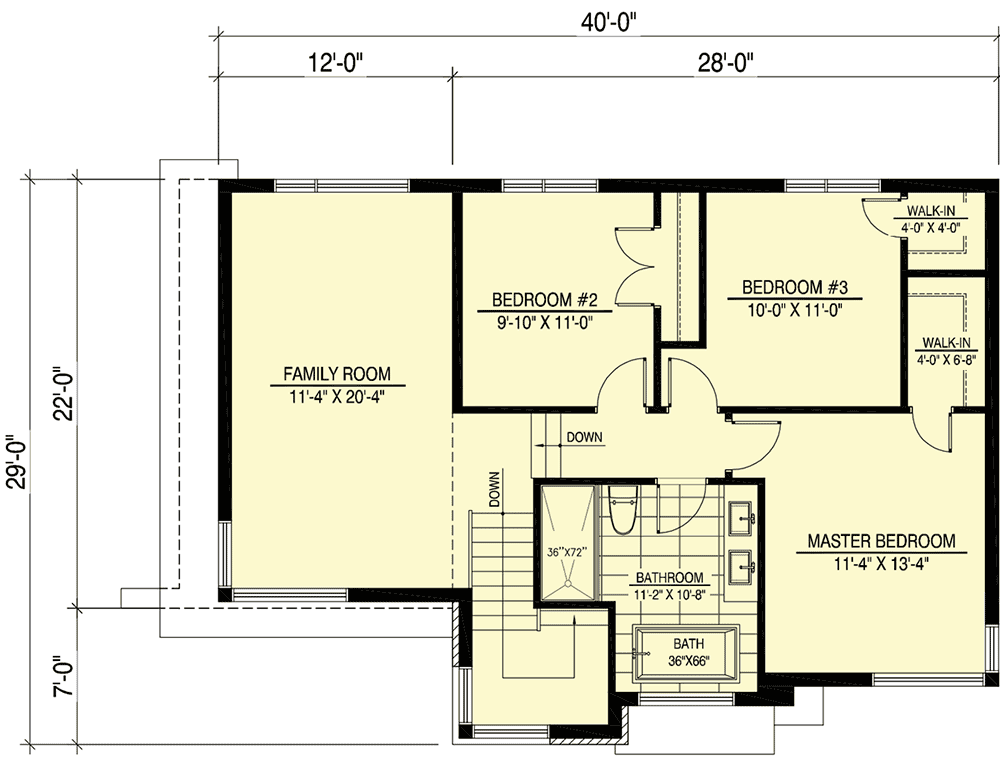

2nd Floor
floor plan image 2nd Floor
Plan Details

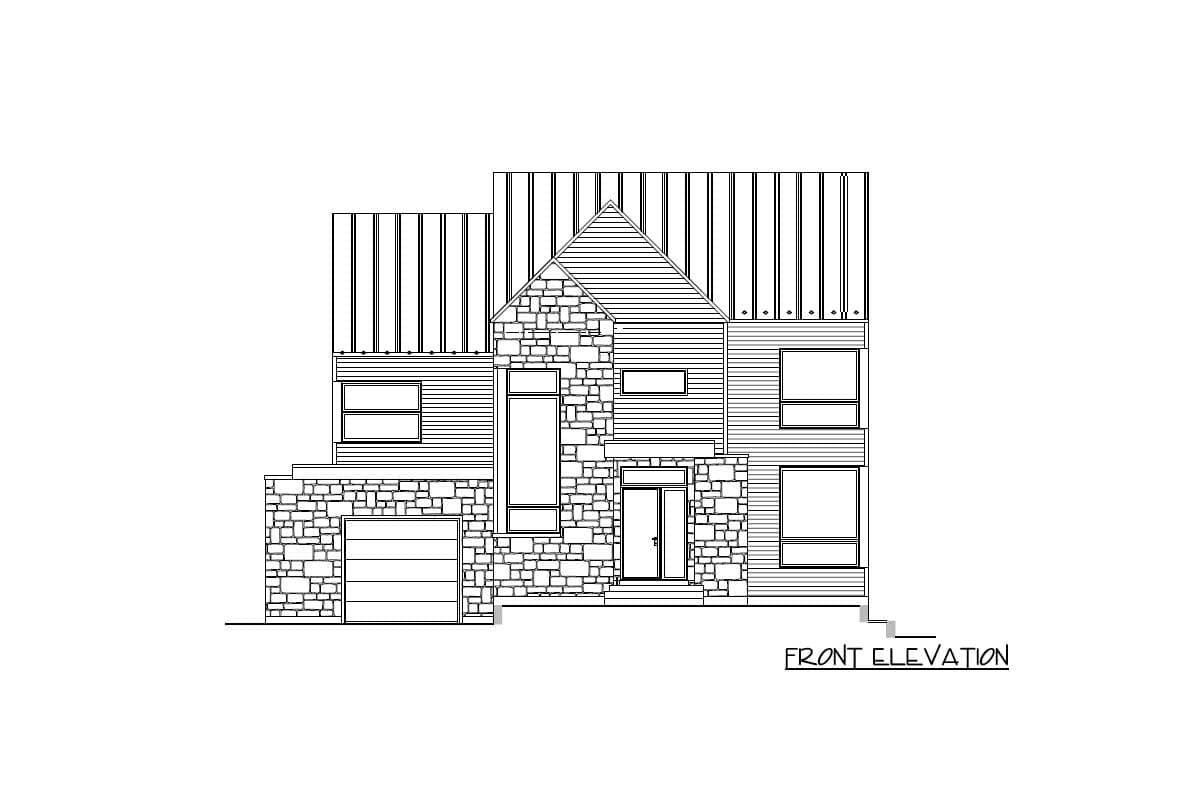

  • The stone's warm and earthly tones blend beautifully with the contrasting dark siding and ribbed metal roof on this Transitional house plan.
  • The main level is completely open for easy living and features a kitchen island with an eating bar to anchor the space.
  • Sliding doors off the dining area leads to a balcony and provides a space to grill.
  • Three bedrooms are located upstairs, including the master bedroom with a walk-in closet. The second-level bathroom includes a separate tub and shower, along with two vanities.
  • A family room above the single garage bay completes the layout, and provides a secondary space for the family to relax.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,520 sq. ft.

1st Floor

757 sq. ft.

2nd Floor

763 sq. ft.

Basement Unfinished

757 sq. ft.

Bonus

260 sq. ft.

Porch, Front

26 sq. ft.

Porch, Rear

50 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

29' 0"

Max Ridge Height

32' 6"

Garage

Type

Attached

Area

308 sq. ft.

Count

1 Cars

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

New American

Northwest

Transitional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 2nd Floor

Split Level

Plan Collections

Canadian House Plans
