Plan 290164IY
Transitional House Plan with Lower Level Expansion - 3241 Sq Ft
Heated S.F.
3,241
Beds
2 - 5
Baths
2.5 - 4.5
Stories
1
Cars
3
Floor Plan

Plan 290164IY

Main Level
slide image 0
Optional Lower Level
slide image 1

Plan 290164IY

1-800-854-7852

1-262-521-4596

Main Level

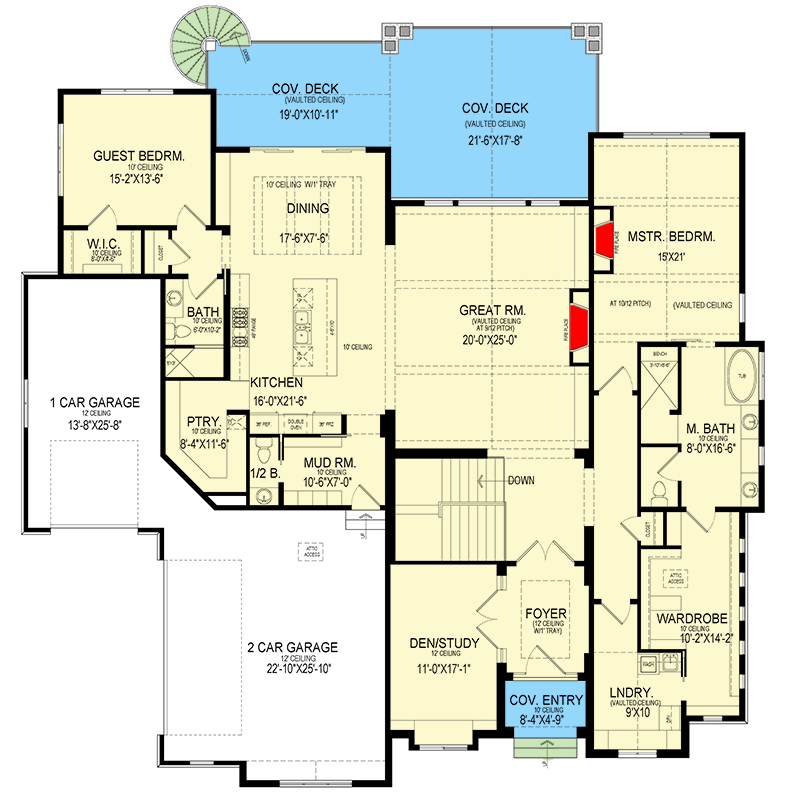

floor plan image Main Level

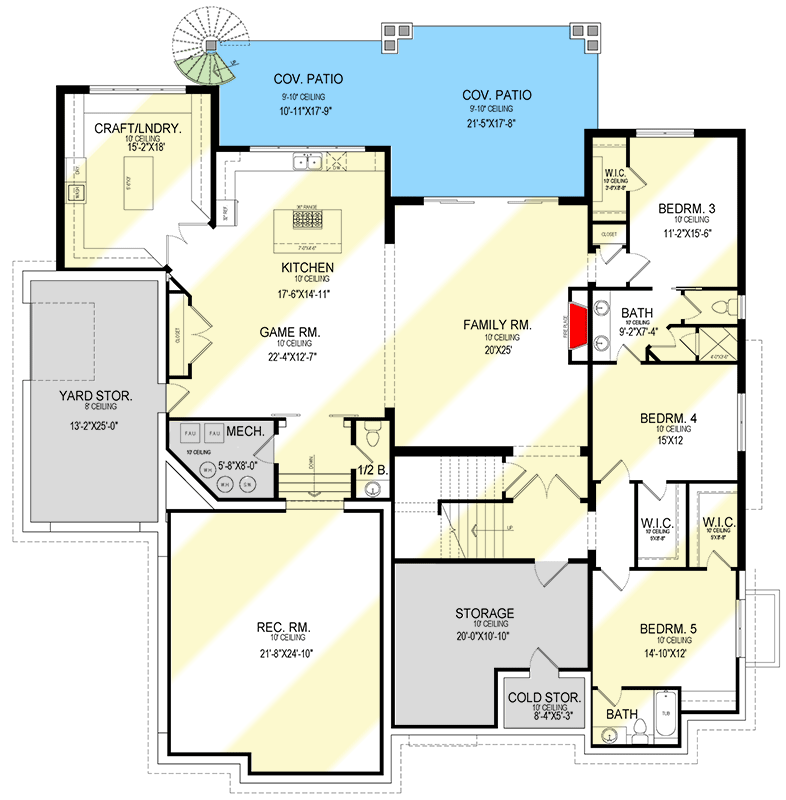

Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This transitional house plan gives you 2 bedrooms and 3,241 square feet of heated living all on one floor as well as lower level expansion giving you 3 extra bedrooms and an additional 4,072 square feet of living space when finished.
  •  Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans

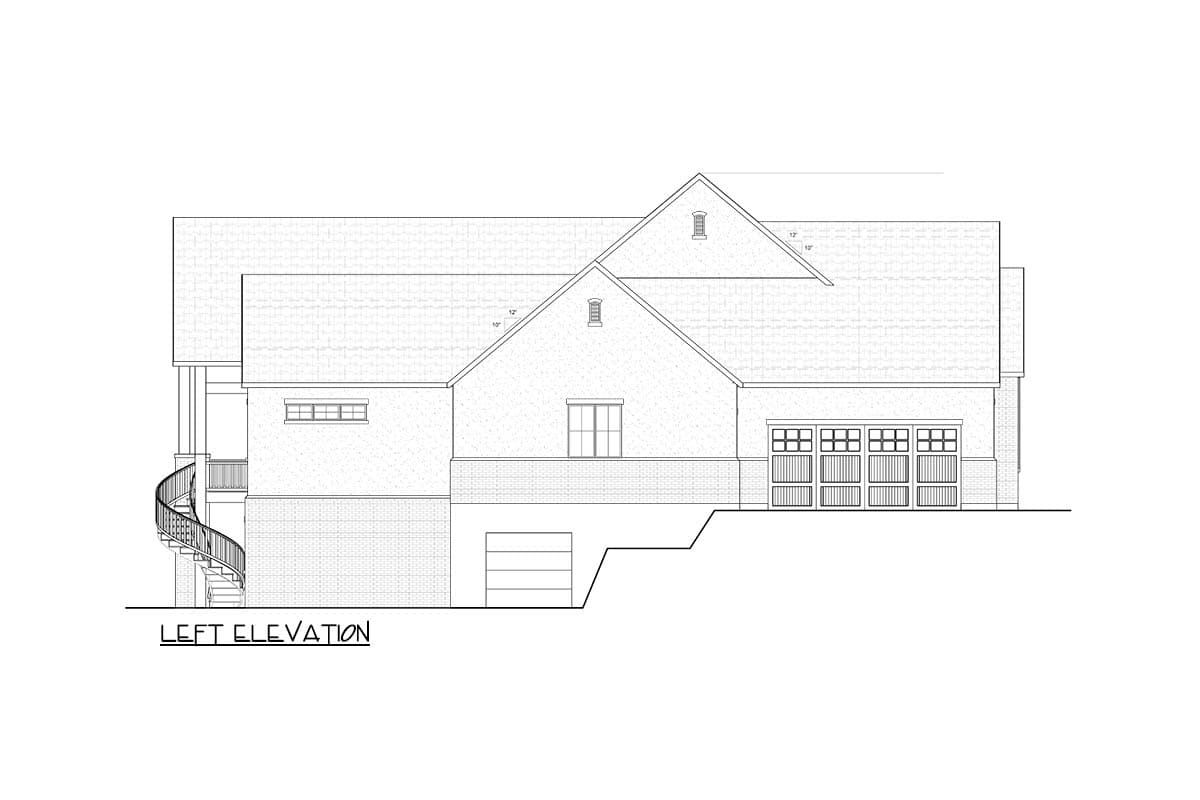

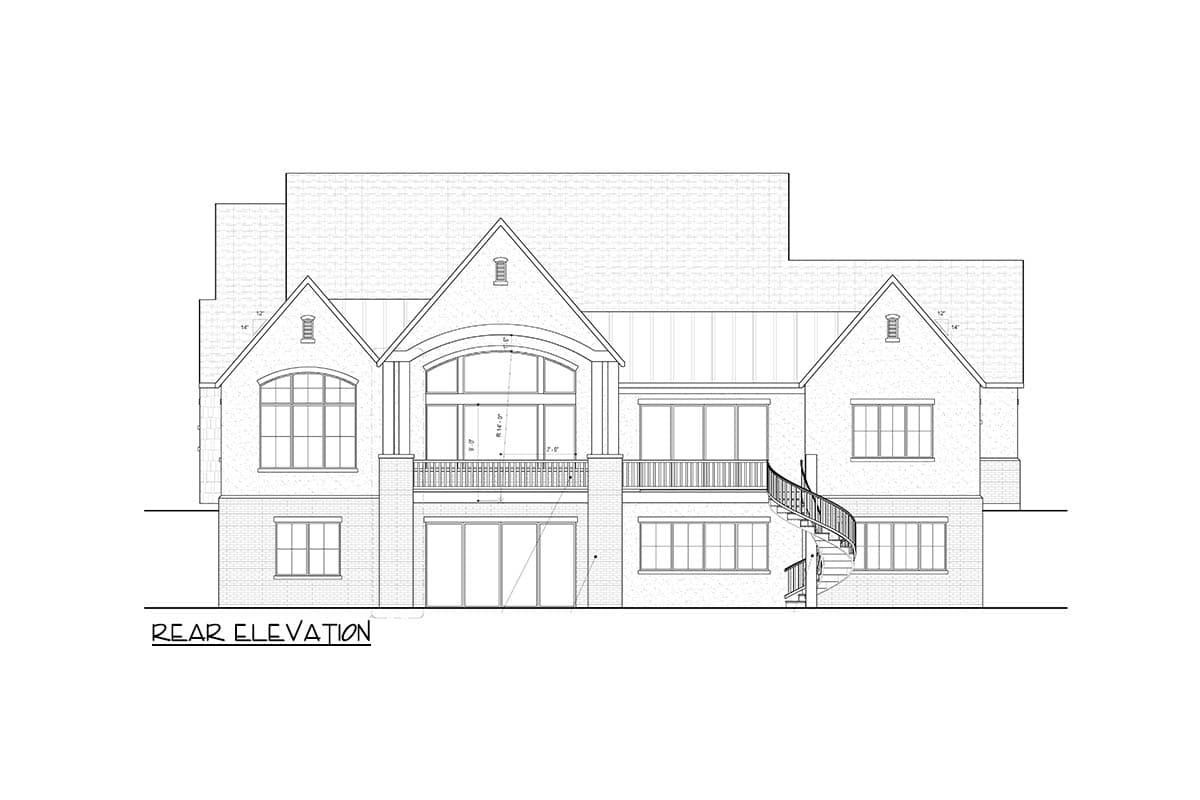

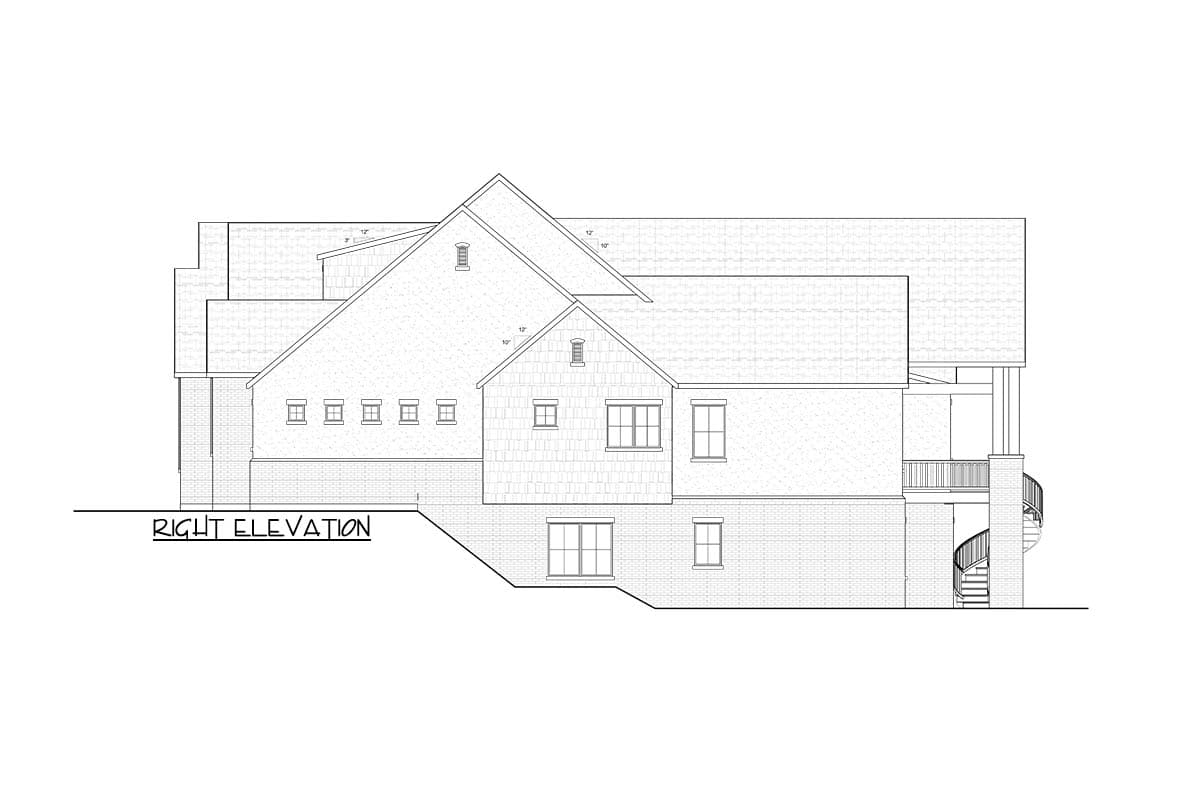

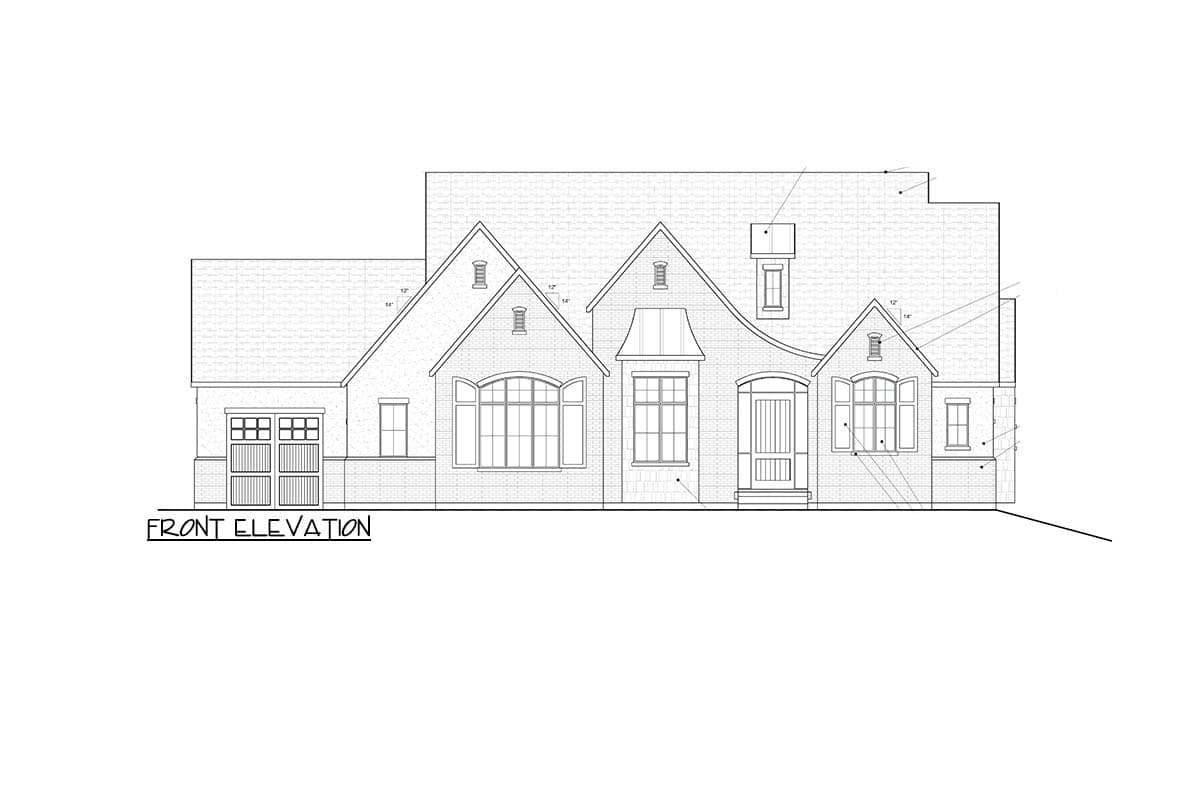

  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,241 sq. ft.

1st Floor

3,241 sq. ft.

Optional Lower Level

4,072 sq. ft.

Deck

584 sq. ft.

Covered Patio

583 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, or 5

Full bathrooms

2, 3, or 4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 4"

Depth

71' 10"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

1018 sq. ft.

Count

3 Cars

Entry Location

Side, Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

12 on 14

Secondary Pitch

12 on 10

Architectural Style

European

Transitional

Special Features

Bedrooms - Clustered

Bonus Room

Butler Walk-in Pantry

Den

Flex Room

Formal Dining

Game/Rec Room

Home Office

Home Theater

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Two Story Great Room

Wet Bar
