Plan 290175IY
Transitional House Plan with Optional Lower Level with Man Cave - 5018 Sq Ft
Heated S.F.
5,018
Beds
5
Baths
4.5+
Stories
2
Cars
4
Floor Plan

Plan 290175IY

Main Level
slide image 0
2nd Floor
slide image 1
Optional Lower Level
slide image 2

Plan 290175IY

1-800-854-7852

1-262-521-4596

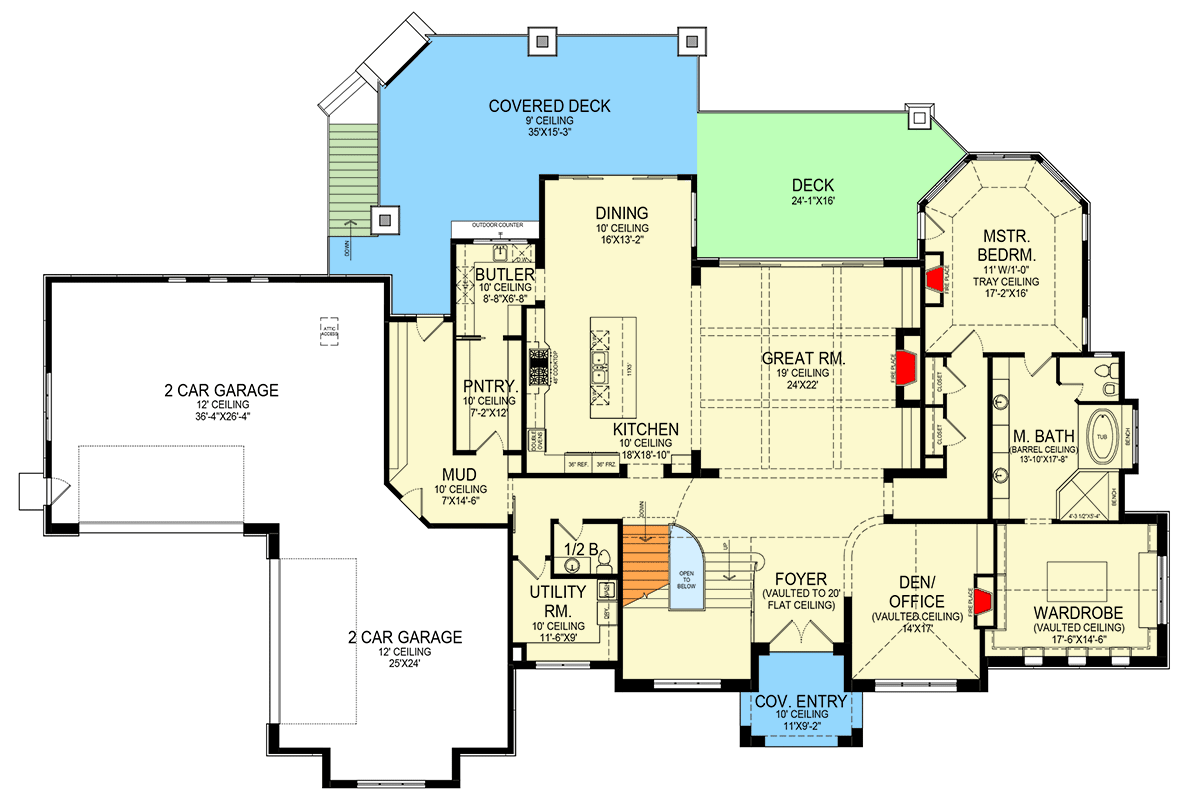

Main Level
floor plan image Main Level

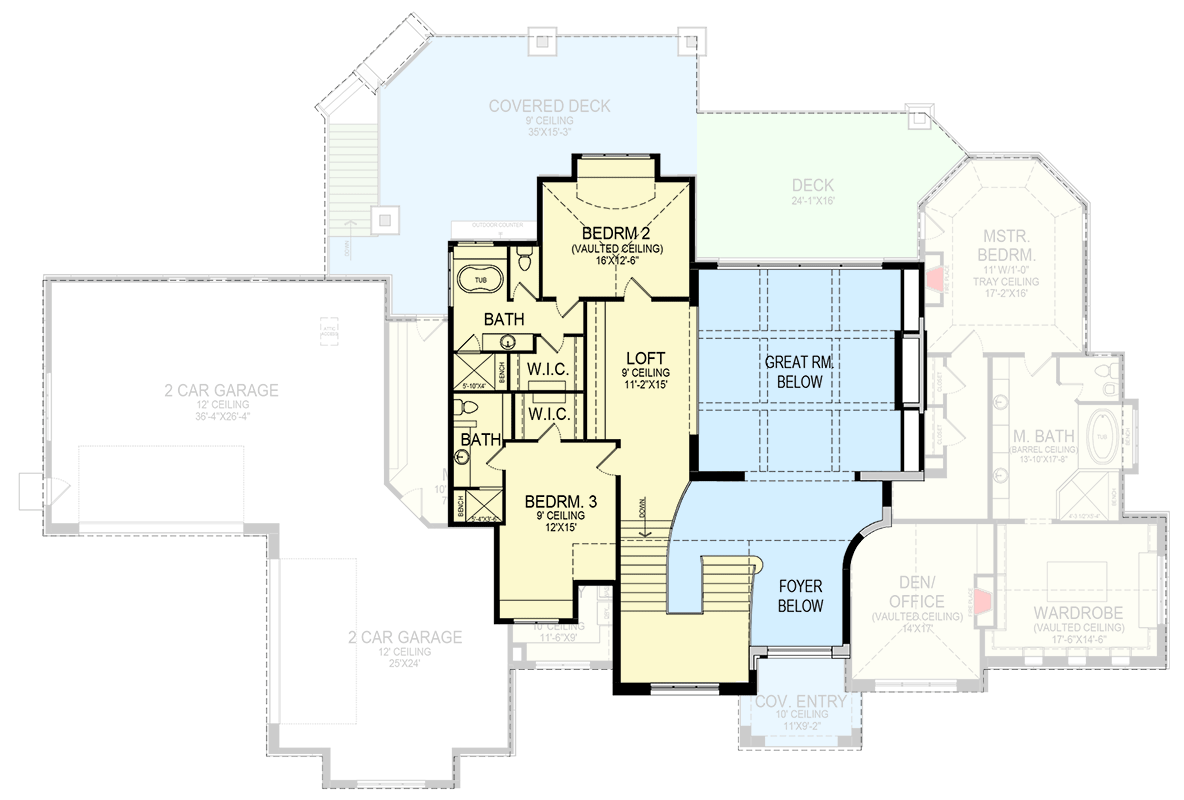

2nd Floor
floor plan image 2nd Floor

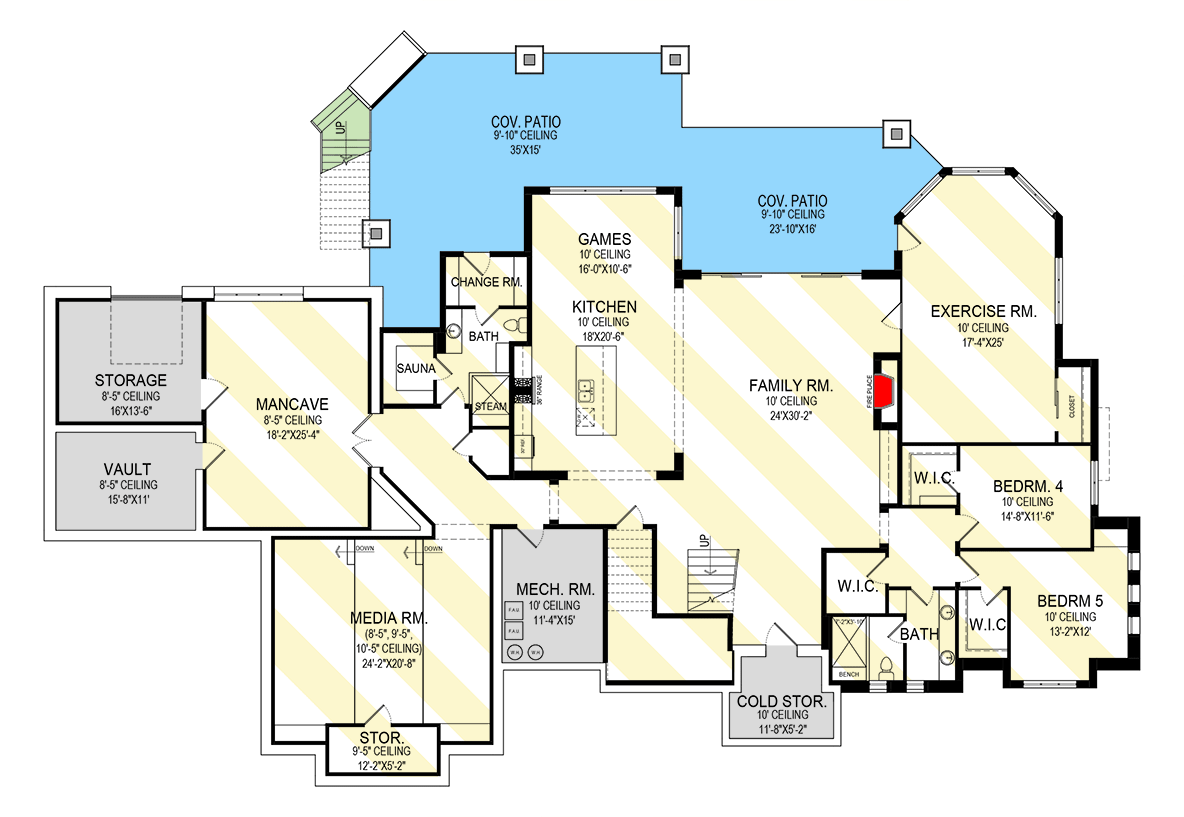

Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This Transitional house plan gives you 5 beds, 4 full and 2 half baths and 5018 square feet of heated living space.
  • The optional finished lower level gives you a man cave, a second kitchen and 5,334 square feet of future expansion.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,018 sq. ft.

1st Floor

3,727 sq. ft.

2nd Floor

1,291 sq. ft.

Optional Lower Level

5,334 sq. ft.

Deck

1,185 sq. ft.

Entry

124 sq. ft.

Covered Patio

1,141 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

122' 10"

Depth

84' 8"

Max Ridge Height

32' 6"

Garage

Type

Attached

Area

1634 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 10

Secondary Pitch

12 on 12

Architectural Style

European

Transitional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Den

Formal Dining

Game/Rec Room

Home Office

Home Theater

Laundry - Main Level

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Playroom

Safe Room

Two Story Great Room

Wet Bar

Plan Collections

Home Office
