Plan 70877SND
Transitional House Plan with Two Master Suites and Two Stairs - 7942 Sq Ft
Heated S.F.
7,942
Beds
5
Baths
6.5
Stories
2
Cars
3
Floor Plan

Plan 70877SND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 70877SND

1-800-854-7852

1-262-521-4596

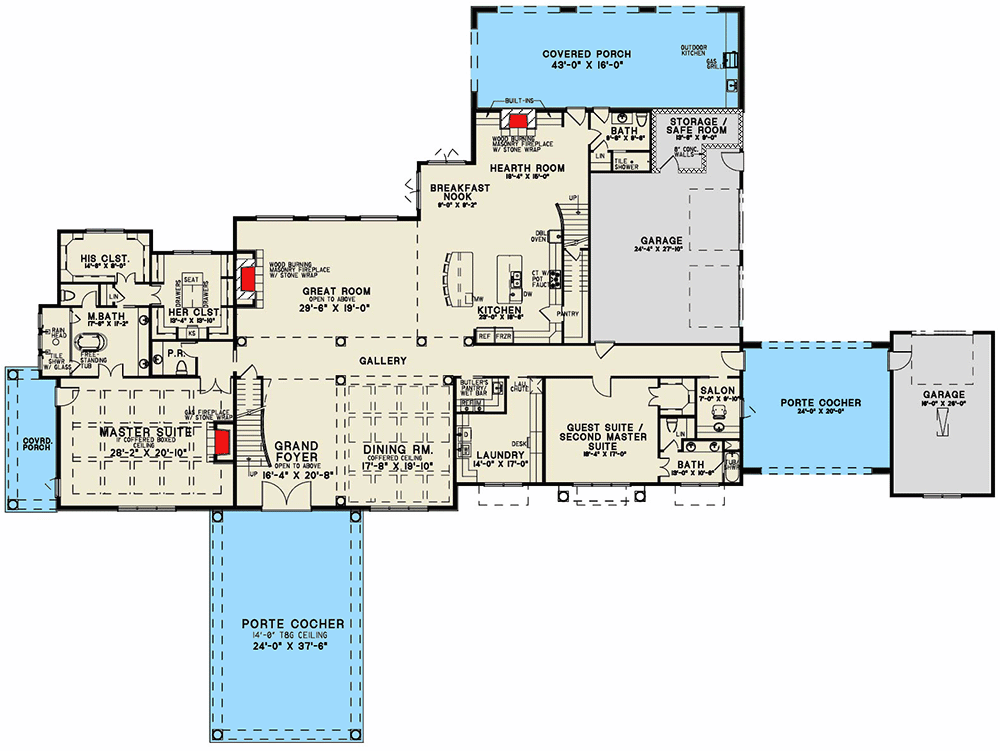

Main Level
floor plan image Main Level

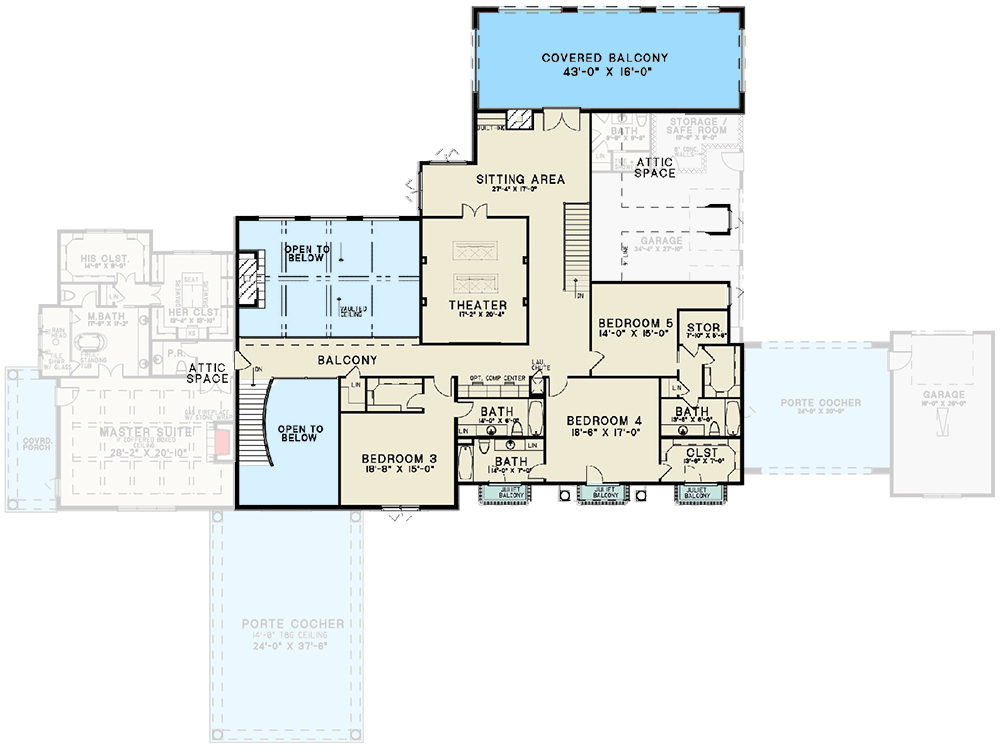

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This Transitional house plan gives you 5 beds, 6.5 baths and 7,942 square feet of heated living space and 1,303 square feet of parking for three cars in a 1-car and 2-car garage plus a porte-cochere.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

7,942 sq. ft.

1st Floor

5,079 sq. ft.

2nd Floor

2,863 sq. ft.

Porch, Combined

3,037 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

6

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

160' 9"

Depth

199' 2"

Max Ridge Height

32' 6"

Garage

Type

Attached

Area

1303 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

European

Transitional

Special Features

Breakfast Nook

Formal Dining

Home Theater

Laundry Access from Master Suite

Laundry Chute

Laundry - Main Level

Master Suite - 1st Floor

Multiple Stairs

Outdoor Kitchen

Porte Cochere

Safe Room

Two Master Suites

Plan Collections

Luxury

Porte-Cochere

Two Master Suites

Square Footage Breakdown

Total Heated Area

7,942 sq. ft.

1st Floor

5,079 sq. ft.

2nd Floor

2,863 sq. ft.

Porch, Combined

3,037 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

6

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

160' 9"

Depth

199' 2"

Max Ridge Height

32' 6"

Garage

Type

Attached

Area

1303 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

European

Transitional

Special Features

Breakfast Nook

Formal Dining

Home Theater

Laundry Access from Master Suite

Laundry Chute

Laundry - Main Level

Master Suite - 1st Floor

Multiple Stairs

Outdoor Kitchen

Porte Cochere

Safe Room

Two Master Suites

Plan Collections

Luxury

Porte-Cochere

Two Master Suites
