Plan 703005TYL

Exclusive

Transitional House Plan with Two Story Great Room and Lower Level with Home Theater
Heated S.F.
3,904
Beds
4 - 5
Baths
4.5 - 5.5
Stories
2
Cars
4
Floor Plan

Plan 703005TYL

Main Level
slide image 0
2nd Floor
slide image 1
Optionally Finished Lower Level
slide image 2

Plan 703005TYL

1-800-854-7852

1-262-521-4596

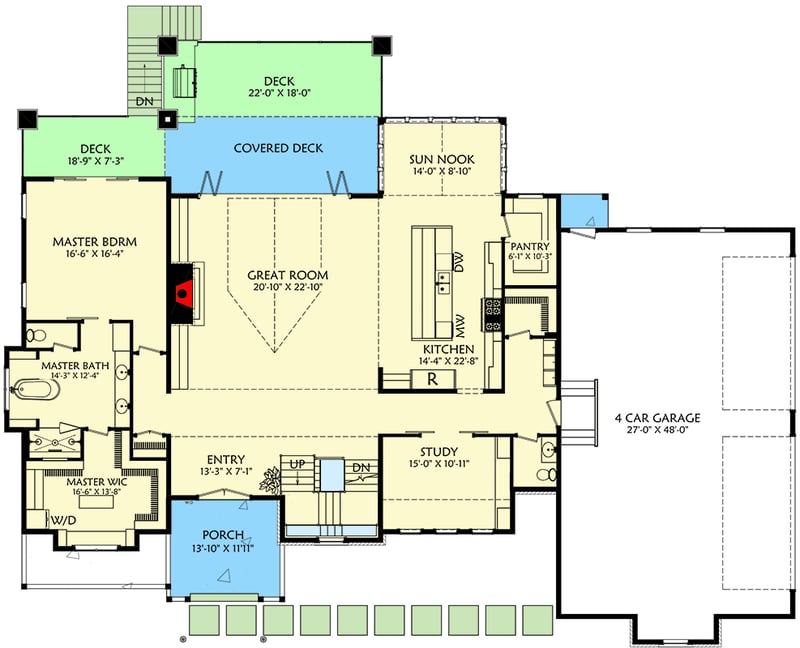

Main Level
floor plan image Main Level

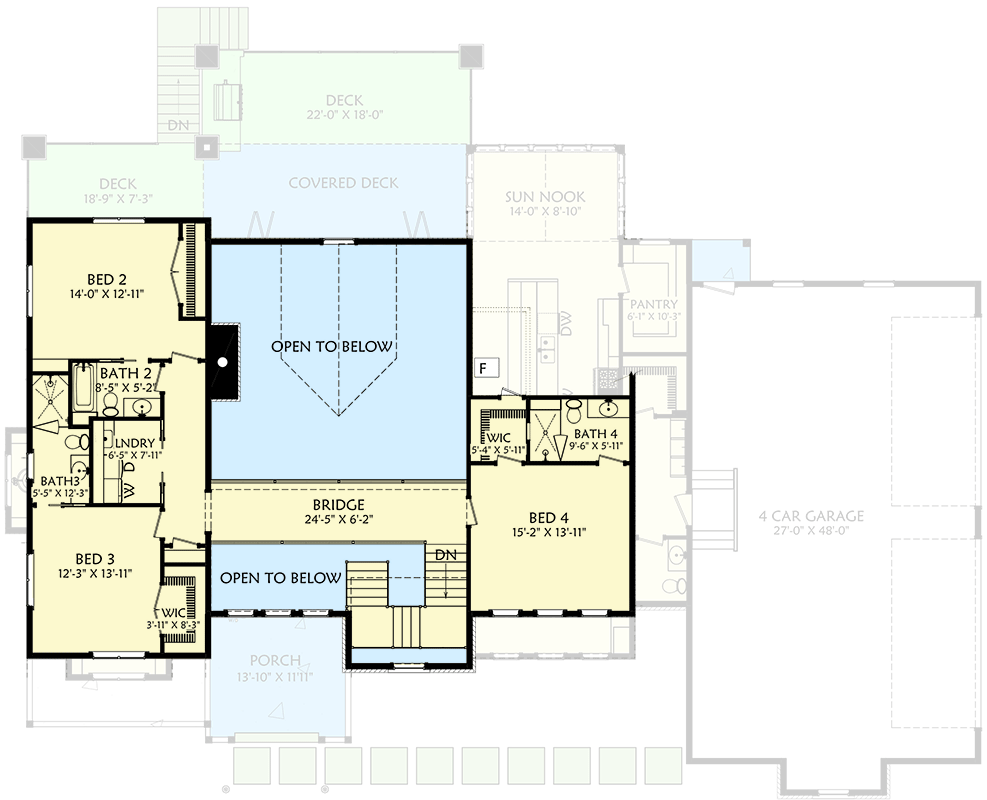

2nd Floor
floor plan image 2nd Floor

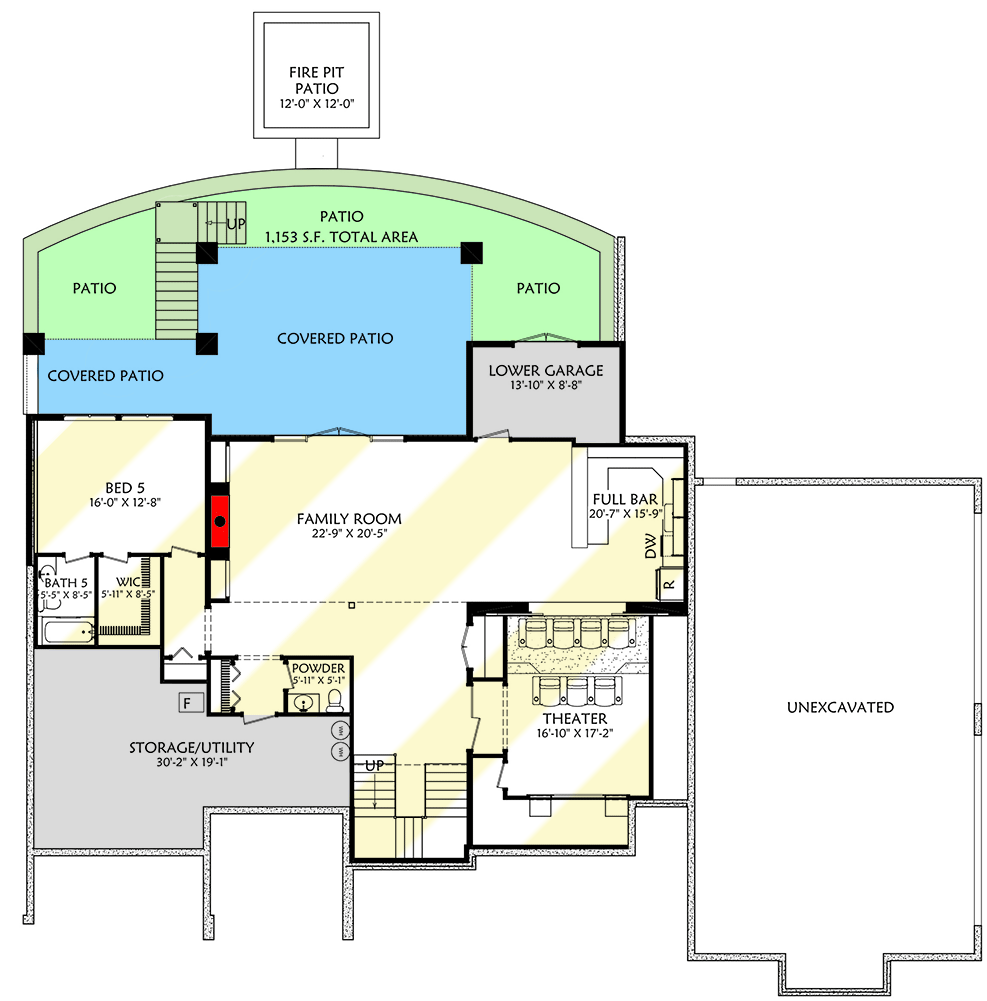

Optionally Finished Lower Level
floor plan image Optionally Finished Lower Level
Plan Details
  • This 2-story transitional house plan has a beautiful exterior and gives you two floors of above ground living and a lower level designed with fun in mind.
  • French doors open to the foyer which flows into the 2-story great room with fireplace and a collapsible back wall giving you indoor-outdoor living.
  • The kitchen has a large island and a walk-in pantry and is open to the great room and the nook filled with windows. Barn doors open to the study which makes a great work-from-home space.
  • The master suite occupies the entire left side of the home and has a washer and dryer in the walk-in closet and access to the back deck.
  • The second floor has three bedrooms with Beds 2 and 3 to one side - along with laundry - and Bed 4 alone on the right. The bridge connects the two sides and overlooks the great room and the foyer.
  • Finish the lower level and get a fifth bedroom plus a home theater, a family room with full bar and access to the covered patio.
What's Included
  • Cover page with notes & index
  • Exterior Elevations
  • Floor plans and stair section (the latter when applicable)
  • Roof plan
  • Building section & details
  • Electrical plans
  • Foundation plan (outline only)
  • Main floor framing plan (outline only)
  • Roof plan (outline only)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,904 sq. ft.

1st Floor

2,681 sq. ft.

2nd Floor

1,223 sq. ft.

Basement Unfinished

415 sq. ft.

Optional Lower Level

1,864 sq. ft.

Porch, Front

244 sq. ft.

Porch, Rear

1,593 sq. ft.

Deck

539 sq. ft.

Entry

92 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4 or 5

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

93' 0"

Depth

71' 0"

Max Ridge Height

28' 3"

Garage

Type

Attached

Area

1242 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 8"

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Contemporary

Transitional

Special Features

Breakfast Nook

Butler Walk-in Pantry

Home Theater

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Sunroom

Two Story Great Room

Wet Bar

Plan Collections

Exclusive

Luxury

Square Footage Breakdown

Total Heated Area

3,904 sq. ft.

1st Floor

2,681 sq. ft.

2nd Floor

1,223 sq. ft.

Basement Unfinished

415 sq. ft.

Optional Lower Level

1,864 sq. ft.

Porch, Front

244 sq. ft.

Porch, Rear

1,593 sq. ft.

Deck

539 sq. ft.

Entry

92 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4 or 5

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

93' 0"

Depth

71' 0"

Max Ridge Height

28' 3"

Garage

Type

Attached

Area

1242 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 8"

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Contemporary

Transitional

Special Features

Breakfast Nook

Butler Walk-in Pantry

Home Theater

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Sunroom

Two Story Great Room

Wet Bar

Plan Collections

Exclusive

Luxury
