Plan 580029DFT
Transitional Ranch Plan with 4-Car Garage and Dog Run
Heated S.F.
4,992
Beds
4 - 5
Baths
4.5+
Stories
2
Cars
4
Floor Plan

Plan 580029DFT

Main Level
slide image 0
Lower Level
slide image 1

Plan 580029DFT

1-800-854-7852

1-262-521-4596

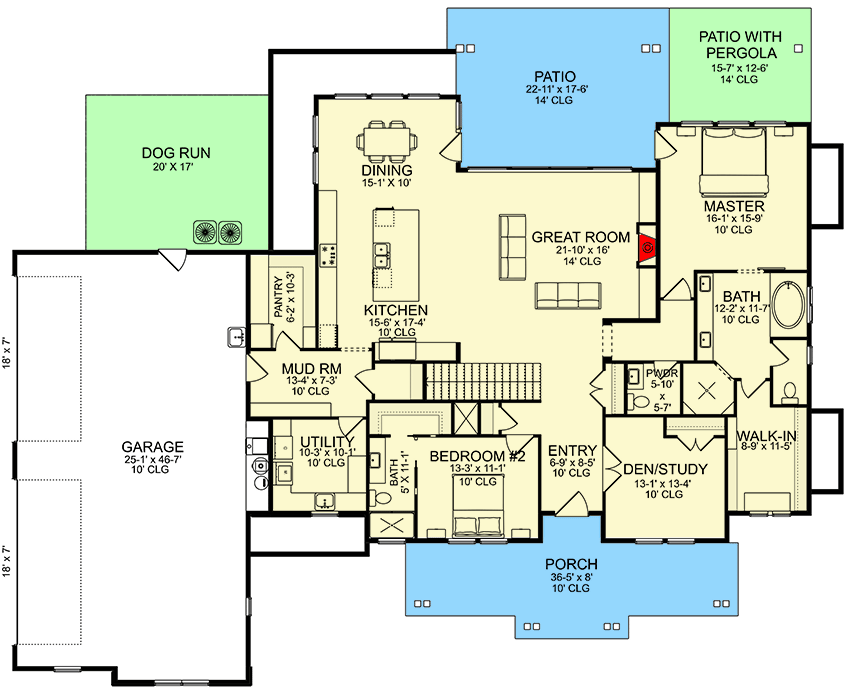

Main Level
floor plan image Main Level

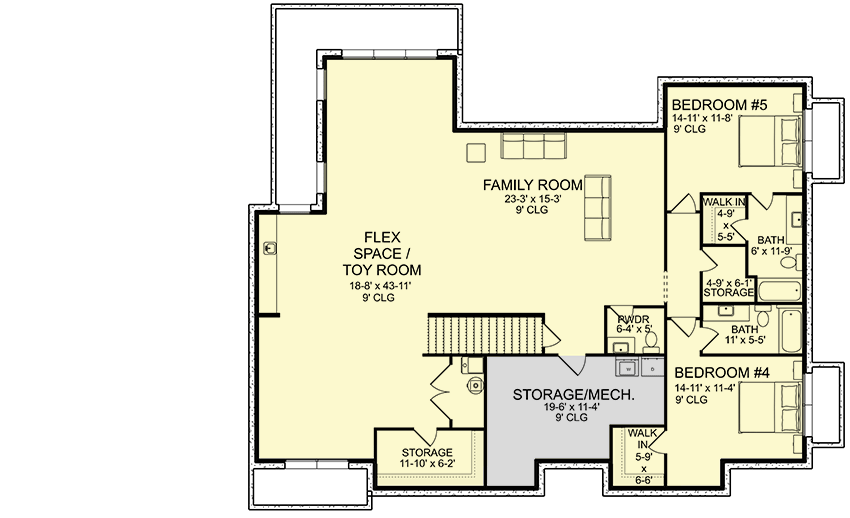

Lower Level
floor plan image Lower Level
Plan Details
  • With nearly 5,000 sq ft of living space, this Transitional Ranch plan delivers a stunning exterior and a thoughtful design for a family or empty nesters.
  • The open-concept layout brings the family together, while a den (or study) off the entry provides a quieter space to unwind.
  • The sizable service areas are clustered near the 4-car garage and a dog run considers your furry family members.
  • The serene master suite is located on the main-level and paired with a 5-fixture bathroom with a walk-in closet.
  • Downstairs, an enormous family room / flex space allows the kids to play freely. Two bedroom suites and plenty of storage complete the lower level.
What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

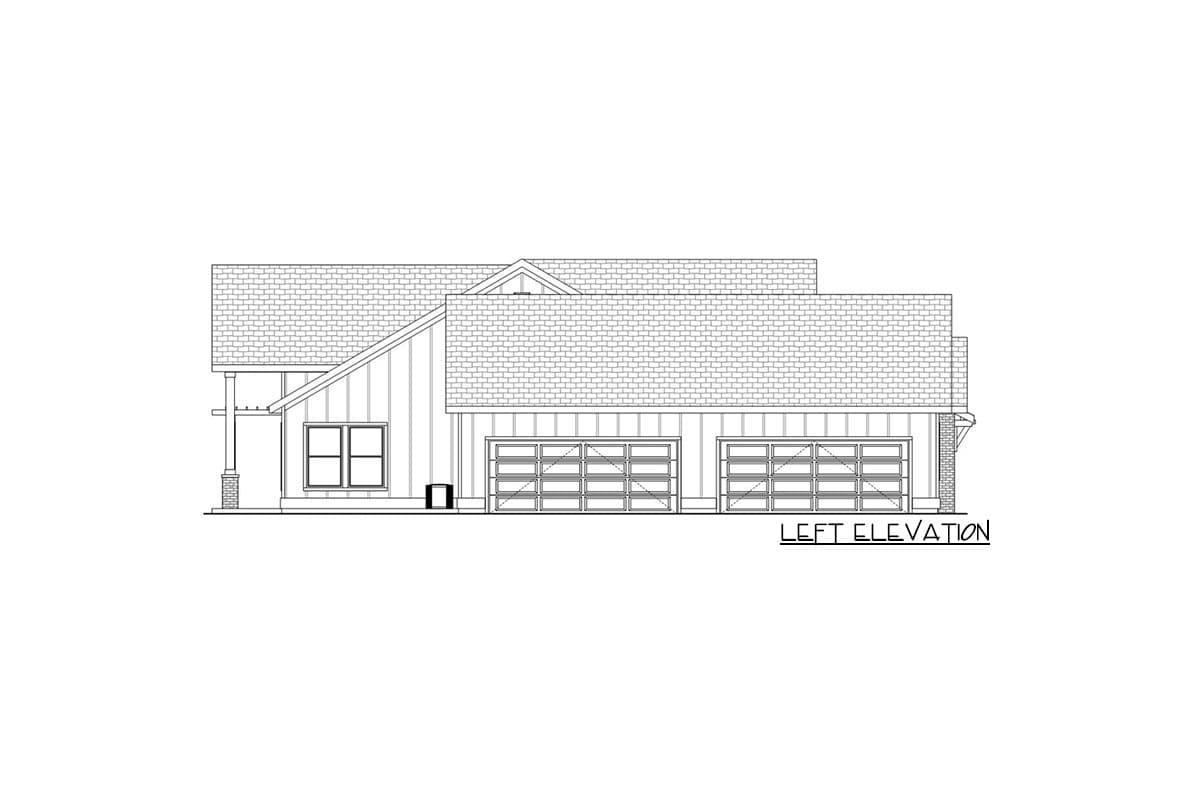

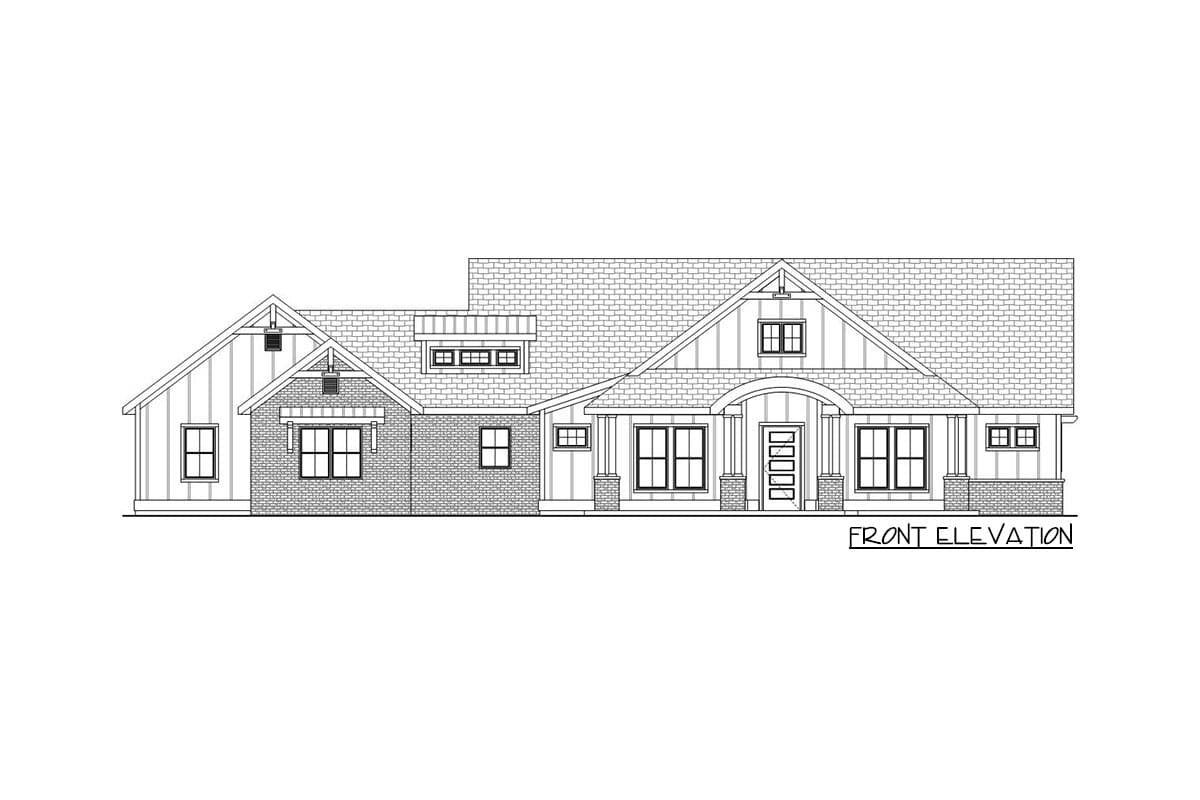

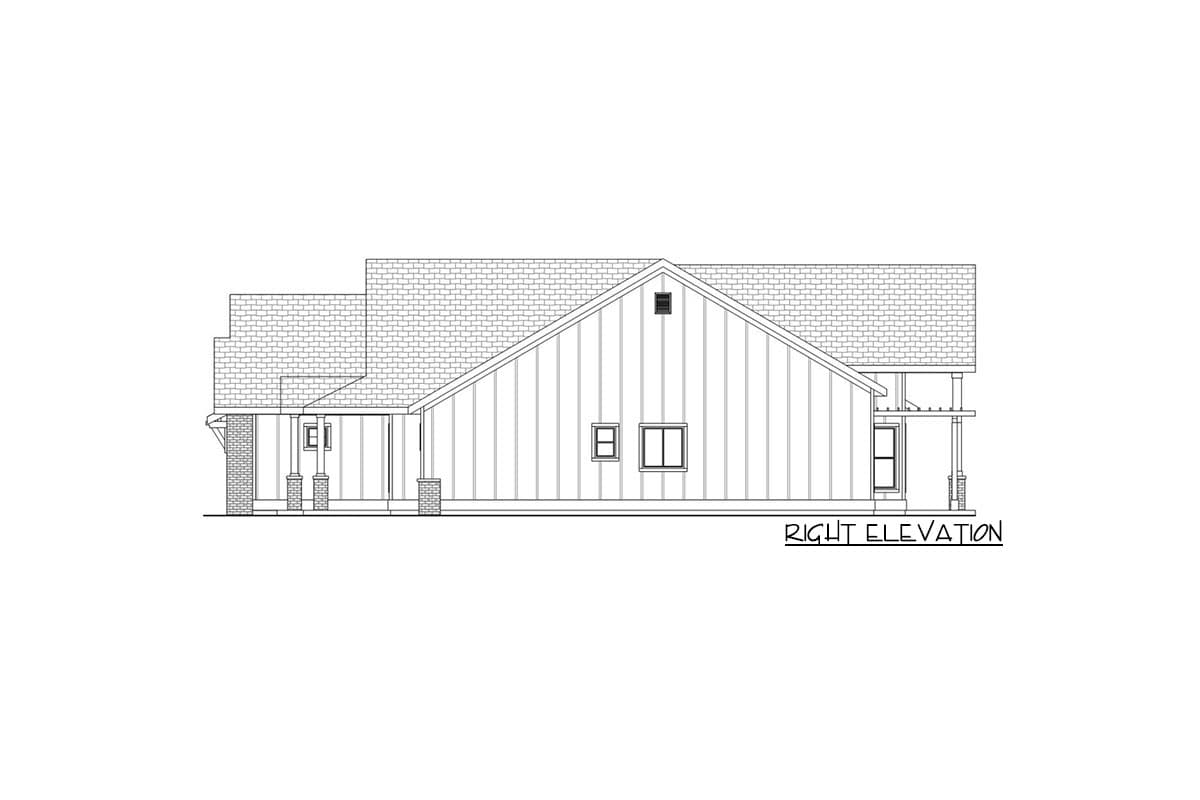

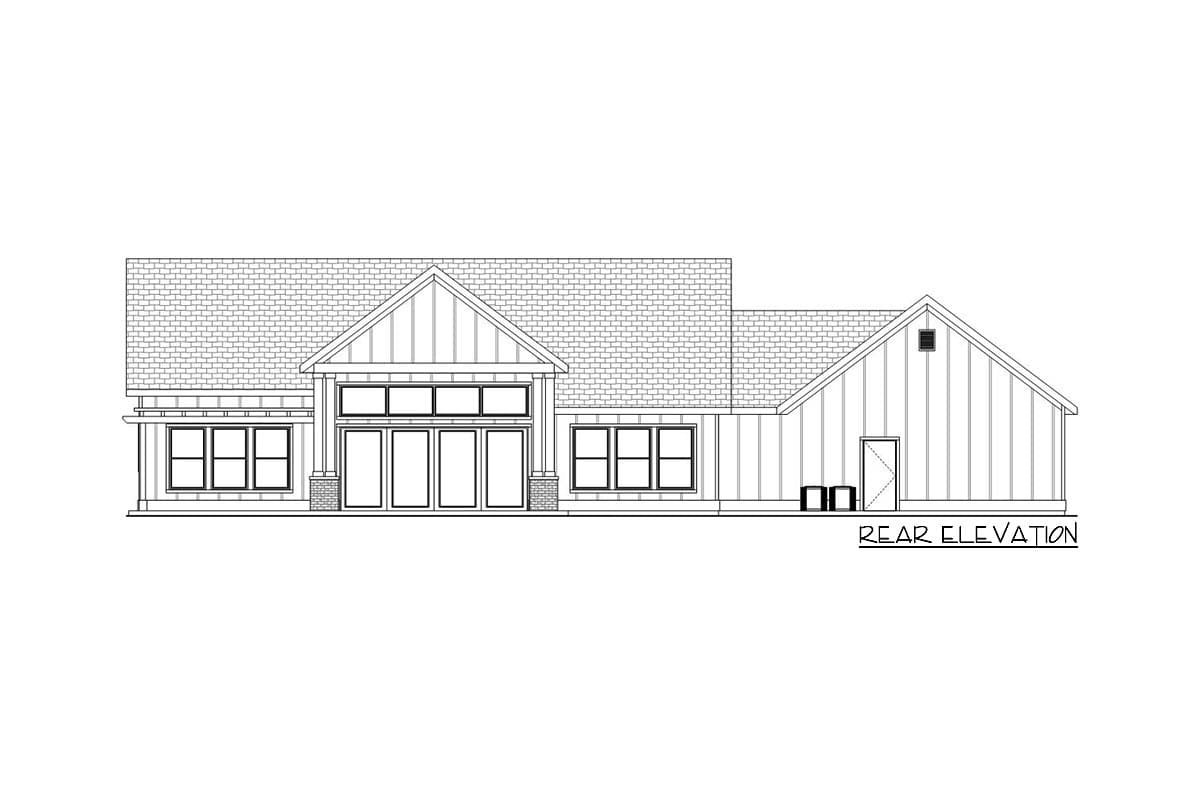

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,992 sq. ft.

Lower Level

2,420 sq. ft.

1st Floor

2,572 sq. ft.

Porch, Front

292 sq. ft.

Covered Patio

433 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 5"

Depth

70' 0"

Garage

Type

Attached

Area

1231 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Den

Flex Room

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Wet Bar

Square Footage Breakdown

Total Heated Area

4,992 sq. ft.

Lower Level

2,420 sq. ft.

1st Floor

2,572 sq. ft.

Porch, Front

292 sq. ft.

Covered Patio

433 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 5"

Depth

70' 0"

Garage

Type

Attached

Area

1231 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Den

Flex Room

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Wet Bar
