Plan 135250GRA

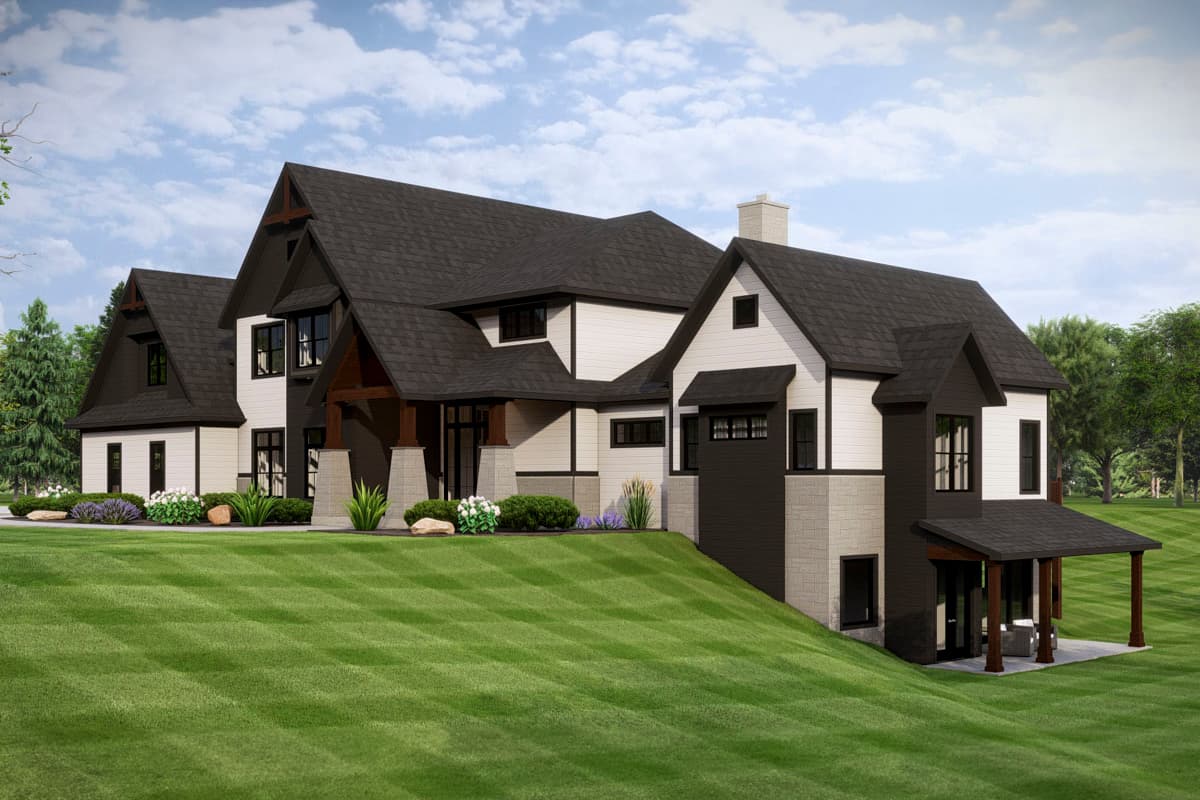

Transitional Tudor House Plan with 4-Car Garage - 4158 Sq Ft

Heated S.F.

4,158

Beds

5

Baths

3.5

Stories

2

Cars

4

Floor Plan

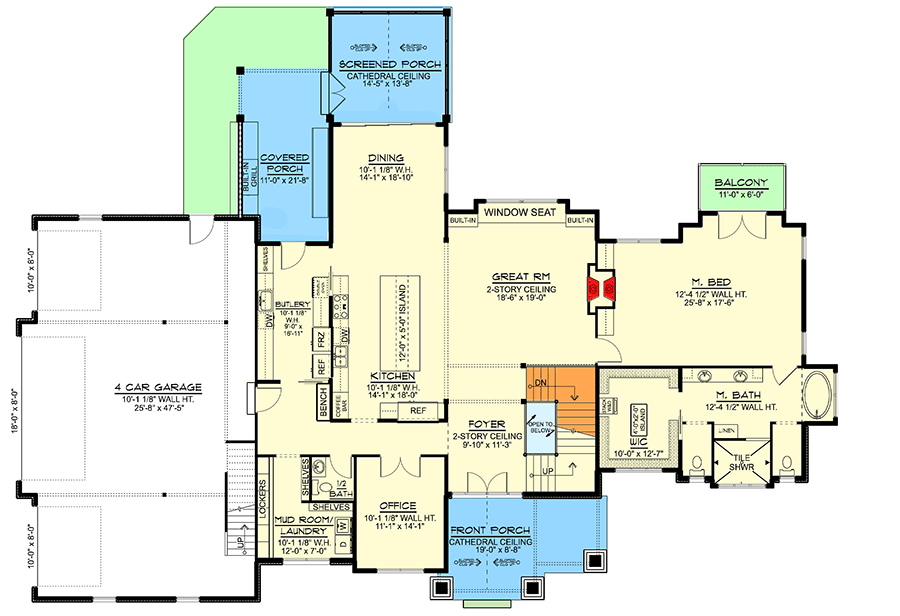

Main Level

floor plan image Main Level

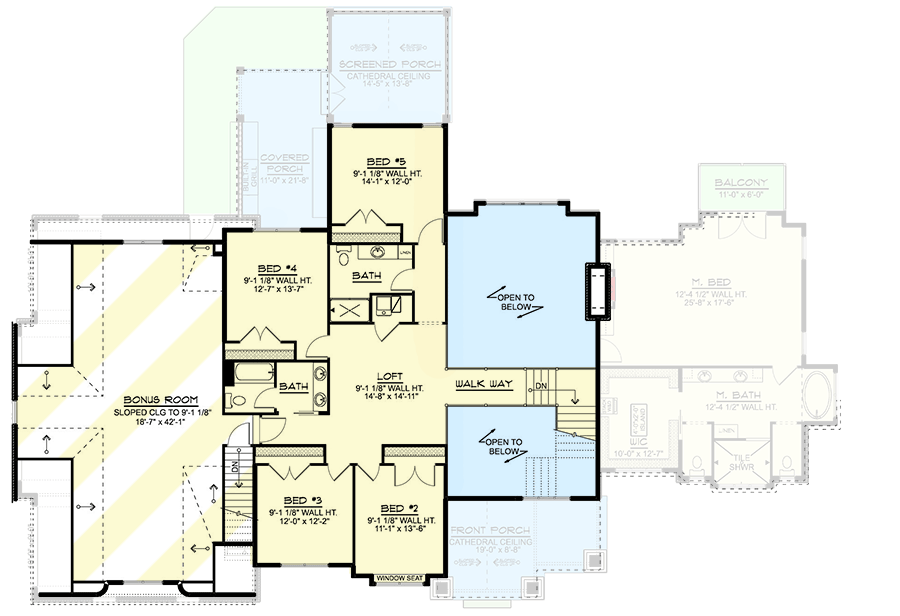

2nd Floor

floor plan image 2nd Floor

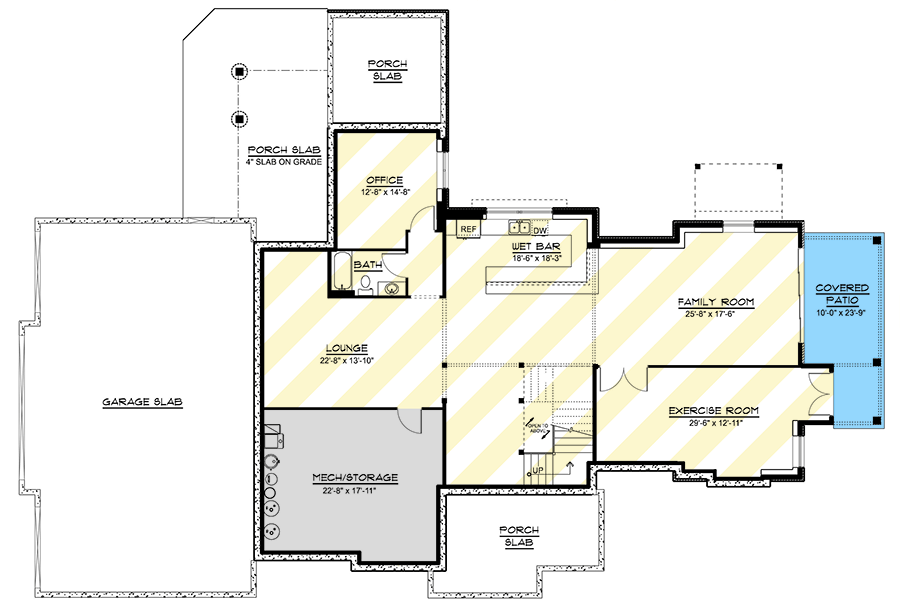

Optional Lower Level

floor plan image Optional Lower Level

Plan Details

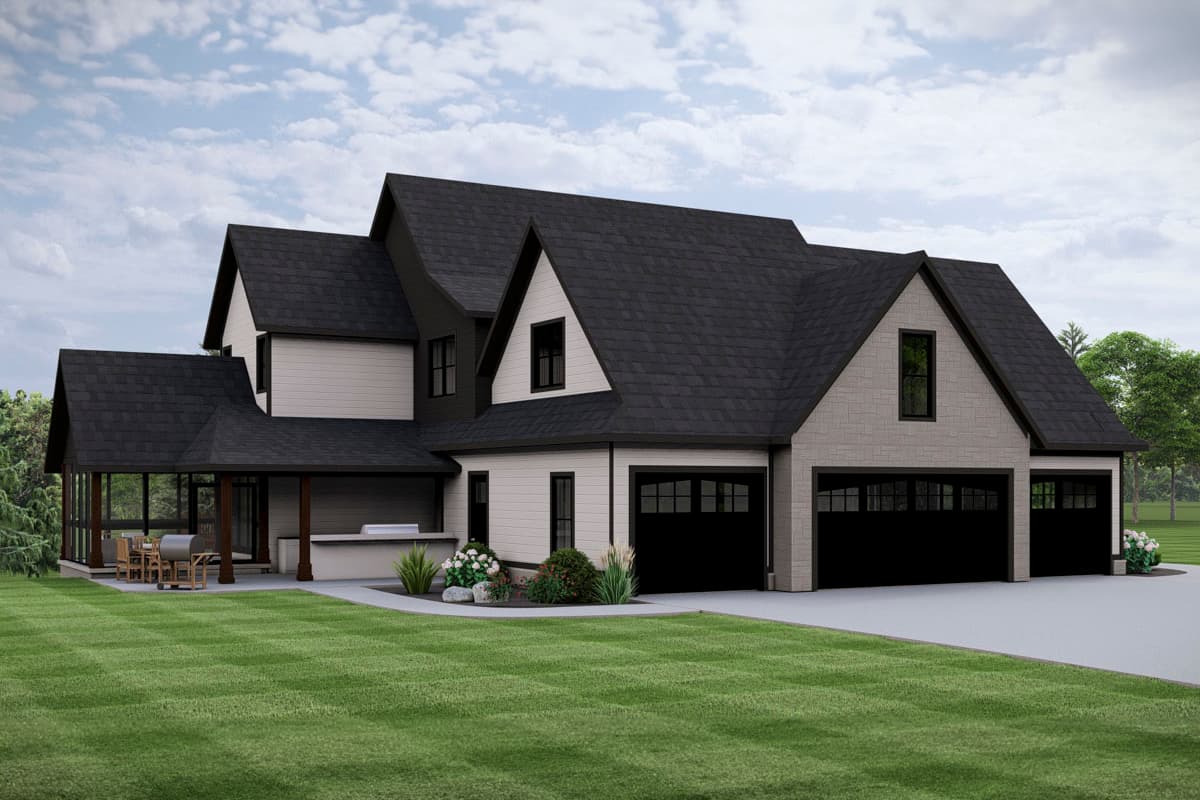

This 2-story Transitional Tudor house plan gives you 5 beds, 3.5 baths and 4,158 square feet of heated living and a 4-car 1,388 square foot garage
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Elevations
Fully Dimensioned Floor Plans
Roof Plan & Sections
Foundation plan
General Notes
Suggested Electrical Layout

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,158 sq. ft.

1st Floor

2,785 sq. ft.

2nd Floor

1,373 sq. ft.

Basement Unfinished

2,854 sq. ft.

Bonus

954 sq. ft.

Porch, Combined

744 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

103' 0"

Depth

74' 0"

Max Ridge Height

34' 2"

Garage

Type

Attached

Area

1388 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

13 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Kitchen

Two Story Great Room
