Plan 40014DB
Triplex House Plan with 1341 Square Foot 2-Bed Units with Drive-Under Garages
Heated S.F.
4,023
Units
3
Width
Depth
Floor Plan

Plan 40014DB

Basement
slide image 0
Main Level
slide image 1
2nd Floor
slide image 2

Plan 40014DB

1-800-854-7852

1-262-521-4596

Basement
floor plan image Basement
Main Level

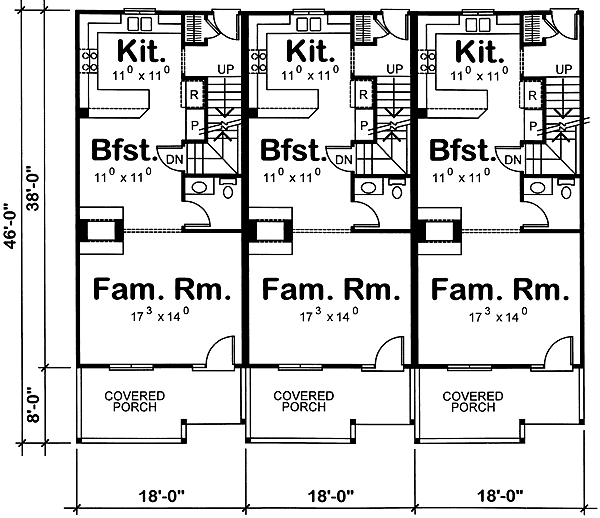

floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This triplex house plan gives you matching units each with 1,341 square feet of heated living and 2 beds, 2.5 baths and 1-car 385 square foot drive-under garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,341Sq. Ft.
685 Sq. Ft.
1st Floor
657 Sq. Ft.
2nd Floor
2Beds
2Full Baths
1Half Bath
1Vehicle
Drive Under
385 Sq. Ft.
18'width
46'depth
34' 4"height
Unit B
1,341Sq. Ft.
685 Sq. Ft.
1st Floor
657 Sq. Ft.
2nd Floor
2Beds
2Full Baths
1Half Bath
1Vehicle
Drive Under
385 Sq. Ft.
18'width
46'depth
34' 4"height
Unit C
1,341Sq. Ft.
685 Sq. Ft.
1st Floor
657 Sq. Ft.
2nd Floor
2Beds
2Full Baths
1Half Bath
1Vehicle
Drive Under
385 Sq. Ft.
18'width
46'depth
34' 4"height
What's Included
  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,023 sq. ft.

1st Floor

2,052 sq. ft.

2nd Floor

1,971 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

46' 0"

Max Ridge Height

34' 4"

Garage

Type

Drive Under, Attached

Area

1155 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

4,023 sq. ft.

1st Floor

2,052 sq. ft.

2nd Floor

1,971 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

46' 0"

Max Ridge Height

34' 4"

Garage

Type

Drive Under, Attached

Area

1155 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Sloping Lot
