Plan 970038VC
Tudor House Plan with Optional Finished Lower Level
Heated S.F.
2,730
Beds
3 - 5
Baths
2.5 - 3.5
Stories
1
Cars
3
Floor Plan

Plan 970038VC

Main Level
slide image 0

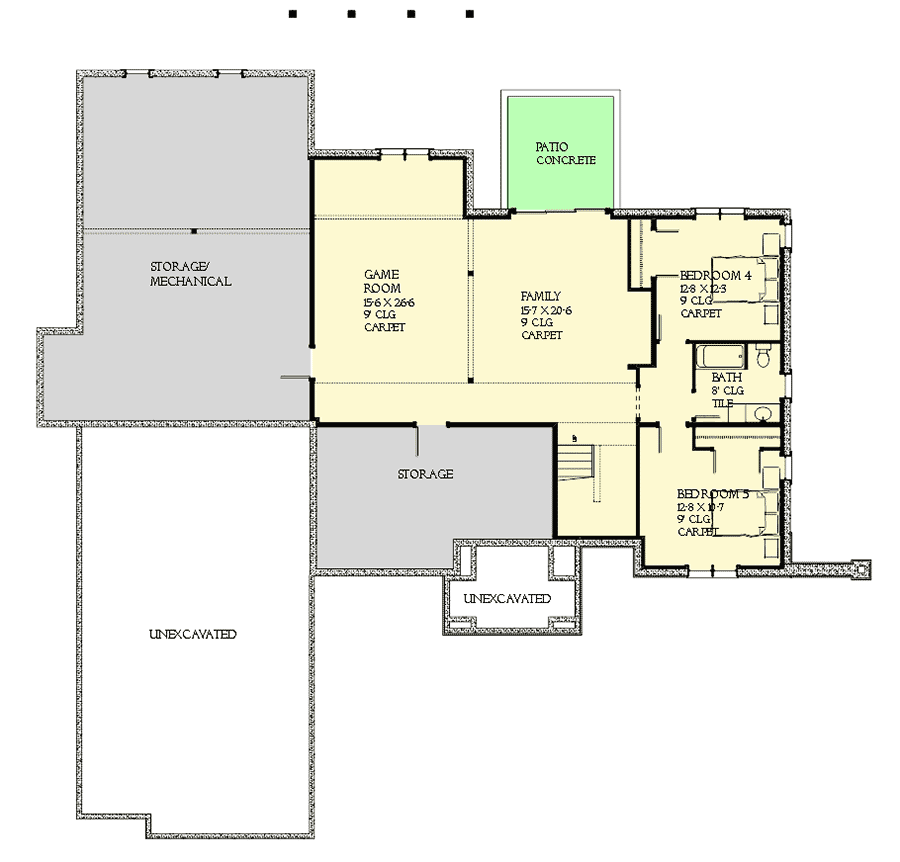

Lower Level
slide image 1

Plan 970038VC

1-800-854-7852

1-262-521-4596

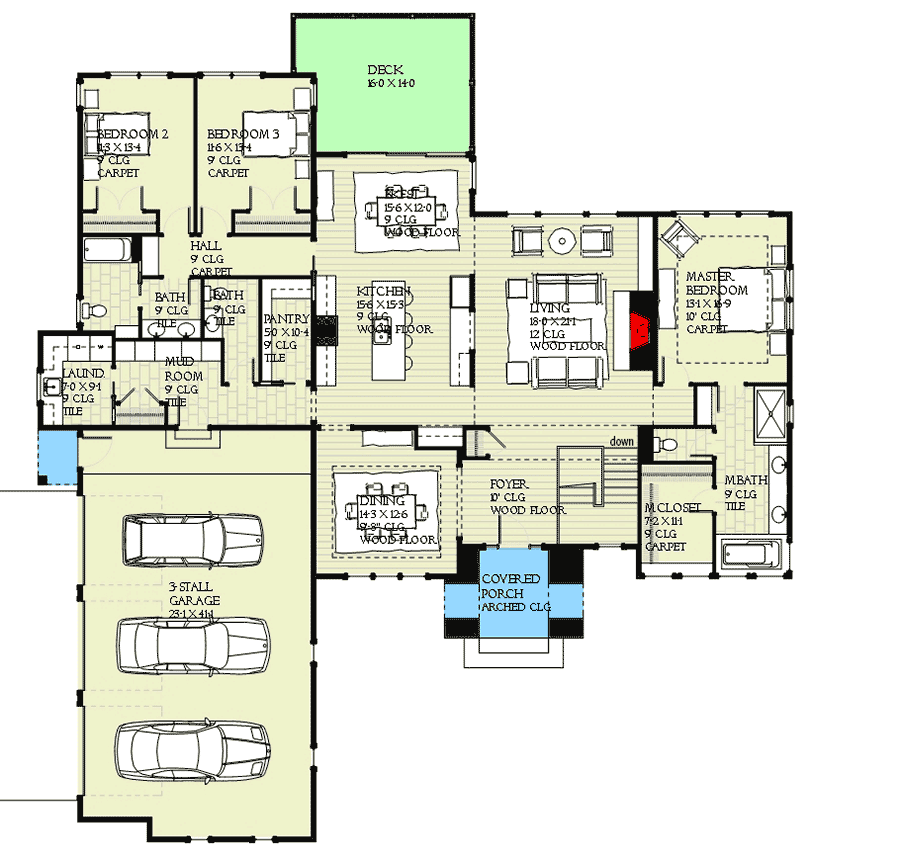

Main Level
floor plan image Main Level
Lower Level
floor plan image Lower Level
Plan Details
  • Beautiful Tudor detailing makes this European house look as if it were set in the Old World.
  • A swoop roof spans one of the gables with dramatic flair.
  • The comfortable and spacious interior makes use of an open layout to give you wonderful sight lines.
  • A pass through opening in the kitchen lets you visit with guests and family while cooking.
  • You can eat outside on the big deck accessed through the nook.
  • The master bedroom is set off by itself and boasts a lovely tray ceiling and lots of windows.
  • The family bedrooms are all the way across the house.
  • Finish the optional lower level to gain an extra 1,397 square feet of living space.
  • This adds two more bedrooms, a game room and a family room and plenty of storage space.
What's Included
  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

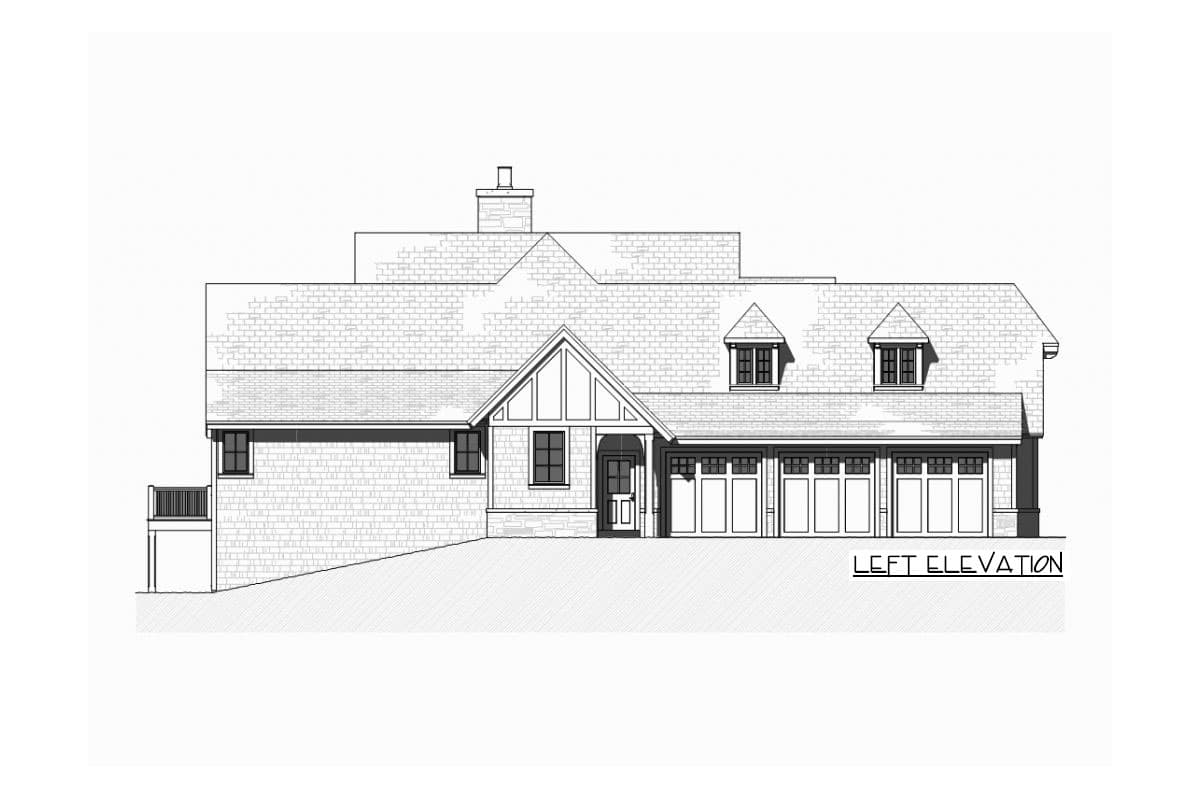

  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,730 sq. ft.

1st Floor

2,730 sq. ft.

Optional Lower Level

1,397 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 0"

Depth

77' 7"

Garage

Type

Attached

Area

948 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Architectural Style

European

New American

Tudor

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Game/Rec Room

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,730 sq. ft.

1st Floor

2,730 sq. ft.

Optional Lower Level

1,397 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 0"

Depth

77' 7"

Garage

Type

Attached

Area

948 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Architectural Style

European

New American

Tudor

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Game/Rec Room

Master Suite - 1st Floor

Plan Collections

Photo Gallery
