Plan 16803WG
Tuscan Delight with Arched Entry
Heated S.F.
1,780
Beds
3
Baths
2
Stories
1
Cars
2

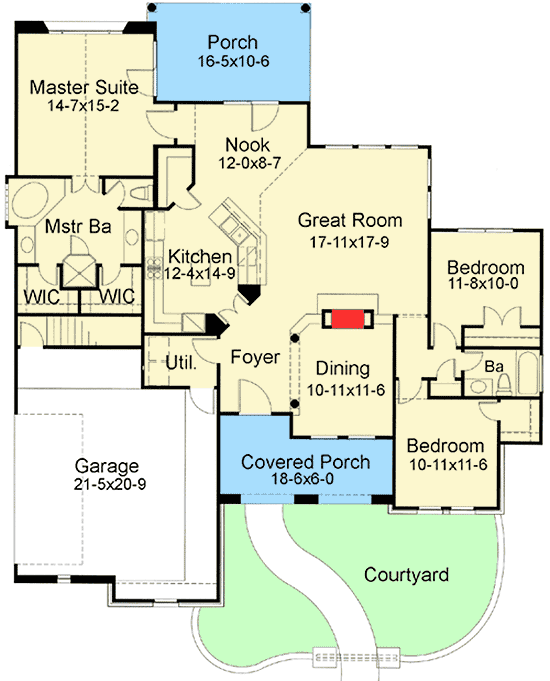

Floor Plan

Plan 16803WG

Main Level
slide image 0

Plan 16803WG

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This Tuscan style house plan features a split bedroom layout with a private vaulted master suite. A door gives you rear porch access.
  • A 2-sided fireplace is shared by the dining room and living room. You'll enjoy 12' ceilings in the living room, dining room and foyer.
  • Windows line the great room walls giving you views out the back and side. You'll love the sloped ceiling.
  • A walk-in pantry is a nice touch in the kitchen. Counter seating is great for casual meals.
  • A side-entry garage is well-suited for a corner lot.
  • Related Plan: For a more traditional exterior, see house plan 16802WG.
What's Included
  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,780 sq. ft.

1st Floor

1,780 sq. ft.

Porch, Front

100 sq. ft.

Porch, Rear

173 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 5"

Depth

59' 5"

Max Ridge Height

23' 1"

Garage

Type

Attached

Area

631 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Foyer

12' 0''

Living Room

12' 0''

Dining Room

12' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Mediterranean

Ranch

Southwest

Spanish

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Kitchen Islands

Square Footage Breakdown

Total Heated Area

1,780 sq. ft.

1st Floor

1,780 sq. ft.

Porch, Front

100 sq. ft.

Porch, Rear

173 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 5"

Depth

59' 5"

Max Ridge Height

23' 1"

Garage

Type

Attached

Area

631 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Foyer

12' 0''

Living Room

12' 0''

Dining Room

12' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Mediterranean

Ranch

Southwest

Spanish

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Kitchen Islands
