Plan 59850ND
Tuscan House Plan with Optional Home Theater
Heated S.F.
1,875
Beds
4
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 59850ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 59850ND

1-800-854-7852

1-262-521-4596

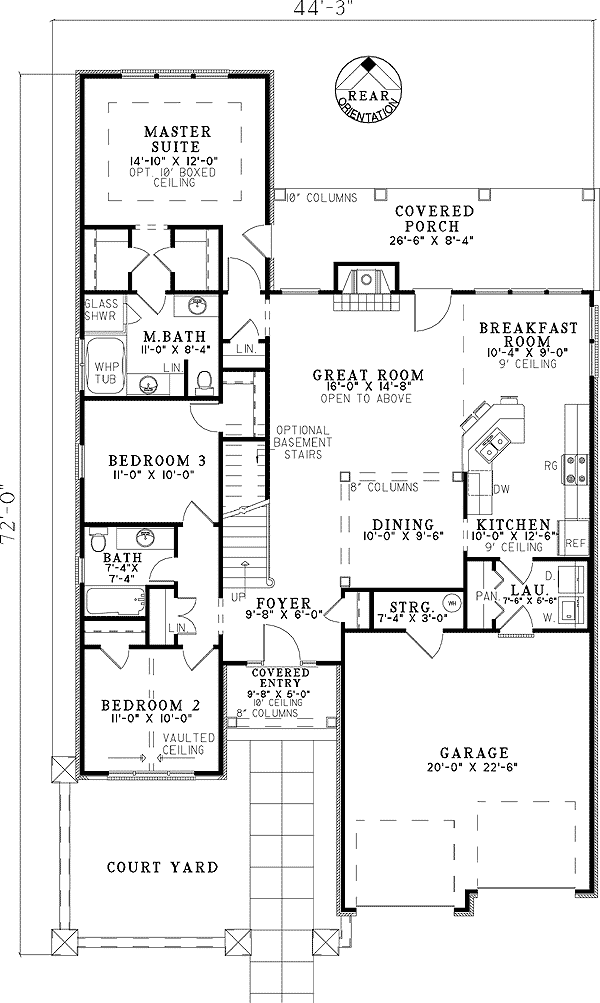

Main Level
floor plan image Main Level

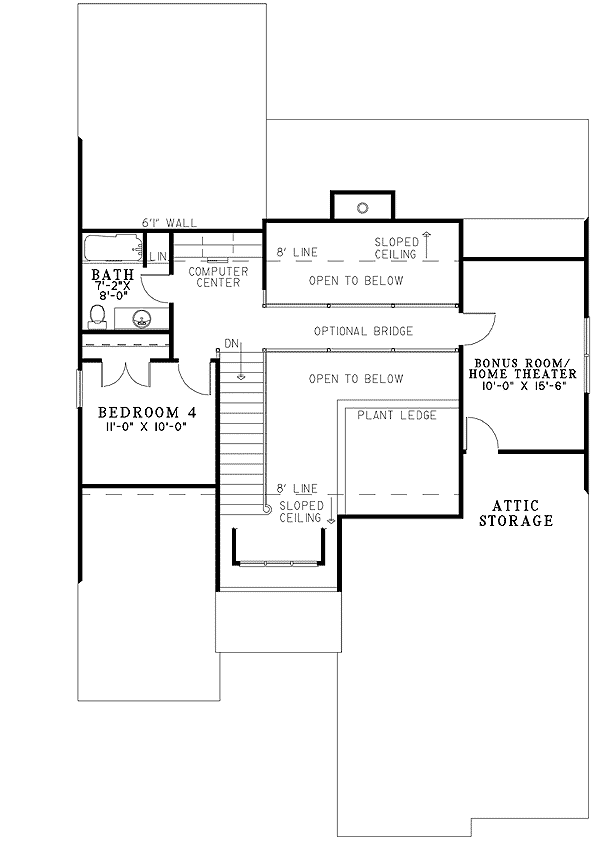

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Although modest in size, this Tuscan house plan treats you to upscale features like a front courtyard, elegant interior columns and an optional second floor bridge balcony to a home theater room.
  • The open floor plan keeps the whole family within sight and has a graceful flow from room to room.
  • Three bedrooms are lined up on the left side of the home with the master suite in back away from street noise.
  • The fourth bedroom is upstairs by itself and would make a great teen or guest suite.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,875 sq. ft.

1st Floor

1,588 sq. ft.

2nd Floor

287 sq. ft.

Bonus

233 sq. ft.

Porch, Rear

232 sq. ft.

Entry

48 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 3"

Depth

72' 0"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

480 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

European

Tuscan

Special Features

Bonus Room

Home Theater

Master Suite - 1st Floor
