Plan 16814WG
Tuscan Influences
Heated S.F.
3,024
Beds
3
Baths
3
Stories
1
Cars
1
Floor Plan

Plan 16814WG

Main Level
slide image 0

Plan 16814WG

1-800-854-7852

1-262-521-4596

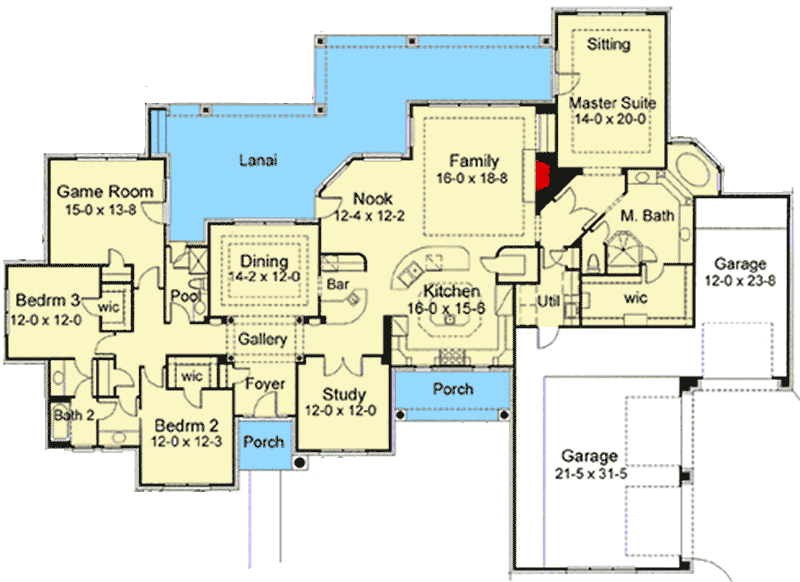

Main Level
floor plan image Main Level
Plan Details
  • A rustic stone and stucco exterior and tile roof give this a touch of Tuscan flair.
  • Living spaces extend to the outdoors with a large covered lanai stretching across the back that is even accessible from the master suite.
  • French doors lead to your own private study, and a game room in the back is the perfect place to watch a movie.
  • The kitchen has a large pantry and a bar by the dining room that adds to your entertaining options.
What's Included
  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

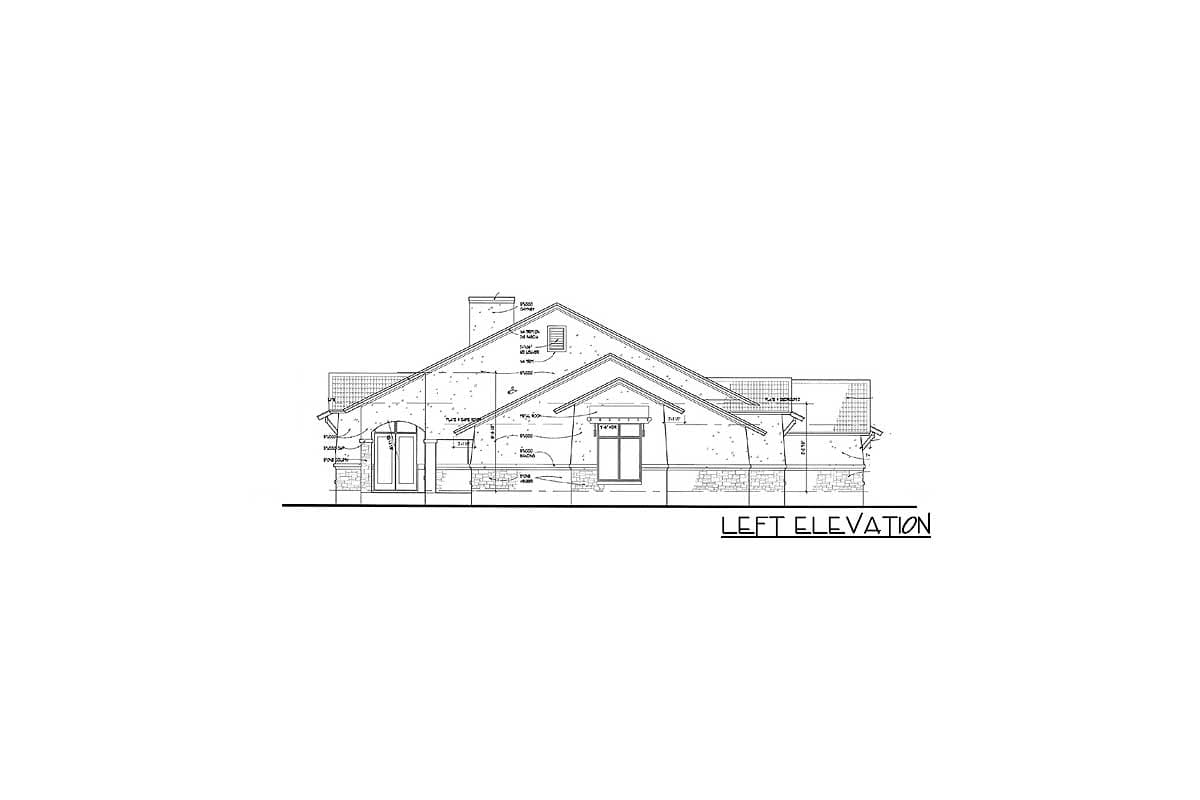

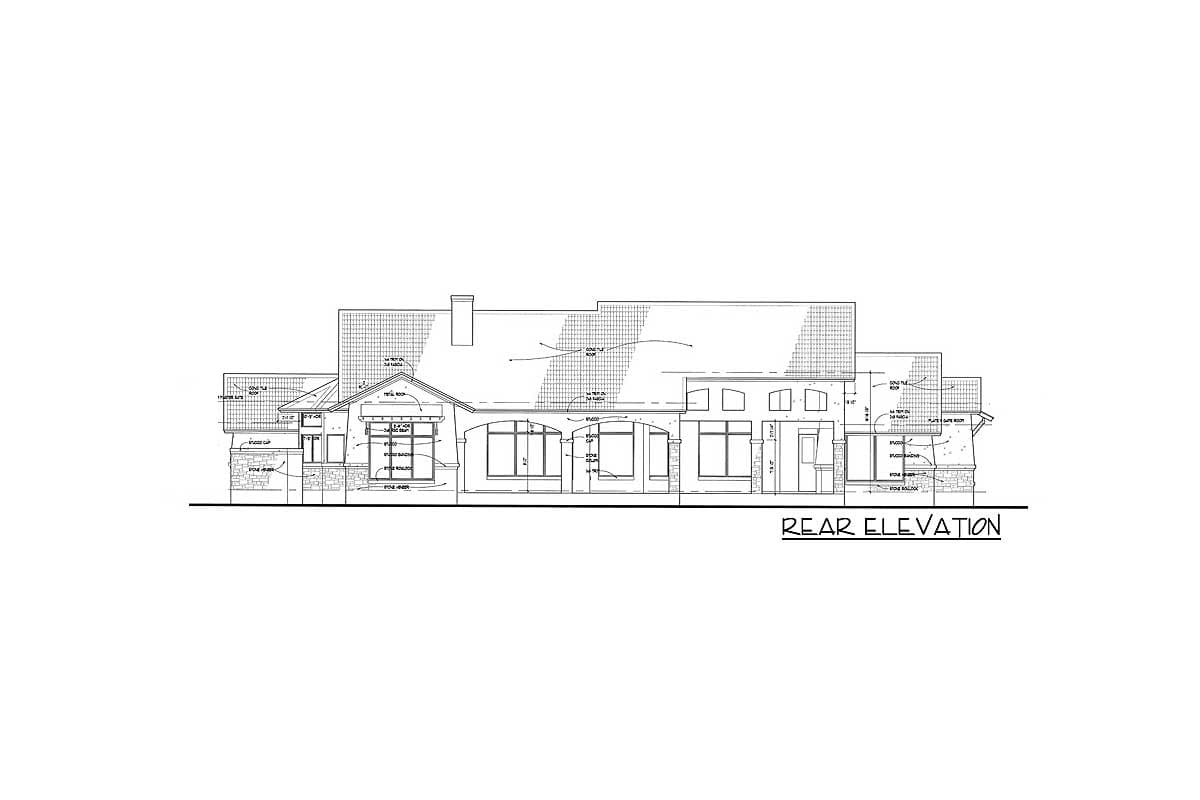

  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,024 sq. ft.

1st Floor

3,024 sq. ft.

Entry

59 sq. ft.

Lanai

714 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

103' 5"

Depth

73' 11"

Max Ridge Height

26' 3"

Garage

Type

Attached

Area

1001 sq. ft.

Count

1 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

12'

Room

Ceiling Type

Height

Family Room

Tray

12' 0''

Dining Room

Tray

12' 0''

Master Bedroom

Tray

12' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Mediterranean

Square Footage Breakdown

Total Heated Area

3,024 sq. ft.

1st Floor

3,024 sq. ft.

Entry

59 sq. ft.

Lanai

714 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

103' 5"

Depth

73' 11"

Max Ridge Height

26' 3"

Garage

Type

Attached

Area

1001 sq. ft.

Count

1 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

12'

Room

Ceiling Type

Height

Family Room

Tray

12' 0''

Dining Room

Tray

12' 0''

Master Bedroom

Tray

12' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style
