Plan 4200MJ
Tuscan-Inspired Two-Story House Plan - 3 Beds - 2930 Sq Ft
Heated S.F.
2,930
Beds
3
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 4200MJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 4200MJ

1-800-854-7852

1-262-521-4596

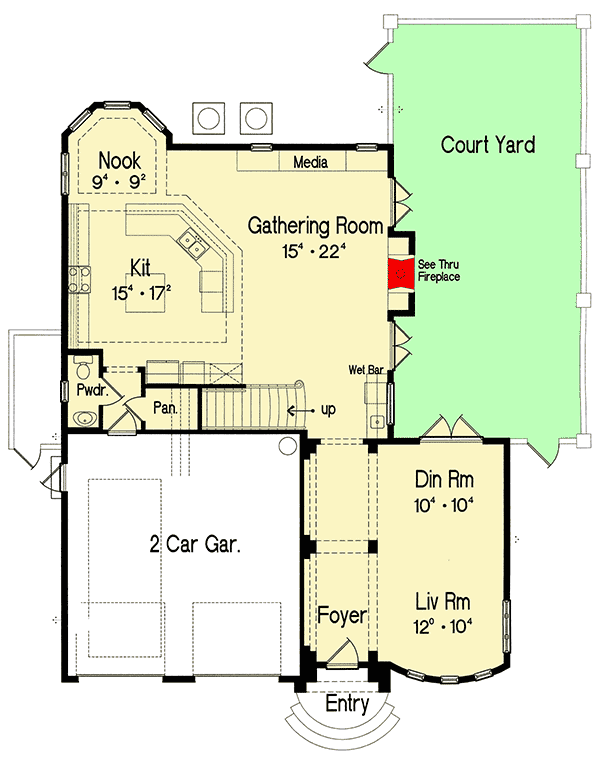

Main Level
floor plan image Main Level

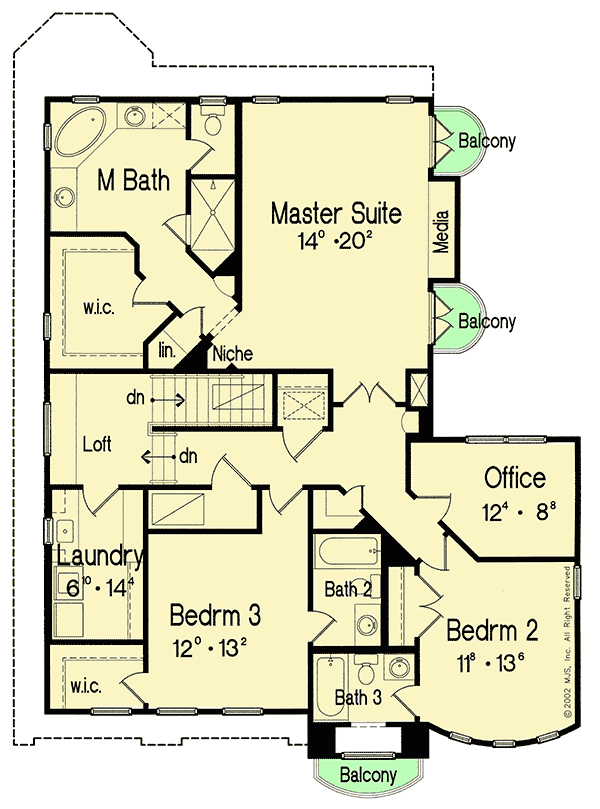

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Reminiscent of the architecture of the Tuscany Region of Italy, this classic facade with its curved walls and deep window recesses evokes the charm of gentler times.
  • The foyer, with its barrel vaulted ceiling and columns, creates a wonderful space which empties into the formal living and dining rooms.
  • The Tuscan flavor of this house continues as both the family and dining rooms look out over the courtyard replete with fountains, wet bar access, and views of the see-thru fireplace in the family room.
  • The nook and kitchen are of a generous proportion and the possibilities are limitless in the island kitchen?s cabinet and counter top choices to retain the old world charm of this house.
  • The ingenious level placement of the laundry room two feet lower than the bedroom level at the wonderfully sized landing of the stair creates a real separation of activities from the higher bedroom level.
  • The master suite has two sets of french doors opening to mini balconies overlooking the courtyard below. A recessed area between them is perfect for a large-screen TV. The master bath features dual sinks, large shower, spa tub and a large walk-in closet. Two bedrooms with full baths and a home office round out this floor.
  • Related Plan: Get an alternate floor plan with house plan 4260MJ.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.
What's Included
  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,930 sq. ft.

1st Floor

1,356 sq. ft.

2nd Floor

1,574 sq. ft.

Entry

38 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

42' 4"

Depth

56' 0"

Max Ridge Height

28' 9"

Garage

Type

Attached

Area

529 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick

Architectural Style

European

Mediterranean

Tuscan

Special Features

Breakfast Nook

Butler Walk-in Pantry

Courtyard

Home Office

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Wet Bar
