Tuscan Style House Plan with 3 or 4 Beds
Heated S.F.
2,225
Beds
3 - 4
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 33195ZRX

Main Level
slide image 0

Plan 33195ZRX

1-800-854-7852

1-262-521-4596

Main Level

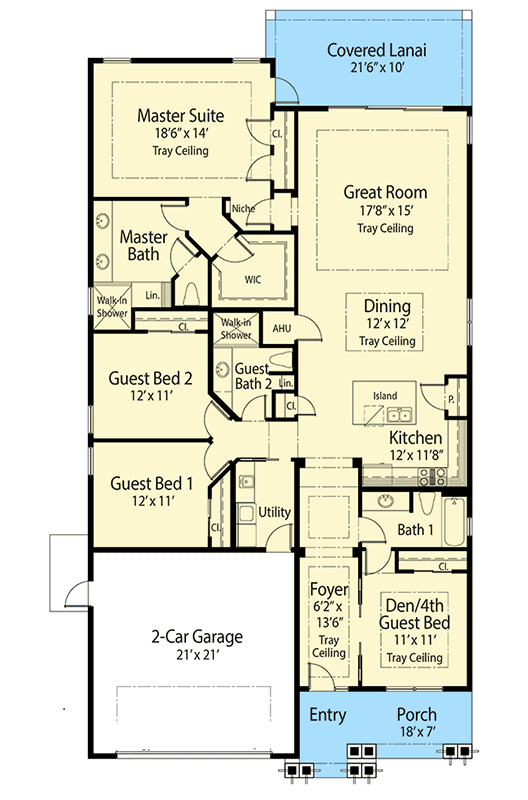

floor plan image Main Level
Plan Details
  • The Tuscan-style 3-bedroom house plan is rich in rustic exterior branding. Exposed rafters, timber fascias, stone facades, ledges and corbels all create a robust appearance. A prominent covered entry creates a focal point. Wood columns are topped with a gable roof and circular vent.
  • A great room plan for the "footprint conscience" homeowner. Not short of amenities, this home is filled with upgrades such as 10-foot ceilings and generous guest bedrooms. The spacious kitchen is complete with a snack-bar island and convenient walk-in pantry.
  • Additional features of this plan include a large covered lanai which opens completely to the great room. Tray ceilings define the dining area from the great Room, while many windows allows lots of natural light. A secluded master suite with its own private entry and lighted niche offers a walk-in-closet, a comfortable master bath and private access to the covered lanai.
  • The two guest bedrooms are at the front of the home and share a single bath. The utility room offers a sink, pocket door and garage door access.
  • Related Plans: Get alternate exteriors with house plan 33196ZR.
What's Included

  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,225 sq. ft.

1st Floor

2,225 sq. ft.

Porch, Front

145 sq. ft.

Lanai

210 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

80' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

465 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European

Mediterranean

Tuscan

Special Features

Bedrooms - Clustered

Den

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive

Home Office

Square Footage Breakdown

Total Heated Area

2,225 sq. ft.

1st Floor

2,225 sq. ft.

Porch, Front

145 sq. ft.

Lanai

210 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

80' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

465 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European

Mediterranean

Tuscan

Special Features

Bedrooms - Clustered

Den

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive

Home Office
