Plan 46489LA
Two Bed Country Home Plan with Third Bedroom Expansion Under 1600 Sq Ft
Heated S.F.
1,588
Beds
2 - 3
Baths
2 - 3
Stories
1
Floor Plan

Plan 46489LA

Main Level
slide image 0
Optional Second Level
slide image 1
Optional Bonus Level
slide image 2

Plan 46489LA

1-800-854-7852

1-262-521-4596

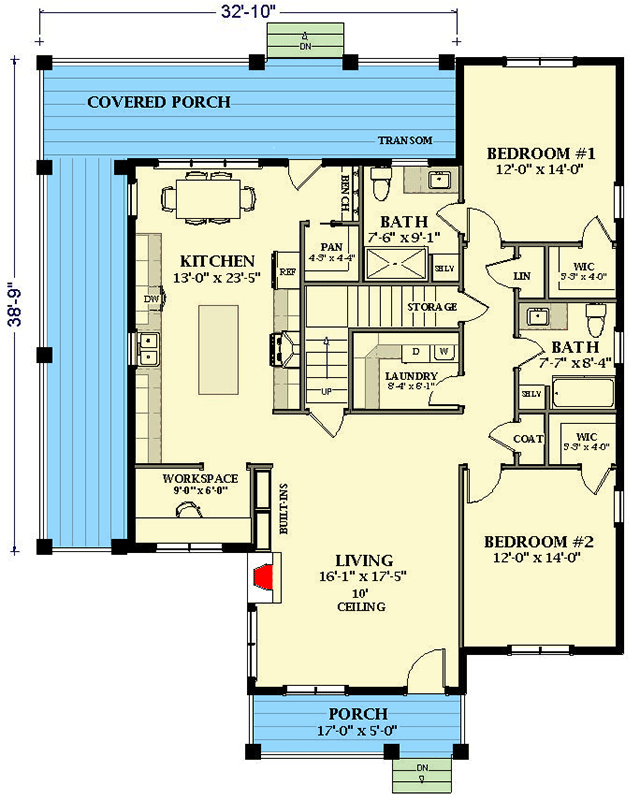

Main Level
floor plan image Main Level

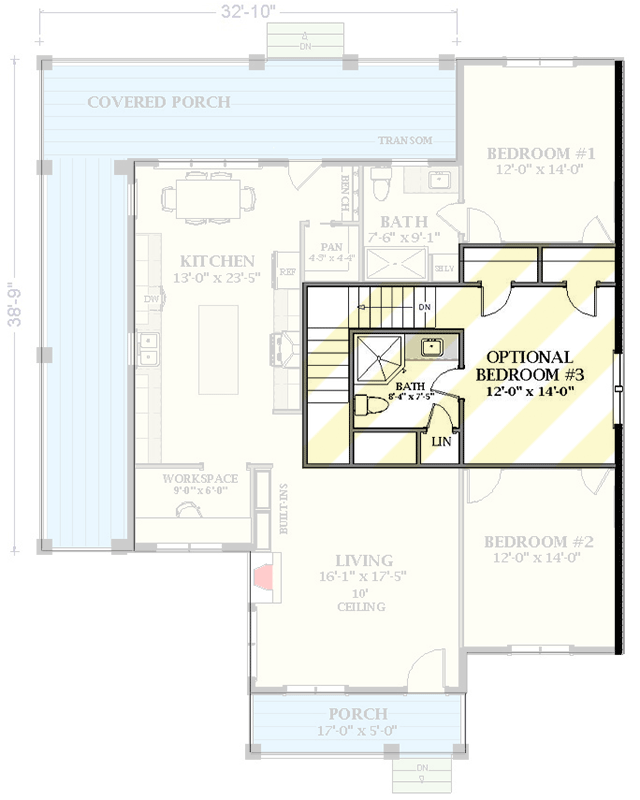

Optional Second Level
floor plan image Optional Second Level

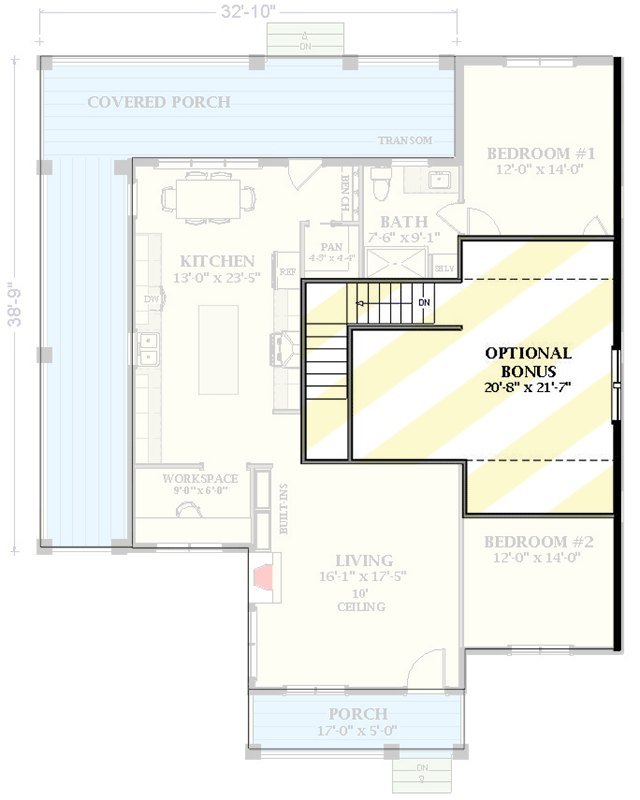

Optional Bonus Level
floor plan image Optional Bonus Level
Plan Details
  • This 1,588 square foot house plan with front and side porches gives you 2 bedrooms on the main floor with the possibility to expand upstairs and get a third bedroom with its own bathroom.
  • On the main floor, two bedrooms with walk-in closets line the right side and are separated by a shared bathroom. Laundry is conveniently located opposite the bathroom.
  • The front porch opens to the living room with 10' ceilings and a fireplace. A pocket office is around the corner and has windows looking out the front.
  • The kitchen is 23'5" deep and extends to a dining area in back. A double sink is set below a window looking out across the side porch which is accessible from the back and extends your livability to the outdoors.
  • NOTE: Please allow 20 to 25 business days for delivery.
What's Included
  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,588 sq. ft.

1st Floor

1,588 sq. ft.

Bonus

377 sq. ft.

Porch, Front

87 sq. ft.

Porch, Combined

483 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

55' 0"

Max Ridge Height

26' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Country

Plan Collections

Square Footage Breakdown

Total Heated Area

1,588 sq. ft.

1st Floor

1,588 sq. ft.

Bonus

377 sq. ft.

Porch, Front

87 sq. ft.

Porch, Combined

483 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

55' 0"

Max Ridge Height

26' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Plan Collections
