Plan 36397TX

Two Bonus Rooms

Heated S.F.

5,084

Beds

Baths

4.5

Stories

Cars

Floor Plan

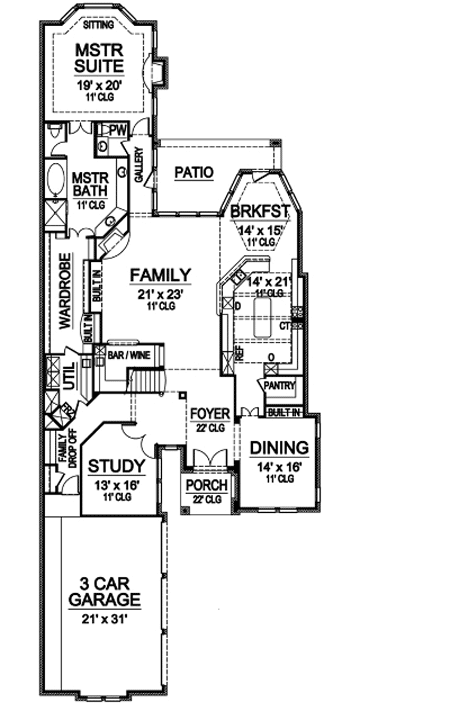

Main Level

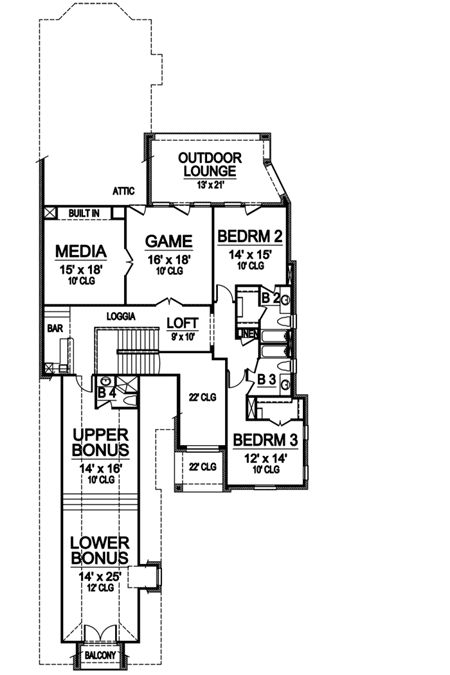

2nd Floor

Plan Details

This heavenly European home plan is loaded with curb appeal and as an added bonus, the home fits on a narrow lot.
A dramatic two-story ceiling in the foyer gives you a glimpse of all the special features within.
An over-sized family room boasts a corner fireplace, built-ins and a large wet bar perfect for entertaining.
Beamed ceilings top the kitchen giving it special treatment as well.
The secluded master suite is set off by itself and comes fully loaded with tray ceiling, bay window, romantic fireplace and a stunning master bath, making this suite a true retreat.
On the second floor, the luxuries continue with both a media room and a game room complete with a second wet bar.
Step out onto the outdoor lounge when you want a breath of fresh air.
An upper and lower bonus room lie over the garage with a handy bathroom and balcony close by.
Related Plan: Get an alternate elevation and upper bonus room with house plan 36398TX.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

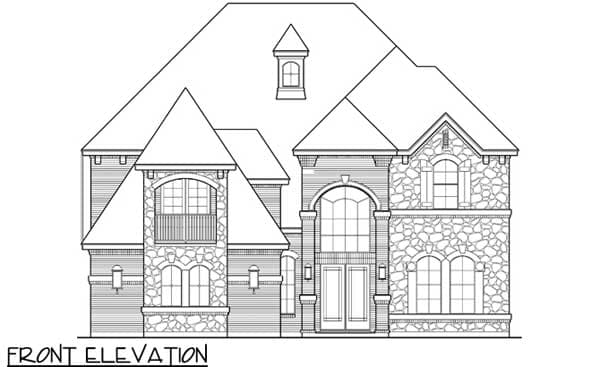

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

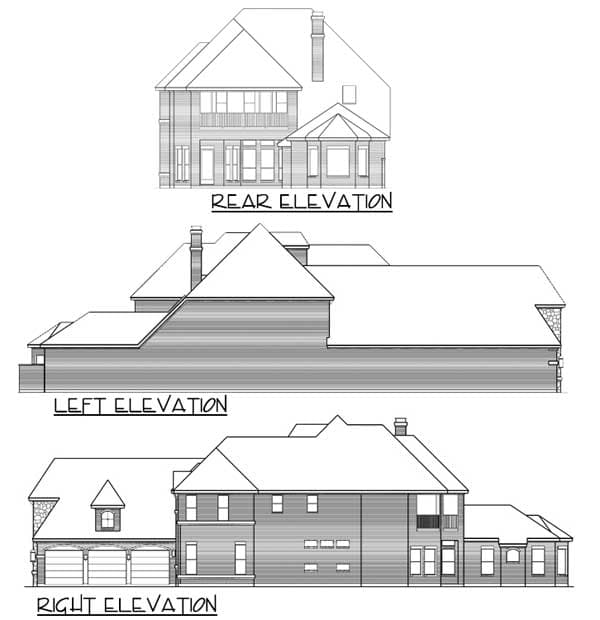

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
