Plan 48332FM

Two Downstairs Bedrooms

Heated S.F.

3,411

Beds

4

Baths

3.5

Stories

2

Cars

3

Floor Plan

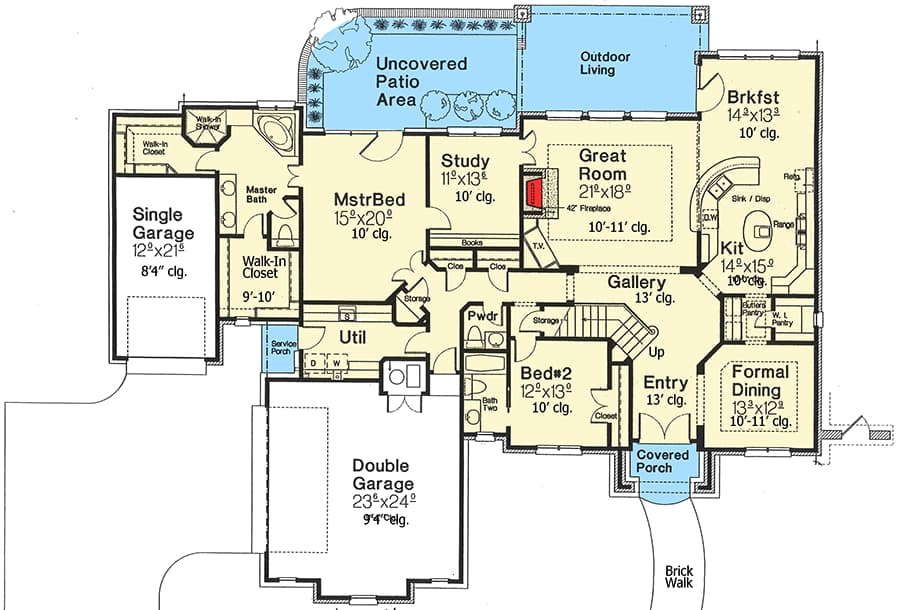

Main Level

floor plan image Main Level

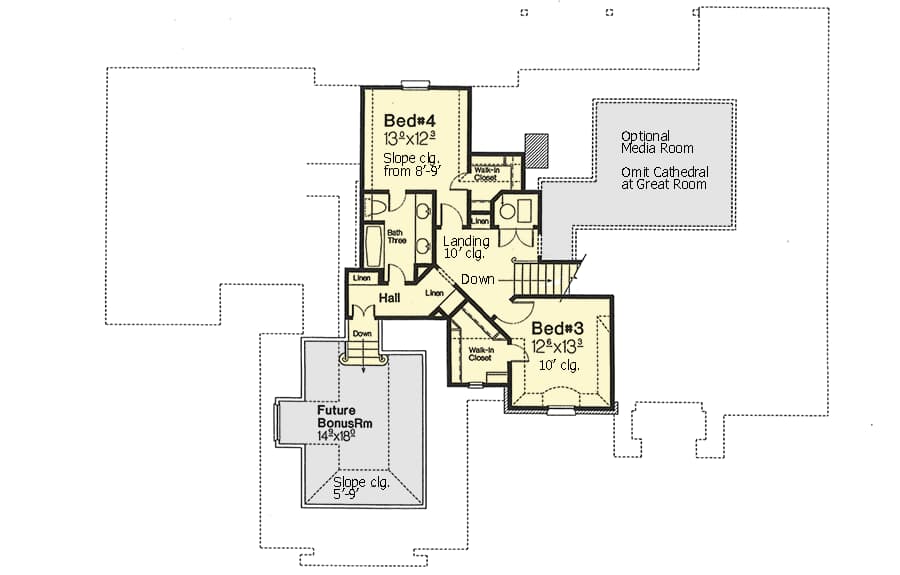

2nd Floor

floor plan image 2nd Floor

Plan Details

With two downstairs bedrooms and two up, you can live on the main level and when family comes for the holidays, you can expand to the upstairs to accommodate all.
Decorative wooden shutters, steeply pitched roofs and spires provide a European touch to theis brick and stone home.
A large eating bar connects the kitchen to the great room and provides the chef with a view.
Tray ceilings grace the formal dining room and great room and a study can be accessed from both the master suite and the great room.
Outside, you have both an uncovered patio and a covered outdoor living area.
Two bedrooms on the second floor share a hall bath with a future bonus room located a few steps down, over the main garage.
The ceilings in the future bonus room slope from 5' to 9'
The optional media room is approximately 16' by 15' plus hallway and has a 9' ceiling.

What's Included

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

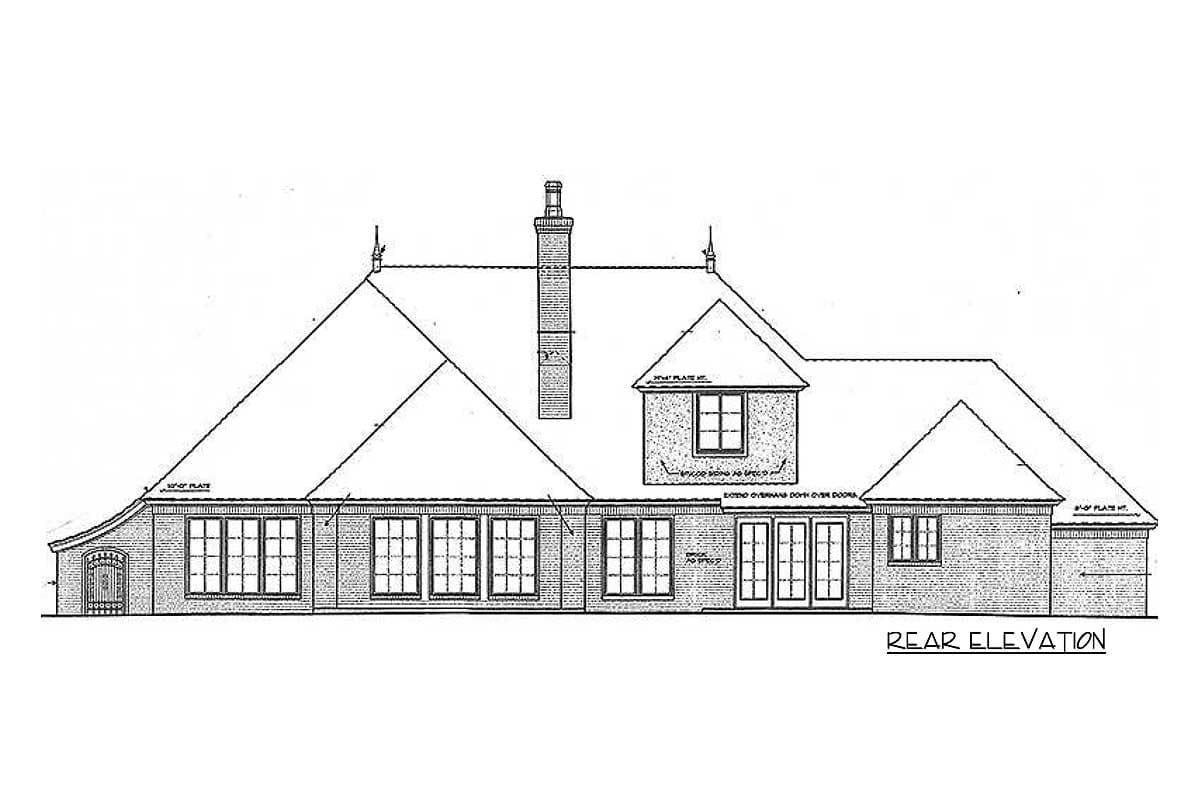

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,411 sq. ft.

1st Floor

2,724 sq. ft.

2nd Floor

687 sq. ft.

Bonus

310 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

84' 0"

Depth

64' 10"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

804 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Second Floor

8' 2"

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
