Plan 59658ND
Two Family Home with Country Porches For Each Family
Heated S.F.
5,032
Units
2
Width
Depth
Floor Plan

Plan 59658ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 59658ND

1-800-854-7852

1-262-521-4596

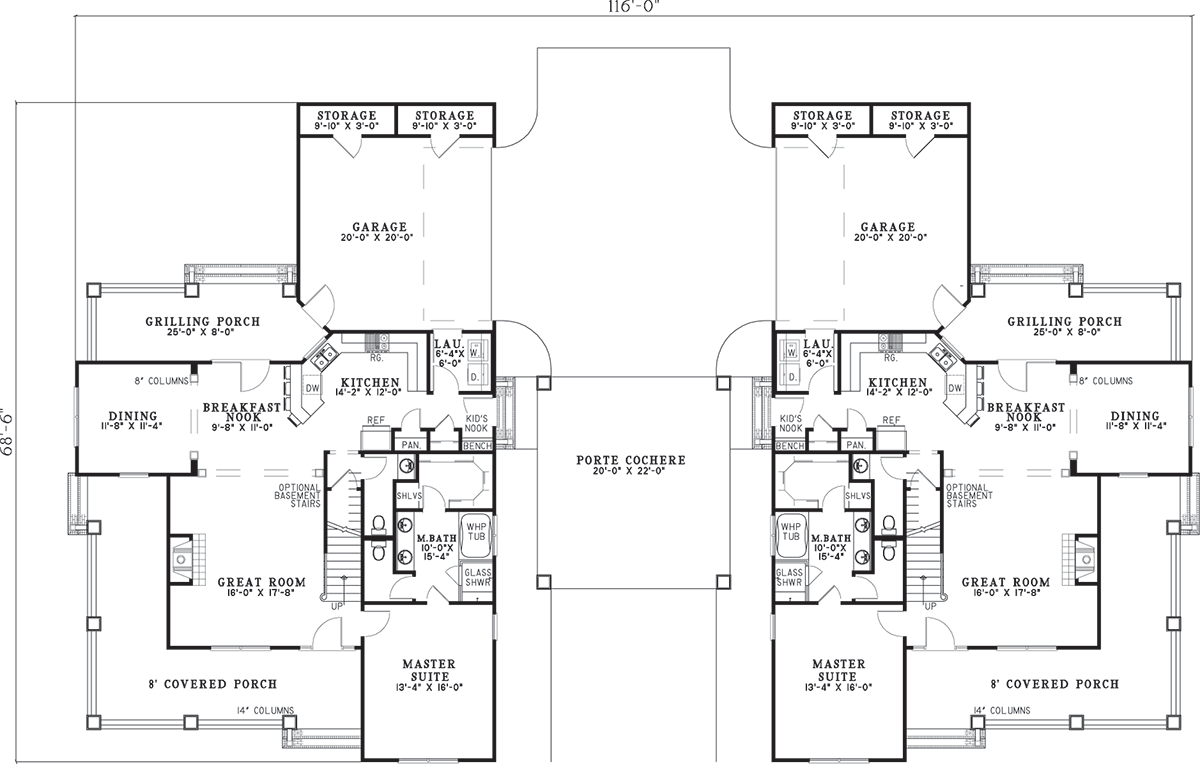

Main Level
floor plan image Main Level

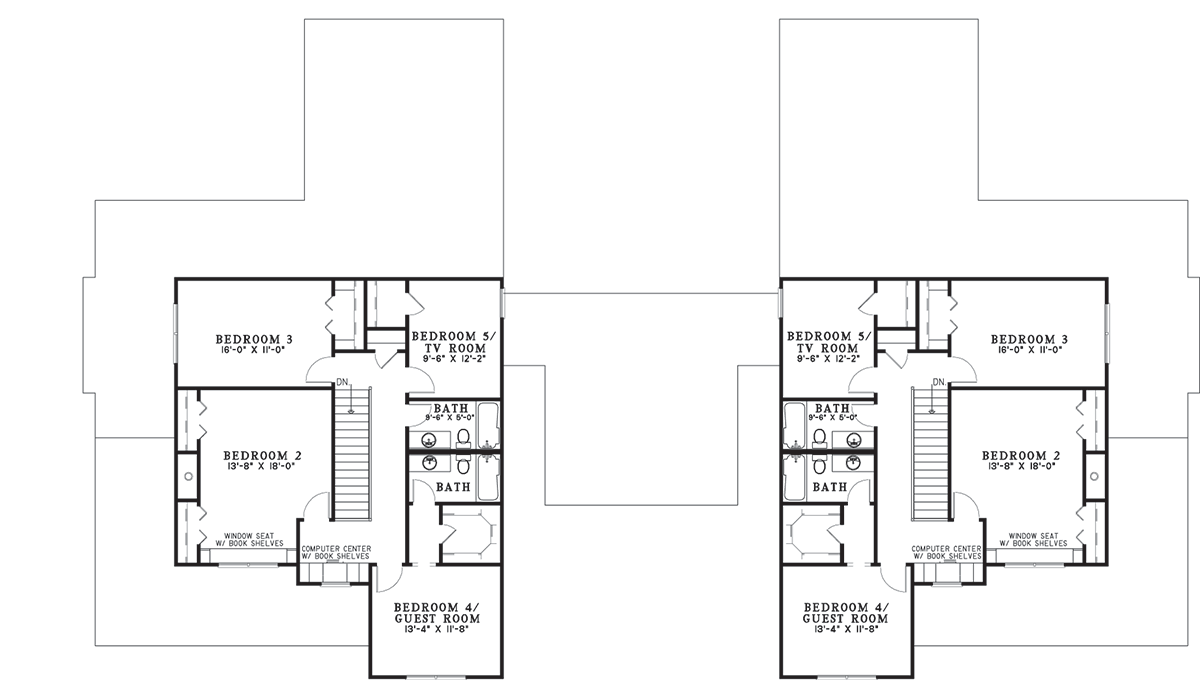

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This two family home plan gives you matching 3 bed, 3.5 bath houses attached by a porte-cochere.
  • Each home gives its owners 2,516 square feet of heated living (1,360 sq. ft. on the main floor and 1,156 sq. ft. on the second floor).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
2,516Sq. Ft.
1360 Sq. Ft.
1st Floor
1156 Sq. Ft.
2nd Floor
5Beds
3Full Baths
1Half Bath
839 Sq. Ft.
58'width
68' 6"depth
34'height
Unit B
2,516Sq. Ft.
1360 Sq. Ft.
1st Floor
1156 Sq. Ft.
2nd Floor
5Beds
3Full Baths
1Half Bath
2Vehicle
Attached
839 Sq. Ft.
58'width
68' 6"depth
34'height
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,032 sq. ft.

1st Floor

2,720 sq. ft.

2nd Floor

2,312 sq. ft.

Porch, Combined

1,200 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

116' 0"

Depth

68' 6"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

1678 sq. ft.

Count

2, 3, or 4 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Special Features

Master Suite - 1st Floor

Porte Cochere

Square Footage Breakdown

Total Heated Area

5,032 sq. ft.

1st Floor

2,720 sq. ft.

2nd Floor

2,312 sq. ft.

Porch, Combined

1,200 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

116' 0"

Depth

68' 6"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

1678 sq. ft.

Count

2, 3, or 4 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Special Features

Master Suite - 1st Floor

Porte Cochere
