Plan 83654CRW
Two Gabled New American House Plan Under 1700 Sq Ft with 3 Beds
Heated S.F.
1,664
Beds
3
Baths
2
Stories
1
Cars
2
Tour
Floor Plan

Plan 83654CRW

Main Level
slide image 0
2nd Floor
slide image 1
Optional 2-Car Front Garage (+$350)
slide image 2

Plan 83654CRW

1-800-854-7852

1-262-521-4596

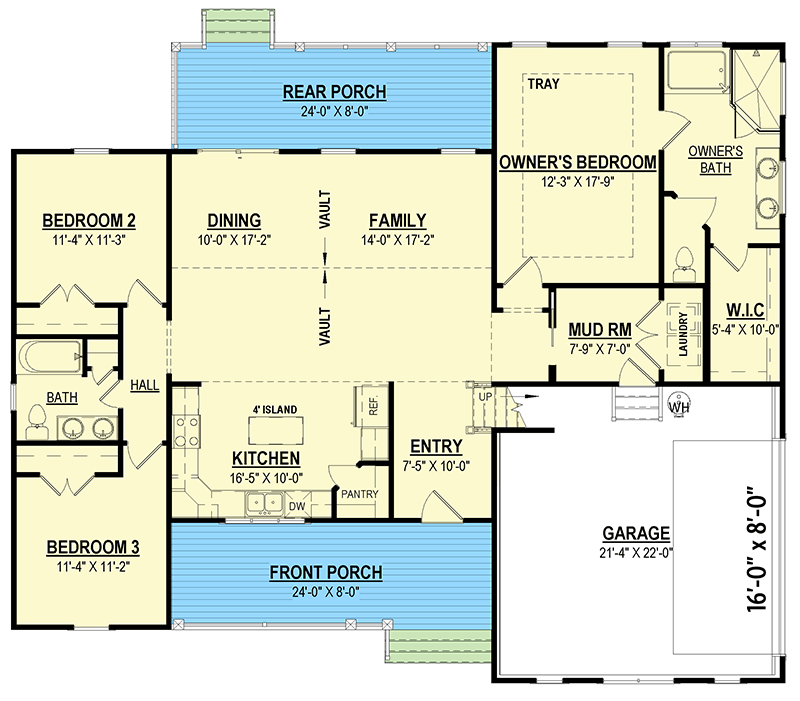

Main Level
floor plan image Main Level

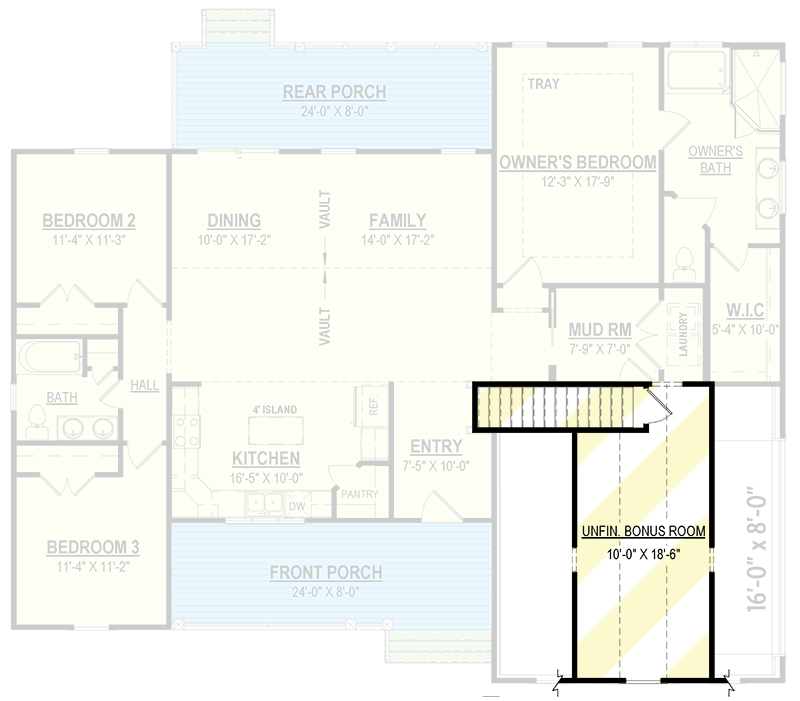

2nd Floor
floor plan image 2nd Floor

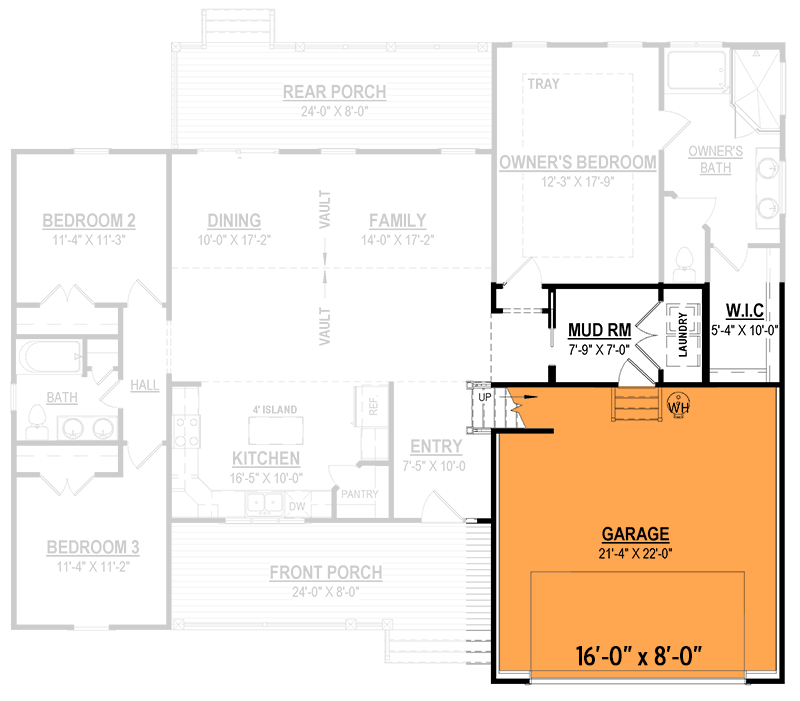

Optional 2-Car Front Garage (+$350)
floor plan image Optional 2-Car Front Garage (+$350)
Plan Details
  • Two gables with shingles and decorative brackets add to the curb appeal of this 1,664 square foot 3 bed, 2 bath New American house plan. An 8'-deep front porch welcomes you home.
  • The C-shaped rectangular kitchen overlooks the 8'-deep porch and presents a prep island and corner pantry, while the open design allows you to move easily into the vaulted dining / family room.
  • Tucked behind the double garage, you will find the owner's bedroom with its own foyer, tray ceiling, and 5-fixture bathroom with a toilet room and walk-in closet.
  • Bedrooms 2 and 3 occupy the left side of the home and are separated by a 4-fixture bathroom with a linen closet.
  • Step inside from the garage to find a mudroom with access to the laundry closet and a pocket-door leading to the heart of the home. A bonus room above the garage provides space for future expansion.
  • Related Plans: Get an alternate exterior with house plans 83636CRW, 83655CRW, 83651CRW, 83657CRW and 83664CRW.
What's Included
  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)
  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,664 sq. ft.

1st Floor

1,664 sq. ft.

2nd Floor

219 sq. ft.

Porch, Front

192 sq. ft.

Porch, Rear

192 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

58' 0"

Depth

48' 0"

Max Ridge Height

22' 8"

Garage

Type

Attached

Area

496 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Modern Farmhouse

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,664 sq. ft.

1st Floor

1,664 sq. ft.

2nd Floor

219 sq. ft.

Porch, Front

192 sq. ft.

Porch, Rear

192 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

58' 0"

Depth

48' 0"

Max Ridge Height

22' 8"

Garage

Type

Attached

Area

496 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Modern Farmhouse

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
