Plan 42836MJ
Two Owner's Suites and a Wide Open Floor Plan
Heated S.F.
3,255
Beds
4
Baths
5
Stories
2
Cars
2
Floor Plan

Plan 42836MJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 42836MJ

1-800-854-7852

1-262-521-4596

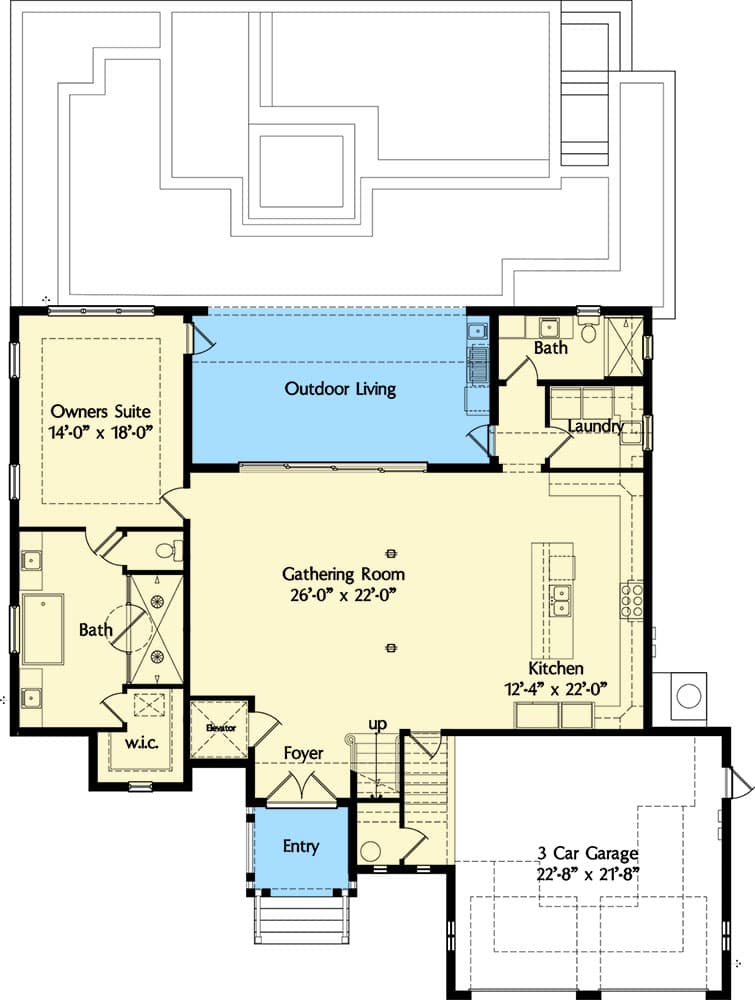

Main Level
floor plan image Main Level

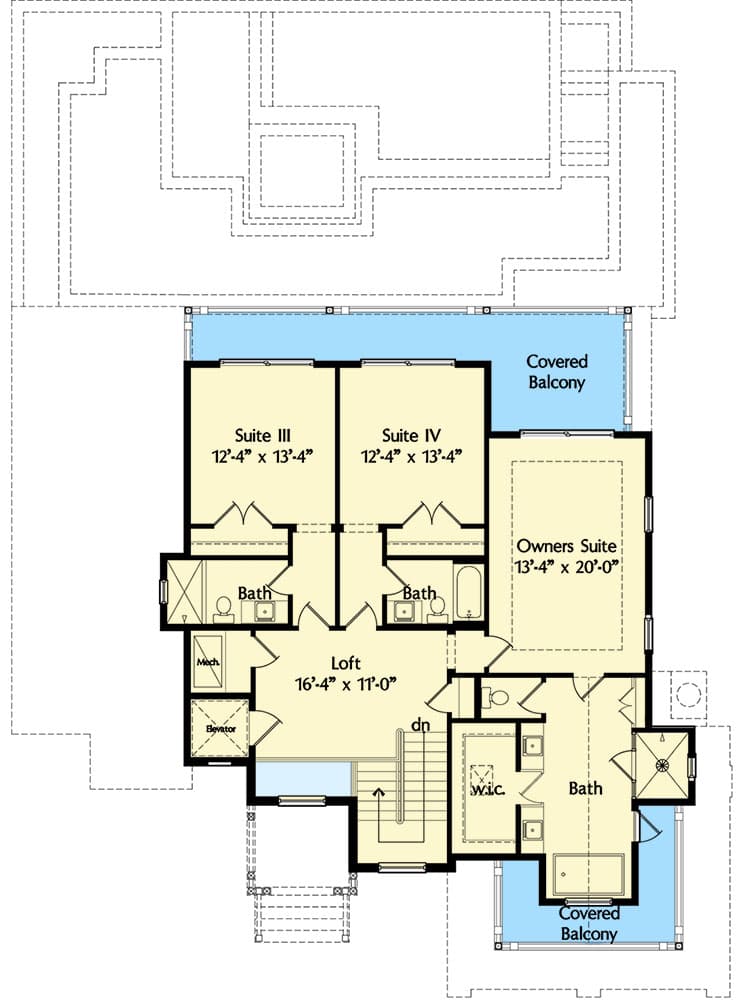

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This beautiful house plan gives you not one but two master suites - one on each floor - and a wide open floor plan on the main floor.
  • Enjoy casual seating at the long island in the kitchen and take meals outdoors on your covered out living area. There, you'll find a full outdoor kitchen and access from the gathering room as well as the kitchen and main floor master suite. There is laundry on both floors!
  • Take the stairs or the residential elevator to the second floor.
  • There is a large open loft on the second floor and two covered balconies, both accessible from the master suite.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.
What's Included
  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,255 sq. ft.

1st Floor

1,795 sq. ft.

2nd Floor

1,460 sq. ft.

Porch, Combined

338 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

61' 0"

Depth

58' 8"

Max Ridge Height

35' 2"

Garage

Type

Attached

Area

583 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Master Bedroom

Step

11' 0''

Roof Details

Primary Pitch

5 on 12

Architectural Style

Florida

Southern

Special Features

Bedrooms - Clustered

Elevator

Laundry - Main Level

Loft

Master Suite - 1st Floor

Master Suite - 2nd Floor

Outdoor Kitchen

Two Master Suites
