Two-Story Barndominium House Plan with Attached 1-Bed Apartment - 5590 Sq Ft
Heated S.F.
5,590
Beds
4
Baths
3.5+
Stories
2
Cars
3
Floor Plan

Plan 530116KTE

Main Level
slide image 0
2nd Floor
slide image 1

Plan 530116KTE

1-800-854-7852

1-262-521-4596

Main Level

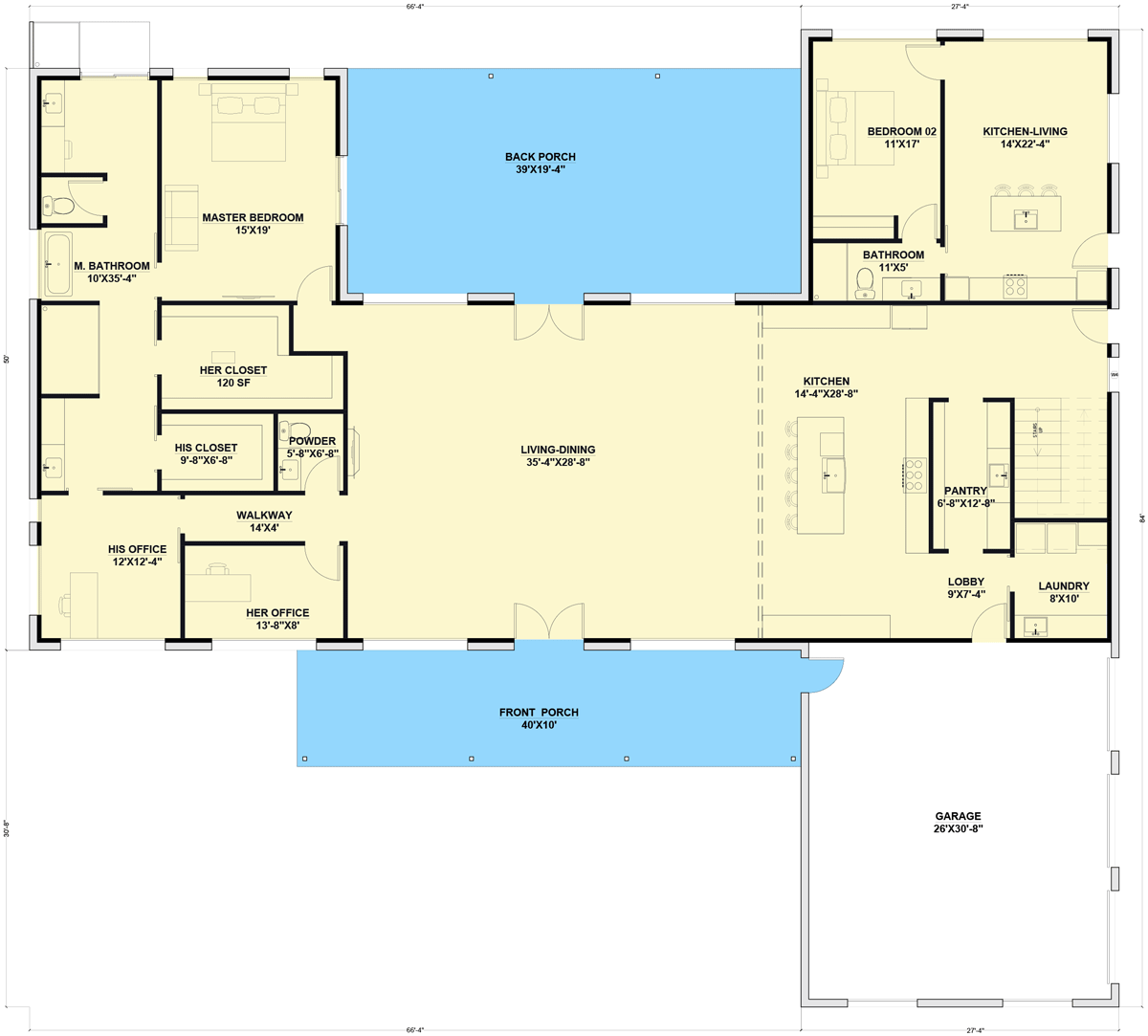

floor plan image Main Level
2nd Floor

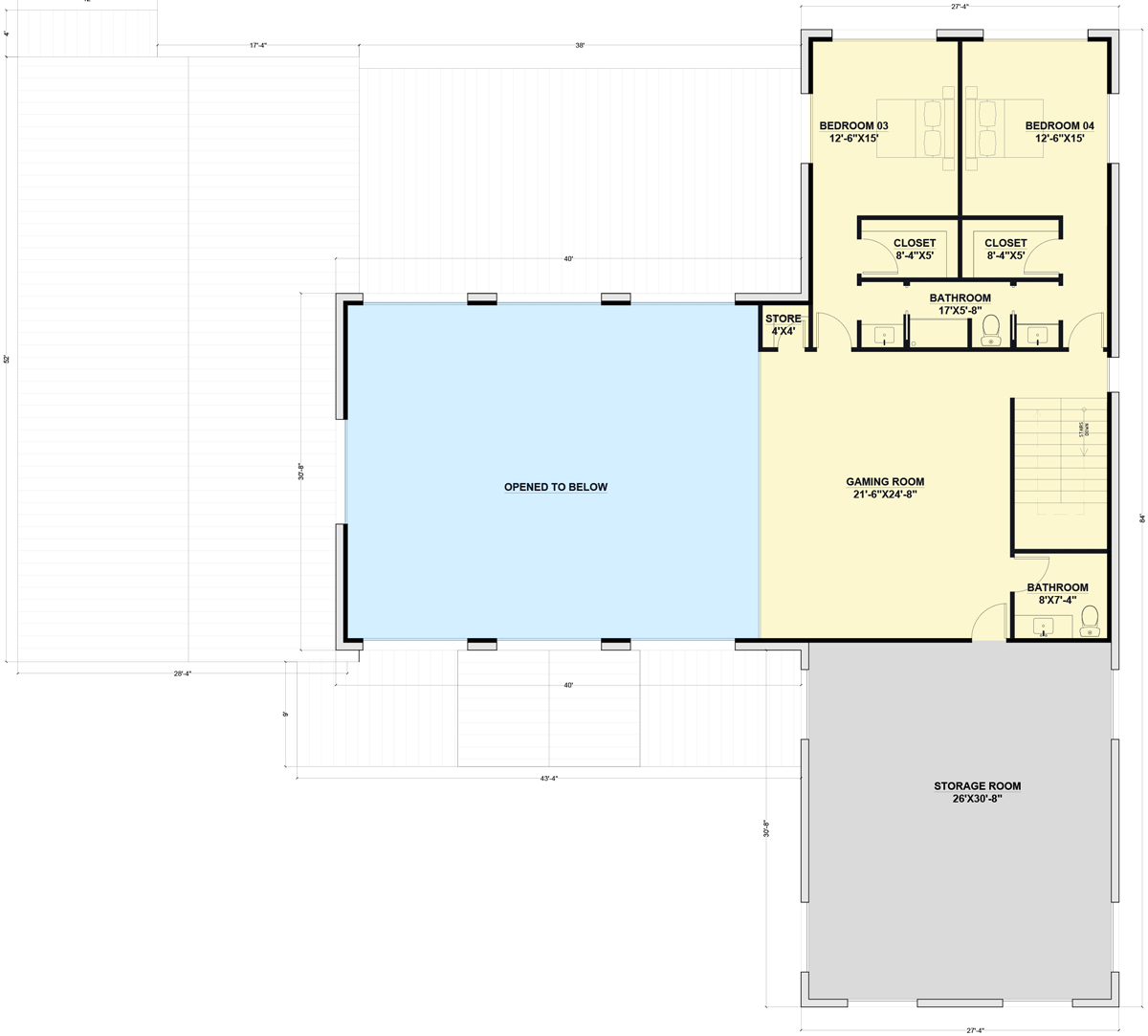

floor plan image 2nd Floor
Plan Details
  • Introducing this beautiful luxury barndominium, which skillfully combines traditional elegance with modern conveniences. This spacious two-story home covers 5,590 square feet and includes an 856-square-foot, three-bay garage. Additionally, it boasts 1,187 square feet of covered porches, ideal for enjoying the outdoors.
  • This house boasts 4 bedrooms, 3 full baths, and 2 half baths, along with separate his and her offices, making it ideal for families who need dedicated work-from-home spaces. Step through the grand front entrance, and you’re greeted by an impressive open-concept living, dining, and luxury kitchen area. The kitchen is a chef’s dream, featuring a large center island with an oversized sink and built-in dishwasher, ample counter and cabinet space, a 6-burner stove, and a walk-through butler-style pantry complete with its own sink for effortless meal prep and entertaining.
  • Adjacent to the kitchen is a large laundry room, conveniently located near the entrance from the attached garage. On the opposite side of the main floor, you’ll find the primary suite and the separate offices. The primary bedroom offers a serene retreat with a cozy sitting area and private access to the back porch. The spa-like primary bathroom includes distinct his and her sink areas, a spacious walk-in shower, a separate soaking tub, and expansive his and her walk-in closets.
  • This house also features a thoughtfully designed attached apartment with a private exterior entrance, complete with a full bathroom, a small kitchen, and a comfortable living space—perfect for guests, in-laws, or as a private rental opportunity.
  • Upstairs, the two remaining bedrooms share a Jack and Jill bathroom, each with their own walk-in closets. The second floor also includes a spacious game/media/family room, equipped with a storage closet and its own half bath, providing endless possibilities for entertainment and relaxation.
  • Designed with ample storage throughout, this house offers unparalleled luxury, functionality, and versatility, making it the ultimate dream home for families seeking a sophisticated yet comfortable lifestyle. Whether it's hosting large gatherings or enjoying quiet evenings on the porch, this house has everything you need to create lasting memories in a truly exceptional barndominium.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Please Note: This plan is designed as a PEMB (Pre-Engineered Metal Building) with bolt-up steel framing combined with 2x4 wood interior framing. To receive the conventional wood 2x6 framing version of this plan, please select the “convert to 2x6 ext. walls” in the options dropdown to order the conventional 2x6 wood framing version of this plan.
What's Included
  • Cover Sheet
  • Roof Plan
  • Floor Plan
  • Exterior Elevations
  • Internal Sections
  • Internal Dimensions
  • Electrical Plan
  • Foundation Plan & Details
What's Not Included
Document
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
  • Materials list - MAY be available as a purchasable option under the "Options" tab
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,590 sq. ft.

1st Floor

4,020 sq. ft.

2nd Floor

1,570 sq. ft.

Porch, Combined

1,187 sq. ft.

Storage

856 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4 or Metal or PEMB

Optional Type(s)

2x6

Dimensions

Width

93' 8"

Depth

84' 0"

Max Ridge Height

26' 10"

Garage

Type

Attached

Area

856 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

6 on 12

Framing Type

Steel

Architectural Style

Barndominium

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Den

Flex Room

Game/Rec Room

Home Office

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Playroom

Two Story Great Room

Plan Collections

Attached Apartments

Square Footage Breakdown

Total Heated Area

5,590 sq. ft.

1st Floor

4,020 sq. ft.

2nd Floor

1,570 sq. ft.

Porch, Combined

1,187 sq. ft.

Storage

856 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4 or Metal or PEMB

Optional Type(s)

2x6

Dimensions

Width

93' 8"

Depth

84' 0"

Max Ridge Height

26' 10"

Garage

Type

Attached

Area

856 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

6 on 12

Framing Type

Steel

Architectural Style

Barndominium

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Den

Flex Room

Game/Rec Room

Home Office

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Playroom

Two Story Great Room

Plan Collections

Attached Apartments
