Plan 62651DJ
Two-Story Coastal Cabin with Loft and Detached Garage - 1194 Sq Ft
Heated S.F.
1,194
Beds
1 - 2
Baths
1
Stories
2
Cars
2
Tour
Floor Plan

Plan 62651DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 62651DJ

1-800-854-7852

1-262-521-4596

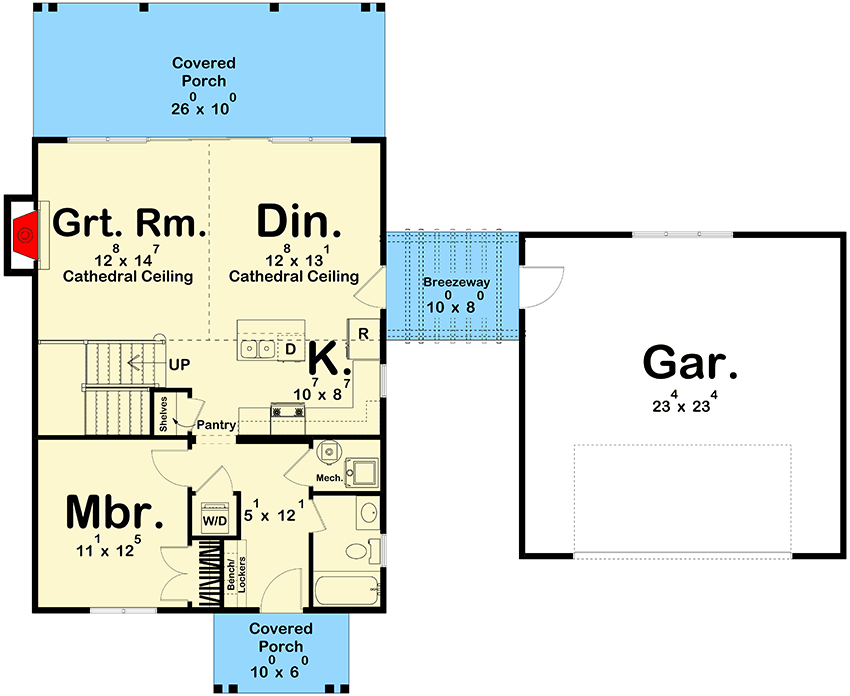

Main Level
floor plan image Main Level

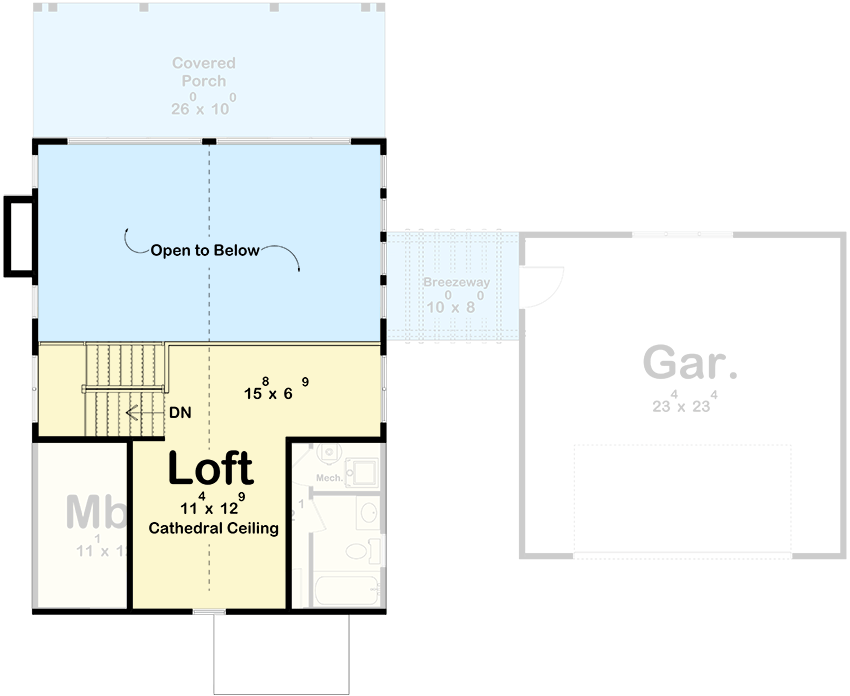

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This modern coastal cottage cabin gives you a loft overlooking the main floor and a detached 2-car garage that matches the look of the main home. It is connected to the house by a breezeway and a covered rear patio.
  • Inside the entry is a bench and locker where you will kick off the shoes and get into the flipflops. Further inside is a bedroom with a walk up closet and a main bath.
  • An over-sized patio door gives breathtaking views from the great room, dining and kitchen. Also in the kitchen is a walk-up pantry and a breakfast island.
  • Upstairs you'll find the kids' bunk loft with an overlook out to the great room below and beyond into the covered porch with it's large trapezoid windows.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,194 sq. ft.

1st Floor

921 sq. ft.

2nd Floor

273 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 0"

Depth

35' 0"

Max Ridge Height

23' 2"

Garage

Type

Detached

Area

576 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

Cathedral

0' 0''

Dining Room

Cathedral

0' 0''

Loft

Cathedral

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Architectural Style

Coastal

Cottage

Country

Vacation

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room
