Plan 623368DJ
Two-Story Colonial Home Plan with Loft and Wet Bar Under 3400 Sq Ft
Heated S.F.
3,396
Beds
3
Baths
3.5
Stories
2
Cars
2
Tour
Floor Plan

Plan 623368DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 623368DJ

1-800-854-7852

1-262-521-4596

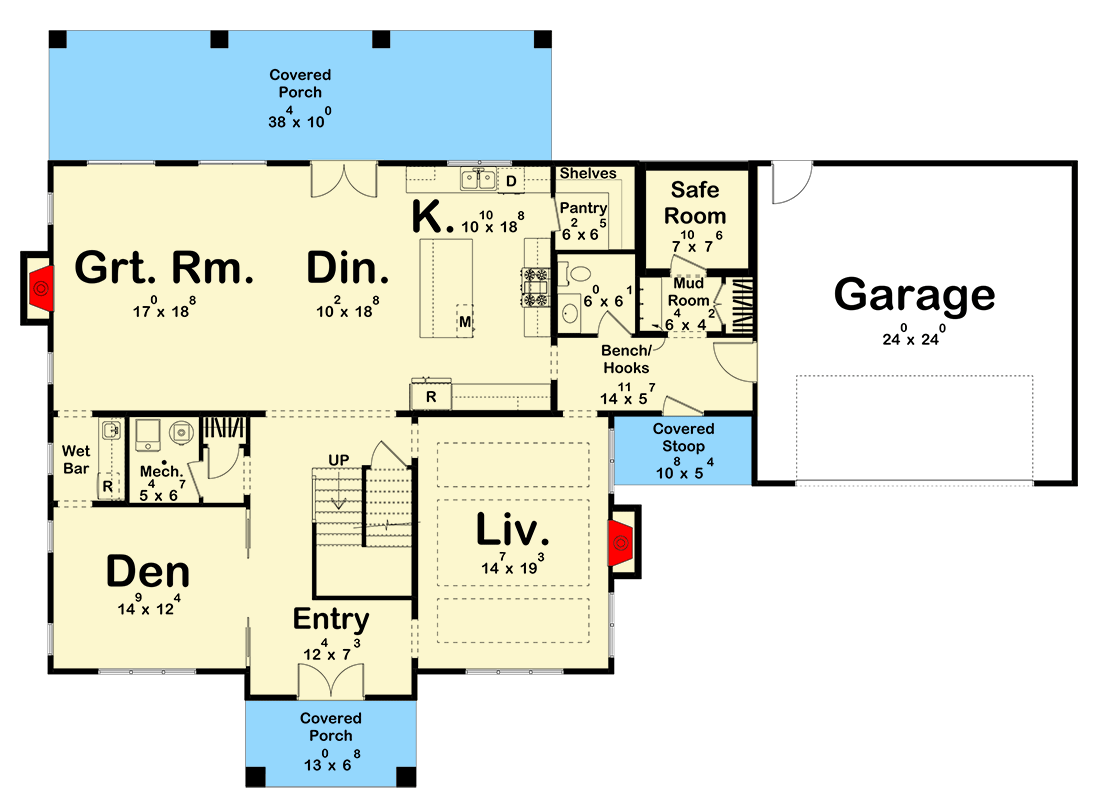

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • A stunning 2-story colonial-style house with 3 beds, 3.5 baths and 3396 square feet of living.
  • On the left, find a formal living space for guests or family relaxation; on the right, another versatile living space awaits.
  • Explore the expansive kitchen, perfect for any culinary need with ample counter space and cabinetry. Discover a luxurious wet bar on the first floor for stylish entertaining.
  • Upstairs, three spacious bedrooms offer comfort and privacy, including a serene master suite with a lavish en-suite bathroom. With four bathrooms in total, convenience is key for every member of the household.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,396 sq. ft.

1st Floor

1,802 sq. ft.

2nd Floor

1,594 sq. ft.

Porch, Combined

512 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 4"

Depth

57' 8"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

602 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Architectural Style

Colonial

Country

New American

Southern Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Den

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Mudroom

Safe Room

Wet Bar

Square Footage Breakdown

Total Heated Area

3,396 sq. ft.

1st Floor

1,802 sq. ft.

2nd Floor

1,594 sq. ft.

Porch, Combined

512 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 4"

Depth

57' 8"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

602 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Architectural Style

Colonial

Country

New American

Southern Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Den

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Mudroom

Safe Room

Wet Bar
