Plan 135281GRA
Two-Story Contemporary Duplex House Plan with Matching 3-Bedroom Units - 1565 Sq Ft Each
Heated S.F.
3,130
Units
2
Width
Depth
Floor Plan

Plan 135281GRA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 135281GRA

1-800-854-7852

1-262-521-4596

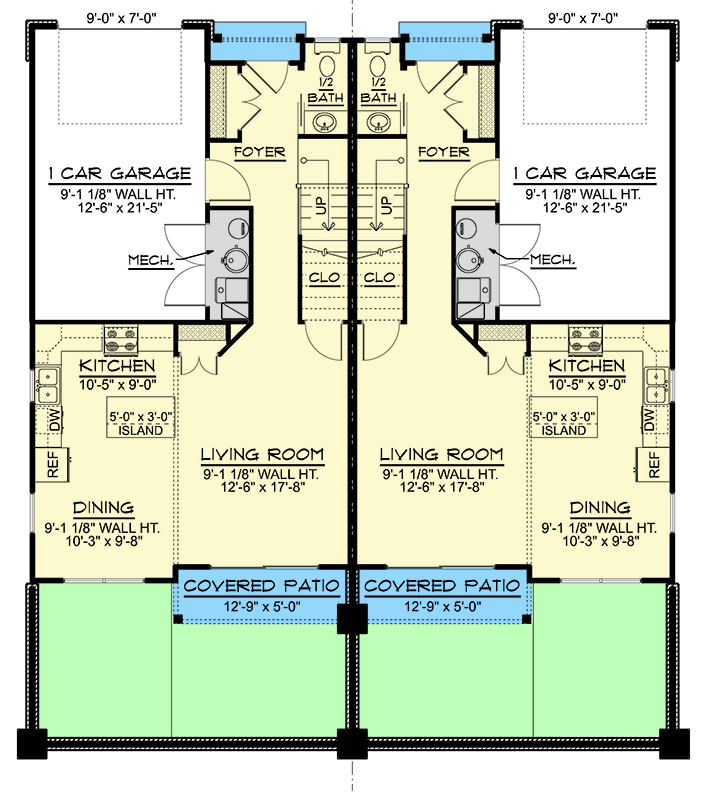

Main Level
floor plan image Main Level

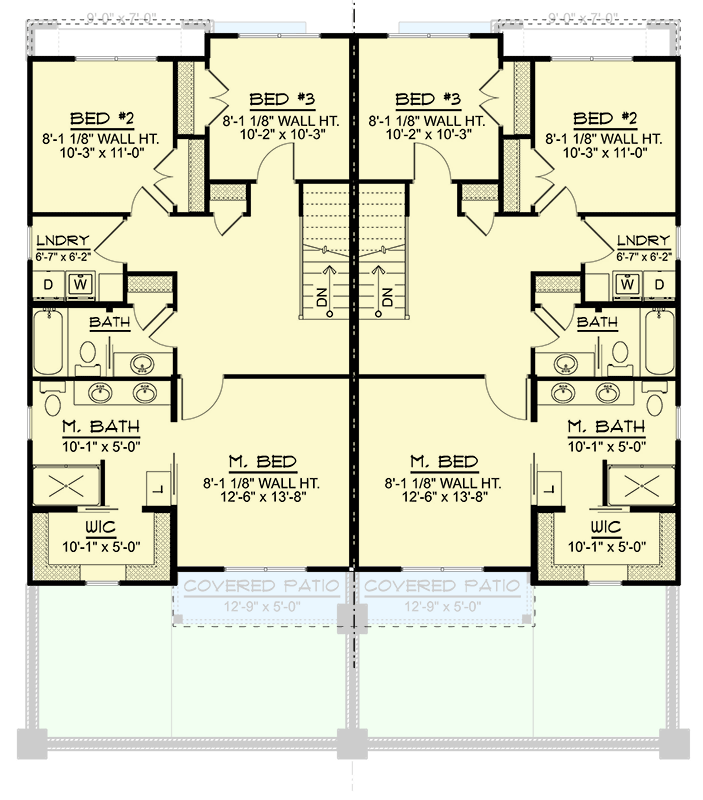

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This contemporary duplex house plan gives you 2 units each with 1,565 square feet of heated living space (654 sq. ft. on the first floor, 911 sq. ft. on the second floor), 3 beds, 2.5 baths and a 279 sq. ft. 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
1,565Sq. Ft.
654 Sq. Ft.
1st Floor
911 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
279 Sq. Ft.
23'width
53'depth
26'height
Unit B
1,565Sq. Ft.
654 Sq. Ft.
1st Floor
911 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
279 Sq. Ft.
23'width
53'depth
26'height
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,130 sq. ft.

1st Floor

1,308 sq. ft.

2nd Floor

1,822 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 4"

Depth

53' 0"

Garage

Type

Attached

Area

588 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

8 on 12

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Courtyard

Formal Dining

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Square Footage Breakdown

Total Heated Area

3,130 sq. ft.

1st Floor

1,308 sq. ft.

2nd Floor

1,822 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 4"

Depth

53' 0"

Garage

Type

Attached

Area

588 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

8 on 12

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Courtyard

Formal Dining

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom
