Plan 710440BTZ
Two-Story Cottage House Plan with Flex Room - 2651 Sq Ft
Heated S.F.
2,651
Beds
4
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 710440BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710440BTZ

1-800-854-7852

1-262-521-4596

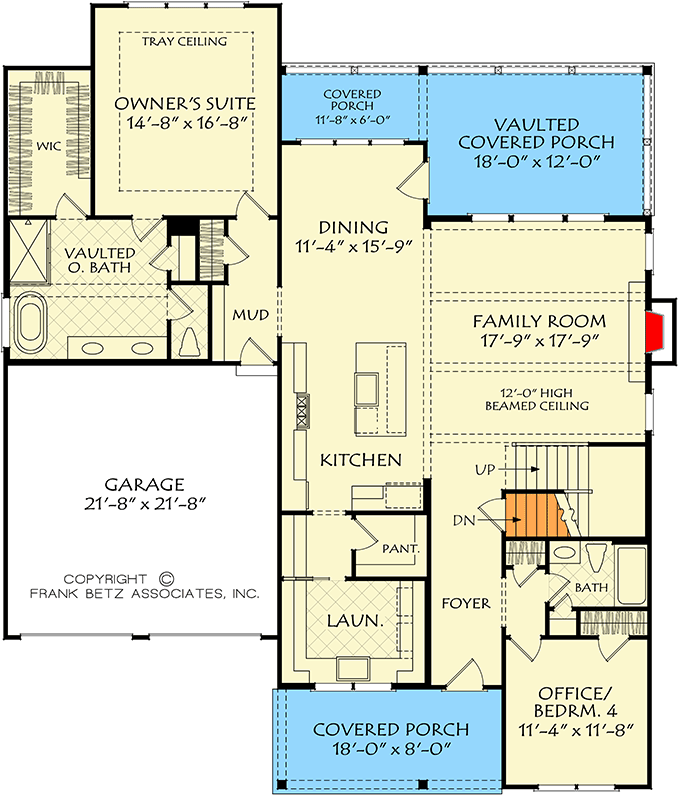

Main Level
floor plan image Main Level

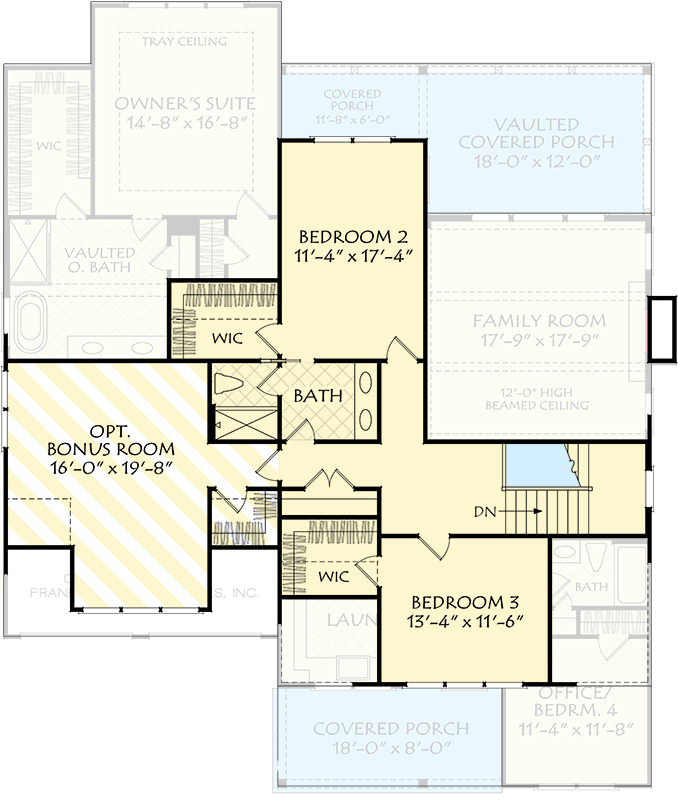

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This is a classic cottage designed for modern living. The exterior features a front porch with green siding and white trim. Inside, the open main level connects the living, dining, and kitchen areas.
  • The owner's suite is private, and a lower-level bedroom is ideal for guests or a home office.
  • A well-sized pantry and laundry serve a busy family, while the upper level offers two more bedrooms sharing a bathroom and an optional bonus space for additional use.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,651 sq. ft.

1st Floor

1,914 sq. ft.

2nd Floor

737 sq. ft.

Basement Unfinished

1,914 sq. ft.

Bonus

355 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

54' 0"

Depth

63' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Bonus Room

Butler Walk-in Pantry

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,651 sq. ft.

1st Floor

1,914 sq. ft.

2nd Floor

737 sq. ft.

Basement Unfinished

1,914 sq. ft.

Bonus

355 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

54' 0"

Depth

63' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Bonus Room

Butler Walk-in Pantry

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
