Plan 225013RBS

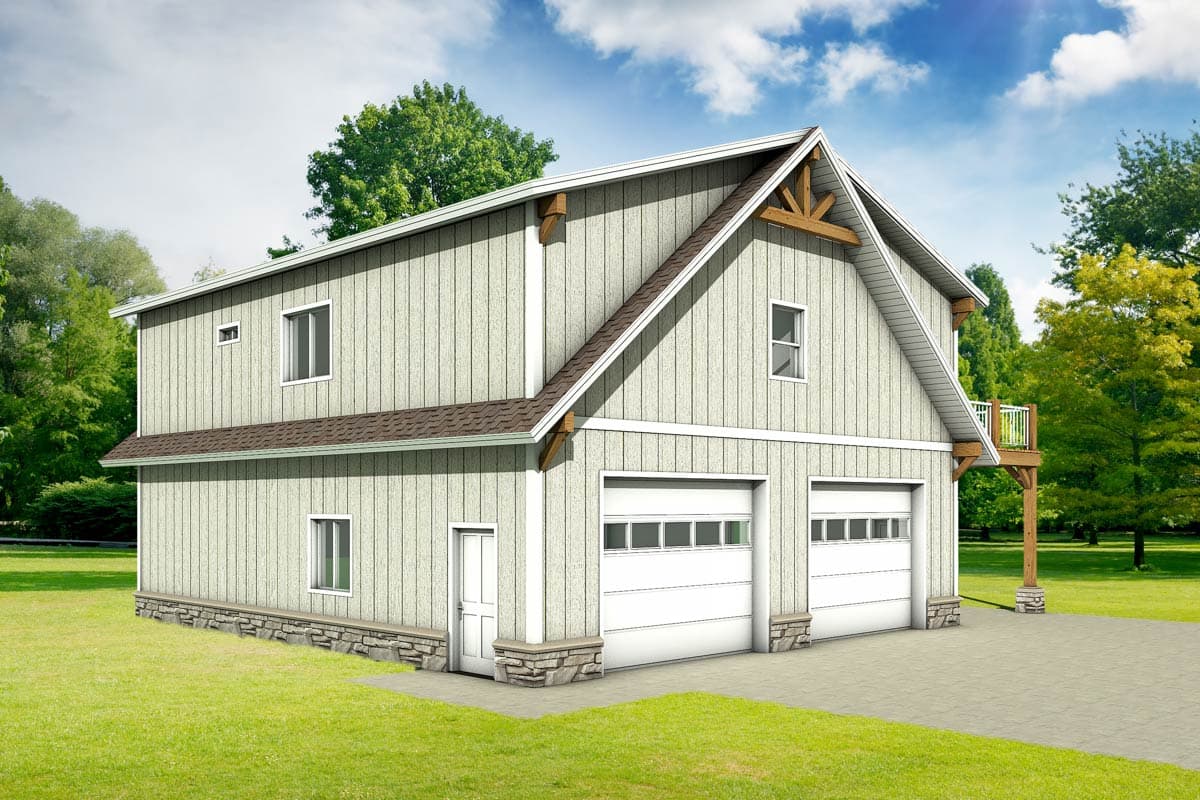

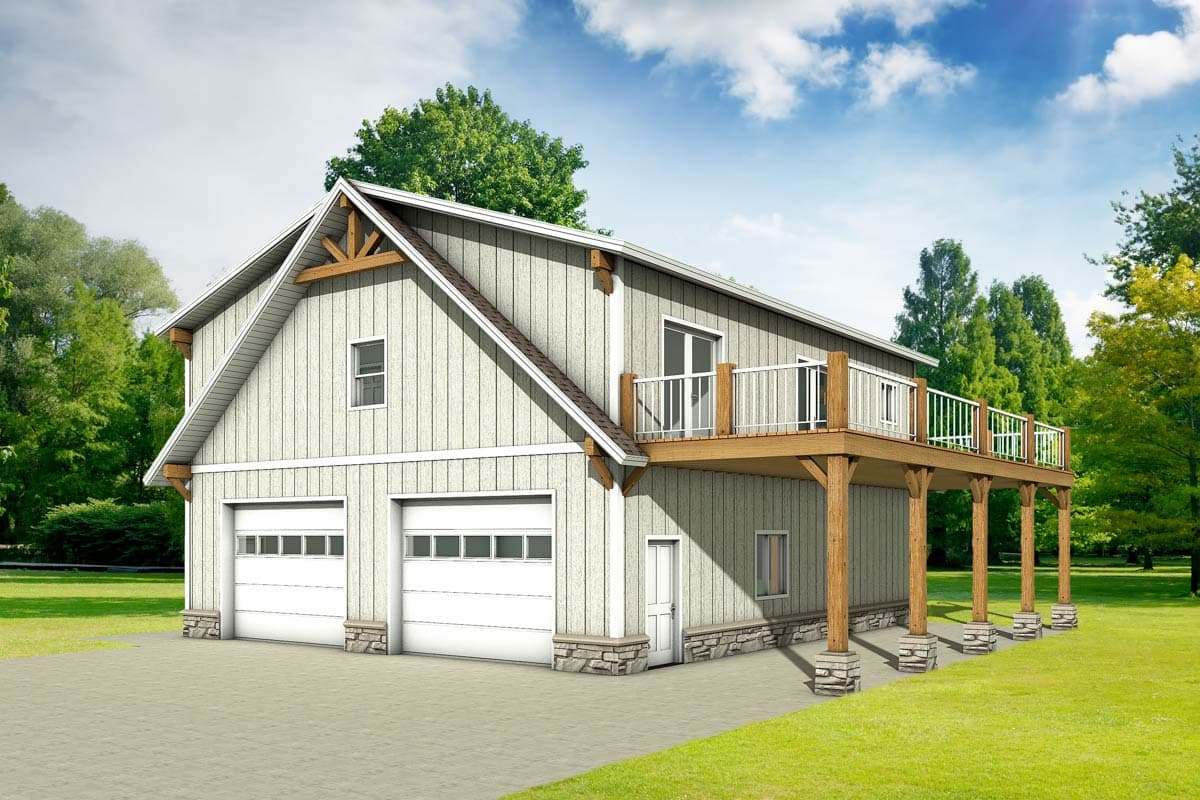

Two-Story Detached Garage with Attached Apartment Plan - 1440 Sq Ft
Heated S.F.
1,440
Beds
2
Baths
2
Stories
2
Cars
2- 3
Floor Plan

Plan 225013RBS

Main Level
slide image 0
2nd Floor
slide image 1

Plan 225013RBS

1-800-854-7852

1-262-521-4596

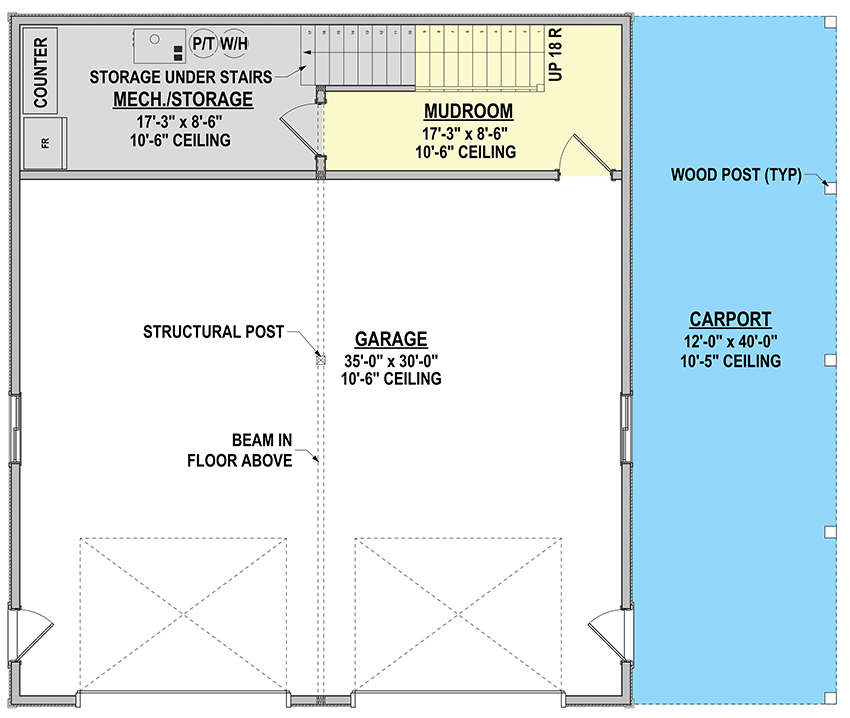

Main Level
floor plan image Main Level

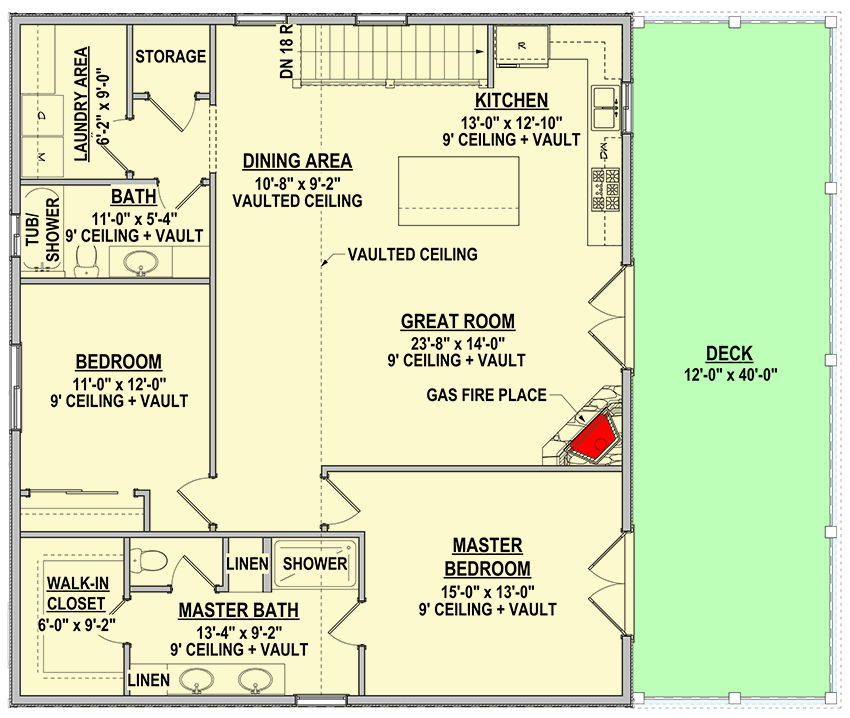

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 1,440 square foot detached garage with an attached apartment plan that gives you 2 beds, 2 baths and a 1,100 square foot, 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a smaller version with this 1-bedroom 225012RBS (1,296 sq. ft.).
What's Included
  • Cover Sheet
  • Main Level
  • Section

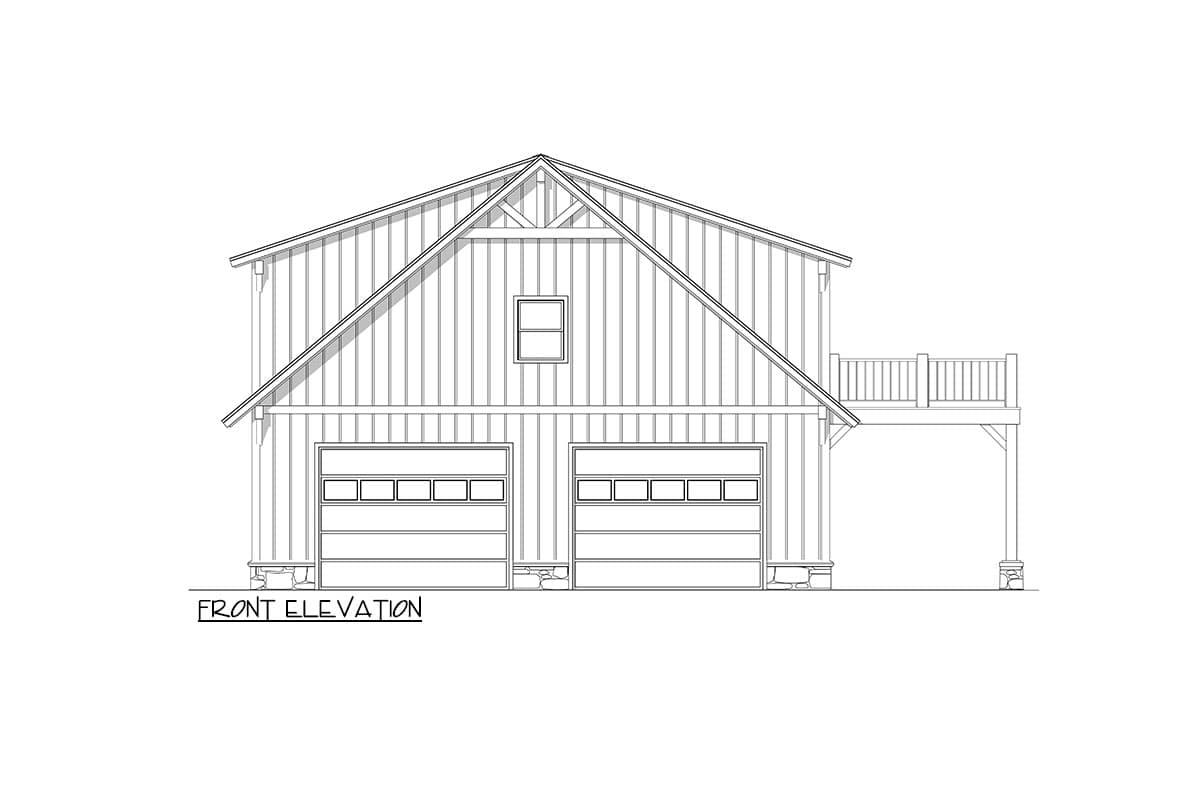

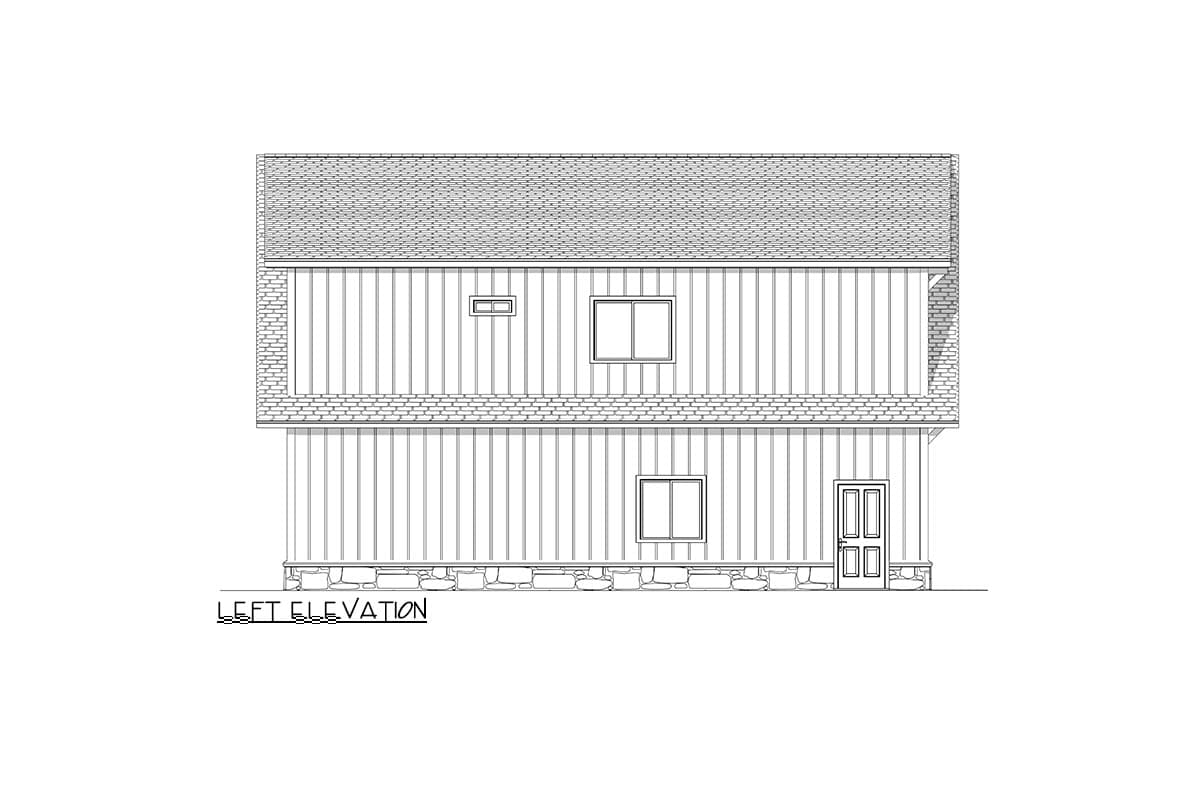

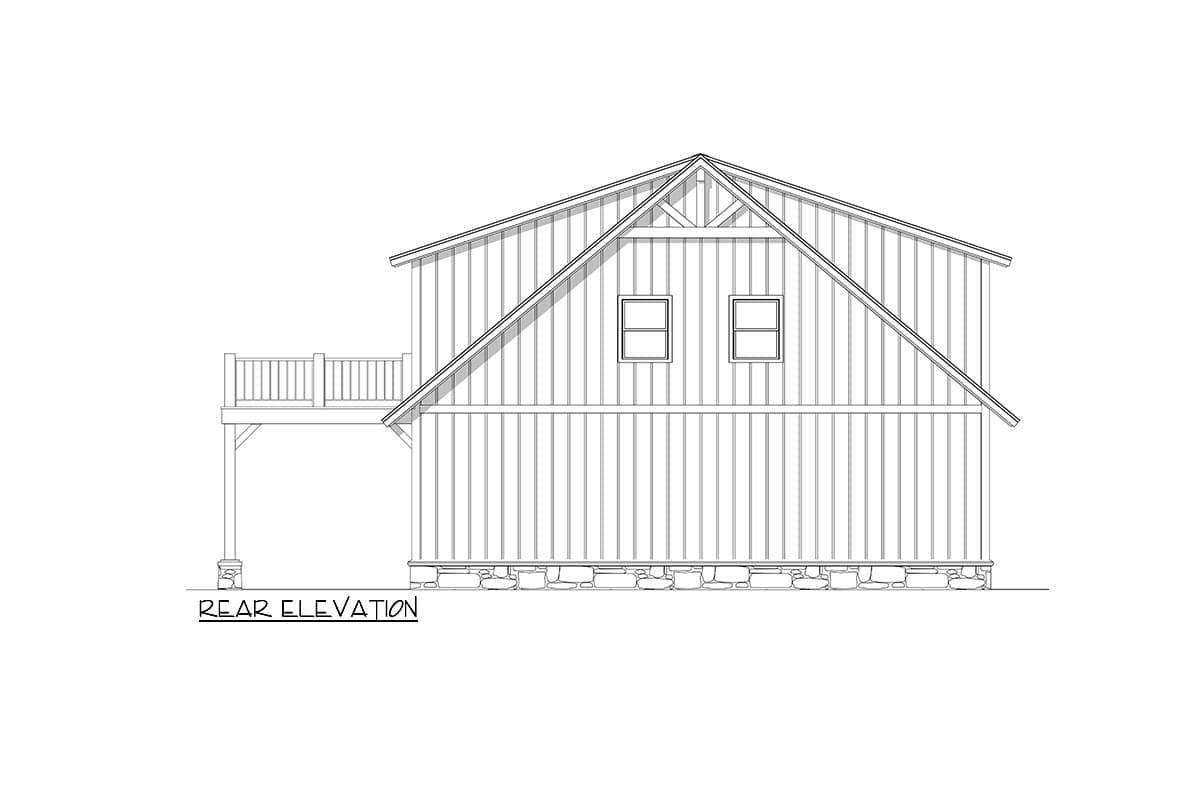

  • Elevations
  • Foundation Plan
  • Roof Framing
  • General Electrical Layout
  • General Notes
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,440 sq. ft.

1st Floor

340 sq. ft.

2nd Floor

1,440 sq. ft.

Carport

480 sq. ft.

Deck

480 sq. ft.

Storage

340 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab, Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

40' 0"

Max Ridge Height

27' 5"

Garage

Type

Carport, Detached

Area

1100 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 6"

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Traditional

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Plan Collections

ADU

Attached Apartments
