Plan 72347DA
Two Story Entry
Heated S.F.
4,059
Beds
6
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 72347DA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 72347DA

1-800-854-7852

1-262-521-4596

Main Level

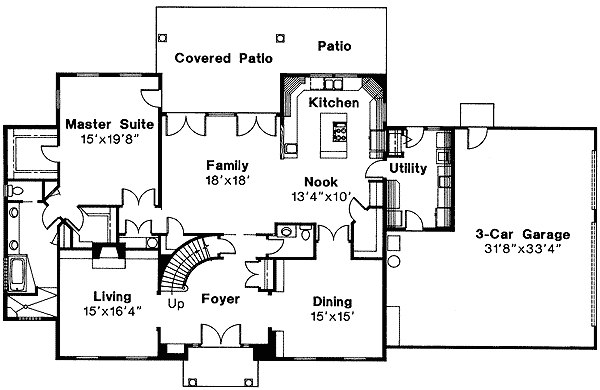

floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • To enter this house plan you step through a columned entry porch and double doors which leads into a 2-story-high foyer.
  • The main floor is composed of ten-foot ceilings.
  • In the kitchen and family room, windows fill most of the rear wall, creating bright informal living areas.
  • The master suite is the only bedroom on the main floor. Luxuries here include two walk-in closets, double vanity, private water closet, a large soaking tub and an oversized custom shower.
  • Two finished rooms and a bathroom are upstairs, where a balcony overlooks the foyer. There are three other rooms on this level along with a fourth bathroom.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,059 sq. ft.

1st Floor

2,477 sq. ft.

2nd Floor

1,582 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 0"

Depth

53' 6"

Max Ridge Height

32' 8"

Garage

Type

Attached

Area

923 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Colonial

Traditional

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

4,059 sq. ft.

1st Floor

2,477 sq. ft.

2nd Floor

1,582 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 0"

Depth

53' 6"

Max Ridge Height

32' 8"

Garage

Type

Attached

Area

923 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Colonial

Traditional

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor
