Plan 270036AF
Two-Story European Home Plan with Main-level Master Bedroom - 1879 Sq Ft
Heated S.F.
1,879
Beds
3
Baths
2.5
Stories
2
Floor Plan

Plan 270036AF

Main Level
slide image 0
2nd Floor
slide image 1

Plan 270036AF

1-800-854-7852

1-262-521-4596

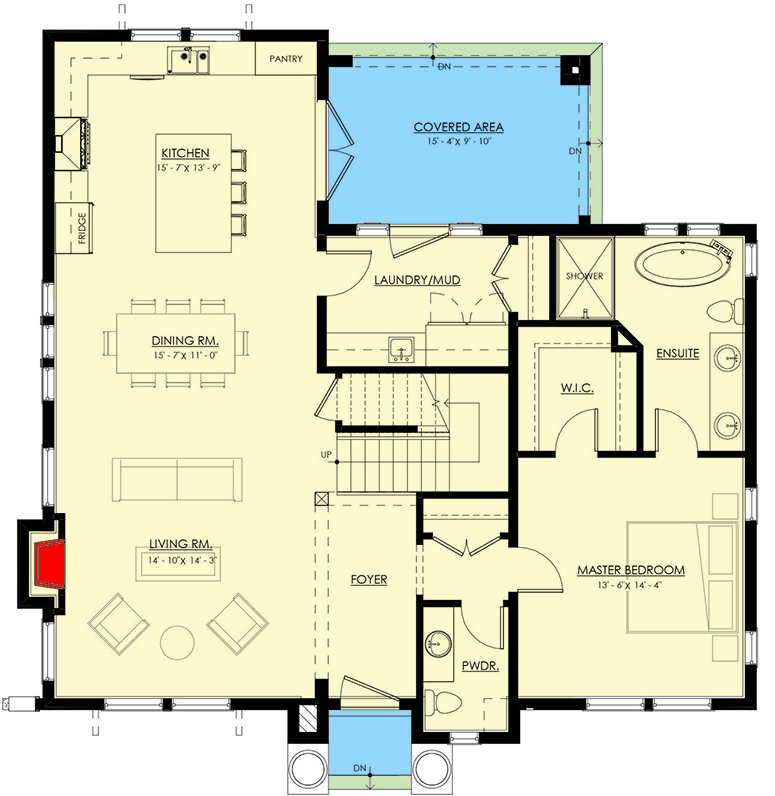

Main Level
floor plan image Main Level

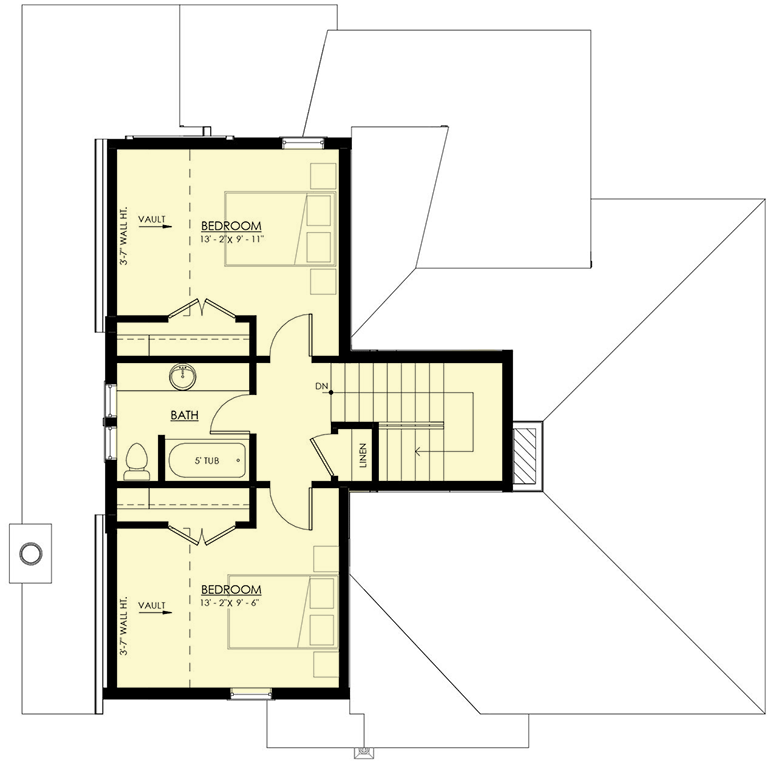

2nd Floor
floor plan image 2nd Floor
Plan Details

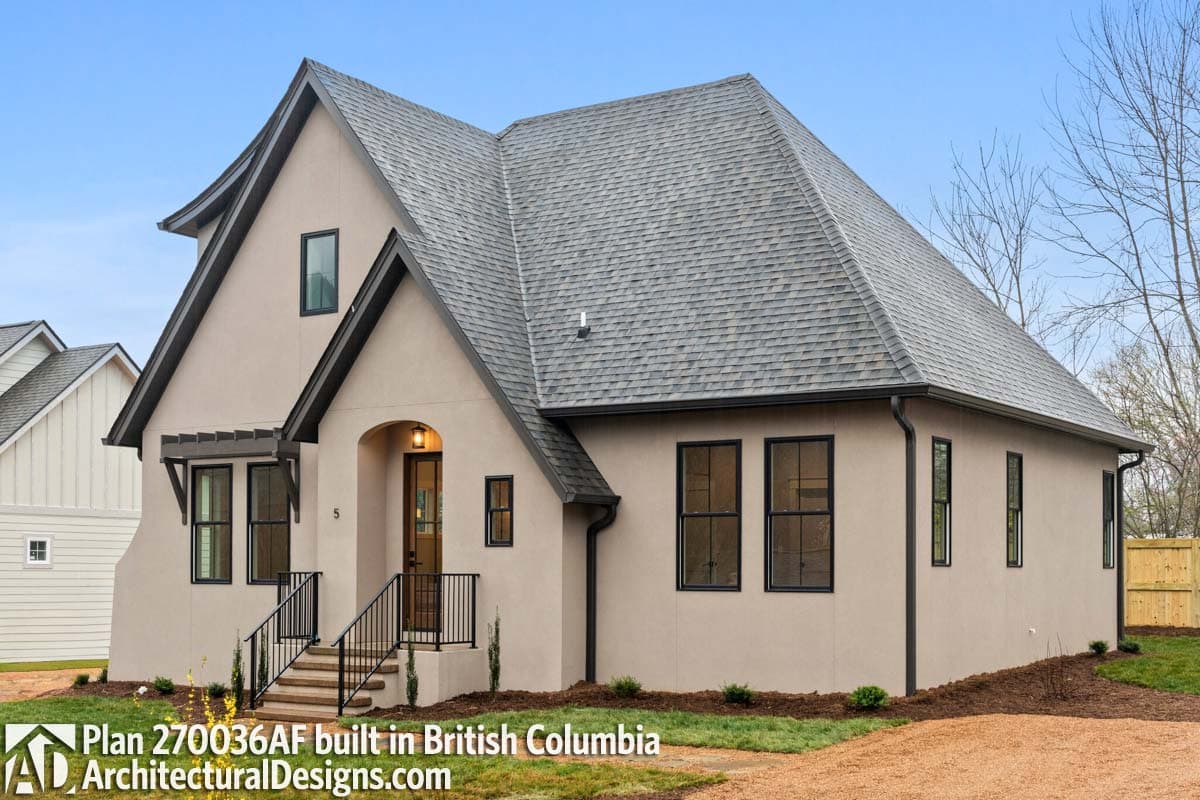

  • The asymmetrical roof line and sloped shed dormer add to the character and curb appeal of this two-story, European home plan.
  • Upon entering, enjoy clean views through the living room, dining area, and kitchen at the rear of the home. A powder bath and coat closet are conveniently located next to the entryway.

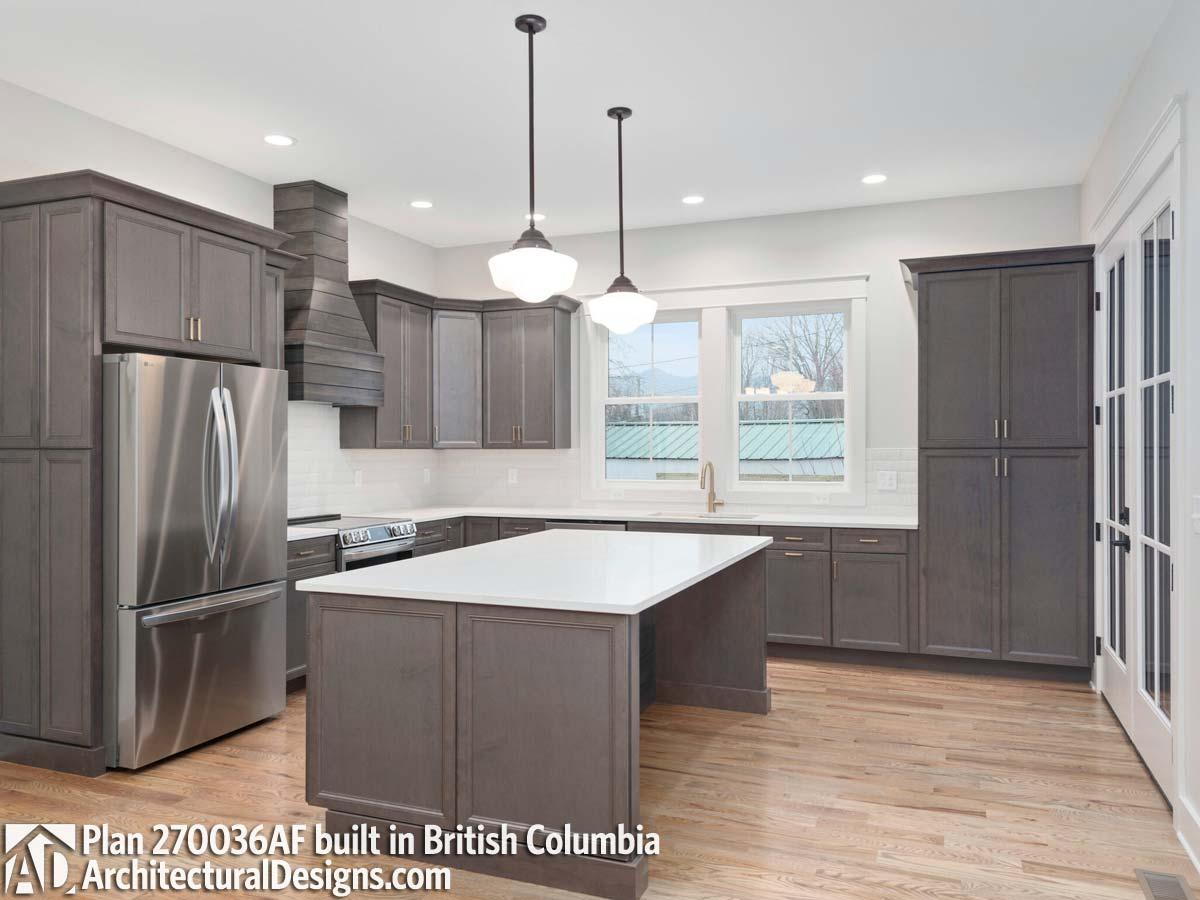

  • Move freely through the gourmet kitchen, where an oversized island in the center offers seating for three and loads of prep space. Steps away, French doors part to give access to a rear covered porch.
  • The master bedroom's main level location considers your future needs, while a standalone tub rests in the corner of the 5-fixture ensuite.
  • The two additional bedrooms are nearly identical in size and can be found upstairs separated by a full bath.
  • Related Plan: Get a version with an attached 2-car garage with house plan 270049AF.
What's Included
  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges

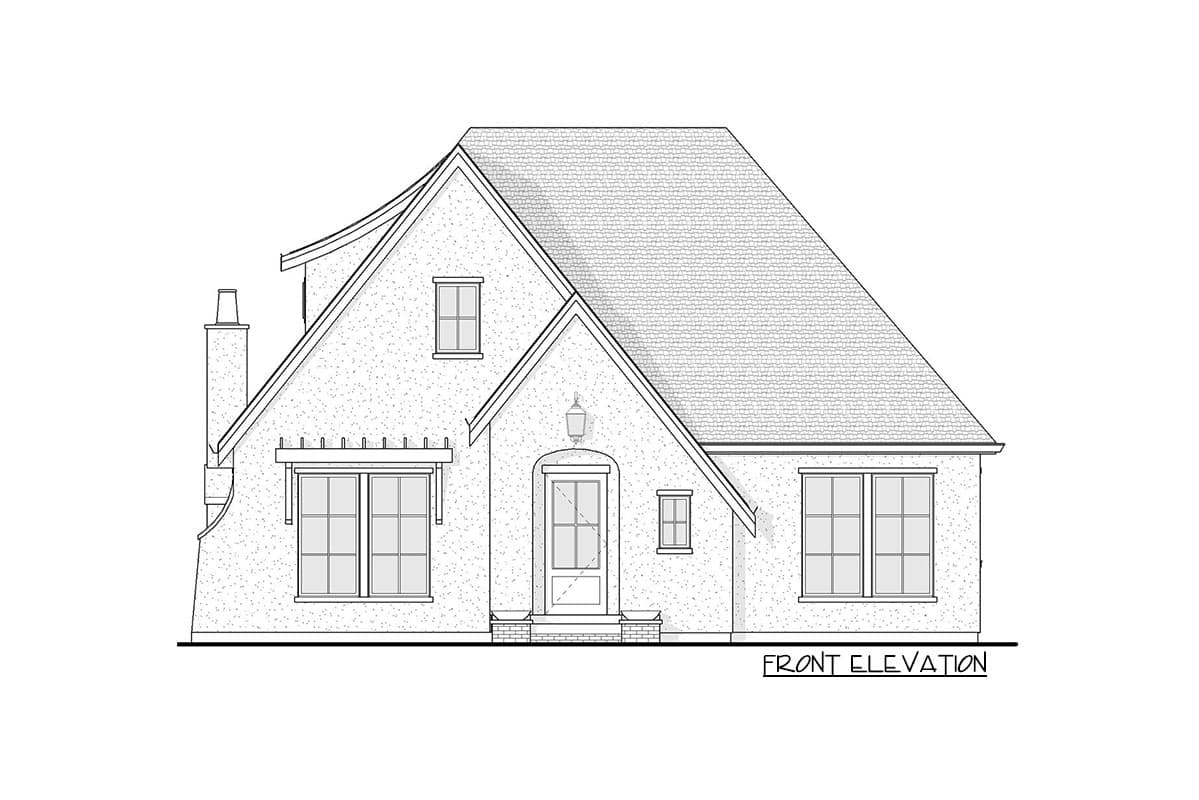

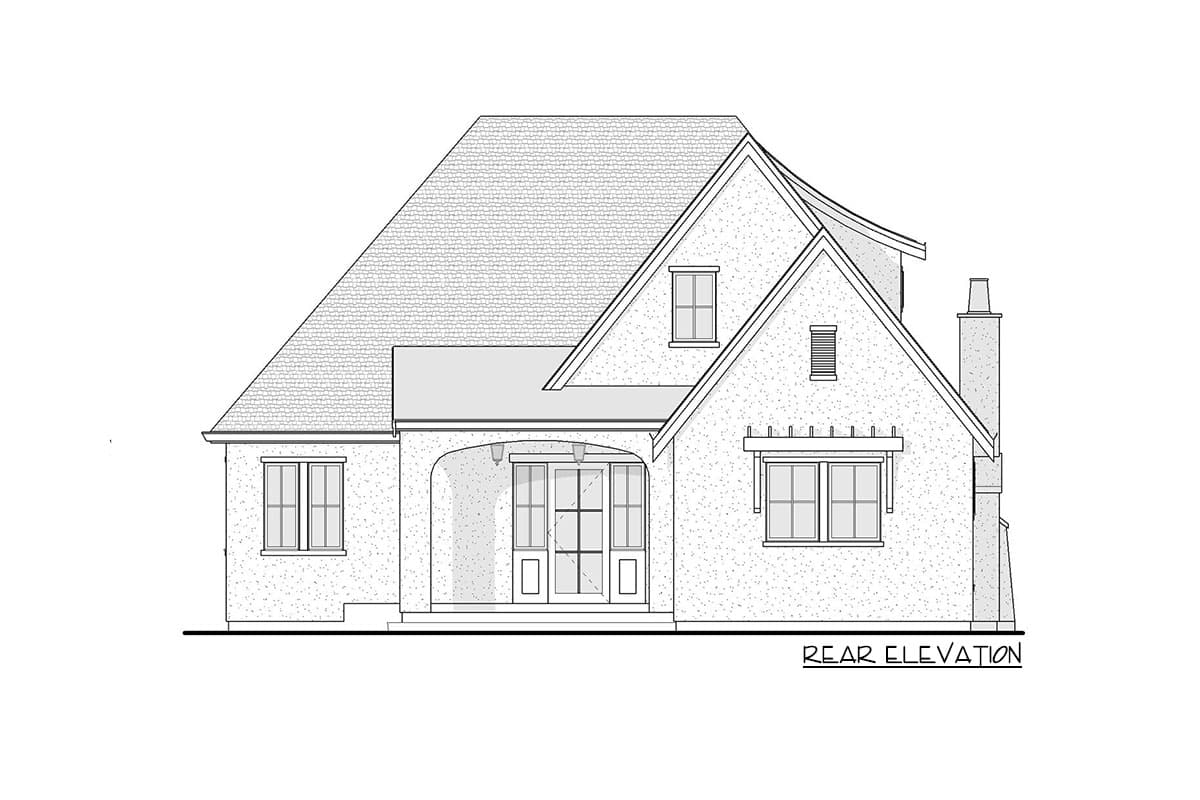

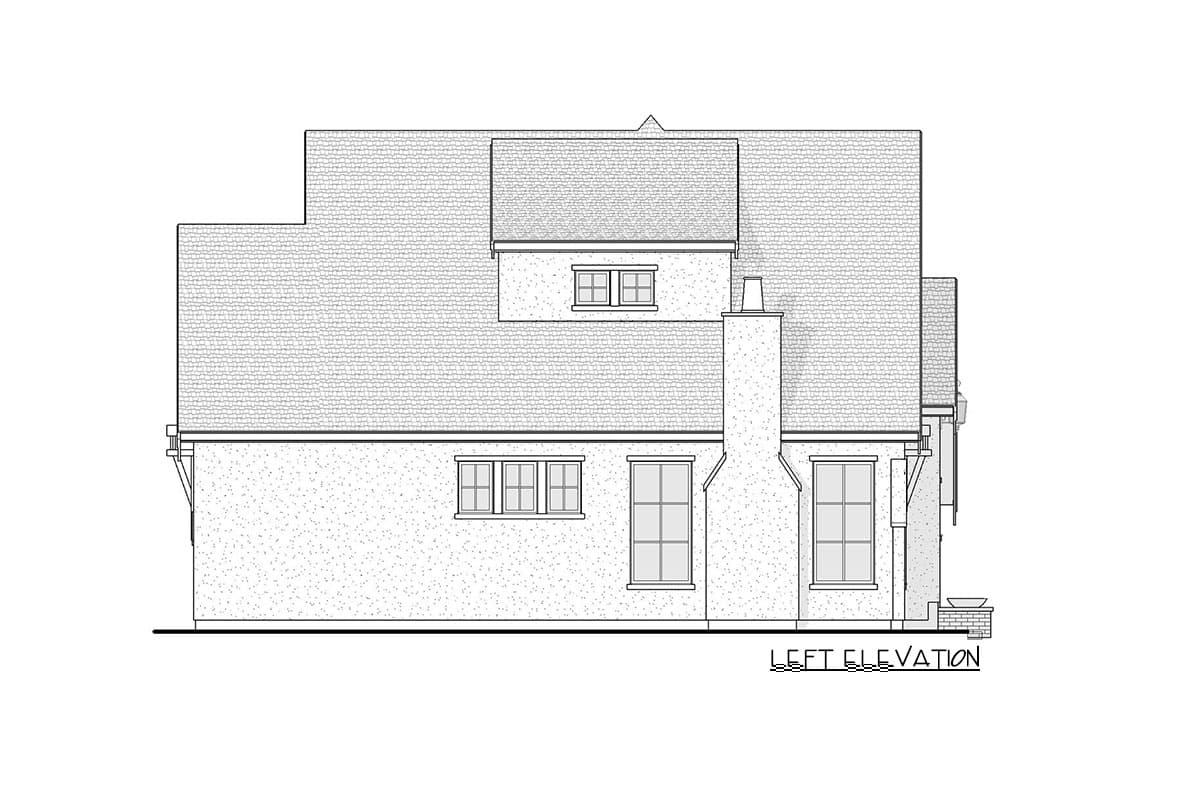

  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing - layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,879 sq. ft.

1st Floor

1,401 sq. ft.

2nd Floor

478 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

40' 0"

Max Ridge Height

29' 3"

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

European

French Country

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,879 sq. ft.

1st Floor

1,401 sq. ft.

2nd Floor

478 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

40' 0"

Max Ridge Height

29' 3"

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

European

French Country

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans
