Plan 61575UT

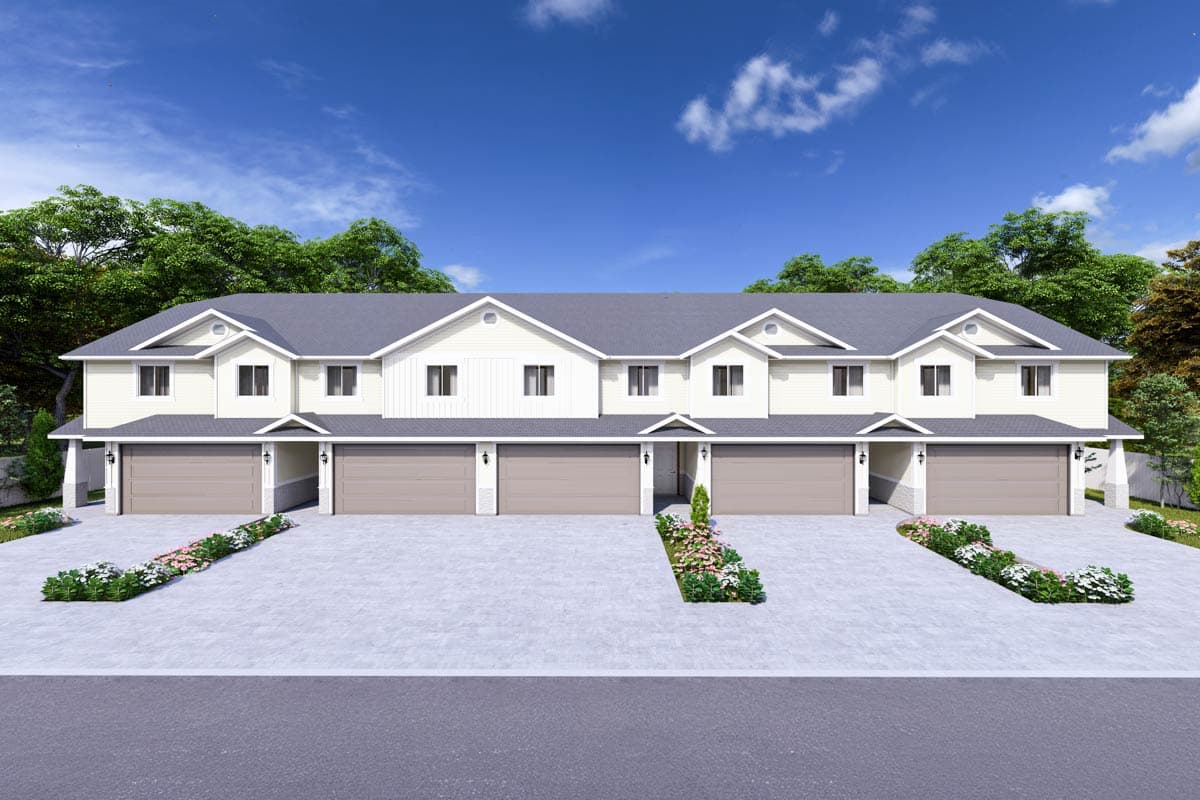

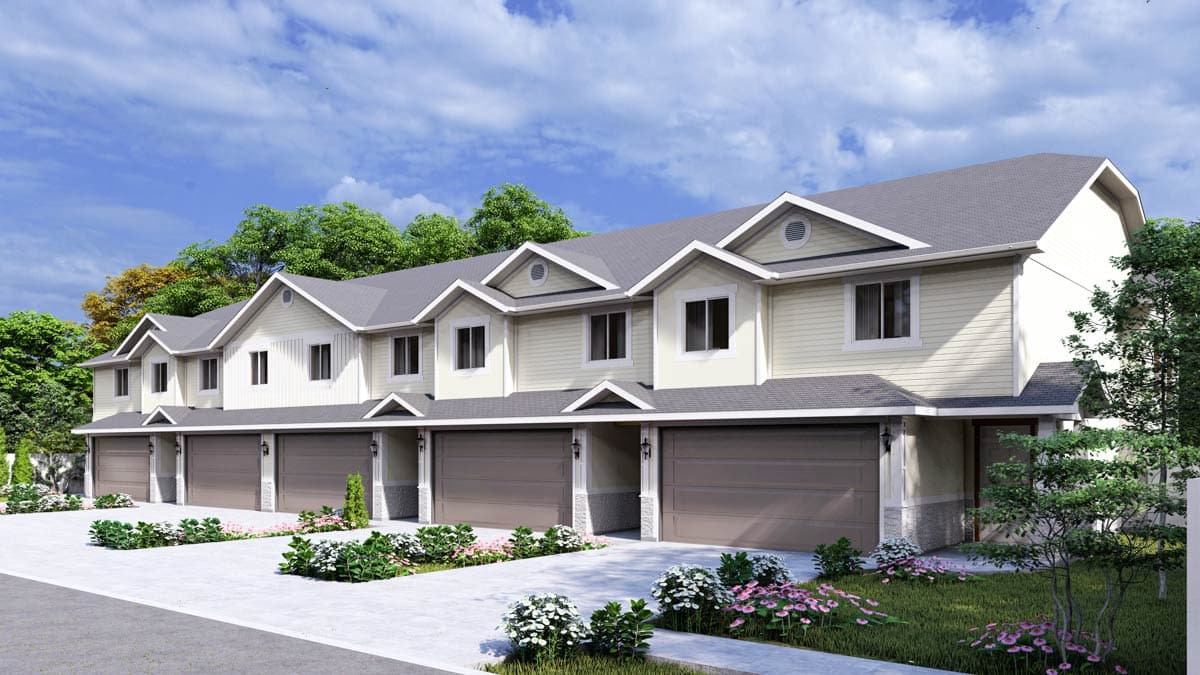

Two-Story Five-Family House Plan with 3-Bedroom Units - 8642 Sq Ft
Heated S.F.
8,642
Units
5
Width
Depth
Floor Plan

Plan 61575UT

Main Level
slide image 0
2nd Floor
slide image 1

Plan 61575UT

1-800-854-7852

1-262-521-4596

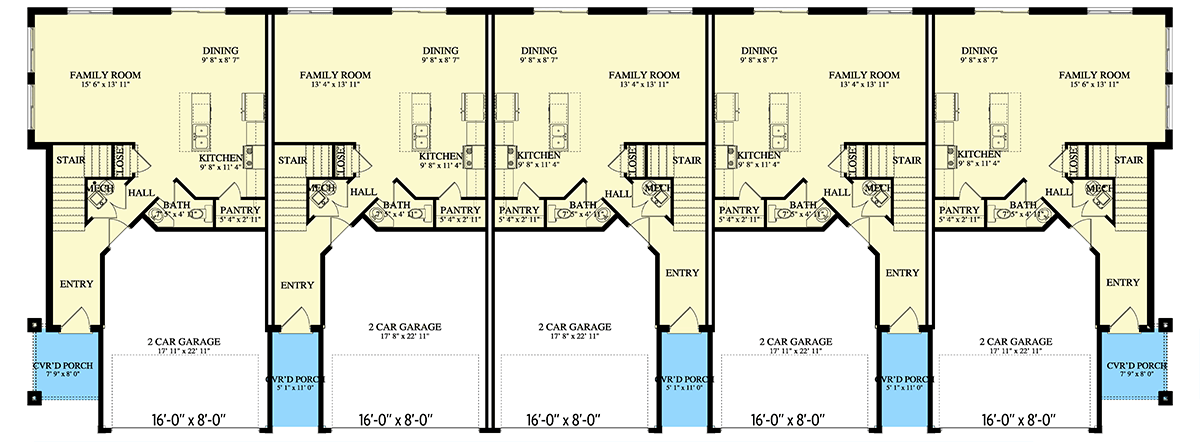

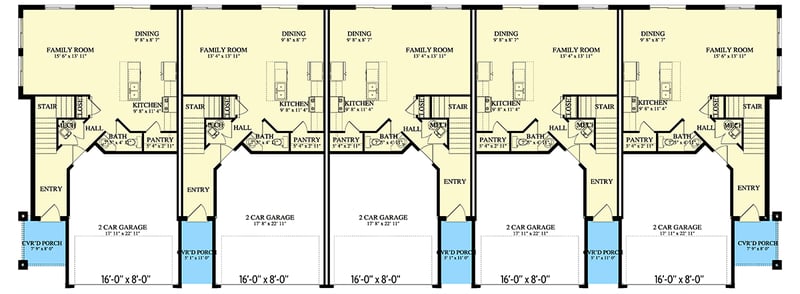

Main Level
floor plan image Main Level

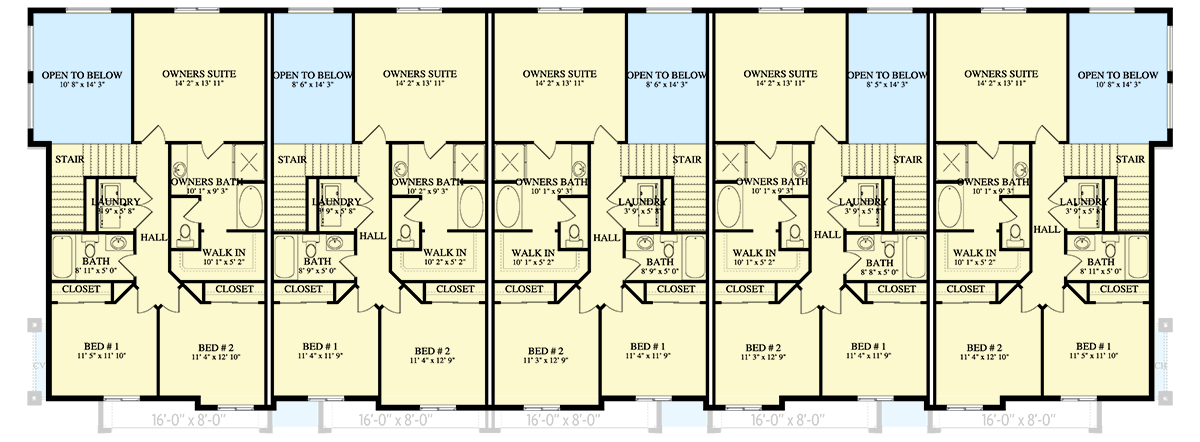

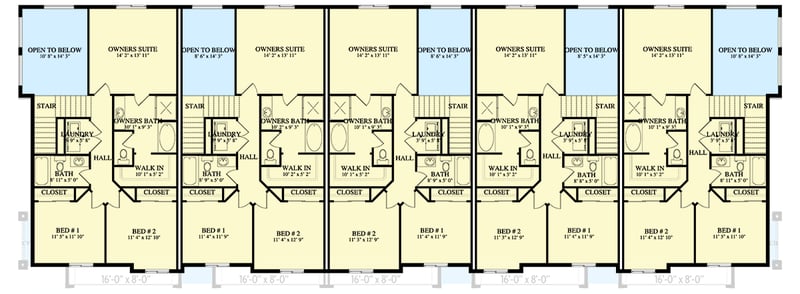

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This five-family house plan includes five units in total. Each end unit measures 1,350 sq. ft., with 700 sq. ft. on the main level and 650 sq. ft. on the second level, offering 3 bedrooms, 2.5 bathrooms, and a 2-car garage. The three middle units each measure 2,125 sq. ft., with 1,083 sq. ft. on the main level and 1,042 sq. ft. on the second, also featuring 3 bedrooms, 2.5 bathrooms, and a 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a 6-unit multiplex with house plan 61576UT (10,334 sq. ft.).
Unit A, E
1,350Sq. Ft.
700 Sq. Ft.
1st Floor
650 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
2Vehicle
Attached
25'width
46' 6"depth
Unit B,C,D
2,125Sq. Ft.
1083 Sq. Ft.
1st Floor
1042 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
2Vehicle
Attached
25'width
46' 6"depth
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

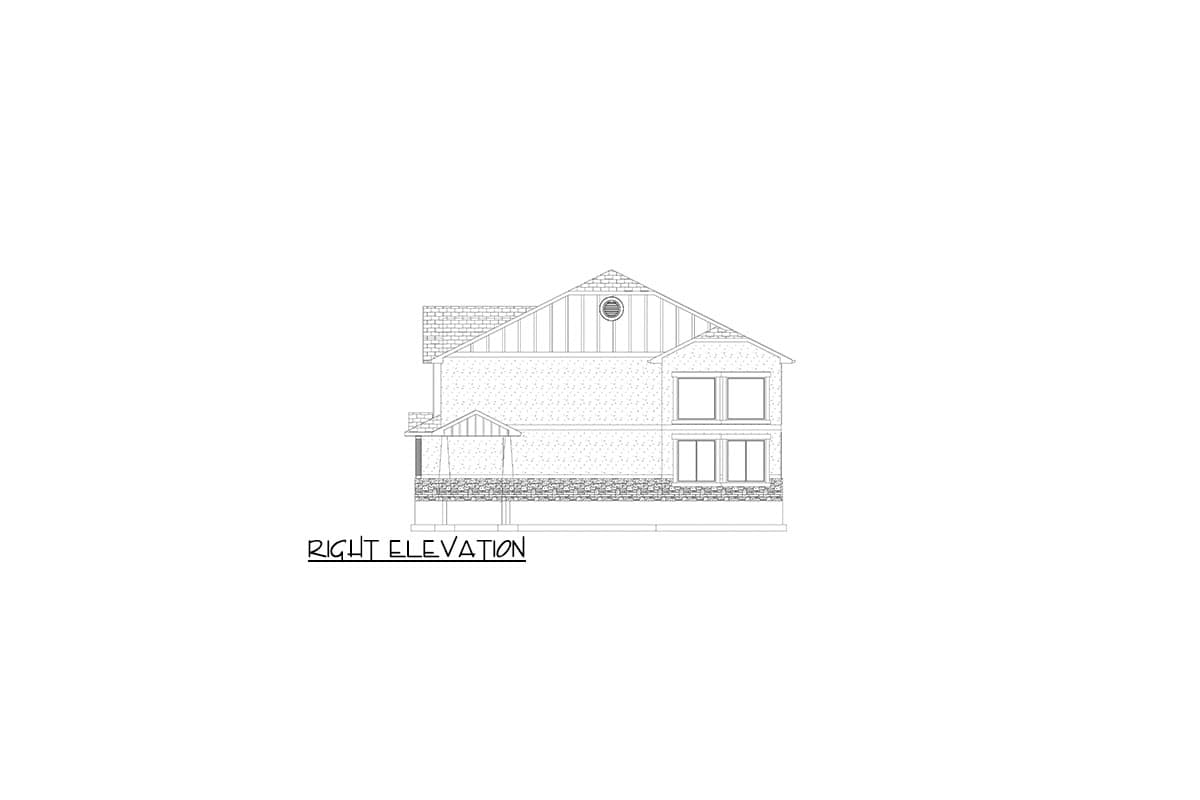

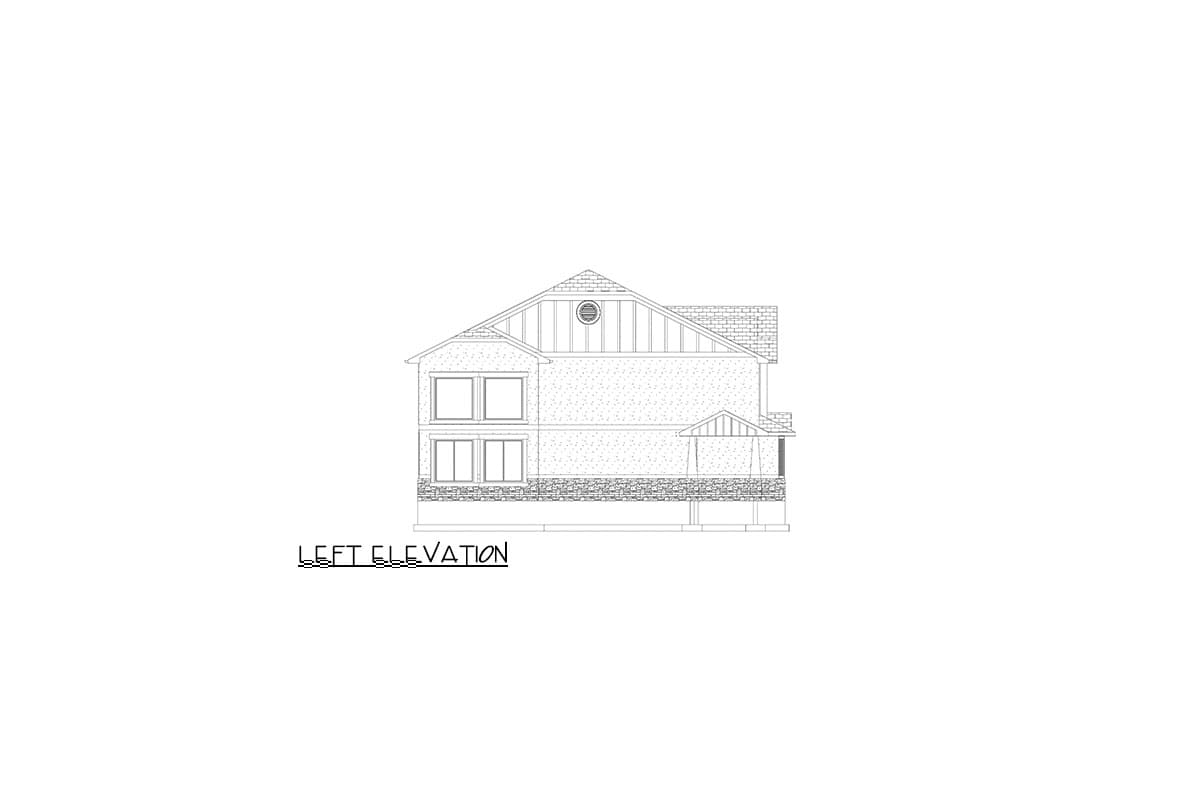

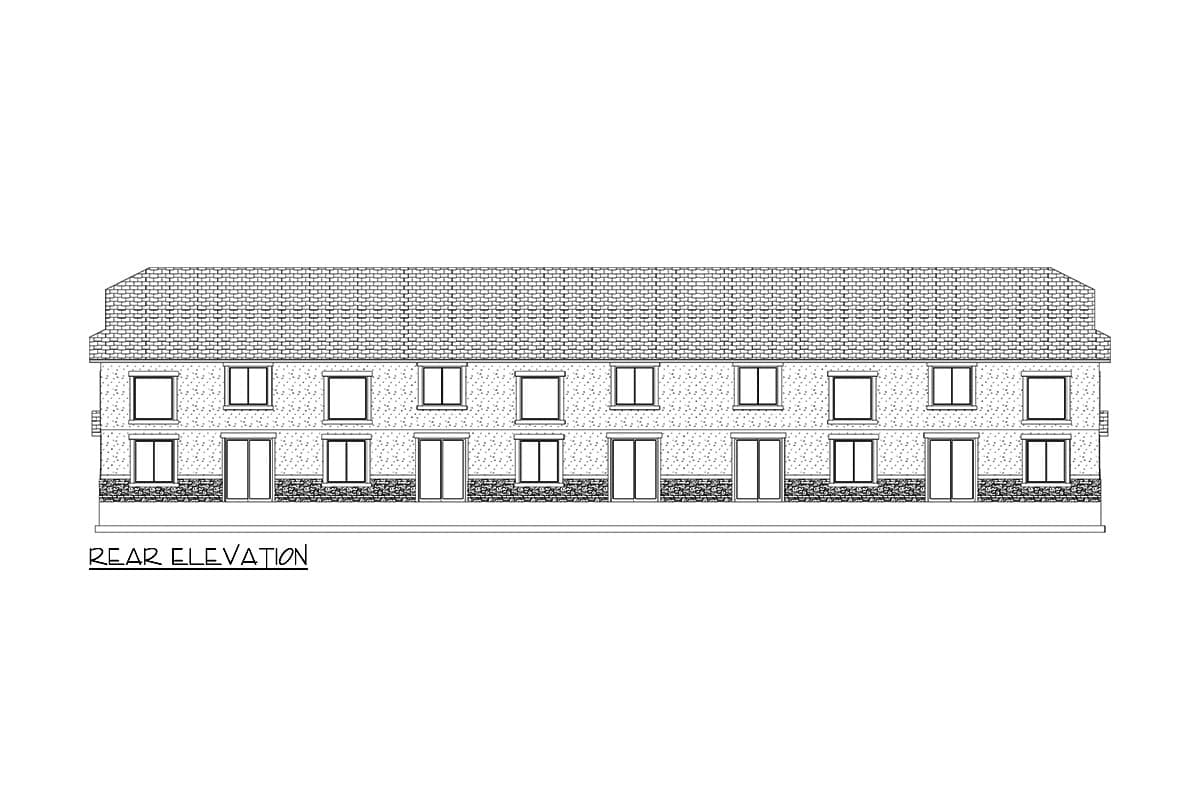

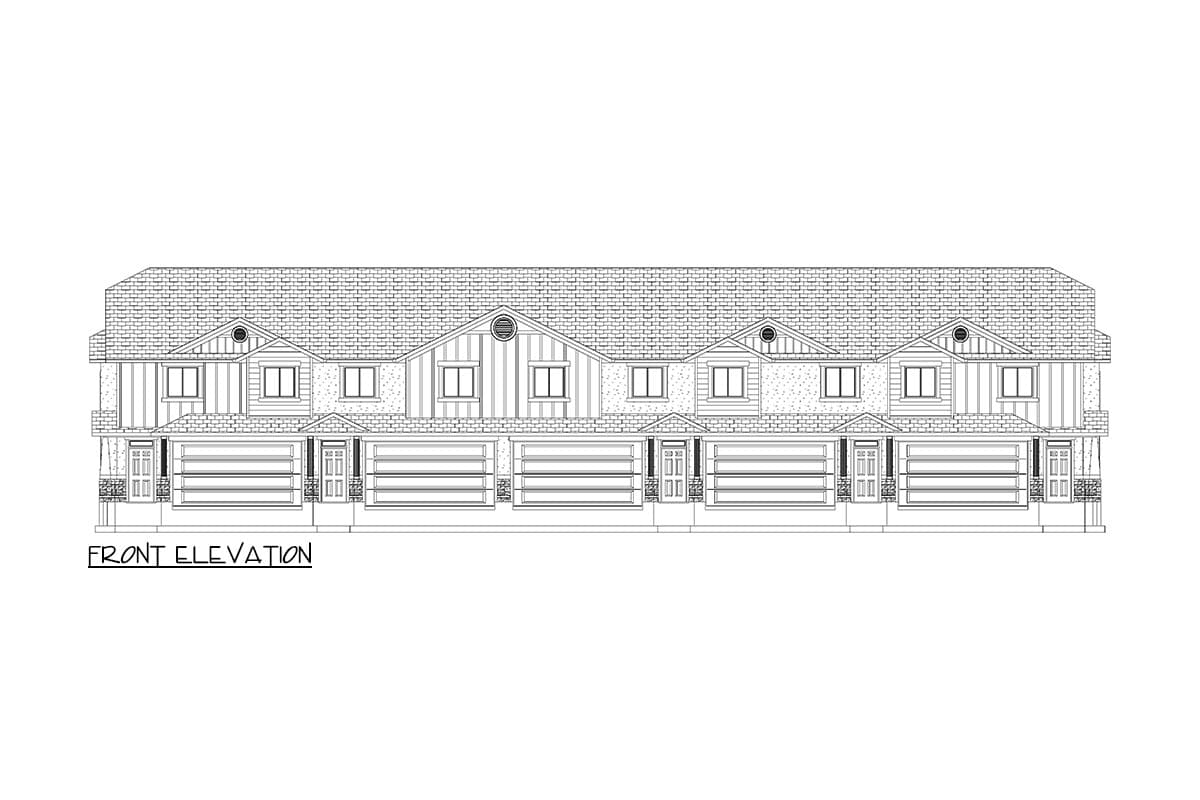

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

8,642 sq. ft.

1st Floor

3,350 sq. ft.

2nd Floor

5,292 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Half bathrooms

5

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

125' 3"

Depth

46' 6"

Max Ridge Height

29' 3"

Garage

Type

Attached

Count

8 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Two Story Great Room
