Plan 50237PH
Two-Story Garage Apartment with 1 Bed - 850 Sq Ft
Heated S.F.
850
Beds
1
Baths
1
Stories
2
Cars
2- 3
Floor Plan

Plan 50237PH

Main Level
slide image 0
2nd Floor
slide image 1

Plan 50237PH

1-800-854-7852

1-262-521-4596

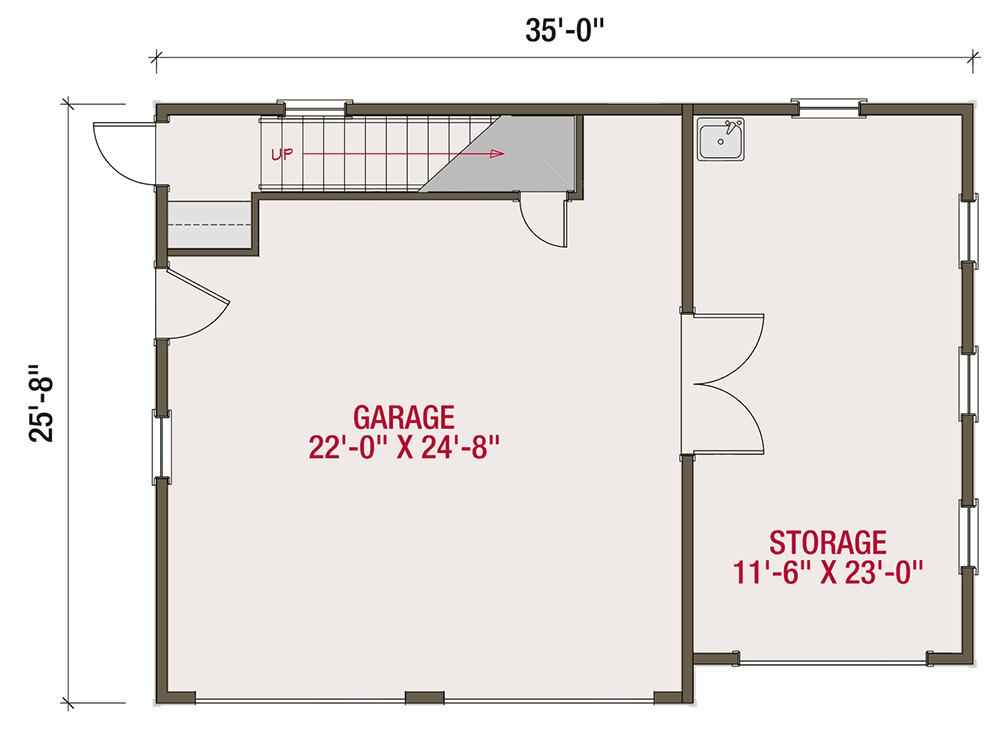

Main Level
floor plan image Main Level

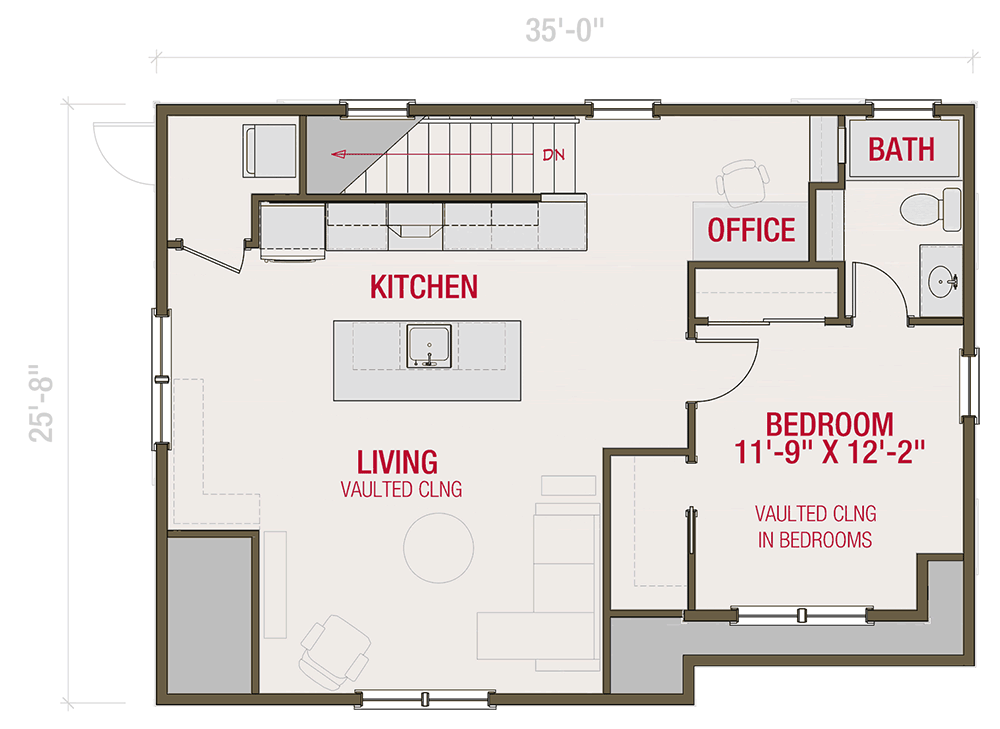

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This garage apartment plan offers you 850 square feet of heated living space with 1 bed, 1 bath and a 912 square foot 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing Plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

850 sq. ft.

2nd Floor

850 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

35' 0"

Depth

25' 8"

Garage

Type

Detached

Area

912 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Architectural Style

Carriage

Cottage

Country

Craftsman

Special Features

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Workshop
