Plan 270023AF

Two-Story Home Plan with Lower Level Studio and Garden Garage - 3415 Sq Ft

Heated S.F.

3,415

Beds

4

Baths

2.5

Stories

2

Cars

3

Floor Plan

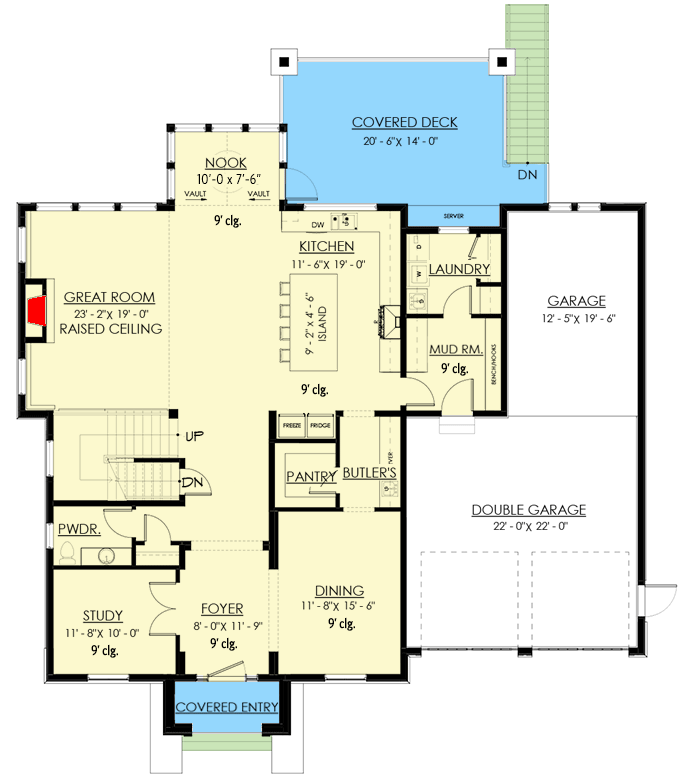

Main Level

floor plan image Main Level

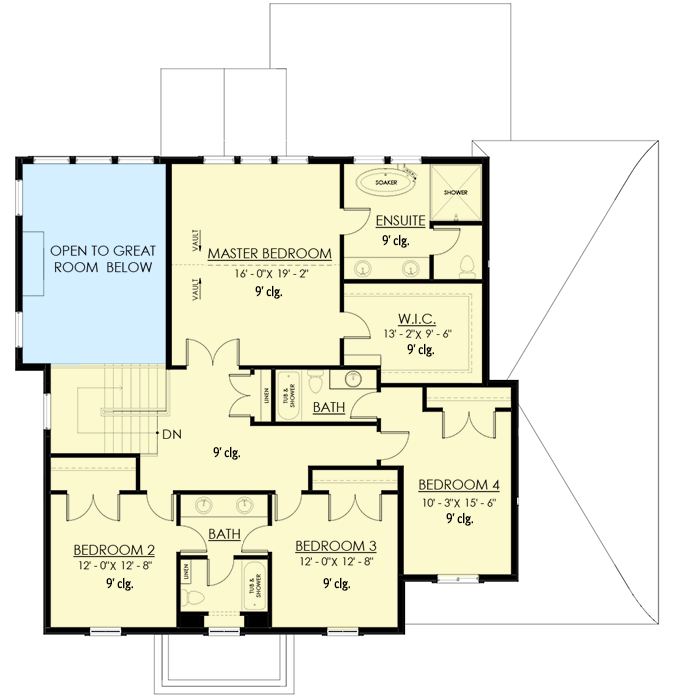

2nd Floor

floor plan image 2nd Floor

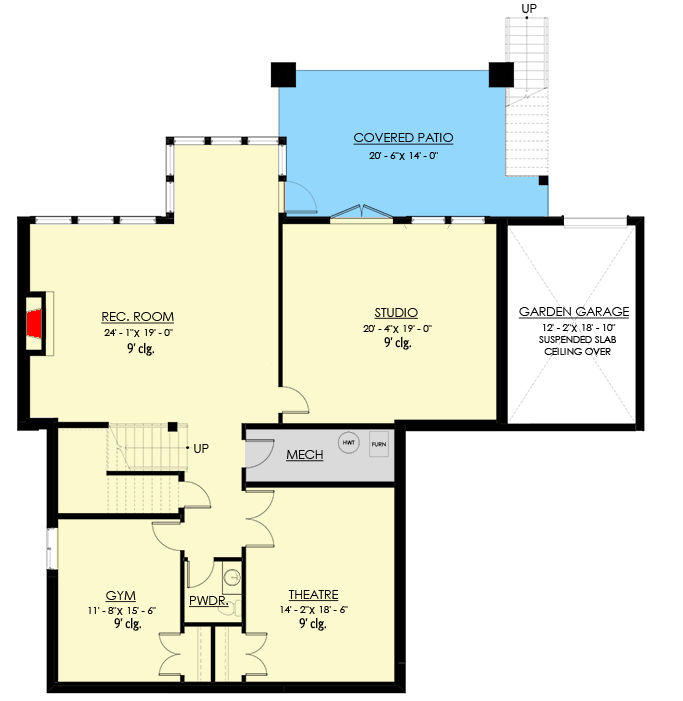

Lower Level

floor plan image Lower Level

Plan Details

Stucco and brick grace the exterior of this two-story home plan, complete with arched windows and a soothing color scheme for maximum curb appeal.
Entertaining is made easy with the open-concept main level, which features a large island in the kitchen with seating for casual meals and conversation, a butler's pantry that links to the formal dining room, and a raised ceiling above the great room.
A sunroom-style nook is ideal for casual dining, and leads to a covered deck, and a quiet study resides just off the foyer.
The master bedroom occupies the back side of the second level, and includes a soaking tub in the 5-fixture ensuite and a sizable walk-in closet. Three family bedrooms are located across the hall; two share a Jack-and-Jill bath, and one includes a full bath.
The fun continues with the walk-out basement that features a recreation room, home theatre, gym, and studio space. Large windows provides an open and airy feeling downstairs, and a garden garage is perfect those with a green thumb.

What's Included

Foundation Plan
Floor Plan(s) with Door and Window Opening Sizes
Roof Plan showing pitches, valleys, ridges

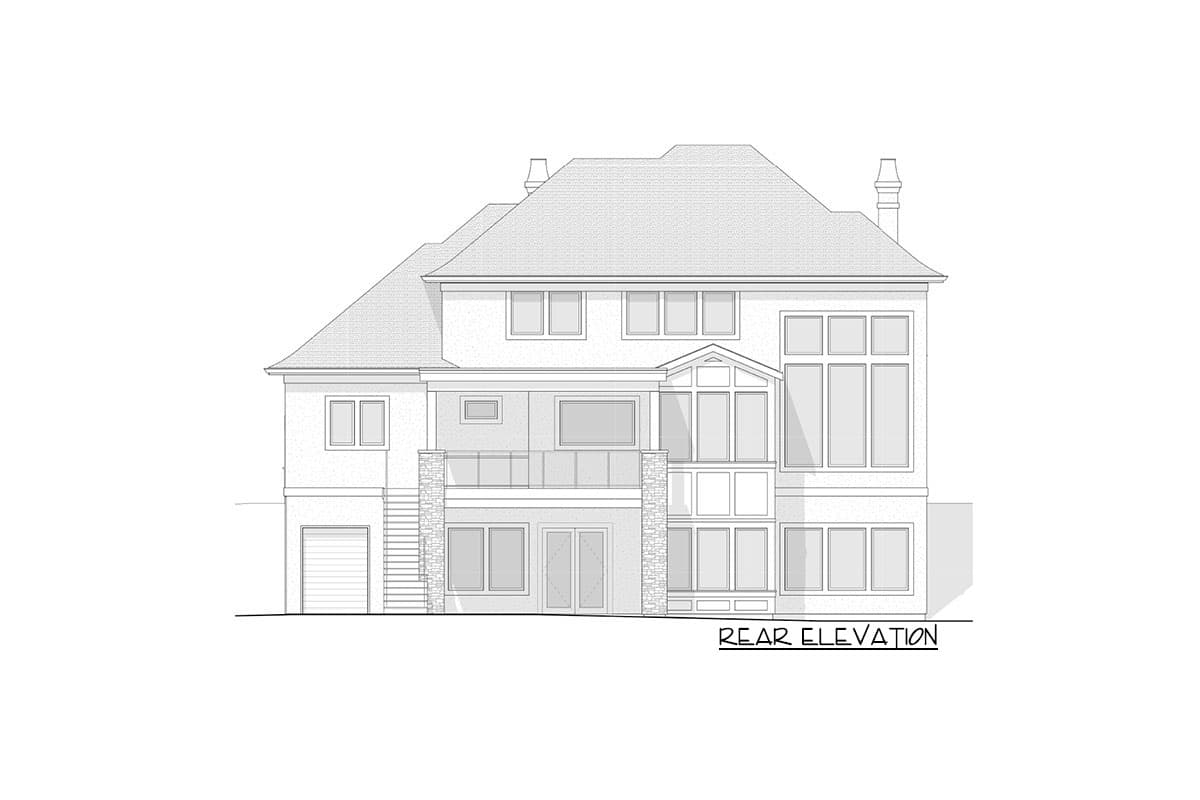

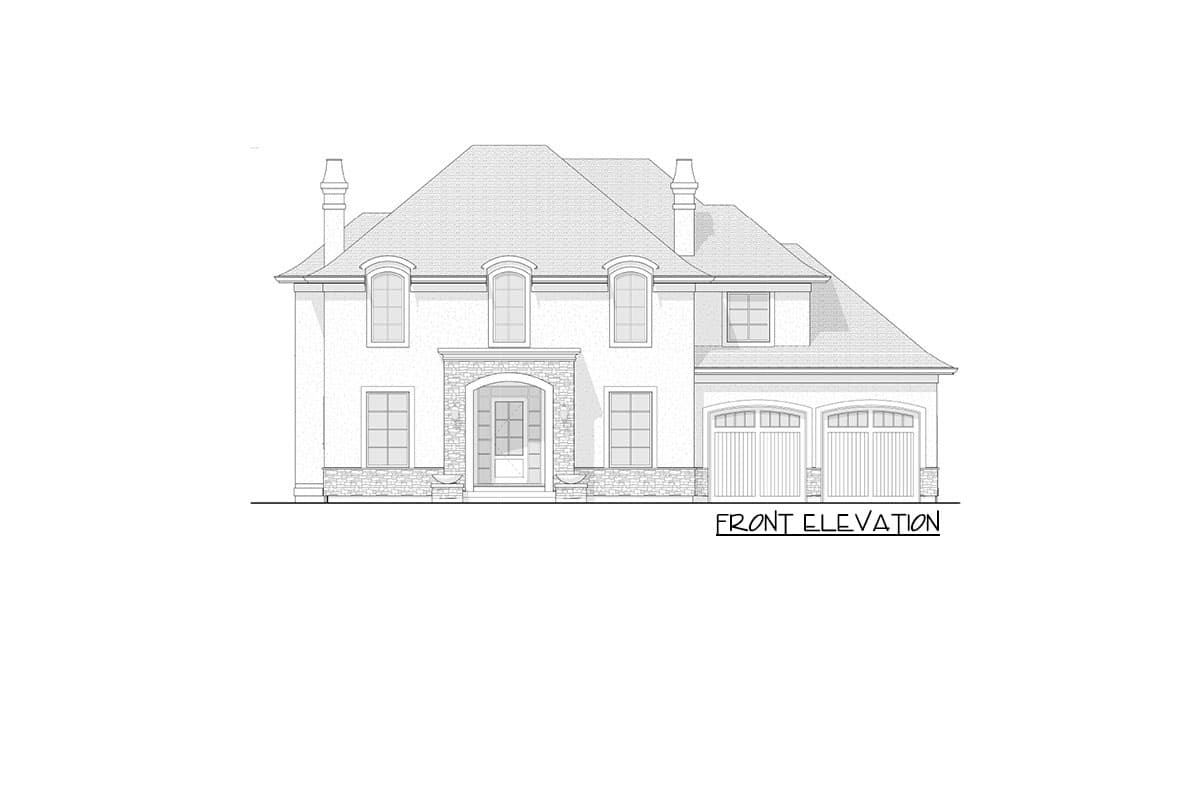

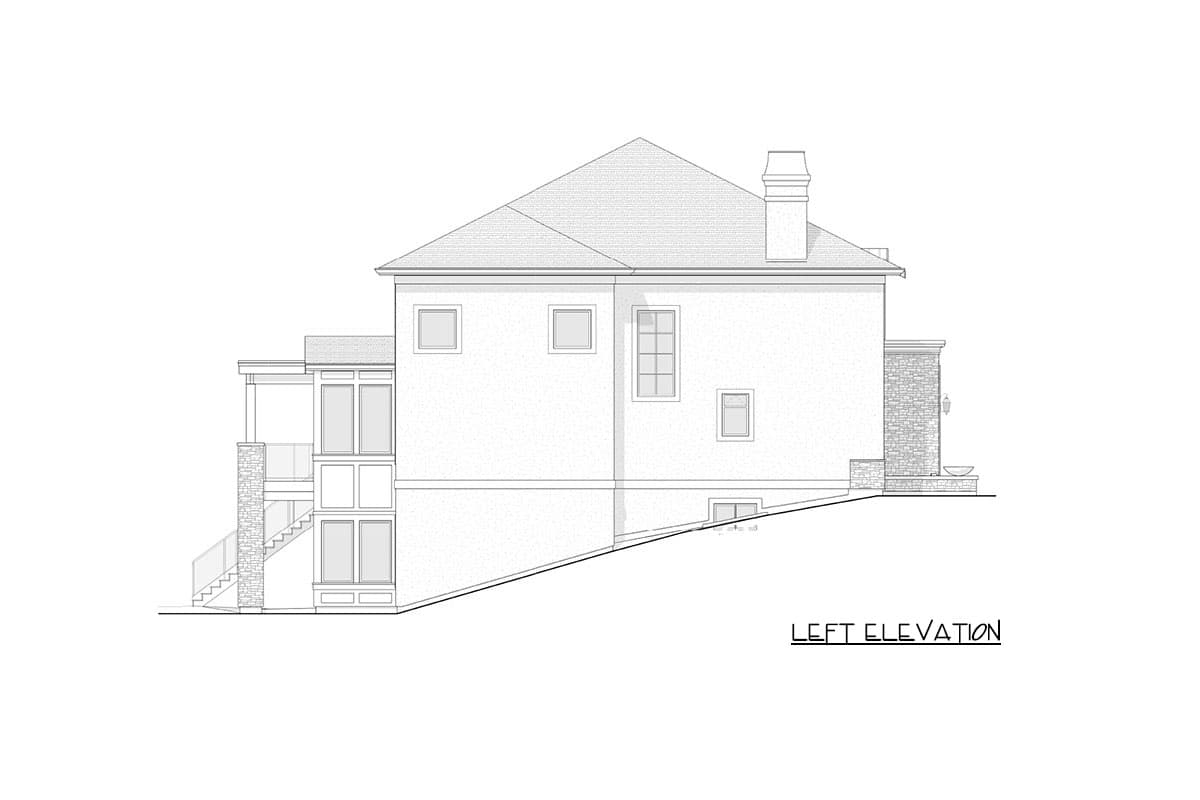

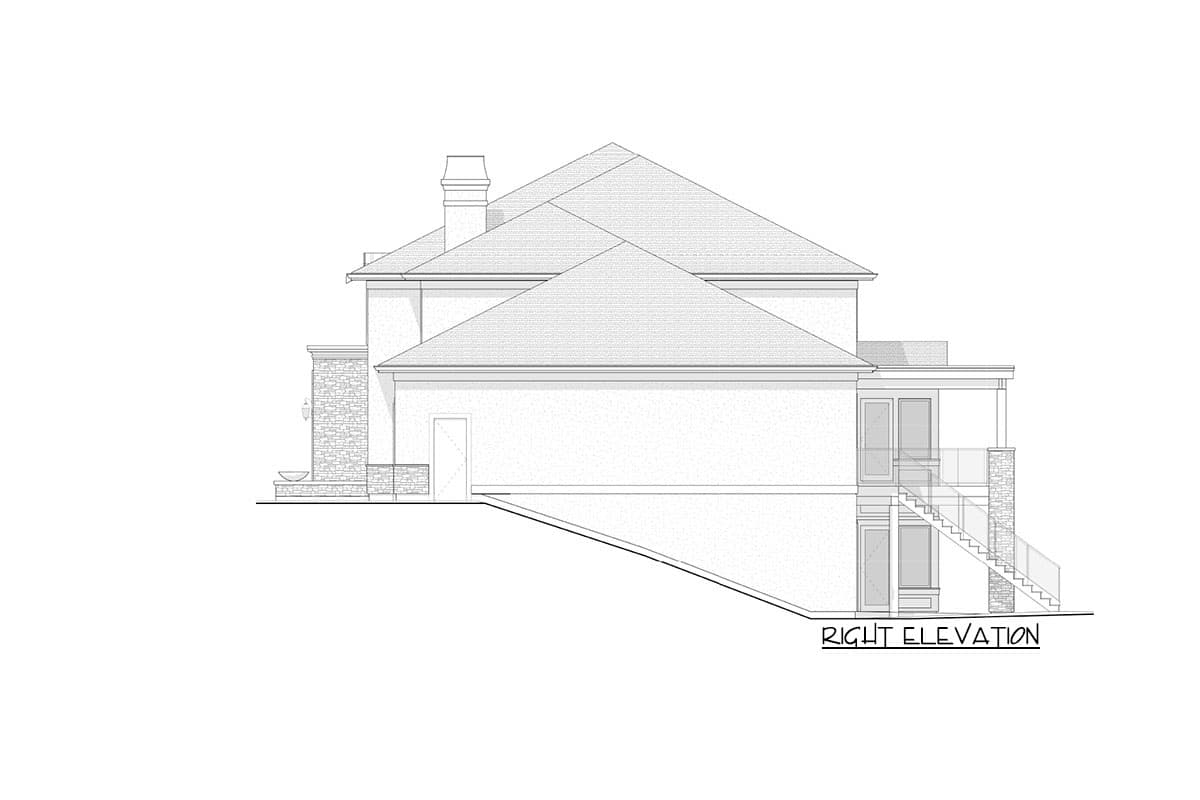

Exterior Elevations
Building Section
Typical Construction Details/Sections

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Plumbing & Electrical plans
Mechanical Drawings (location of heating and air equipment and duct work)
Framing - layouts with beam sizes and locations
Renderings, photography, or marketing imagery
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,415 sq. ft.

1st Floor

1,833 sq. ft.

2nd Floor

1,582 sq. ft.

Optional Lower Level

1,786 sq. ft.

Porch, Front

59 sq. ft.

Deck

317 sq. ft.

Storage

250 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 2"

Depth

64' 0"

Max Ridge Height

33' 3"

Garage

Type

Attached

Area

760 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 2nd Floor

Two Story Great Room

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

3,415 sq. ft.

1st Floor

1,833 sq. ft.

2nd Floor

1,582 sq. ft.

Optional Lower Level

1,786 sq. ft.

Porch, Front

59 sq. ft.

Deck

317 sq. ft.

Storage

250 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 2"

Depth

64' 0"

Max Ridge Height

33' 3"

Garage

Type

Attached

Area

760 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 2nd Floor

Two Story Great Room

Plan Collections

Canadian House Plans
