Plan 68649VR
Two-Story House Plan with Cathedral Ceiling Family Room - 3781 Sq Ft
Heated S.F.
3,781
Beds
5
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 68649VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 68649VR

1-800-854-7852

1-262-521-4596

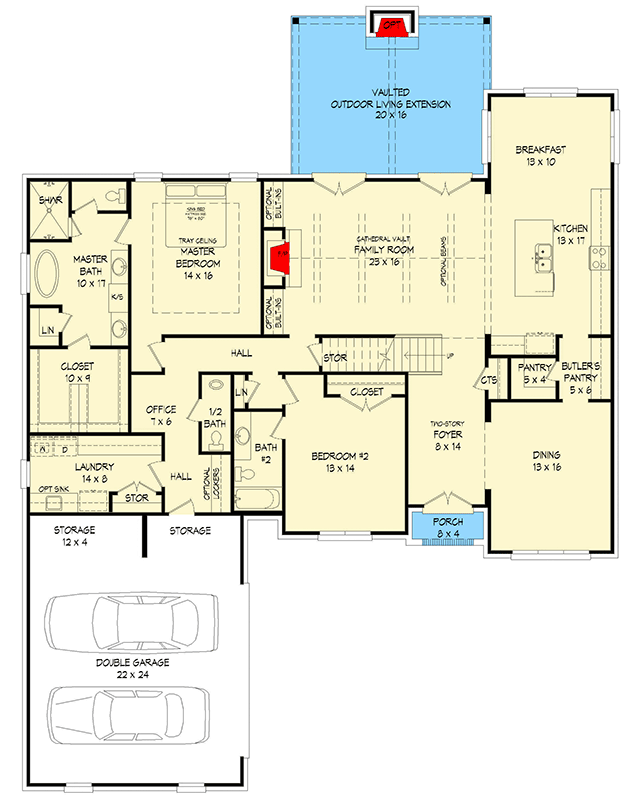

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

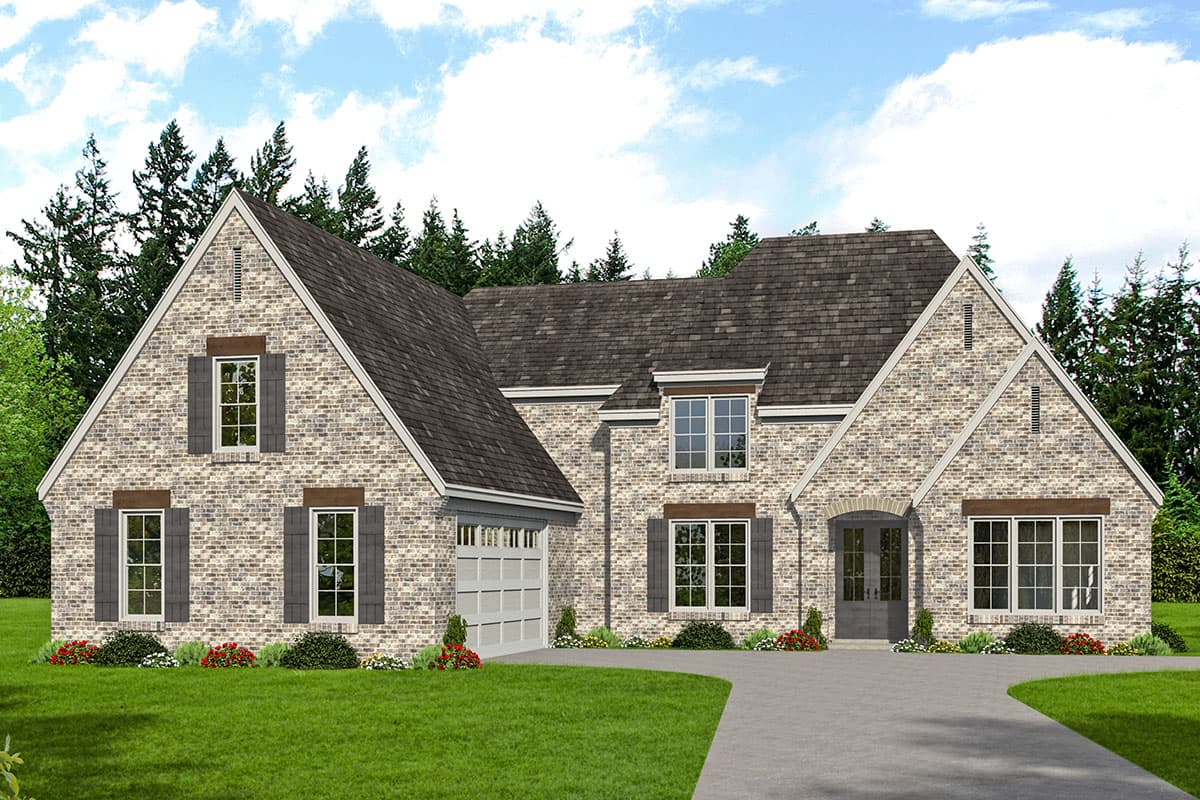

  • Steeply-pitched gables combine with the brick exterior to provide a stately appearance on this two-story house plan. The 2-car garage protrudes from the front of the home, creating a parking courtyard.
  • Double doors welcome you into a foyer, with a formal dining room located to the right. A butler's pantry links the dining area with the kitchen, while providing additional storage and serving space when entertaining.
  • The cathedral ceiling above the heart of the home guides your eye towards the left wall, where a fireplace surrounded by built-in cabinetry serves as the focal point.
  • A pocket office can be found near the master suite, which occupies the left side of the home. The spa-like en suite features a soaking tub, toilet room, and spacious closet. A second bedroom on the main level includes a full bath, and is ideal for guests.
  • Bedrooms 3 and 4 can be found upstairs, along with a large recreation room and bonus room. Convert the recreation room into a fifth bedroom if needed.
  • Related Plan: Get a smaller version with house plan 680401VR (3,071. sq. ft.) and an alternate version with house plan 680441VR (3,139 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,781 sq. ft.

1st Floor

2,452 sq. ft.

2nd Floor

1,329 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 4"

Depth

81' 2"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

679 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

8 on 12

Architectural Style

European

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,781 sq. ft.

1st Floor

2,452 sq. ft.

2nd Floor

1,329 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 4"

Depth

81' 2"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

679 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

8 on 12

Architectural Style

European

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor
