Plan 72110DA
Two Story Lake Home Plan with Wrap Around Outdoor Living Space - 1744 Sq Ft
Heated S.F.
1,744
Beds
3
Baths
2
Stories
2
Cars
2
Floor Plan

Plan 72110DA

Main Level
slide image 0
2nd Floor
slide image 1
Detached Garage Plan
slide image 2

Plan 72110DA

1-800-854-7852

1-262-521-4596

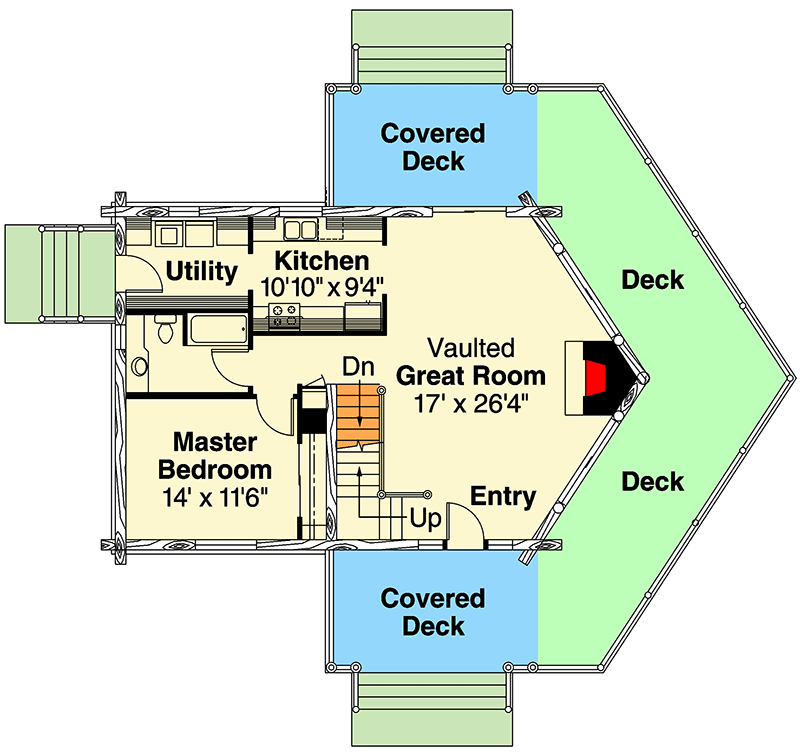

Main Level
floor plan image Main Level

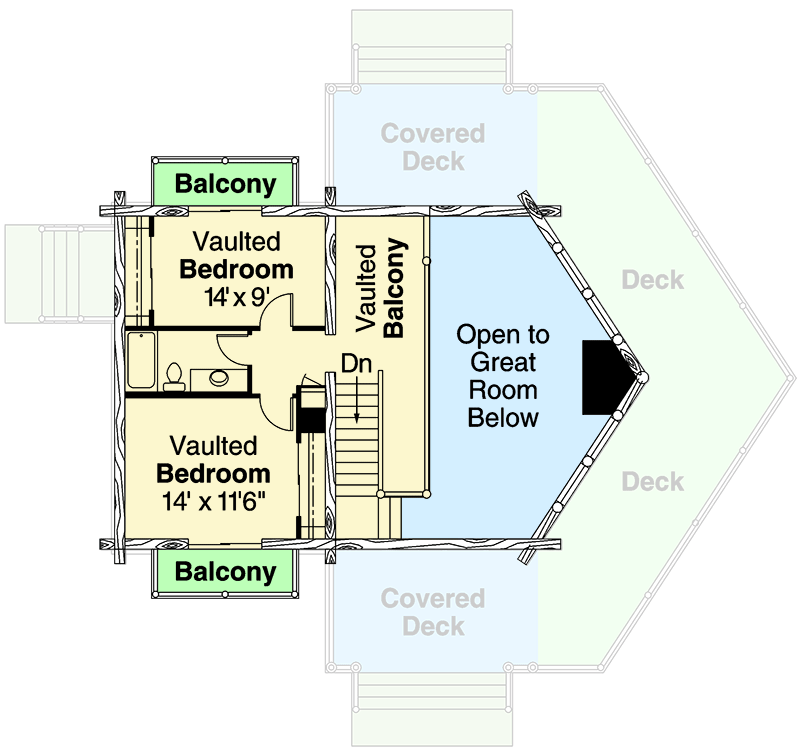

2nd Floor
floor plan image 2nd Floor

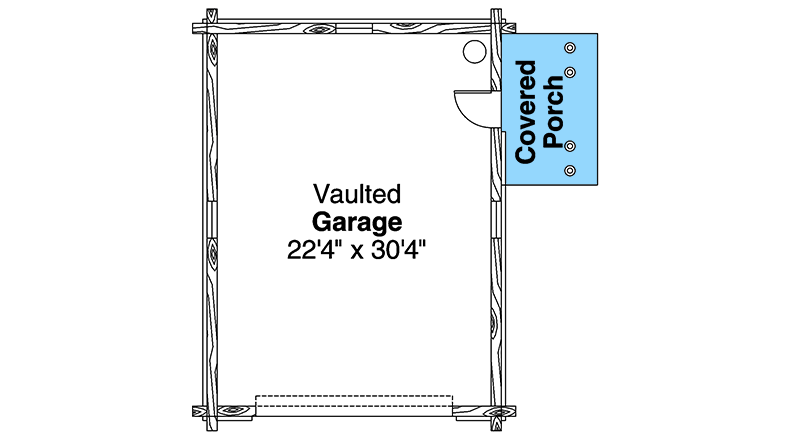

Detached Garage Plan
floor plan image Detached Garage Plan
Plan Details

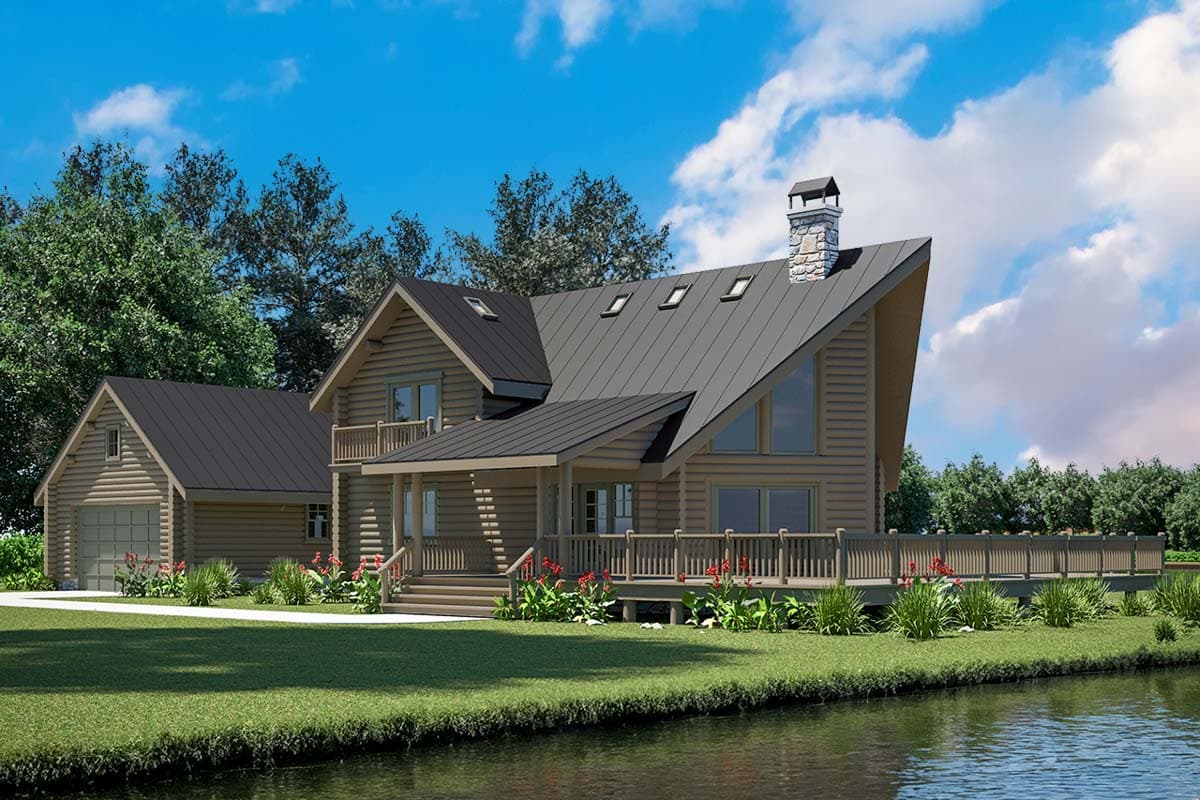

  • This home plan is a contemporary log home with a wide, V-shaped deck that reflects the A-frame shape of its handsome front fa'ade.
  • Covered porches extend out from the A-frame, on the left and right. The left porch and steps lead to the main entry, which opens into a two-story-high vaulted great room, richly glassed across the front. Wide sliders on the opposite wall provide additional deck access next to a brick or stone fireplace.
  • More natural light washes down into the great room through six skylights. Several of these are directly over the vaulted balcony/loft that overlooks the great room from the second floor landing.
  • Two vaulted bedrooms, a bathroom and a linen closet are also on this level. Each bedroom has two skylights, a private balcony and good-sized closet.
  • This home plan's master bedroom is on the ground floor. Nonetheless, it's a quiet space because a closet and stairway serve as sound buffers between this bedroom and the great room. The nearby bathroom has a combination tub and shower.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

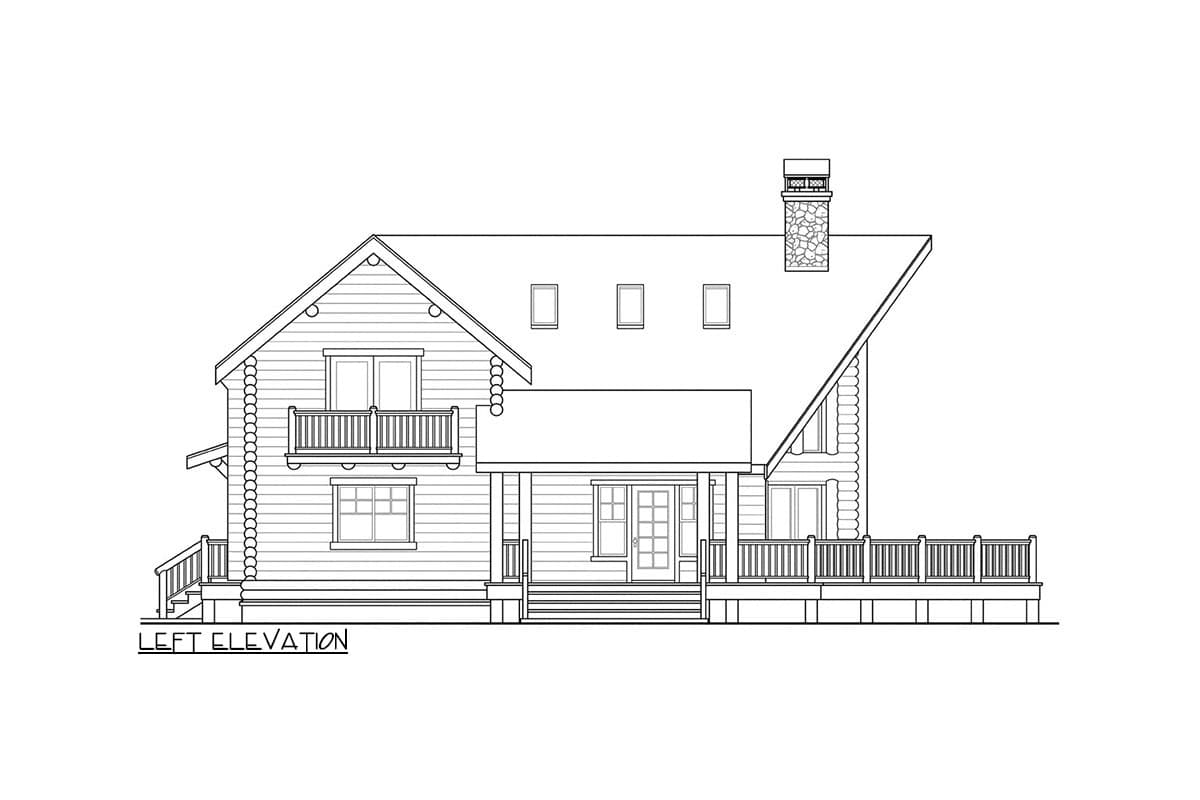

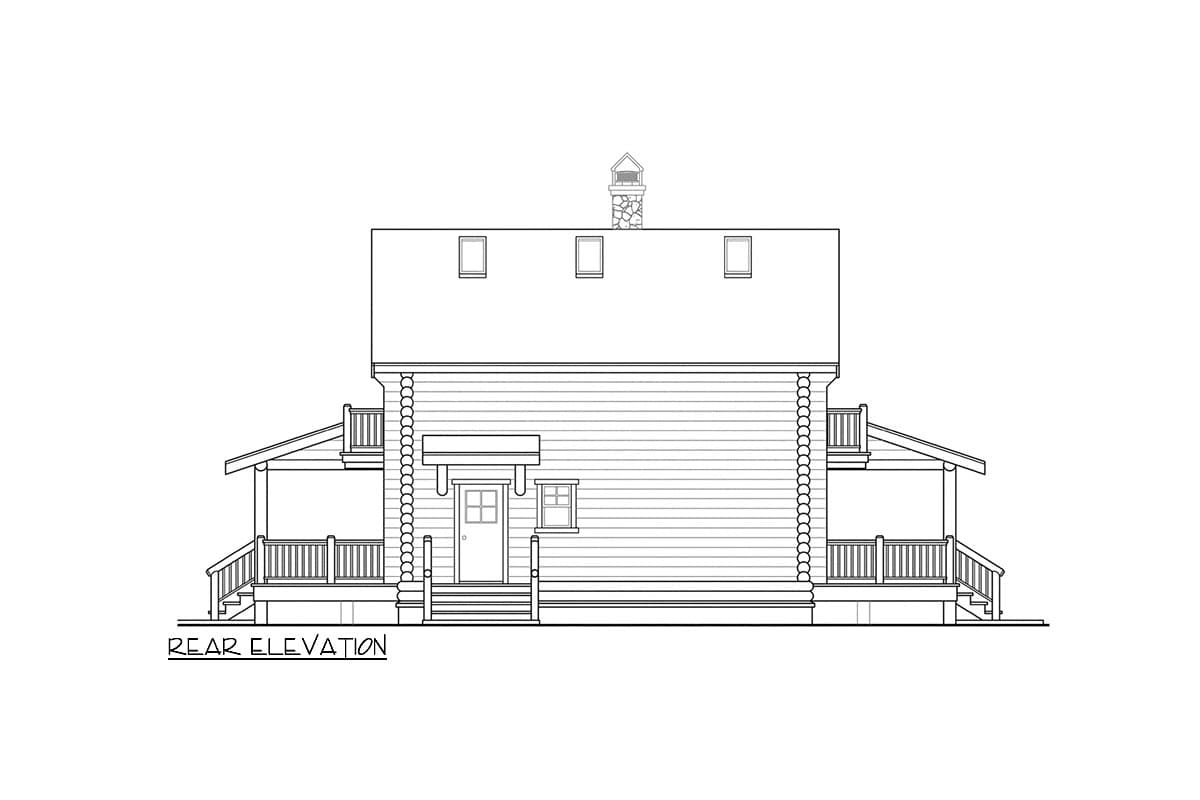

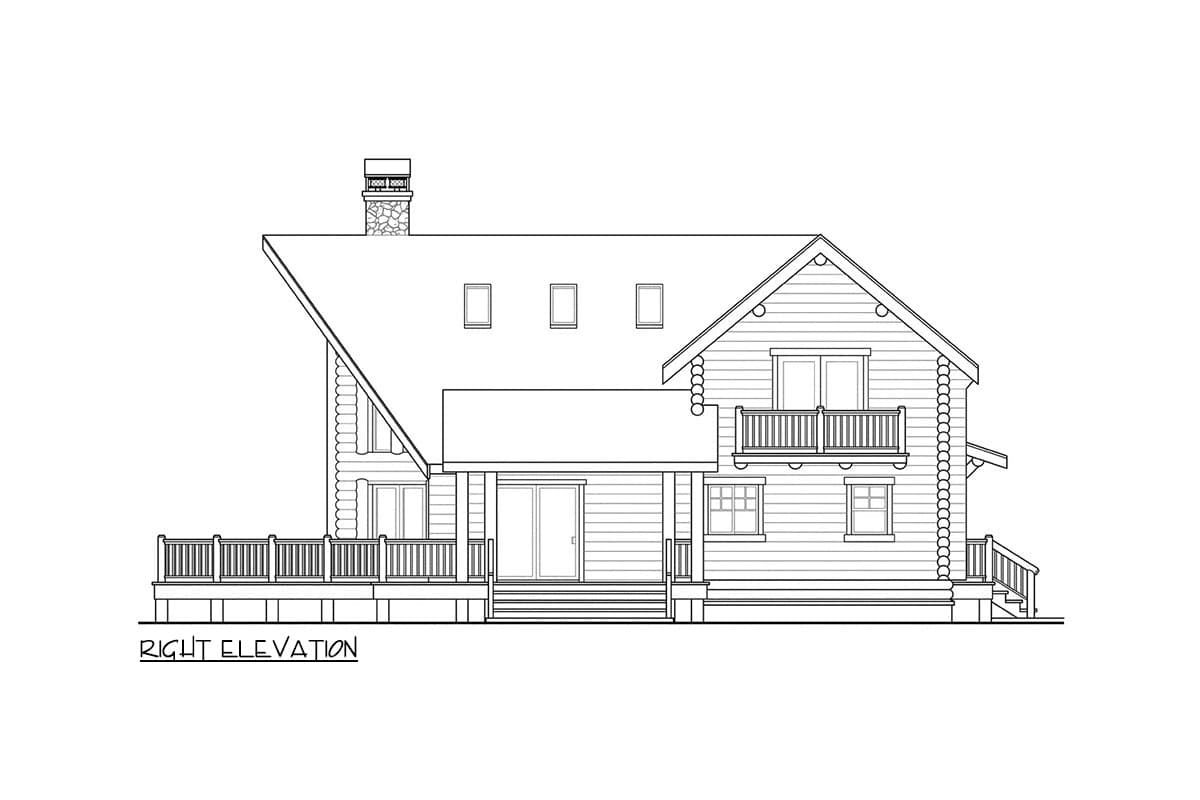

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,744 sq. ft.

1st Floor

1,090 sq. ft.

2nd Floor

654 sq. ft.

Basement Unfinished

1,018 sq. ft.

Deck

290 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

Log

Optional Type(s)

2x6

Dimensions

Width

43' 6"

Depth

48' 0"

Max Ridge Height

27' 0"

Garage

Type

Detached

Area

768 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Cabin

Lake House

Log Cabin

Mountain

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Lake House Plans
