Plan 340129STR
Two-Story Mediterranean House Plan with Outdoor Kitchen and Fireplace - 5330 Sq Ft
Heated S.F.
5,330
Beds
4
Baths
4.5
Stories
2
Cars
4
Floor Plan

Plan 340129STR

Main Level
slide image 0

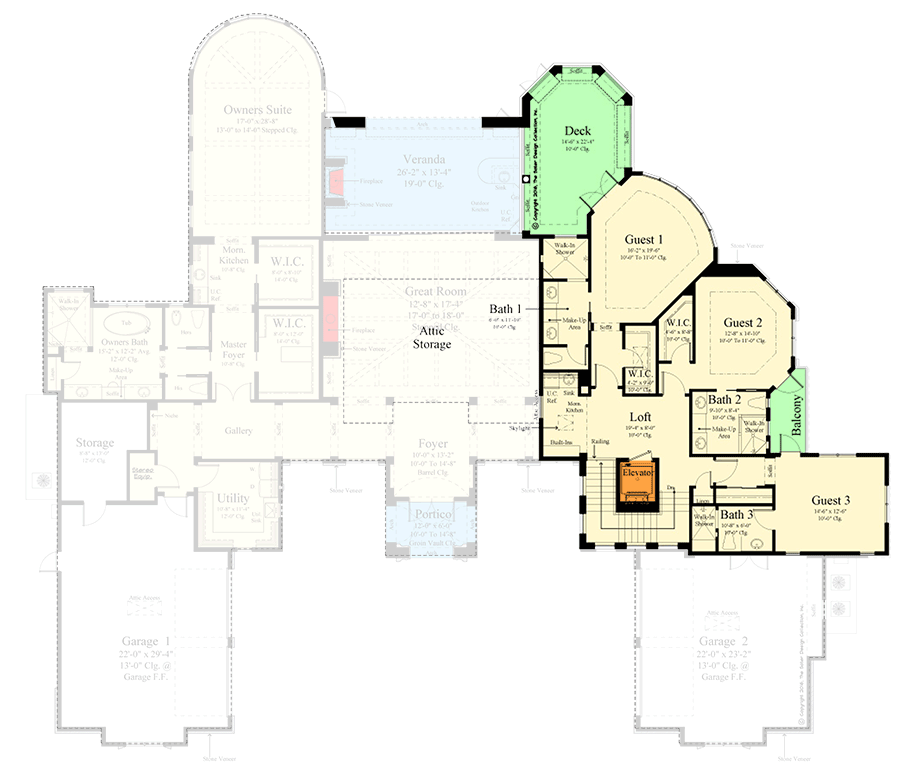

2nd Floor
slide image 1

Plan 340129STR

1-800-854-7852

1-262-521-4596

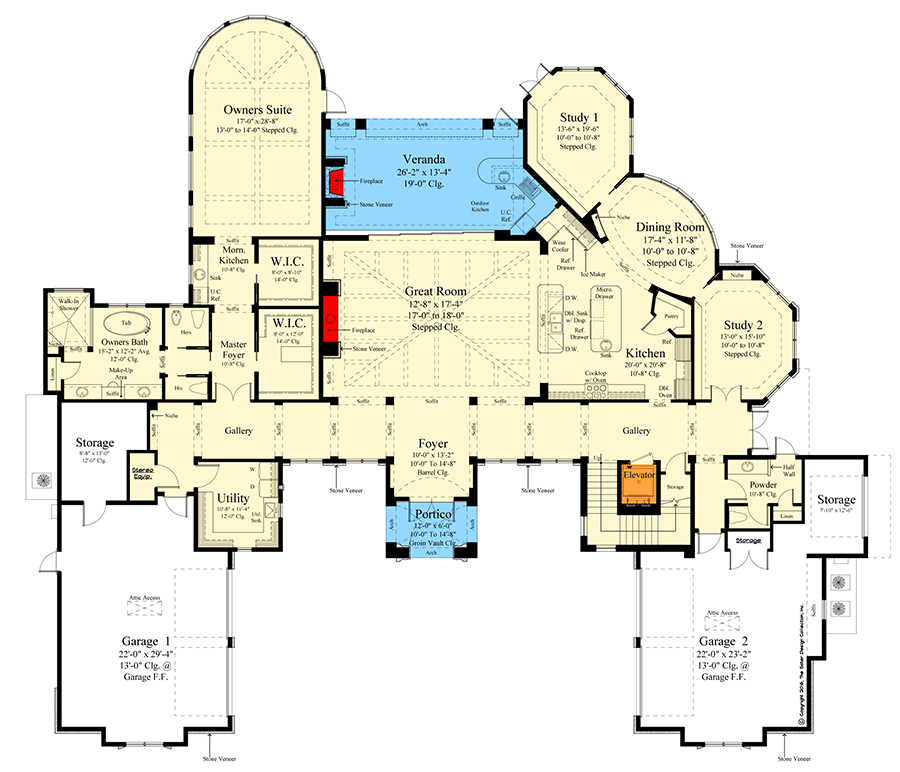

Main Level
floor plan image Main Level

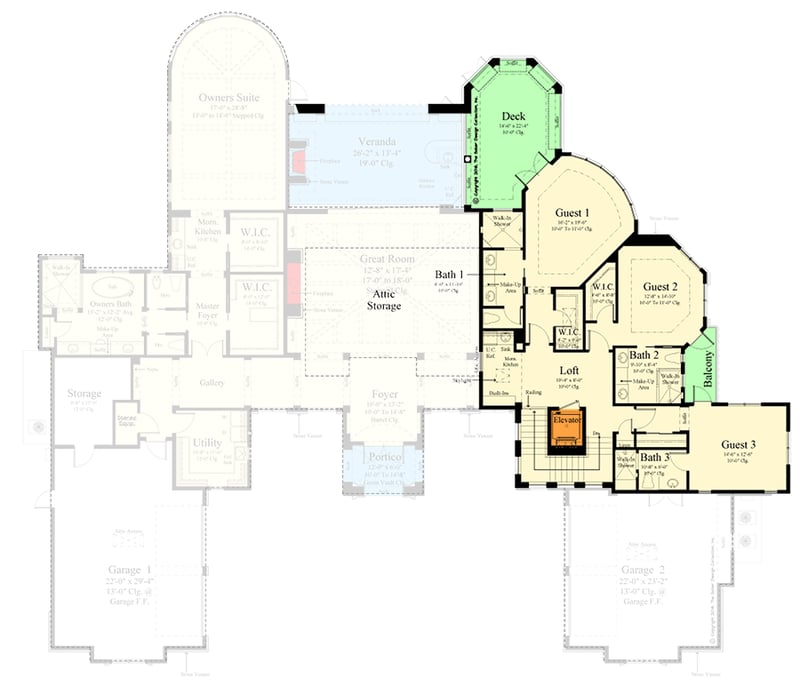

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This modern Mediterranean-style home design, featuring stucco and stone accents that add warmth and character.
  • The foyer, with its barrel-vaulted ceiling, leads to a spacious Great Room with high ceilings, a contemporary linear fireplace, and views of the pool and beyond. Adjacent to the Great Room is the island kitchen and dining room, perfect for gatherings.
  • The Master Suite, tucked away for privacy, includes his and hers closets, a luxurious bath with a garden tub, and a radiused sitting area with curved glass walls overlooking a Banyan tree. Nearby, His and Hers offices offer panoramic views. A gallery with cloistered columns runs the length of the home, leading to a stairwell and elevator that access the guest suites and loft. Each suite features opulent bathrooms and stunning water views.
  • The two-story veranda off the Great Room, with a stone-clad feature wall and pocketing glass walls, opens to the pool and scenic vistas.
  •  BUILDING RESTRICITON: This plan cannot be purchases in Lee Counties, Florida.
What's Included
  • Cover Sheet, Index
  • Wall Sections & Notes
  • Typical Detail & Notes
  • Foundation Plan
  • Floor Plans
  • Reflected Ceiling Plan showing ceiling heights and treatments
  • Floor Framing Plan (basement, crawlspace or 2-story homes only)
  • Birds Eye Roof Plan
  • All Elevations
  • Building Section & Details
  • Interior Elevations (Details may vary based on the design)
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,330 sq. ft.

1st Floor

3,958 sq. ft.

2nd Floor

1,372 sq. ft.

Porch, Rear

422 sq. ft.

Deck

273 sq. ft.

Entry

90 sq. ft.

Balcony / Veranda

51 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

108' 8"

Depth

96' 4"

Max Ridge Height

32' 4"

Garage

Type

Attached

Area

1568 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Coastal

Florida

Mediterranean

Tuscan

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Den

Elevator

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Outdoor Kitchen

Two Kitchen Islands

Wet Bar

Workshop
