Plan 666068RAF

Two-Story Modern Mountain Home Plan with Second-Level Master - 3173 Sq Ft

Heated S.F.

3,173

Beds

4 - 5

Baths

4.5

Stories

2

Cars

3

Floor Plan

Main Level

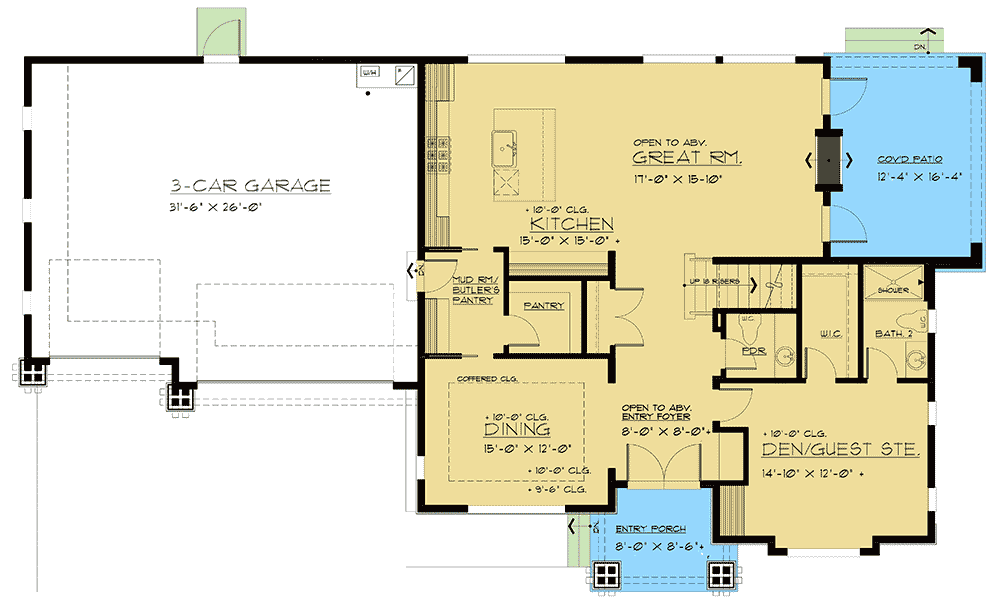

floor plan image Main Level

2nd Floor

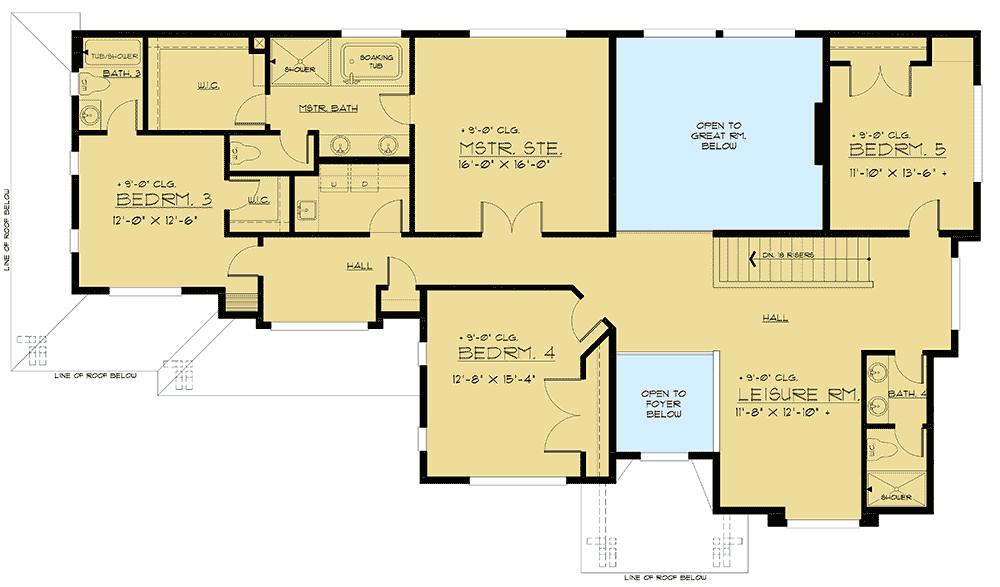

floor plan image 2nd Floor

Plan Details

The bold appearance of this modern mountain home plan is softened by the welcoming front porch, while oversized windows encourage natural light to infiltrate the interior.
A grand, two-story foyer greets guests upon entering, with a dining room to the left, and a den (or guest suite) to the right.
The shared living space resides towards the back of the home, with tall ceilings above the great room offering a sense of spaciousness. A double-sided fireplace offers warmth to both the great room and adjacent covered patio.
A generous island anchors the living space, and a nearby pocket door leads to the mudroom and walk-in pantry.
A lofted leisure room rests at the top of the stairs. French doors lead to the master suite, complete with a lavish bathroom and a large walk-in closet. Three additional bedrooms reside upstairs; two share a 4-fixture bath, and one includes a full bath.

What's Included

Cover Sheet with plan info
General Notes - Note: codes will not include local state adopted amendments
Fully dimensions and detailed floor plans
Elevations
Building Cross Section
Roof Plan
Details
Window Schedule
Original Structural plan FOR REFERENCE ONLY

What's Not Included

Architectural or Engineering Stamp - handled locally when required
Site plans - handled locally - handled locally when required
Mechanical Drawings - handled locally when required
Plumbing Drawings - handled locally when required
Electrical Drawings - handled locally when required
Energy Calculations - handled locally when required
Foundation and Framing plans - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,173 sq. ft.

1st Floor

1,369 sq. ft.

2nd Floor

1,804 sq. ft.

Porch, Front

89 sq. ft.

Covered Patio

178 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 10"

Depth

42' 10"

Max Ridge Height

29' 1"

Garage

Type

Attached

Area

732 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Outdoor Fireplace

Two Story Great Room

Square Footage Breakdown

Total Heated Area

3,173 sq. ft.

1st Floor

1,369 sq. ft.

2nd Floor

1,804 sq. ft.

Porch, Front

89 sq. ft.

Covered Patio

178 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 10"

Depth

42' 10"

Max Ridge Height

29' 1"

Garage

Type

Attached

Area

732 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Outdoor Fireplace

Two Story Great Room
