Plan 81851AB
Two-Story Narrow Contemporary House Plan with - 1908 Sq Ft
Heated S.F.
1,908
Beds
3 - 5
Baths
3.5 - 4.5
Stories
2
Floor Plan

Plan 81851AB

Main Level
slide image 0
2nd Floor
slide image 1
Optional Lower Level
slide image 2

Plan 81851AB

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

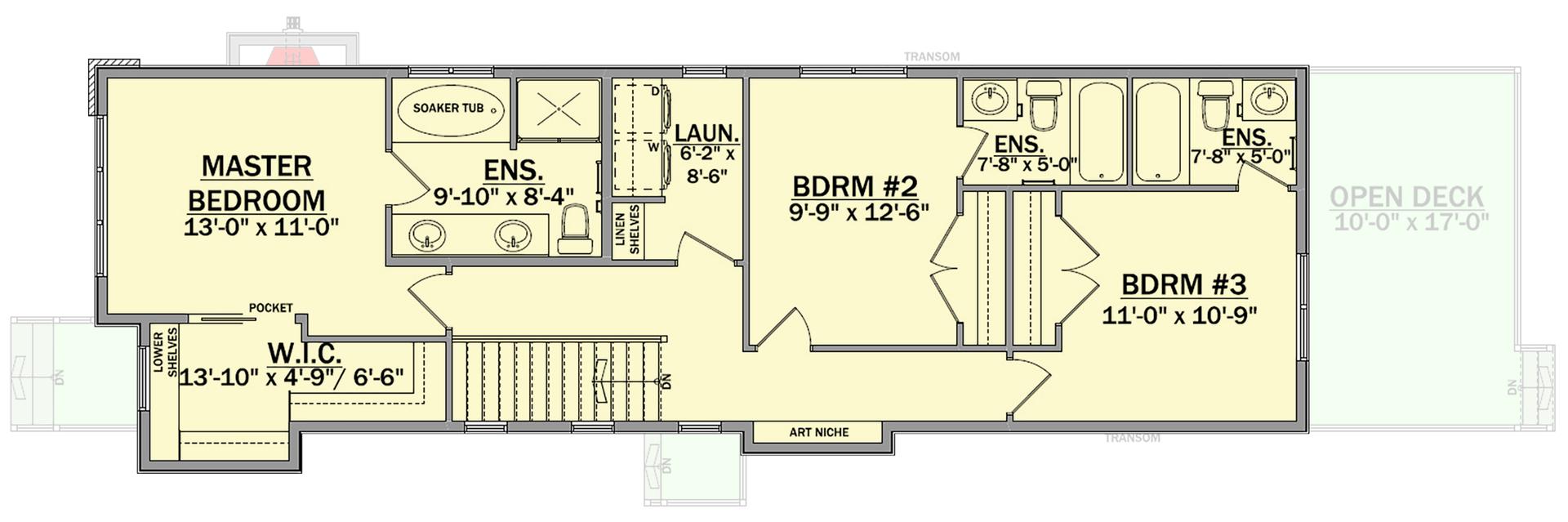

2nd Floor
floor plan image 2nd Floor
Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This contemporary narrow house plan offers 1,908 square feet of heated living space, including 3 to 5 bedrooms, 3.5 to 4.5 bathrooms, and a 717 square foot optional lower level.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan
What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,908 sq. ft.

1st Floor

973 sq. ft.

2nd Floor

935 sq. ft.

Optional Lower Level

717 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

17' 0"

Depth

56' 6"

Max Ridge Height

25' 11"

Ceiling Heights

Lower Level

9' 1"

First Floor

10' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

3.5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Plan Collections

Canadian House Plans
