Plan 421563CHD
Two-Story New American House Plan with Lot Above - 2556 Sq Ft
Heated S.F.
2,556
Beds
3 - 4
Baths
2.5
Stories
2
Cars
3
Floor Plan

Plan 421563CHD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 421563CHD

1-800-854-7852

1-262-521-4596

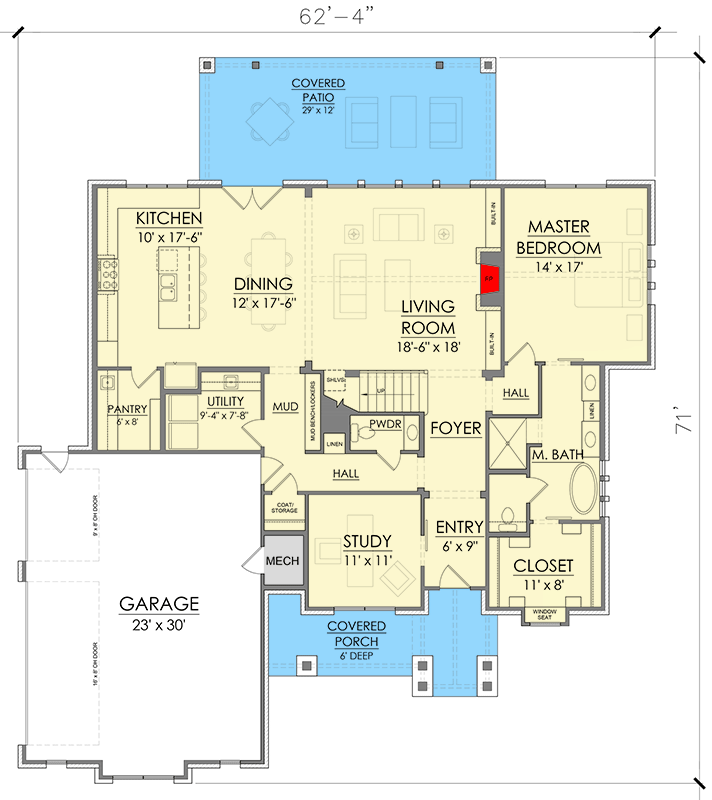

Main Level
floor plan image Main Level

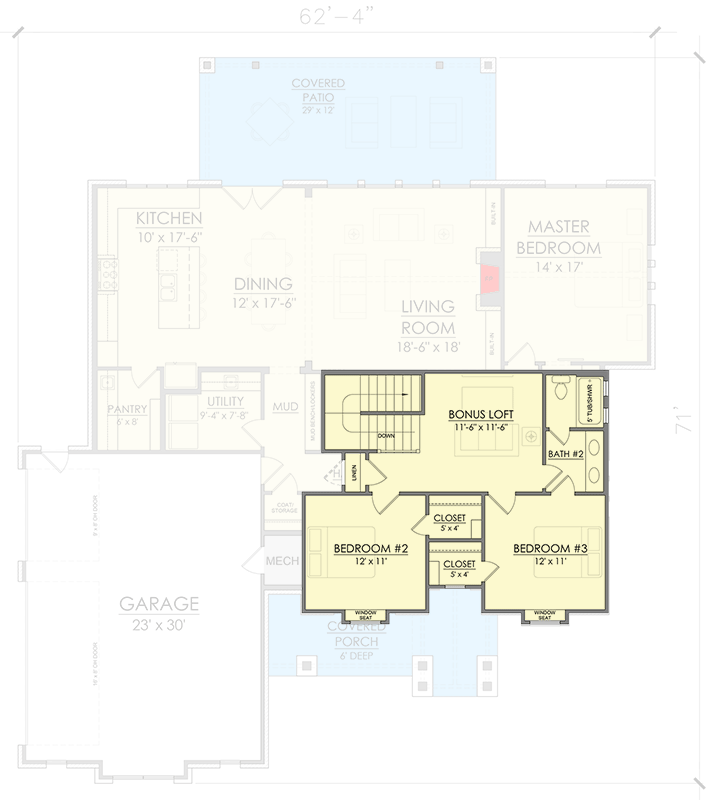

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Upon entering, you're welcomed by a foyer with a study on the left. Continuing down the hallway, you'll discover the inviting living room, featuring a cozy fireplace and four large windows that offer views of the covered patio.
  • The living room seamlessly transitions into the dining area and the spacious L-shaped kitchen, complete with a pantry, laundry room, and half bath nearby.
  • On the opposite side of the house, you'll find the luxurious master suite, boasting an ensuite bathroom and a walk-in closet for added convenience.
  • Upstairs, a loft space awaits, along with two additional bedrooms and a bathroom, providing ample space for relaxation and privacy on the second level.
What's Included
  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,556 sq. ft.

1st Floor

1,945 sq. ft.

2nd Floor

611 sq. ft.

Porch, Front

192 sq. ft.

Porch, Rear

348 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 4"

Depth

71' 0"

Max Ridge Height

33' 2"

Garage

Type

Attached

Area

787 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

12 on 12

Framing Type

Stick Or Truss

Architectural Style

Craftsman

New American

Rustic

Special Features

Butler Walk-in Pantry

Den

Flex Room

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Playroom

Square Footage Breakdown

Total Heated Area

2,556 sq. ft.

1st Floor

1,945 sq. ft.

2nd Floor

611 sq. ft.

Porch, Front

192 sq. ft.

Porch, Rear

348 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 4"

Depth

71' 0"

Max Ridge Height

33' 2"

Garage

Type

Attached

Area

787 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

12 on 12

Framing Type

Stick Or Truss

Architectural Style

Craftsman

New American

Rustic

Special Features

Butler Walk-in Pantry

Den

Flex Room

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Playroom
