Plan 280052JWD
Two-story Northwest Home Plan with Main-level Master
Heated S.F.
2,056
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 280052JWD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 280052JWD

1-800-854-7852

1-262-521-4596

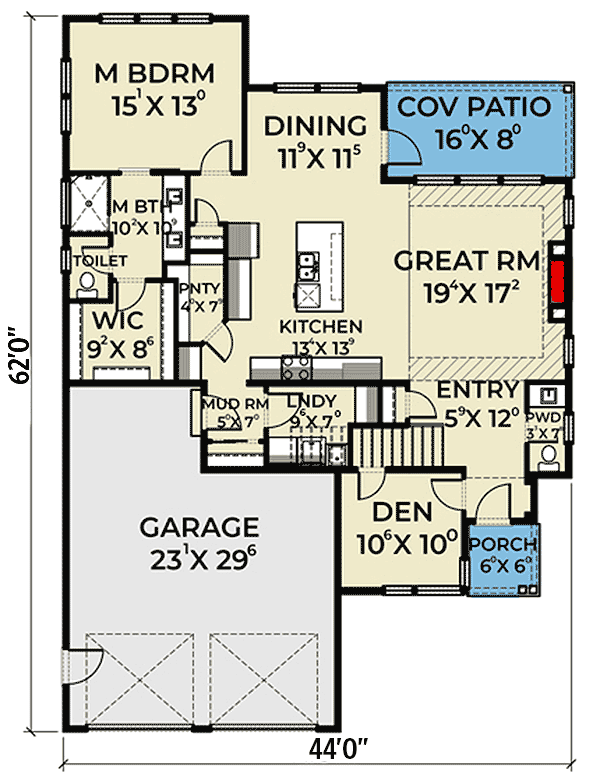

Main Level
floor plan image Main Level

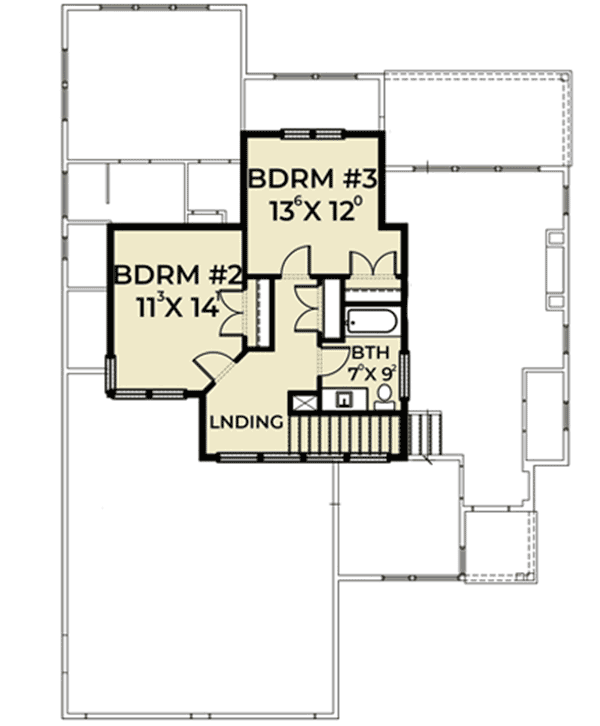

2nd Floor
floor plan image 2nd Floor
Plan Details

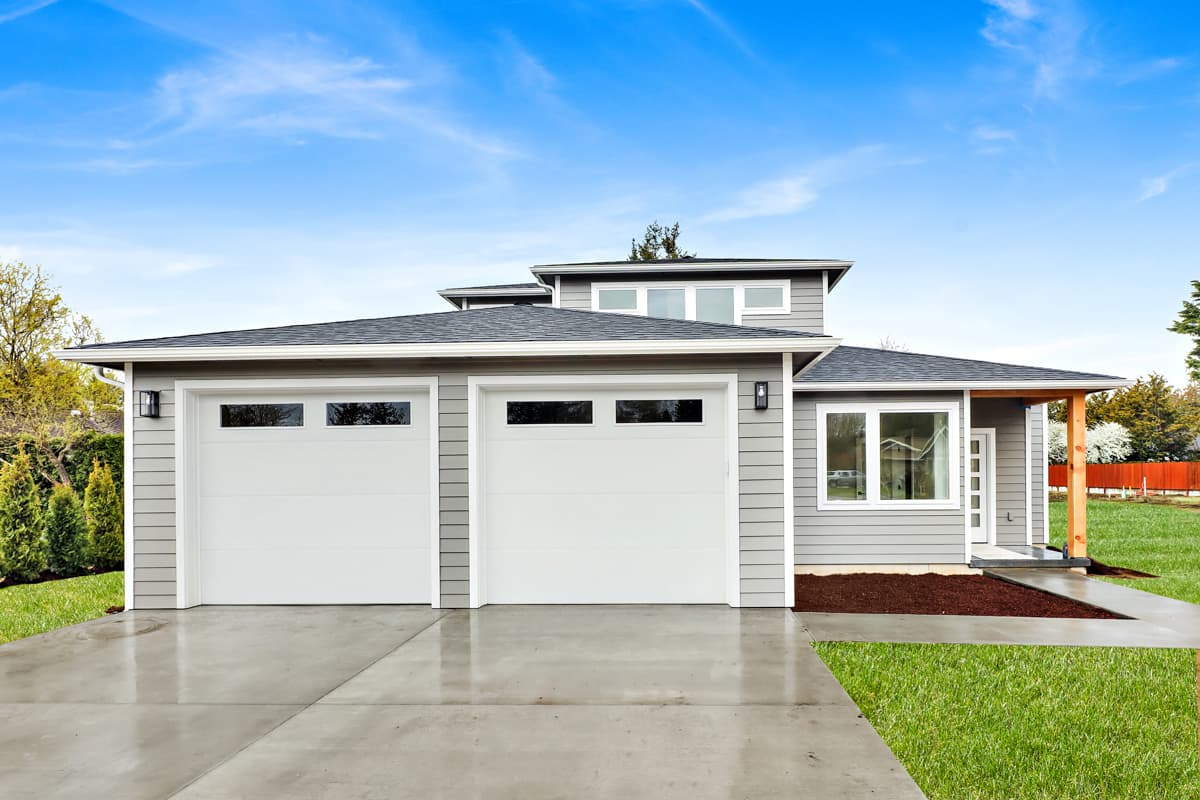

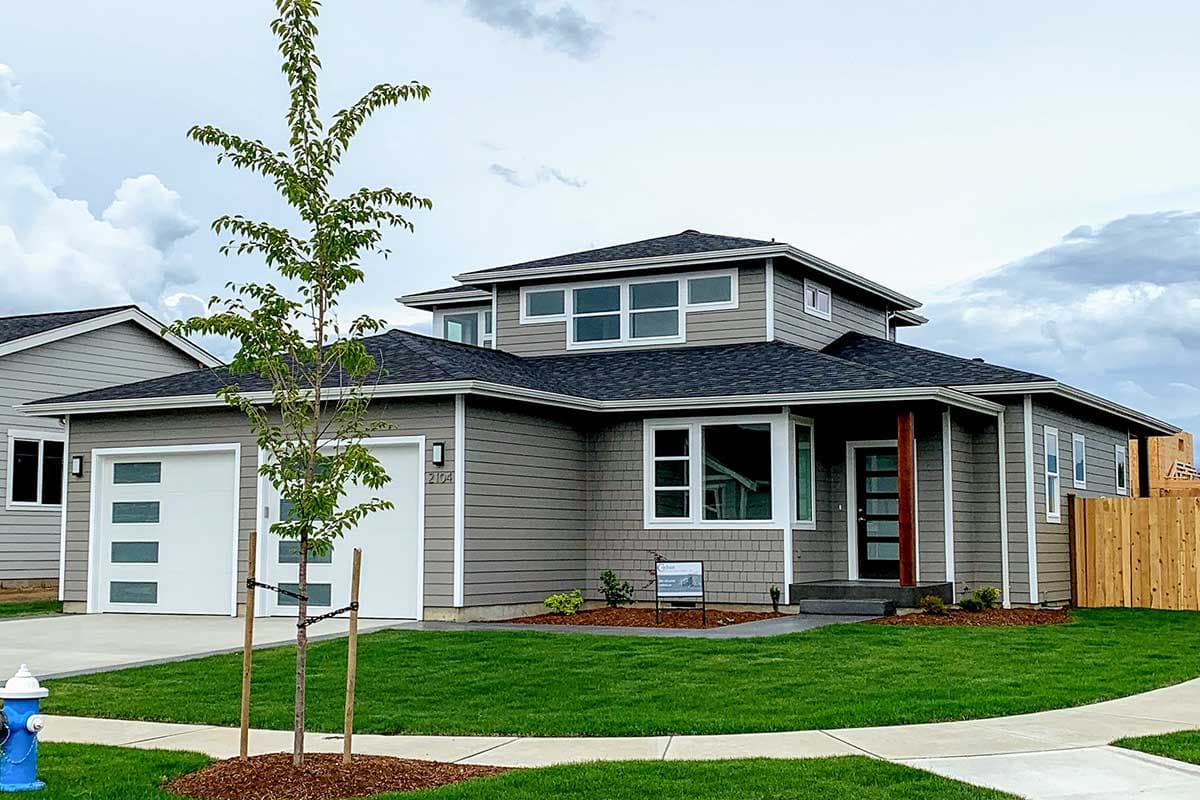

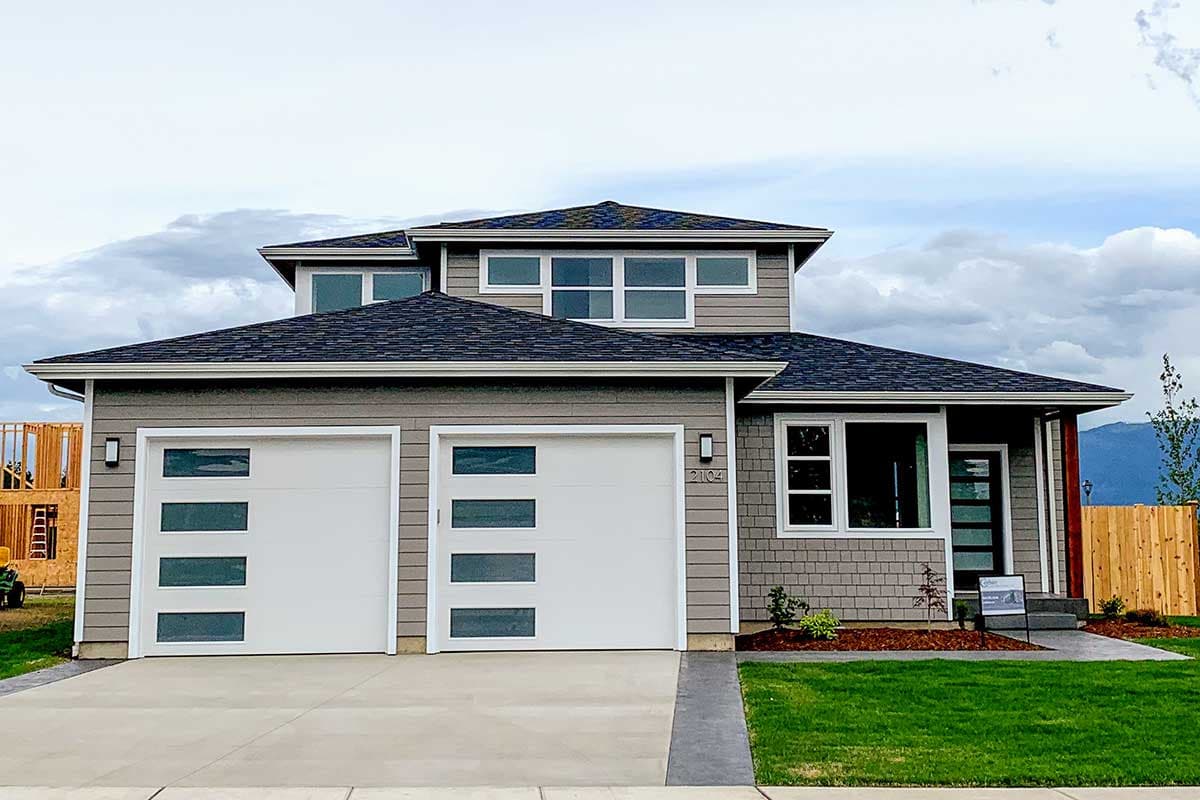

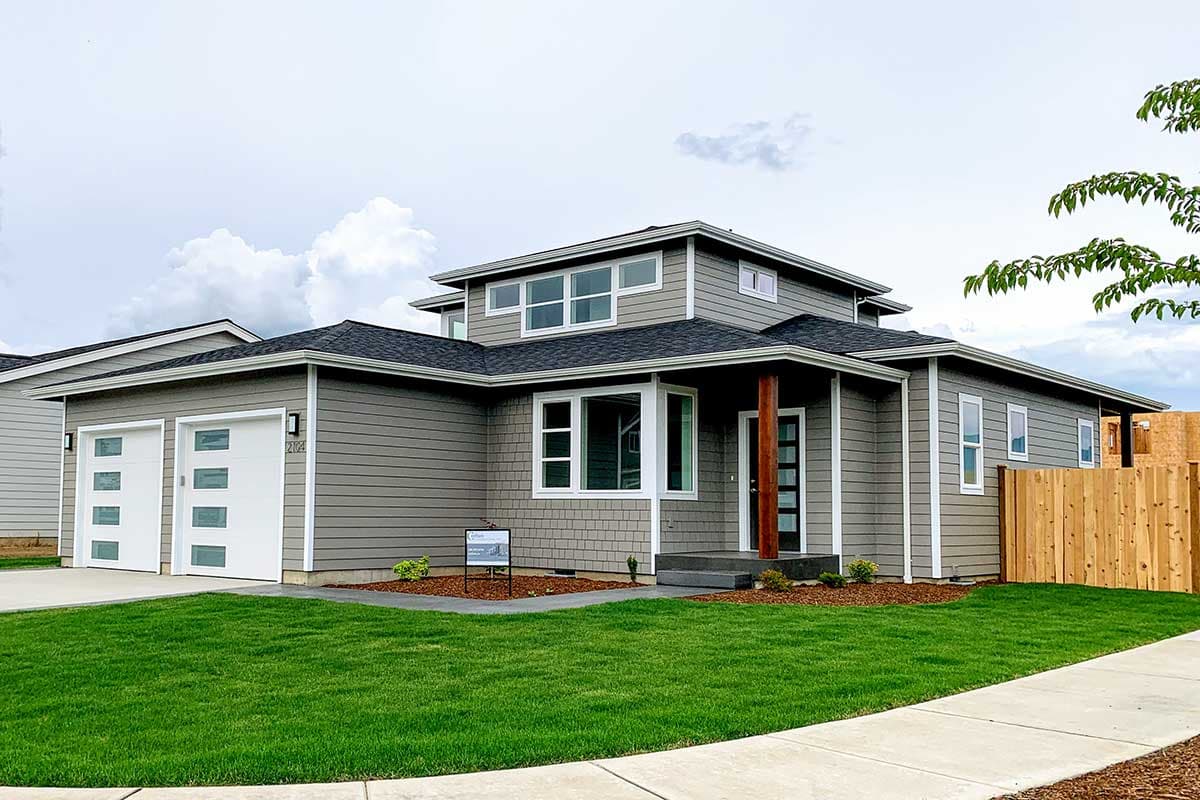

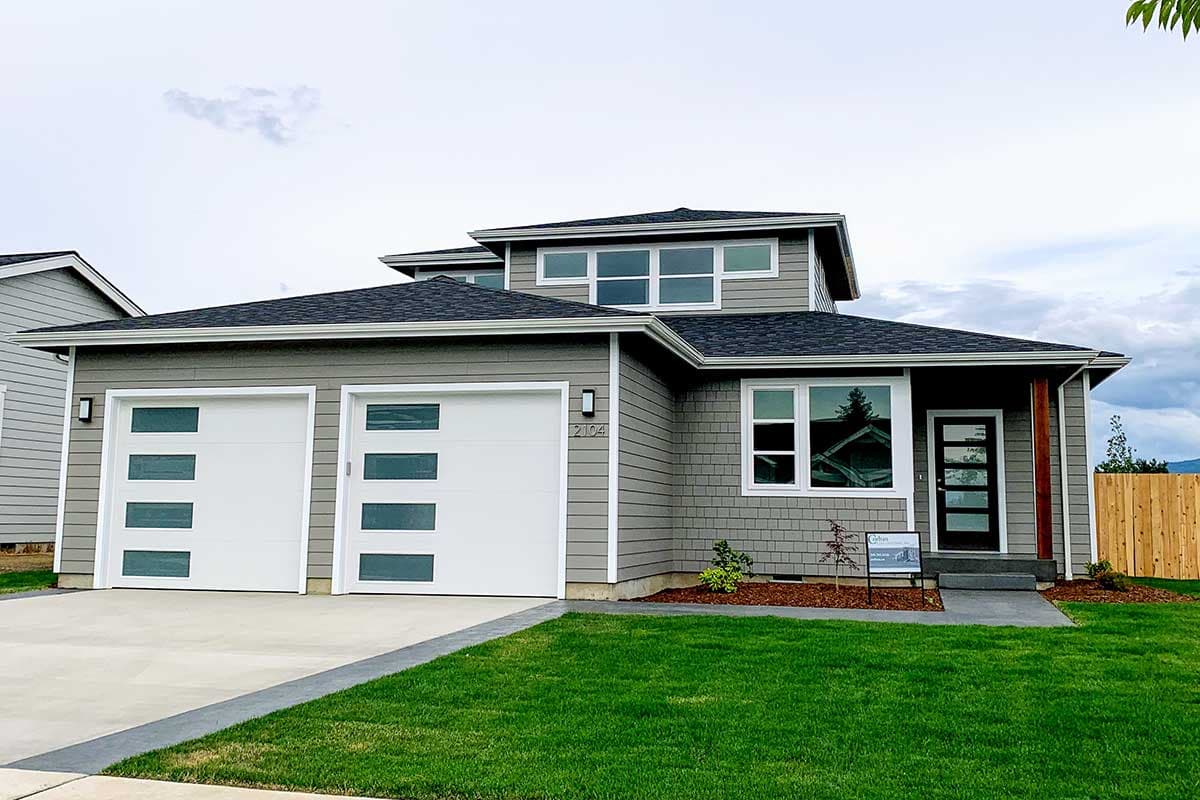

  • This two-story, Northwest home plan features fresh windows and doors, adding contemporary elements to the exterior, along with a smart interior flow with a desirable open floor plan.

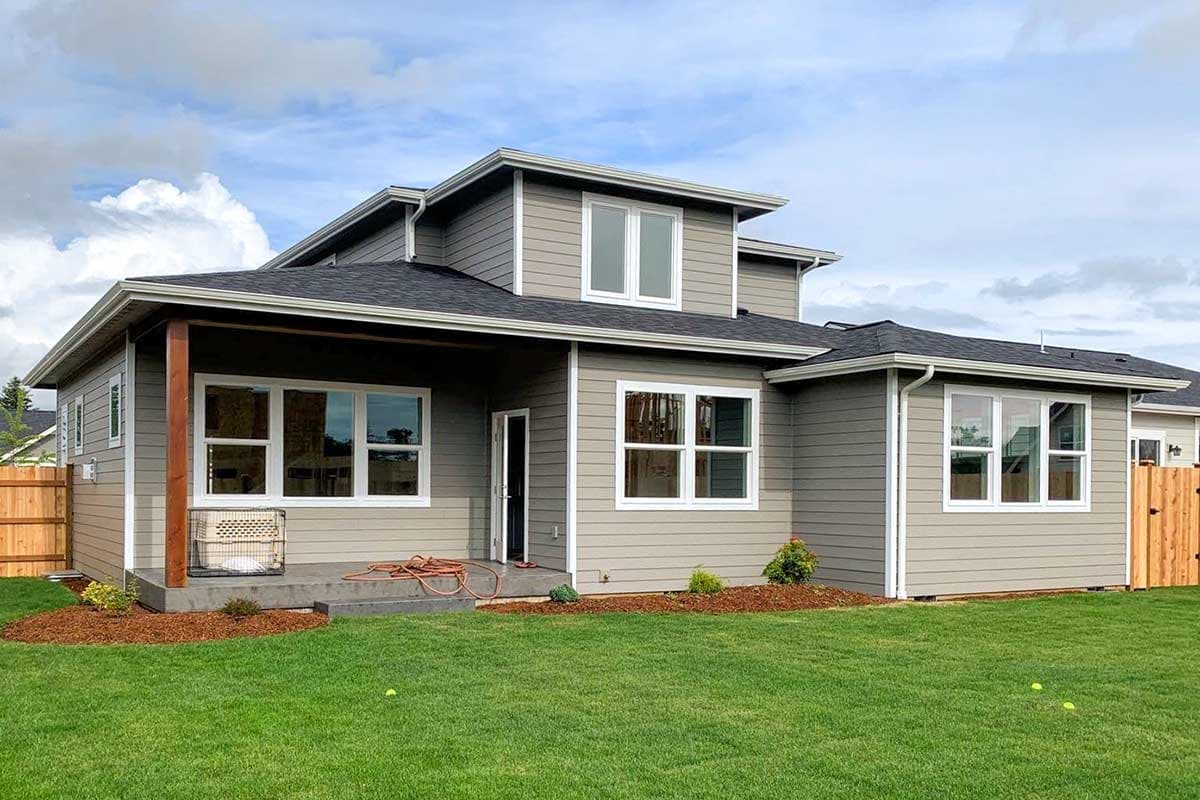

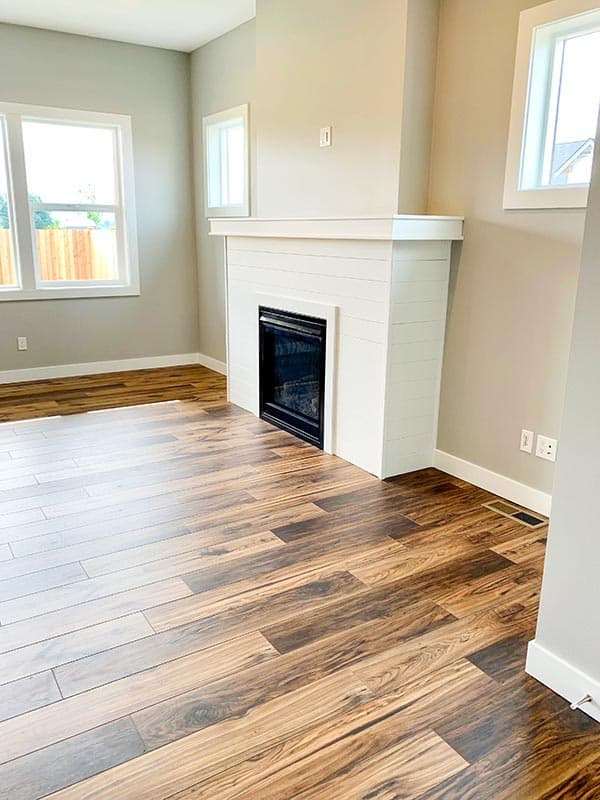

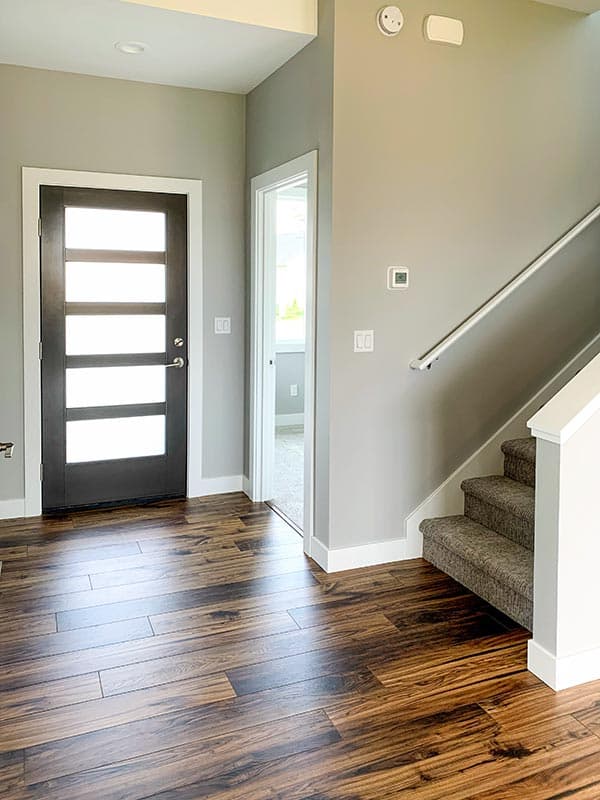

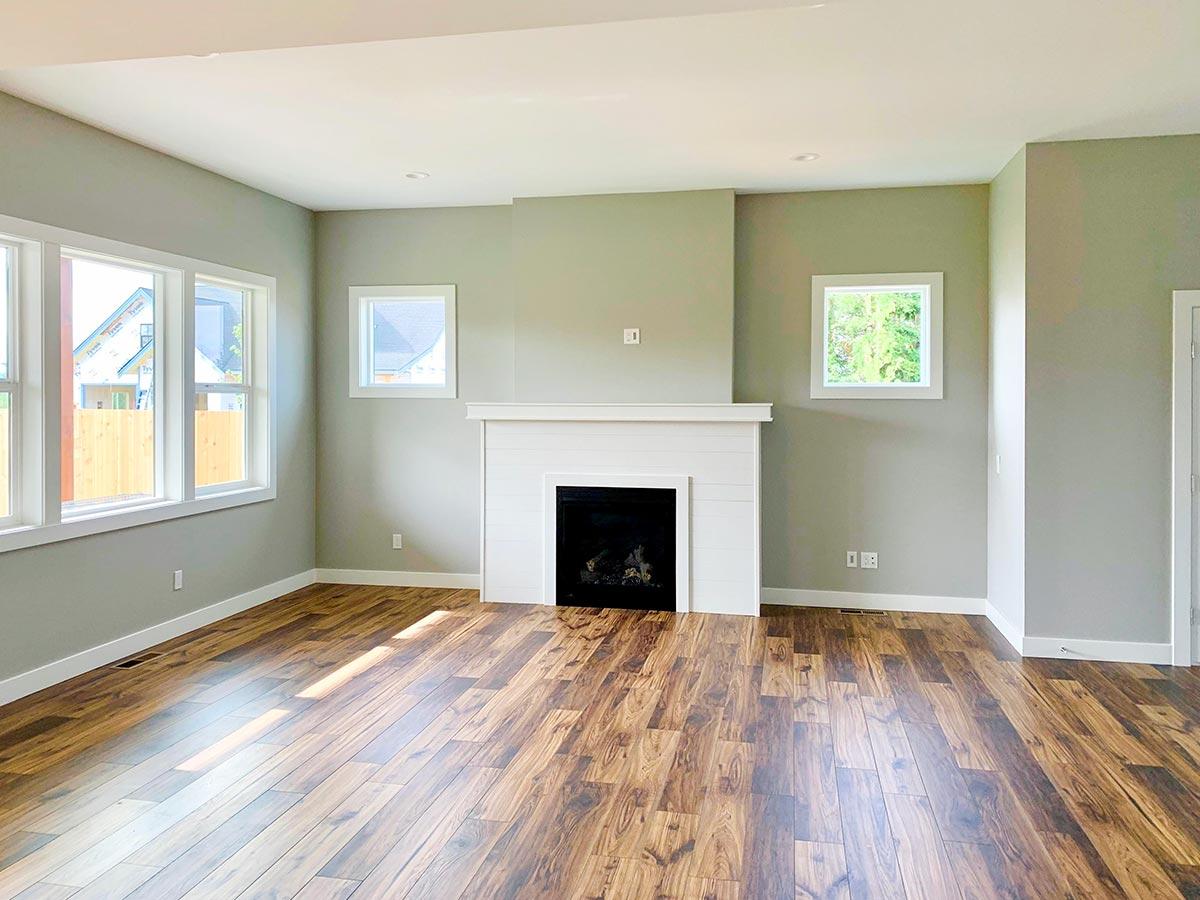

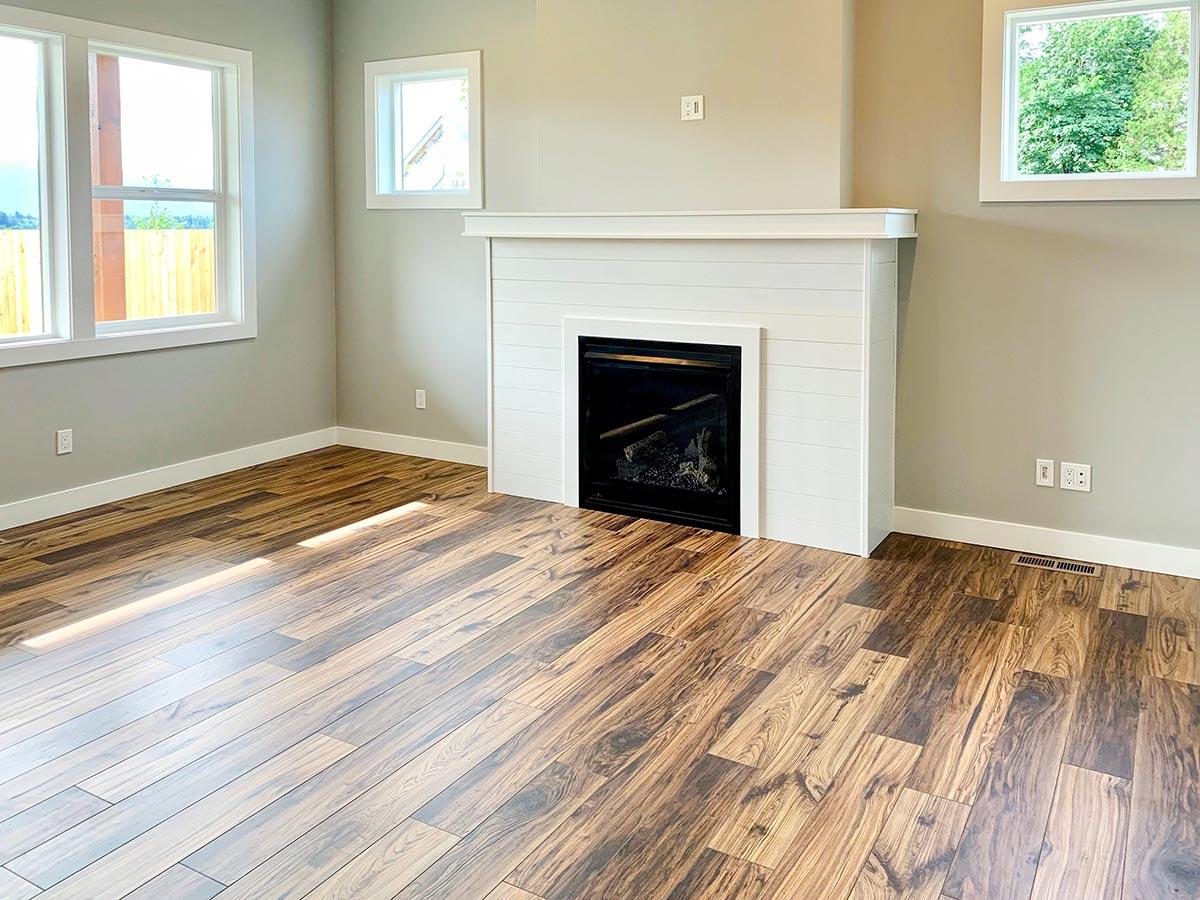

  • Upon entering, a quiet den rests to the left, while the shared living space lies ahead. Large windows in the great room provide views of the covered patio and beyond, while allowing natural light to permeate the space.

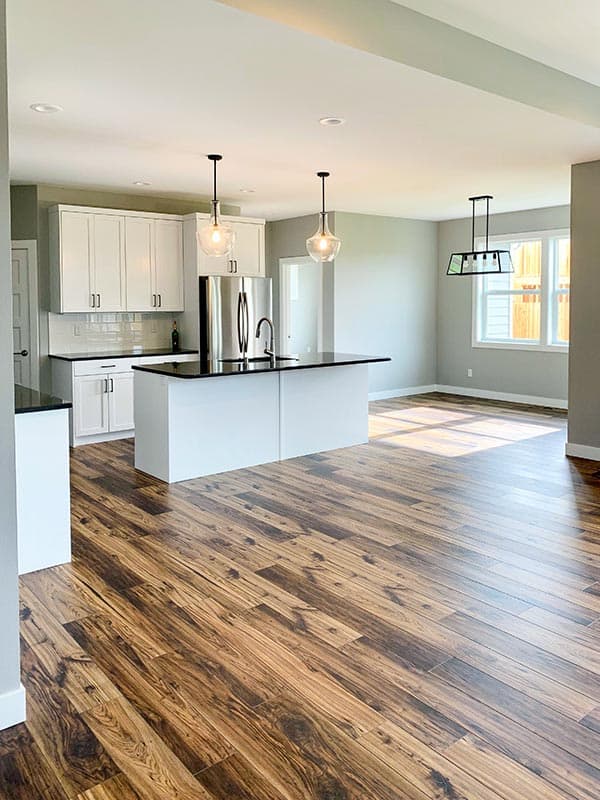

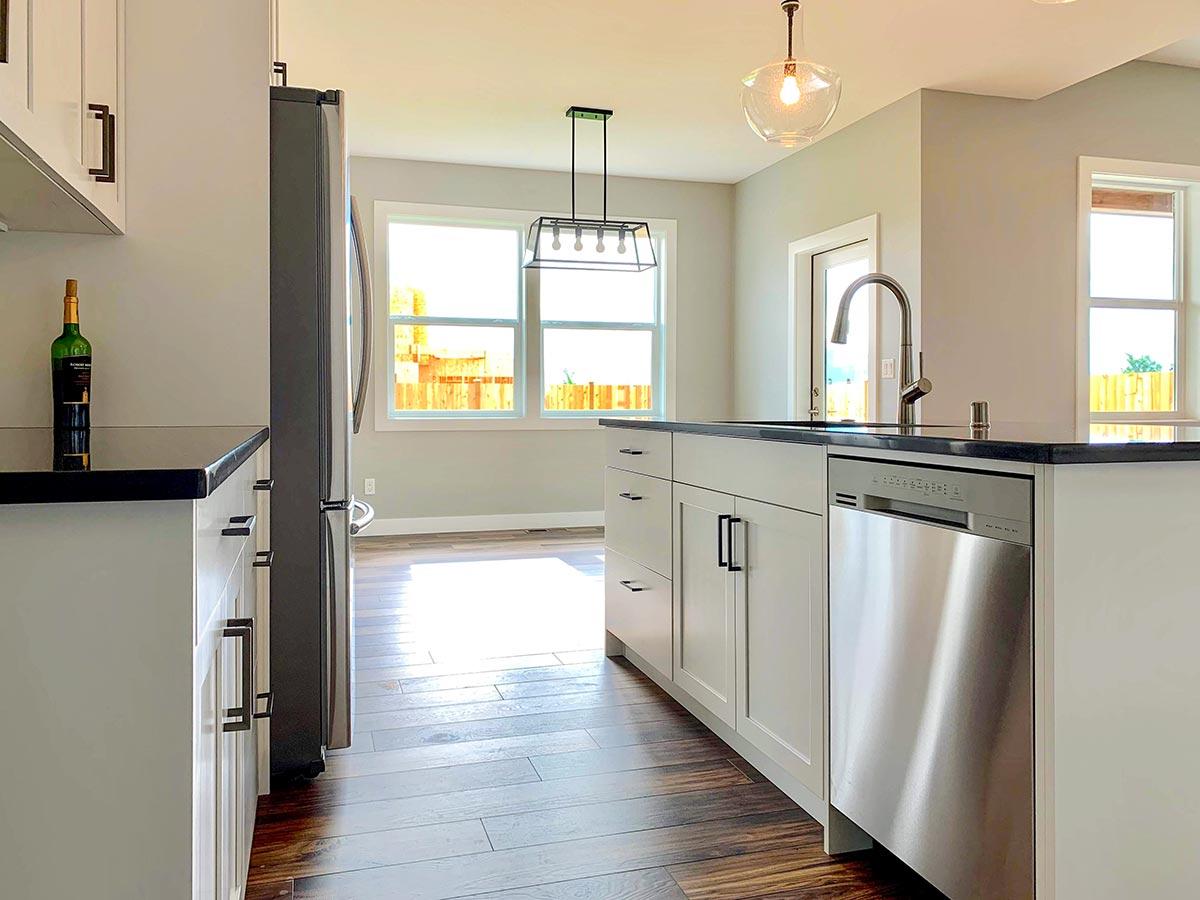

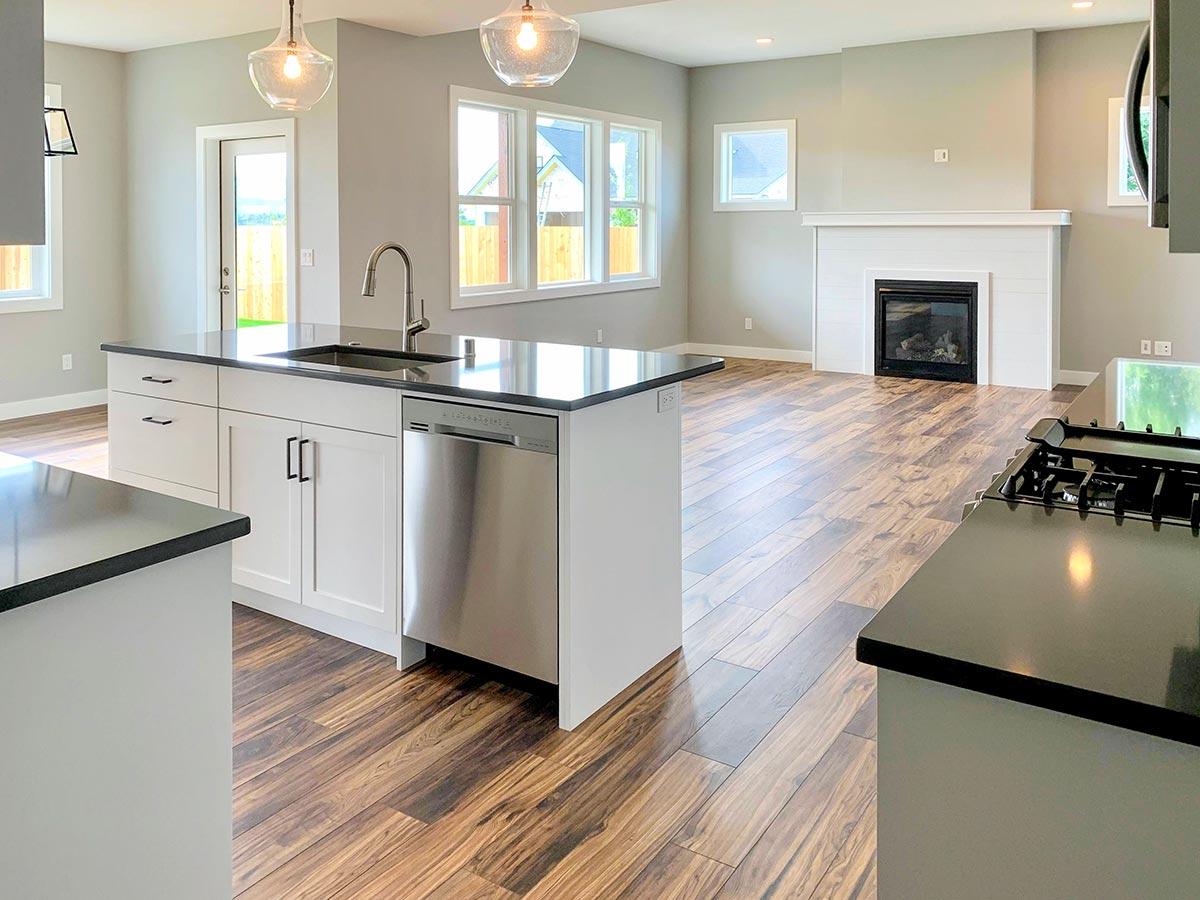

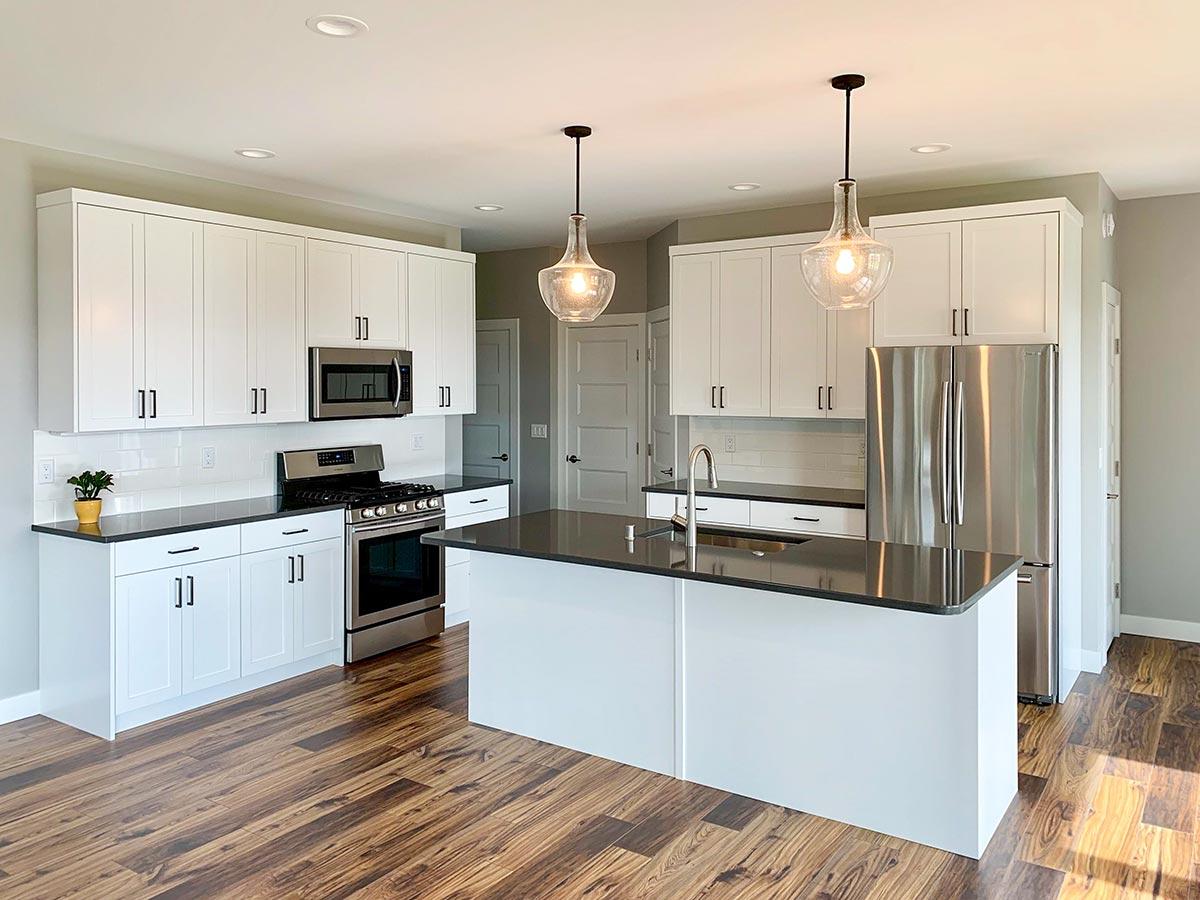

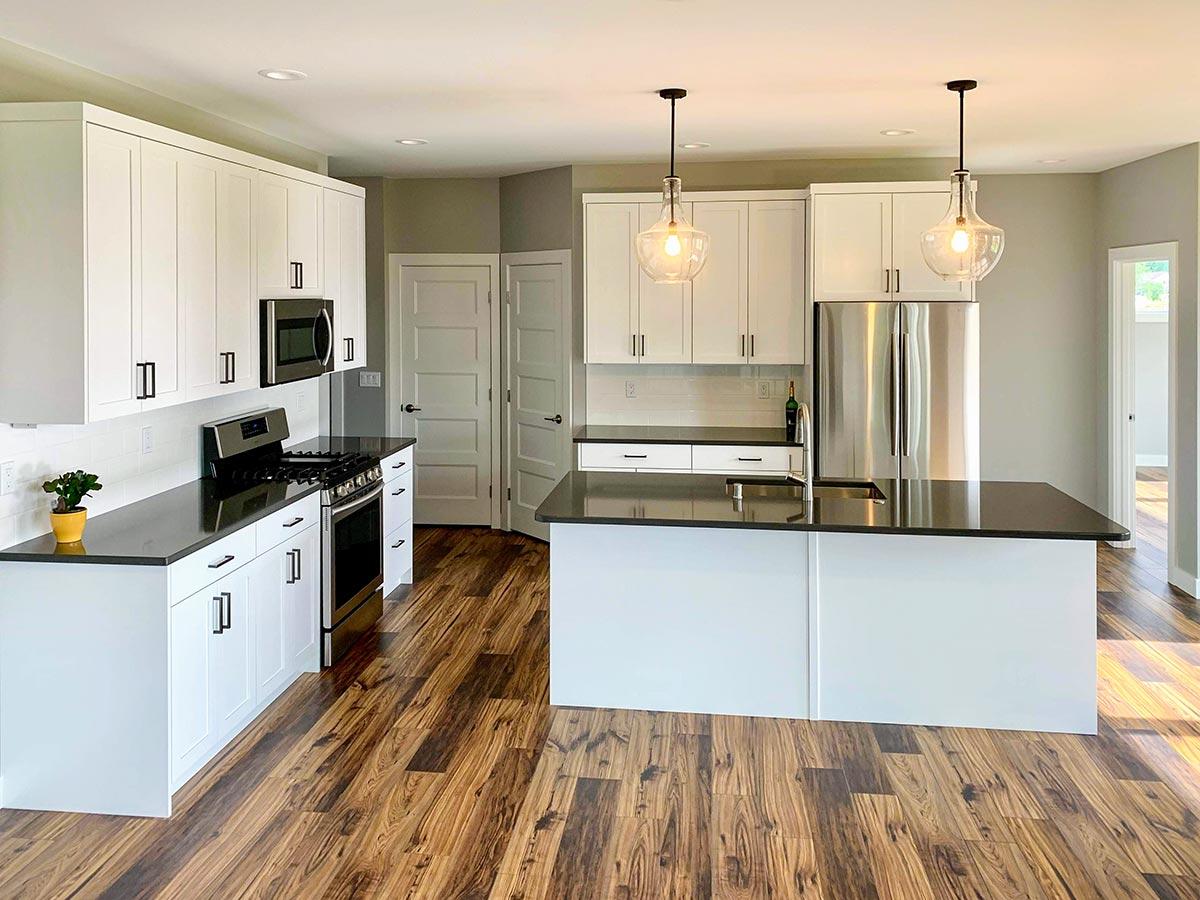

  • The large kitchen island anchors the living space, and the walk-in pantry is within reach for easy access.

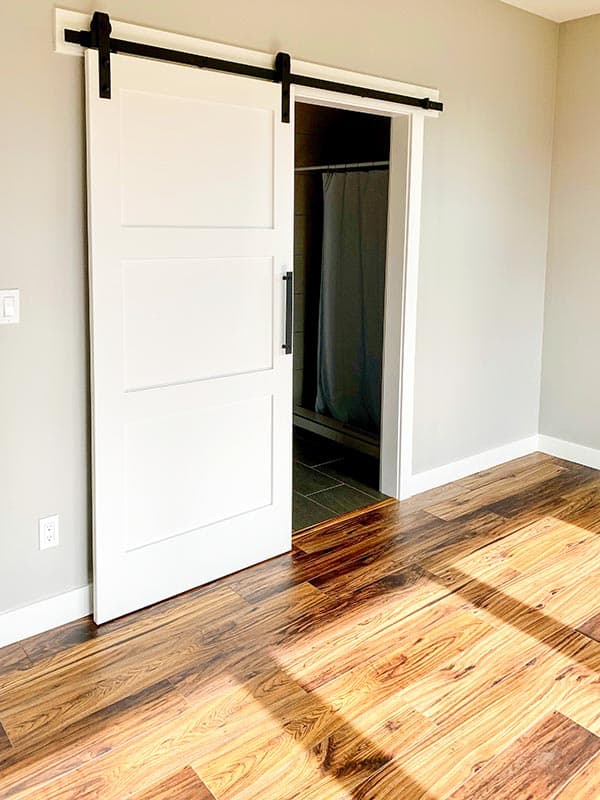

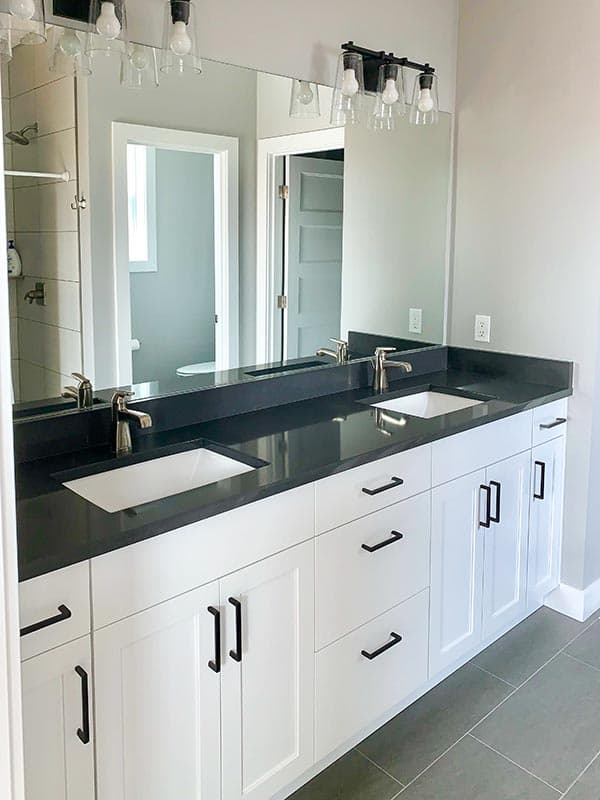

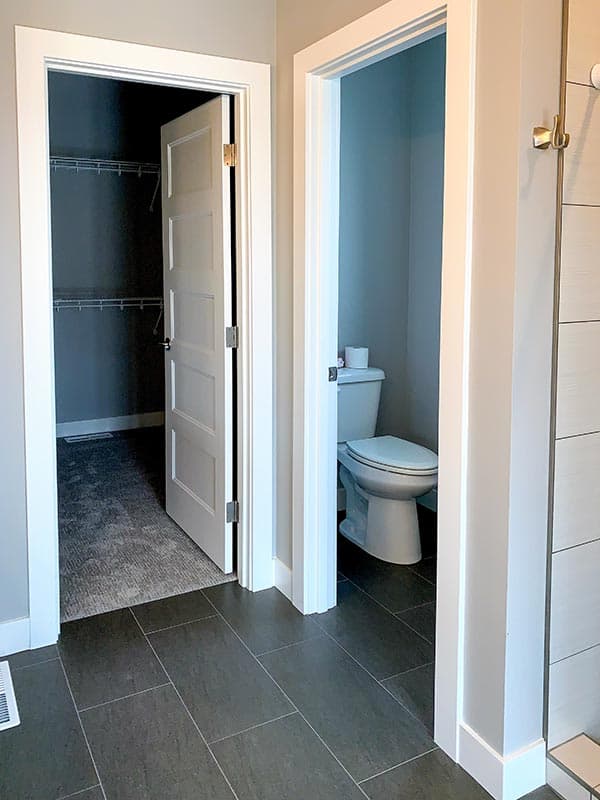

  • The main-level, master bedroom considers your future needs, and a barn door reveals the 4-fixture bath and sizable walk-in closet.

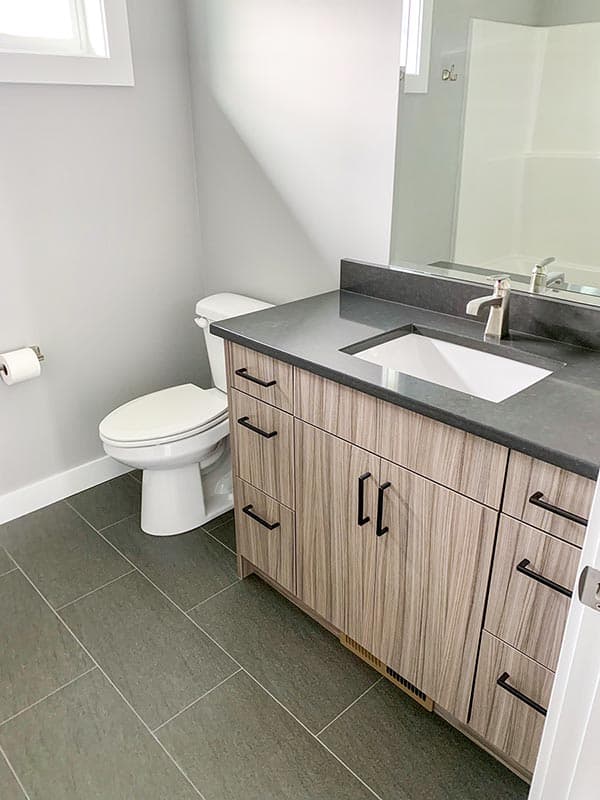

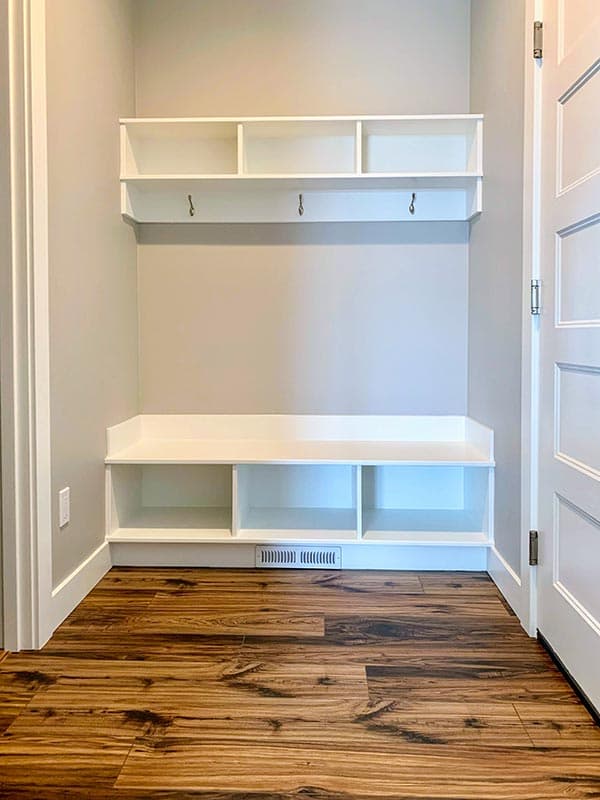

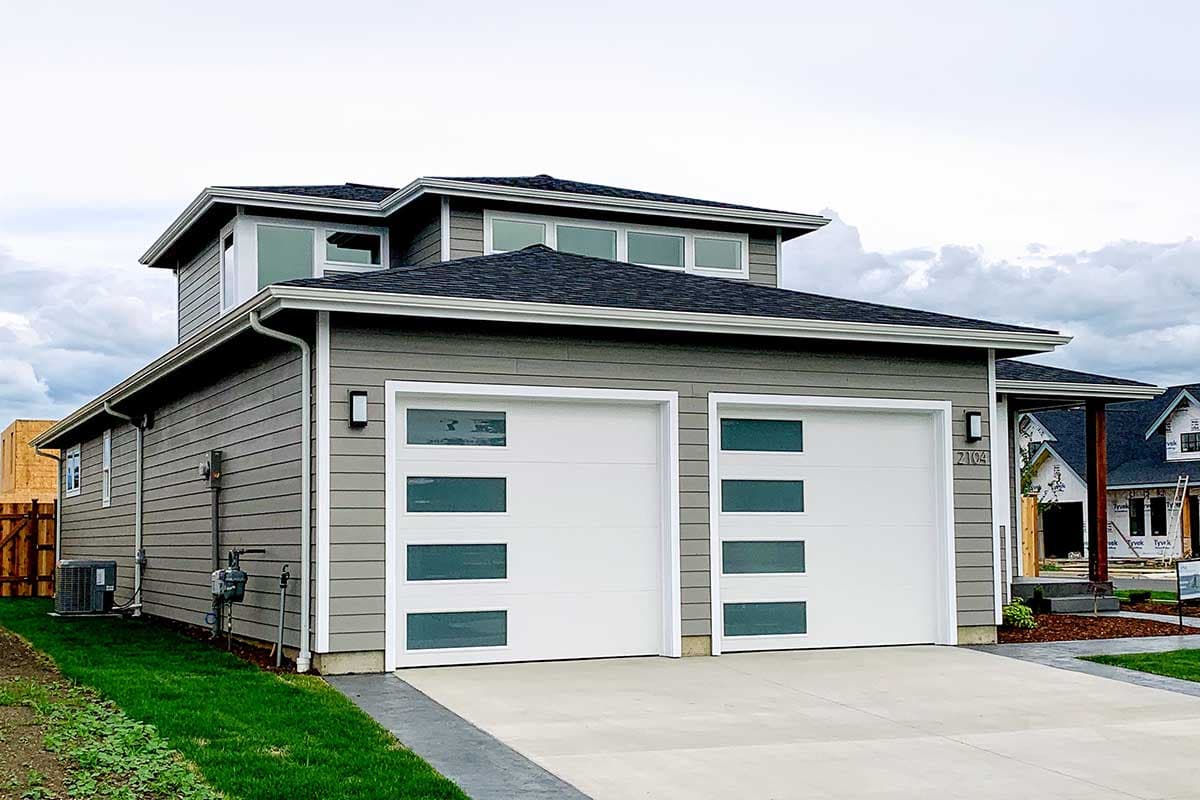

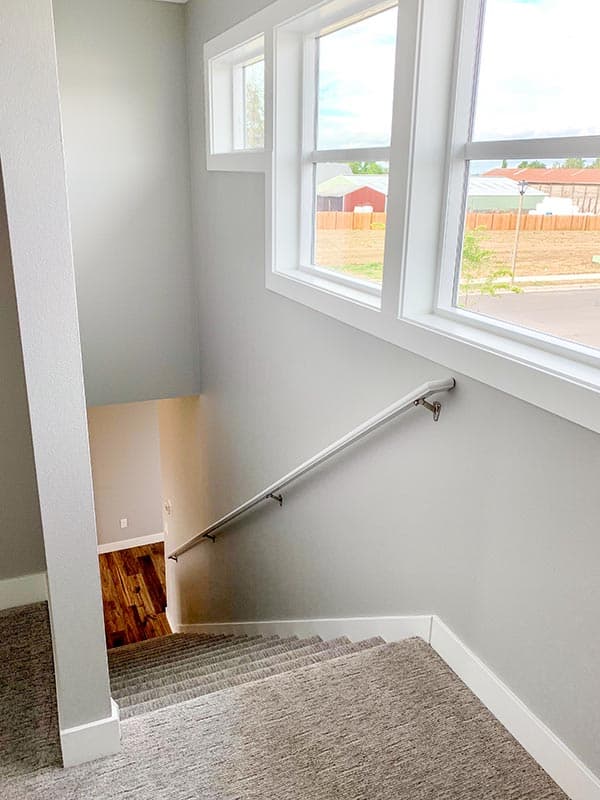

  • Two similarly-sized bedrooms reside upstairs, along with a full bath. The mud / laundry room are side by side, just inside from the 2-car garage.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,056 sq. ft.

1st Floor

1,502 sq. ft.

2nd Floor

554 sq. ft.

Porch, Combined

128 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

62' 0"

Max Ridge Height

23' 4"

Garage

Type

Attached

Area

624 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Prairie

Special Features

Butler Walk-in Pantry

Den

Laundry - Main Level

Master Suite - 1st Floor
