Plan 80847PM
Two-Story Northwest House Plan
Heated S.F.
2,163
Beds
3
Baths
2.5+
Stories
2
Cars
1
Floor Plan

Plan 80847PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80847PM

1-800-854-7852

1-262-521-4596

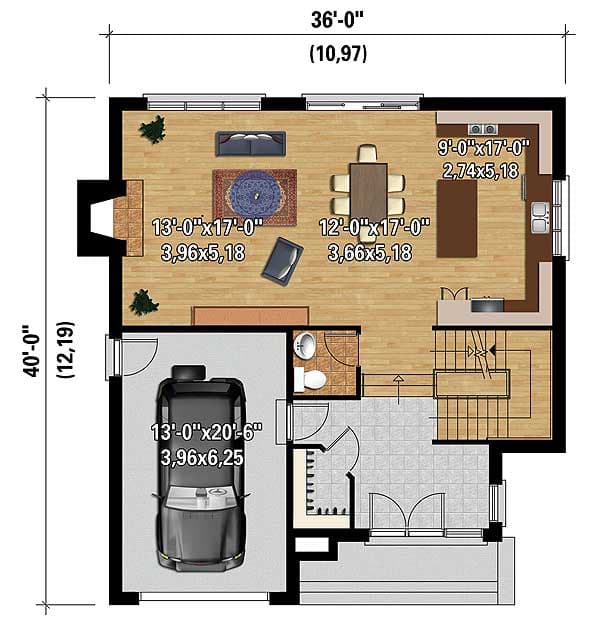

Main Level
floor plan image Main Level

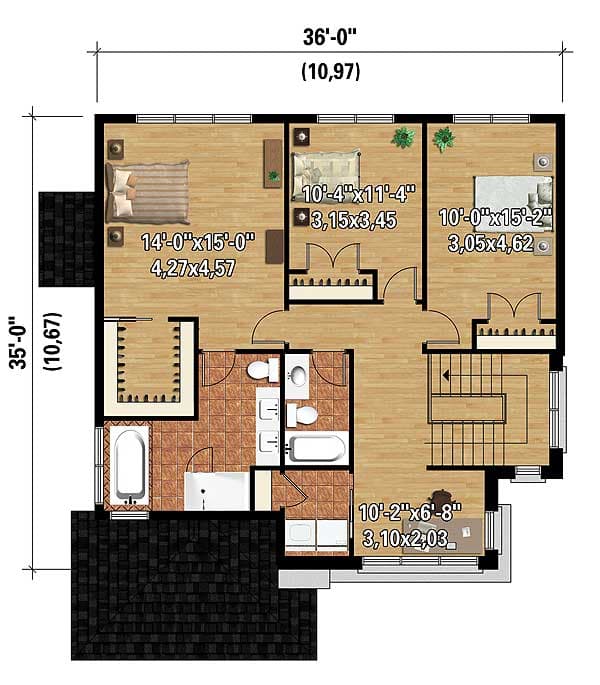

2nd Floor
floor plan image 2nd Floor
Plan Details

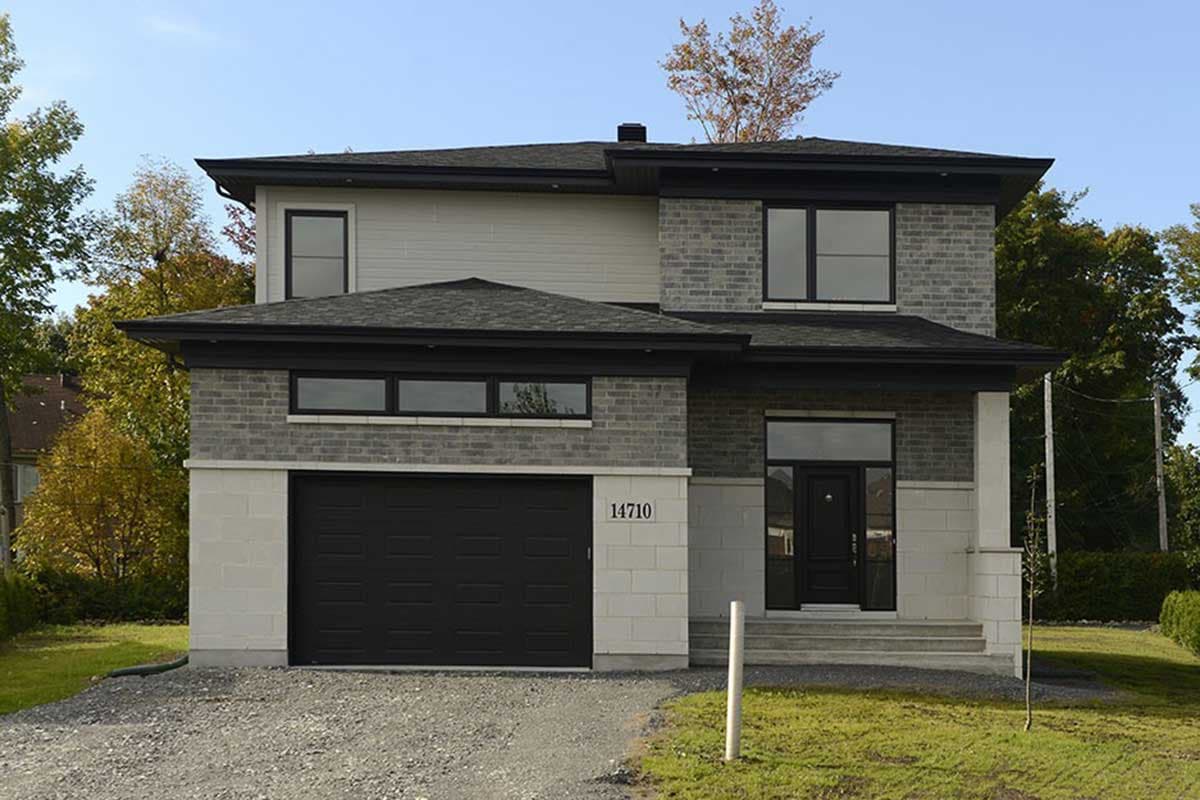

  • Brick, siding and stone combine to give this Northwest house plan an interesting exterior.
  • Once inside, the large sunken foyer offers a walk-in coat closet.
  • Two steps up lead to the main living space that benefits from a wonderful open layout.
  • The U-shaped kitchen has an island that faces the fireplace and provides extra counter space and storage.
  • All three bedrooms are upstairs where the laundry room and a study nook add functionality.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,163 sq. ft.

1st Floor

994 sq. ft.

2nd Floor

1,169 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

40' 0"

Max Ridge Height

28' 10"

Garage

Type

Attached

Area

306 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Special Features

Breakfast Nook

Library/Study

Loft

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric
