Plan 70902MK
Two-Story Rustic Duplex House Plan with Wrap-Around Porch - 1810 Sq Ft Per Unit
Heated S.F.
3,620
Units
2
Width
Depth
Floor Plan

Plan 70902MK

Main Level
slide image 0
2nd Floor
slide image 1

Plan 70902MK

1-800-854-7852

1-262-521-4596

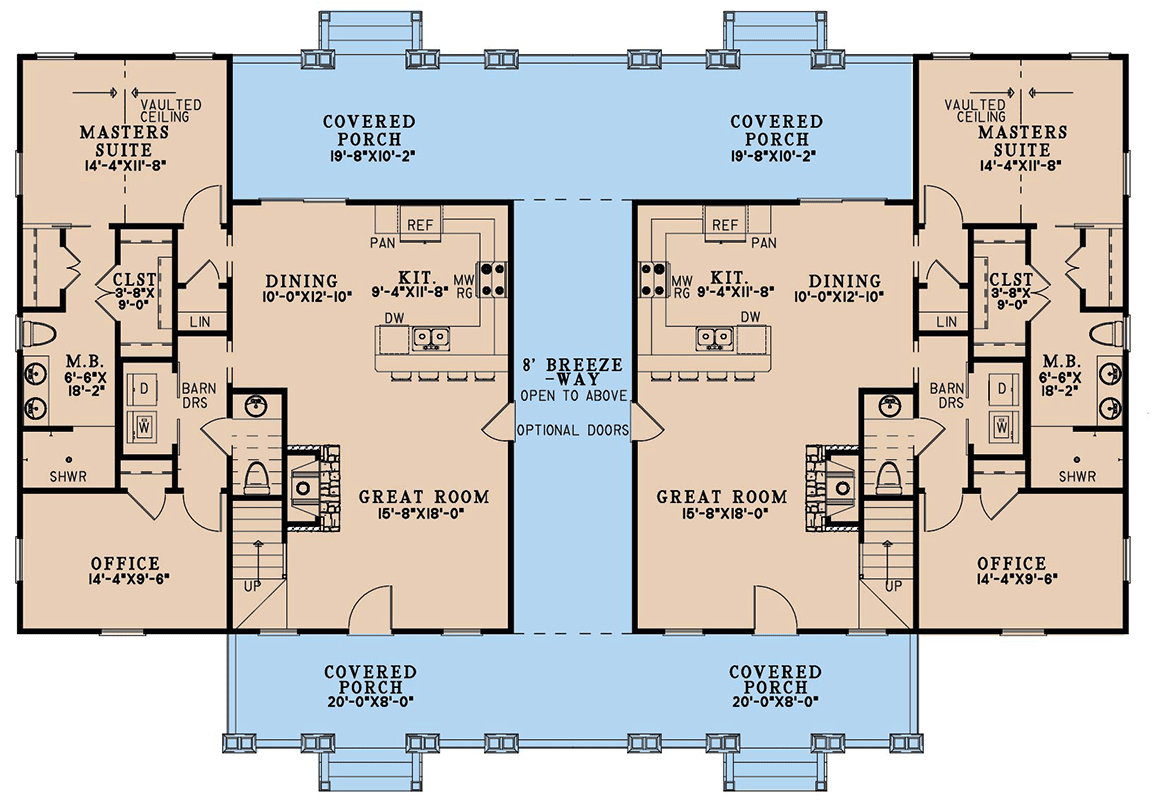

Main Level
floor plan image Main Level

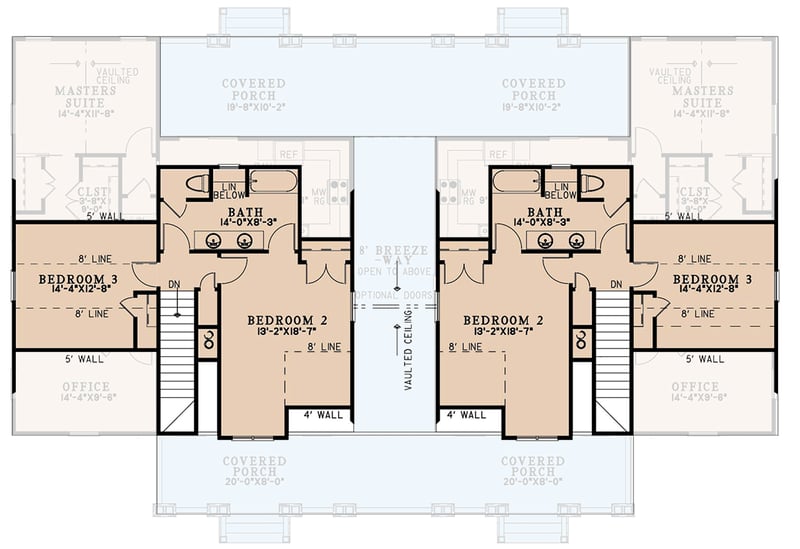

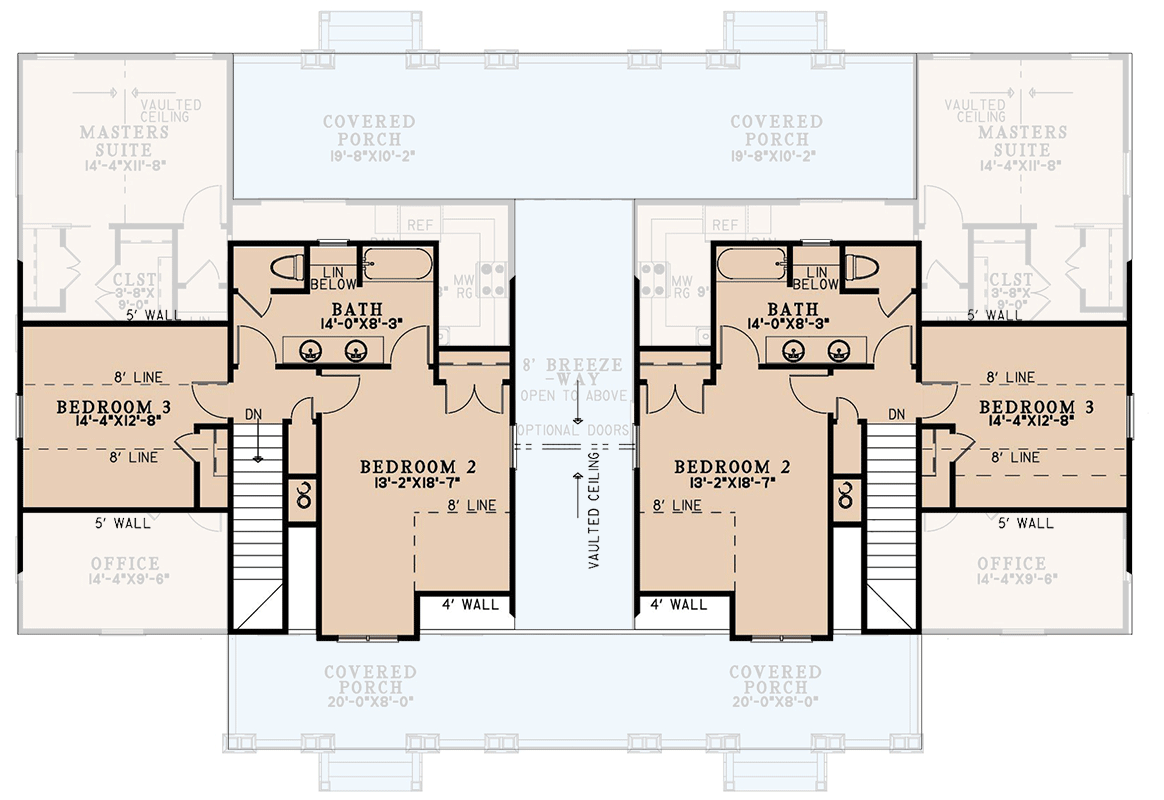

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This duplex house plan features 2 units, each with 1,810 square feet of heated living space—1,204 sq. ft. on the first floor and 606 sq. ft. on the second floor. Each unit includes 3 bedrooms and 2 bathrooms.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plans: Get an alternate version with house plans 70627MK (4 bedroom, 1,595 sq. ft. units), 70738MK (4 bedroom, 1,703 sq. ft. units) and 70740MK (4 bedroom, 1,192 sq. ft. units).
Unit A
1,810Sq. Ft.
1204 Sq. Ft.
1st Floor
606 Sq. Ft.
2nd Floor
3Beds
2Full Baths
None
38' 10"width
48' 6"depth
22' 8"height
Unit B
1,810Sq. Ft.
1204 Sq. Ft.
1st Floor
606 Sq. Ft.
2nd Floor
3Beds
2Full Baths
None
38' 10"width
48' 6"depth
22' 8"height
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,620 sq. ft.

1st Floor

2,408 sq. ft.

2nd Floor

1,212 sq. ft.

Porch, Combined

1,124 sq. ft.

Beds/Baths
