Plan 147011RML
Two-Story Traditional Craftsman with Den and Outdoor Rear - 2559 Sq Ft
Heated S.F.
2,559
Beds
3
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 147011RML

Main Level
slide image 0
2nd Floor
slide image 1

Plan 147011RML

1-800-854-7852

1-262-521-4596

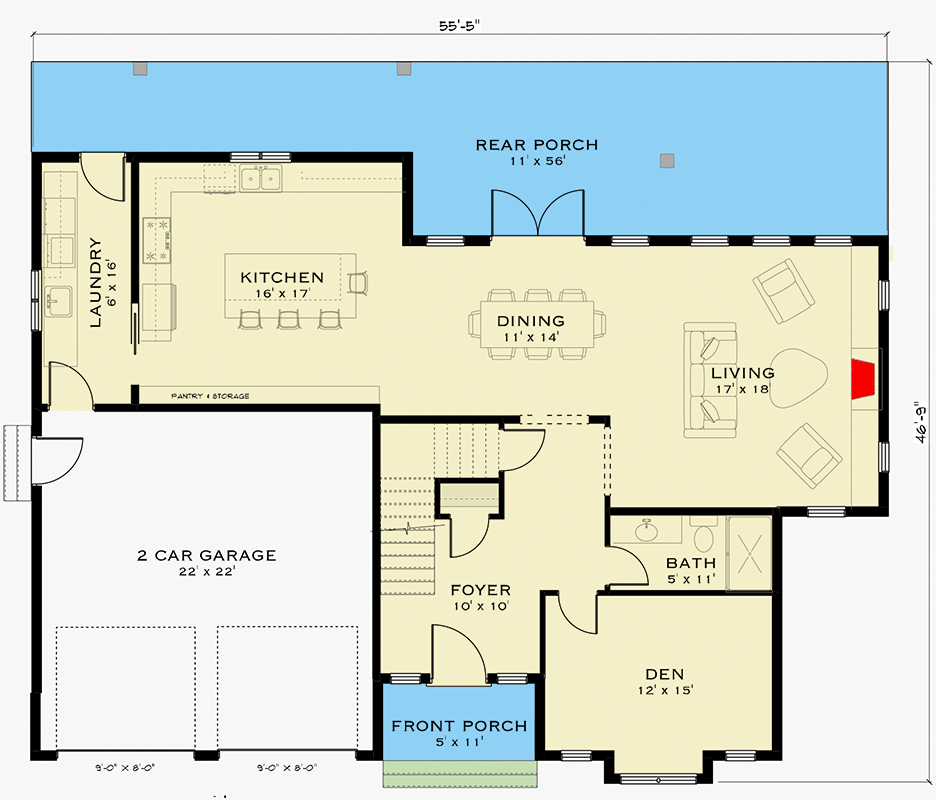

Main Level
floor plan image Main Level

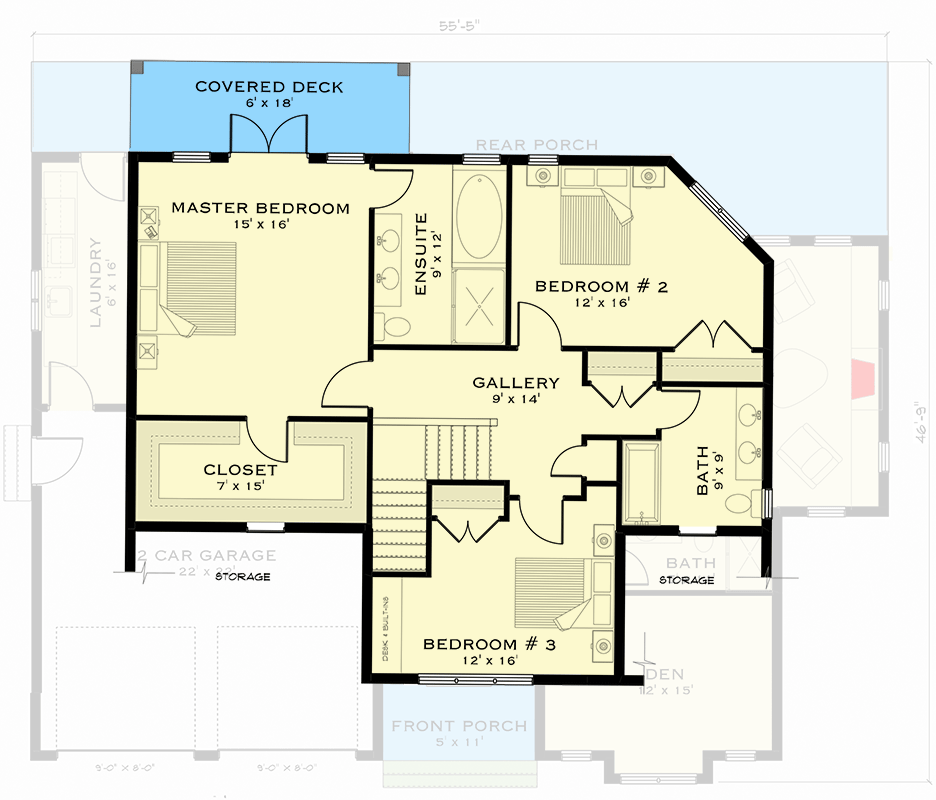

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Discover this craftsman home plan that gives 3 bed, 3 baths and 2,559 sq ft of heated living space and and 2 car front load garage (525sq. ft.).

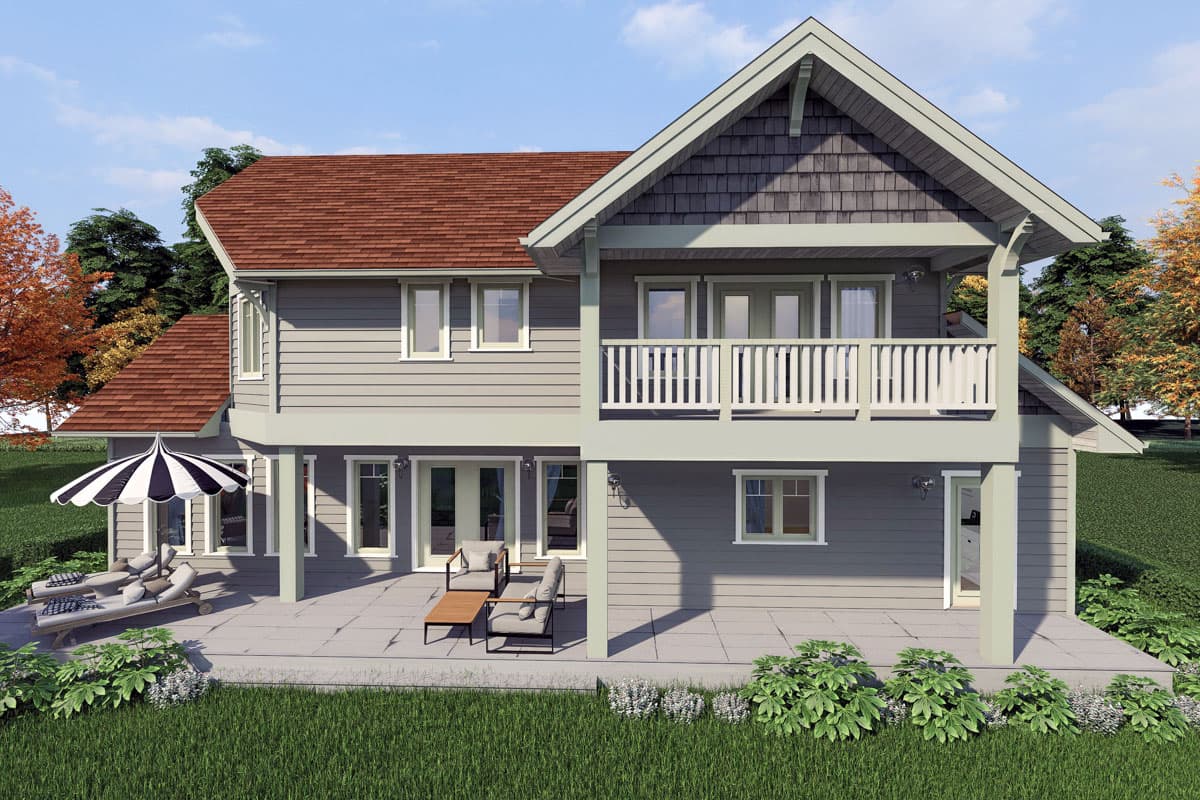

  • Boasting 9-foot ceilings on the main floor, this family home offers a spacious ambiance. Enjoy leisurely moments on the covered patio or retreat to the upstairs deck accessible from the master bedroom.

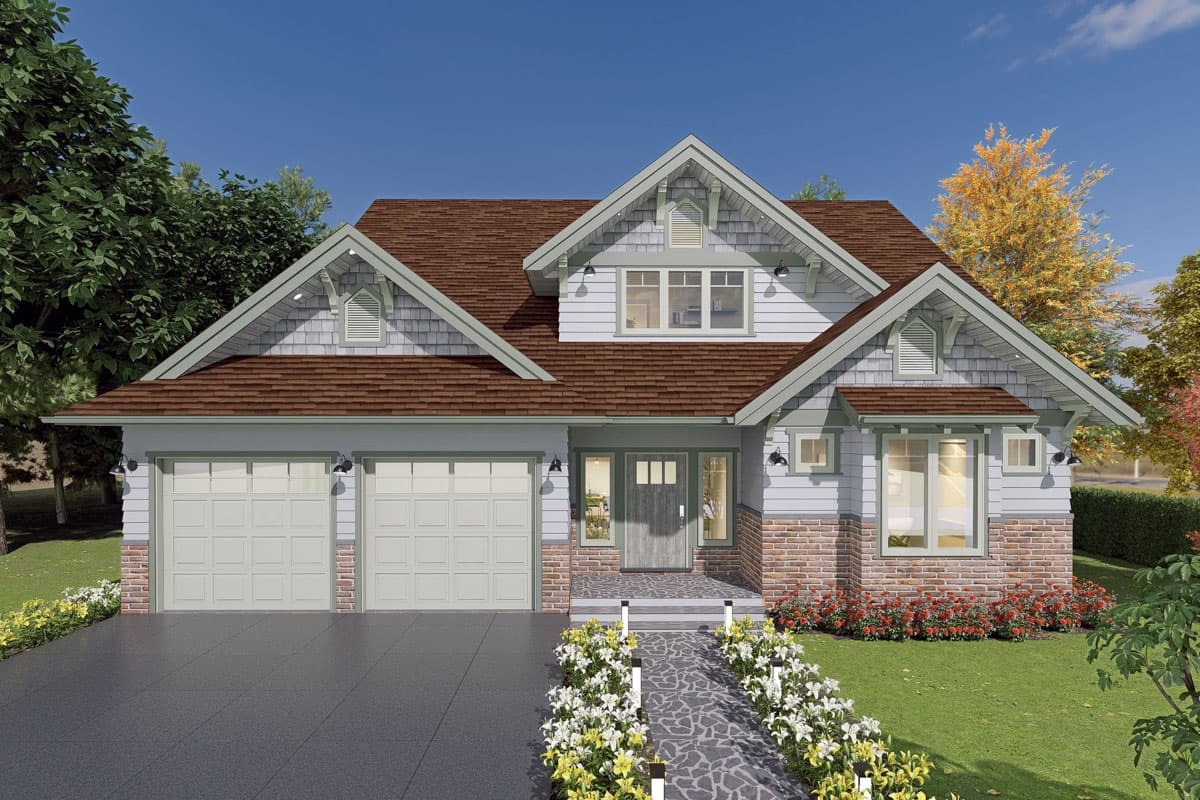

  • Admire the charming exterior details that enhance its curb appeal. Practicality meets convenience with a 2-car garage and a sizable den adaptable as an extra bedroom.
  • Perfect for those seeking refined living with ample space for creativity and relaxation, this residence seamlessly blends style with functionality.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details
  • Exterior Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,559 sq. ft.

1st Floor

1,379 sq. ft.

2nd Floor

1,180 sq. ft.

Porch, Front

55 sq. ft.

Porch, Rear

500 sq. ft.

Porch, Combined

555 sq. ft.

Deck

108 sq. ft.

Deck & Porch

663 sq. ft.

Entry

100 sq. ft.

Covered Patio

267 sq. ft.

Storage

165 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 5"

Depth

46' 9"

Max Ridge Height

30' 5"

Garage

Type

Attached

Area

525 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

9 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Rustic

Traditional

Special Features

Bedrooms - Clustered

Den

Home Office

Laundry - Lower Level

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor

Mudroom
