Plan 580119DFT
Two Story Transitional Home Plan with Oversized RV Garage - 5940 Sq Ft
Heated S.F.
5,940
Beds
6
Baths
4.5
Stories
2
Cars
5
Floor Plan

Plan 580119DFT

Main Level
slide image 0
2nd Floor
slide image 1
3rd Floor
slide image 2

Plan 580119DFT

1-800-854-7852

1-262-521-4596

Main Level

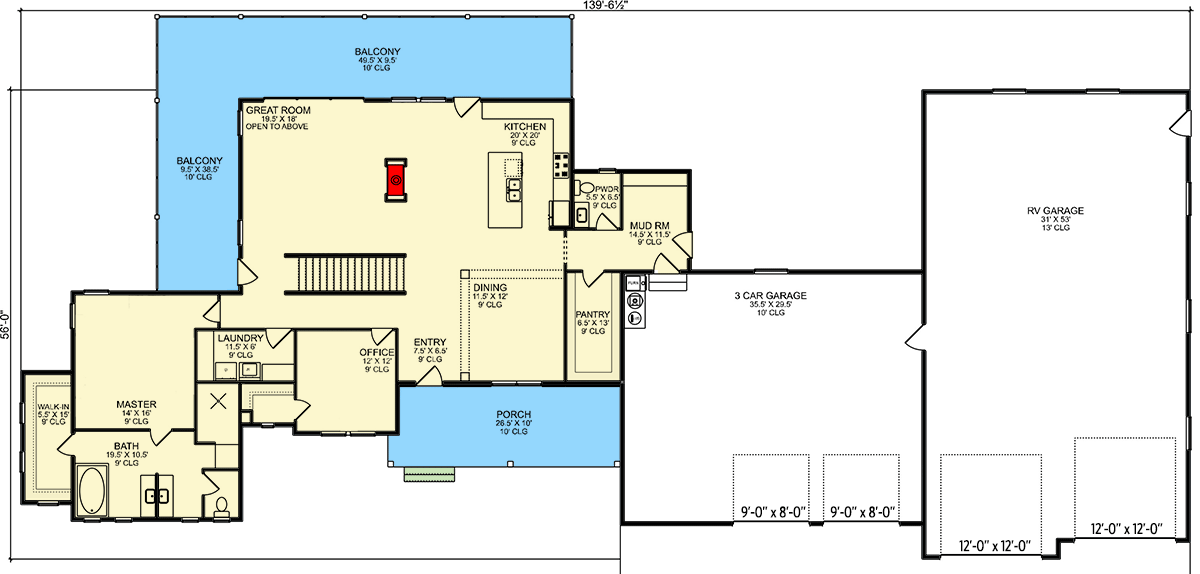

floor plan image Main Level
2nd Floor

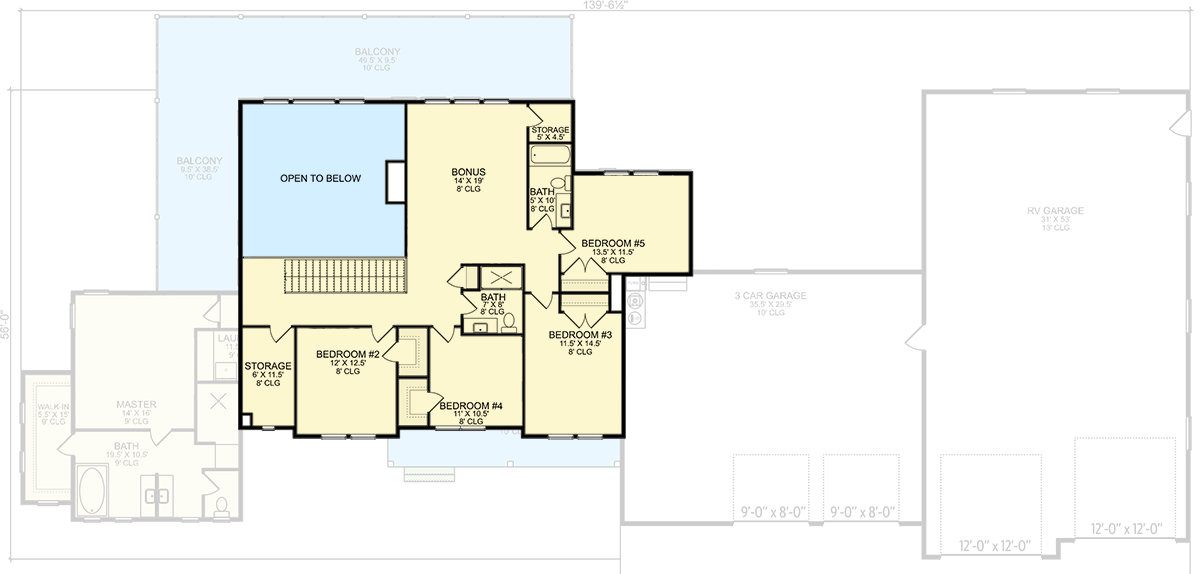

floor plan image 2nd Floor
3rd Floor

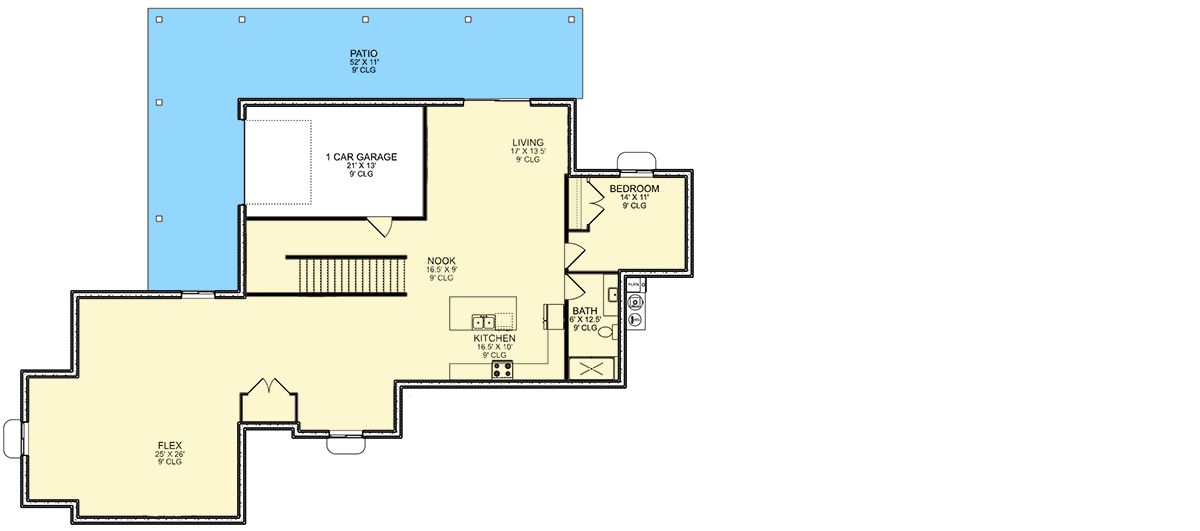

floor plan image 3rd Floor
Plan Details
  • This 6 bed, 4.5 bath Transitional home plan gives you 5,940 square feet of heated living and 3 car front load garage and 2 car RV garage (3137 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

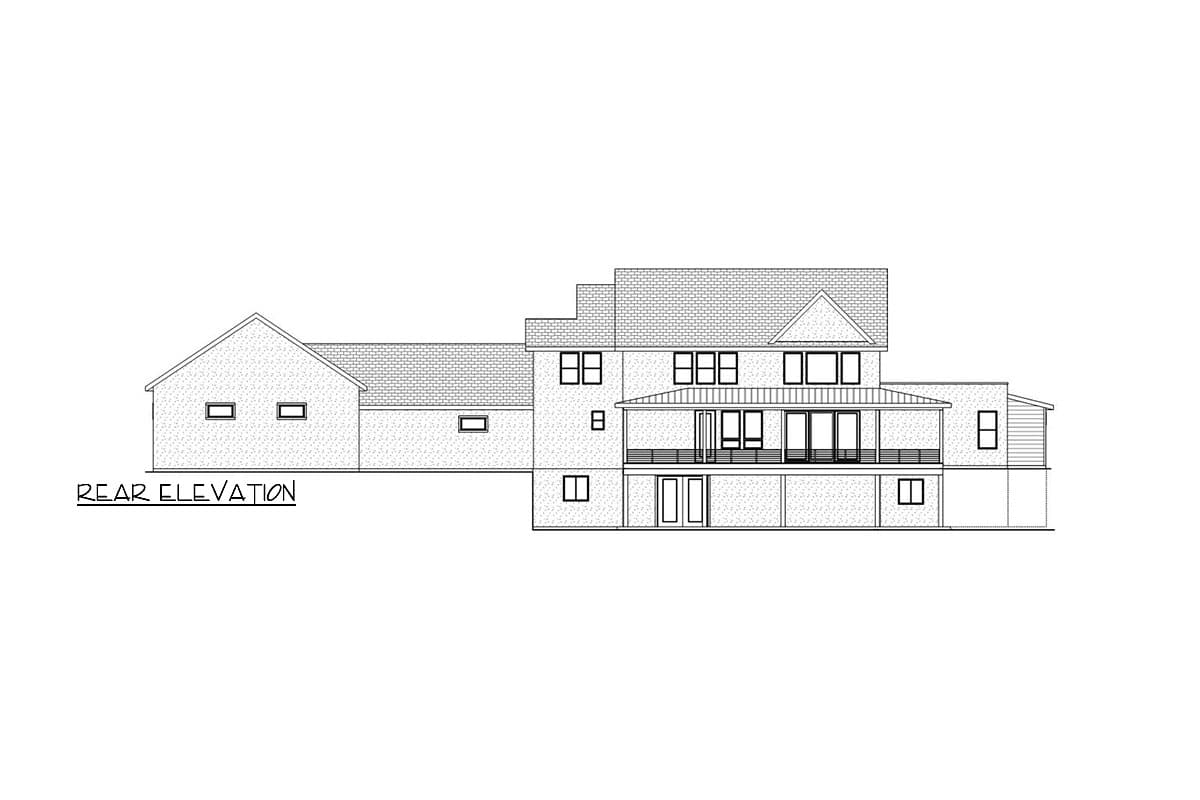

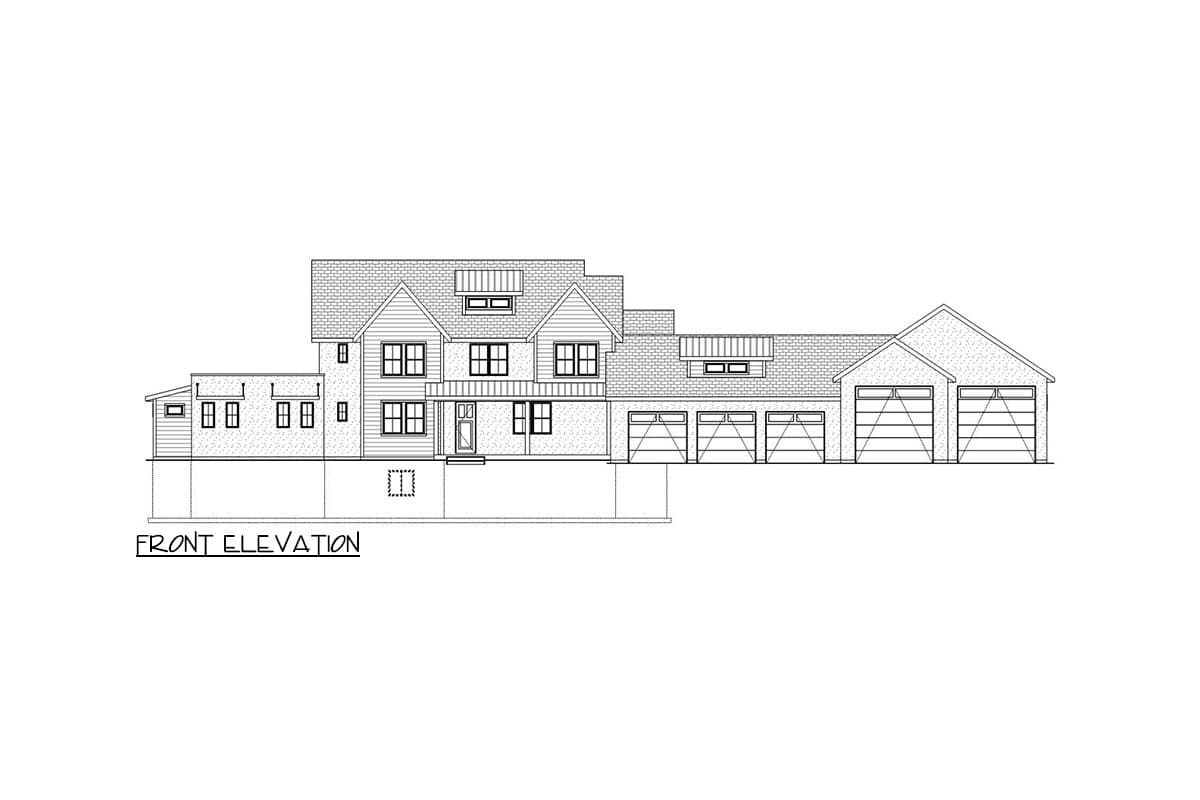

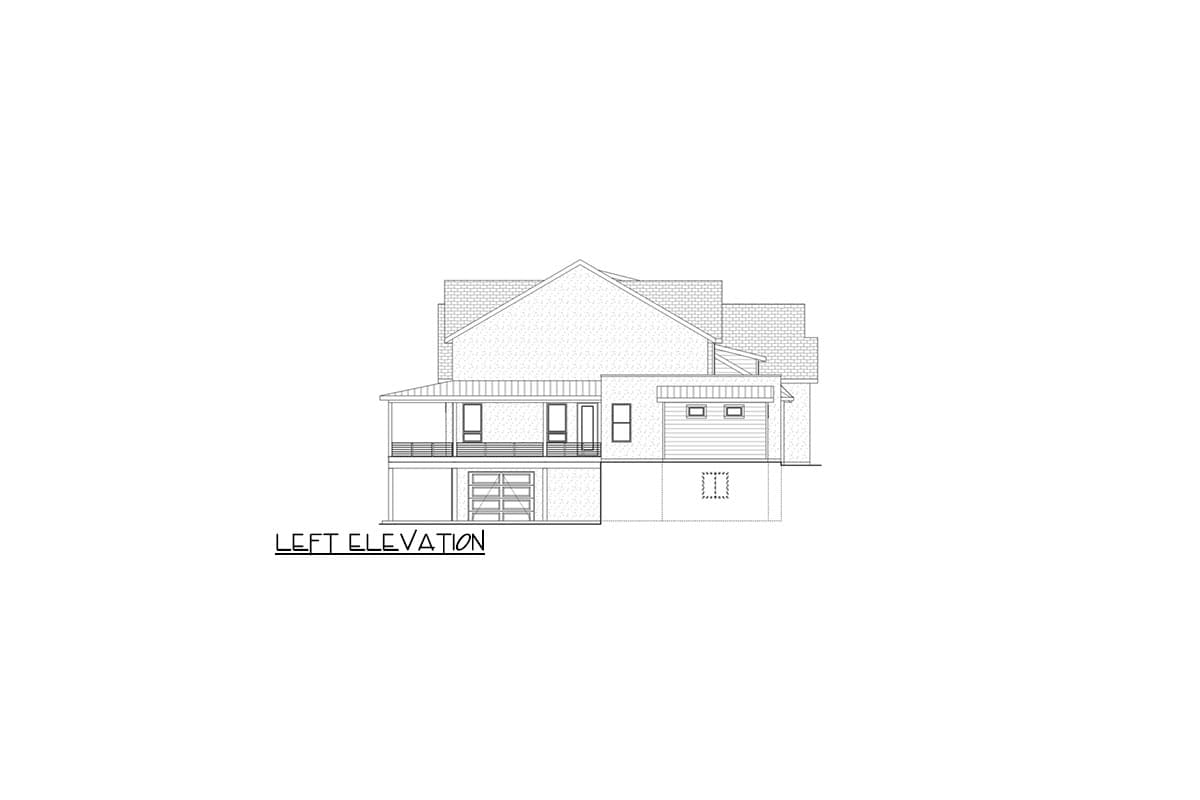

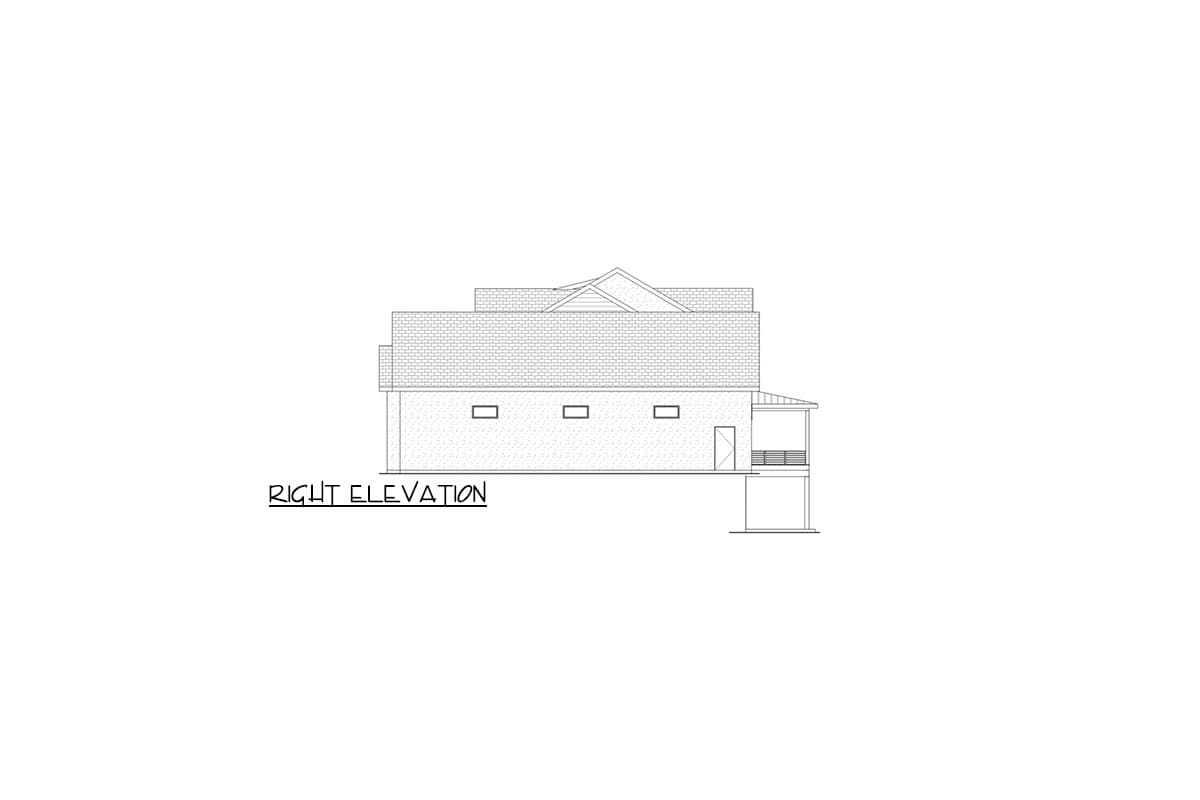

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,940 sq. ft.

Lower Level

1,864 sq. ft.

1st Floor

2,382 sq. ft.

2nd Floor

1,434 sq. ft.

Porch, Front

264 sq. ft.

Covered Patio

1,460 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

139' 6"

Depth

65' 0"

Garage

Type

Attached, RV Garage

Area

3137 sq. ft.

Count

5 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

7 on 12

Framing Type

Stick And Truss

Architectural Style

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room
