Two-Story Transitional House Plan with 4-Bedrooms and a Home Office - 2858 Sq Ft
Heated S.F.
2,858
Beds
4 - 6
Baths
3.5 - 4.5
Stories
3
Cars
3
Floor Plan

Plan 490116NAH

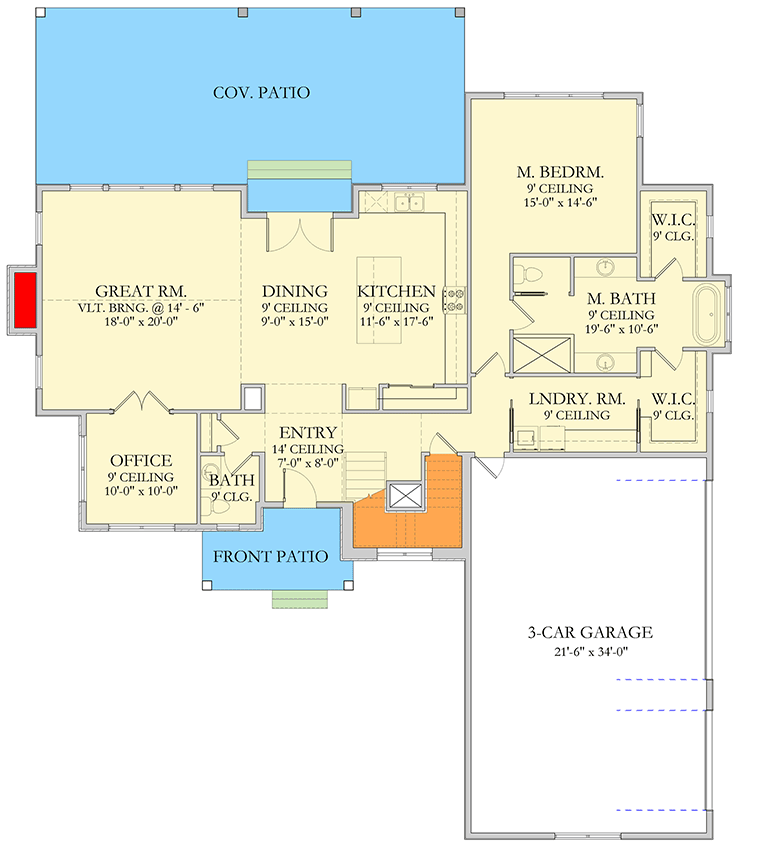

Main Level
slide image 0

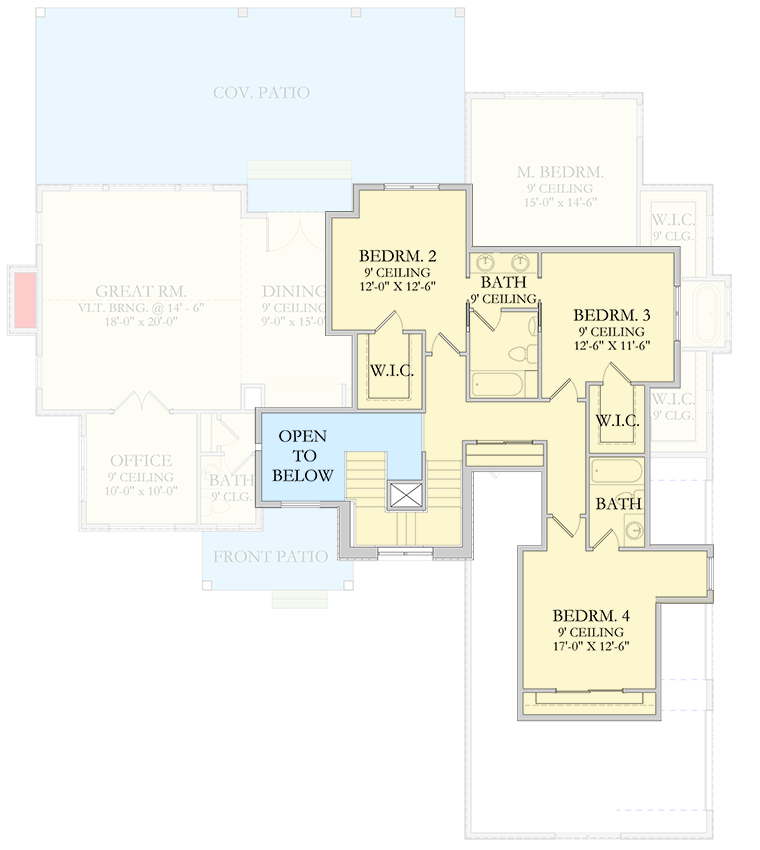

2nd Floor
slide image 1

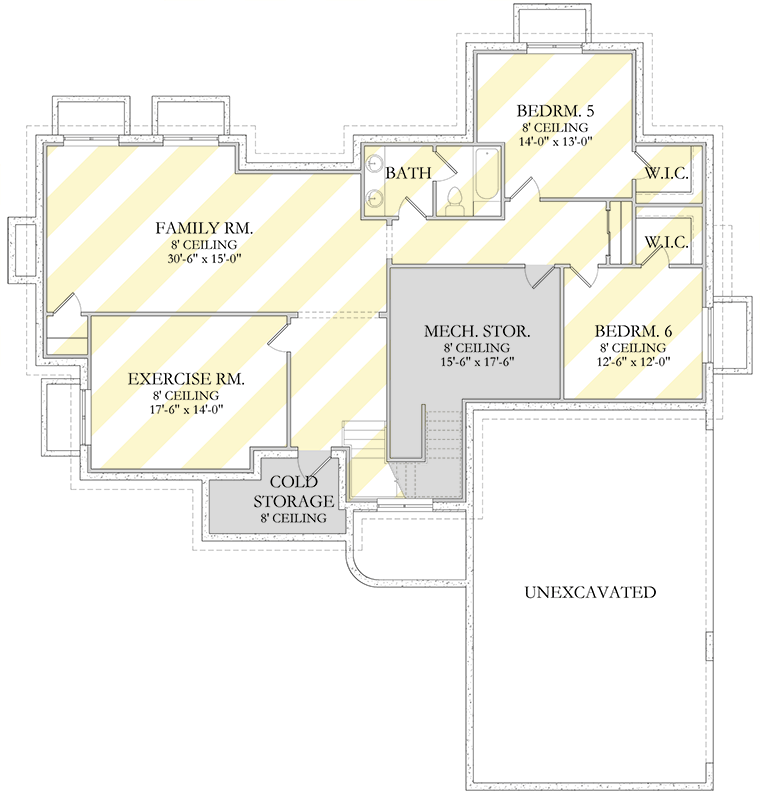

Optionally Finished Lower Level
slide image 2

Plan 490116NAH

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Optionally Finished Lower Level
floor plan image Optionally Finished Lower Level
Plan Details
  • This transitional-style house plan offers striking curb appeal with a perfect blend of classic and modern design.
  • Inside, the open-concept layout connects the kitchen, dining, and living room for seamless living and entertaining.
  • The main-level primary suite features his and hers closets with direct laundry access, while upstairs, three additional bedrooms share two full baths. A large back patio provides an ideal space for outdoor gatherings.
  • The home also includes an optionally finished walkout basement, adding 1,428 square feet for a second living room, exercise room, cold storage, and two more bedrooms, making it perfect for growing families or guests.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,858 sq. ft.

1st Floor

1,856 sq. ft.

2nd Floor

1,002 sq. ft.

Optional Lower Level

1,428 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 6"

Depth

67' 6"

Garage

Type

Attached

Area

766 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

9'

Architectural Style

Contemporary

European

Transitional

Special Features

Bedrooms - Clustered

Formal Dining

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Wine Room

Square Footage Breakdown

Total Heated Area

2,858 sq. ft.

1st Floor

1,856 sq. ft.

2nd Floor

1,002 sq. ft.

Optional Lower Level

1,428 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 6"

Depth

67' 6"

Garage

Type

Attached

Area

766 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

9'

Architectural Style

Contemporary

European

Transitional

Special Features

Bedrooms - Clustered

Formal Dining

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Wine Room
