Plan 490121NAH
Two-Story Transitional House Plan with Angled 3-Car Garage - 4960 Sq Ft
Heated S.F.
4,960
Beds
4 - 5
Baths
3.5 - 4.5
Stories
2
Cars
3
Floor Plan

Plan 490121NAH

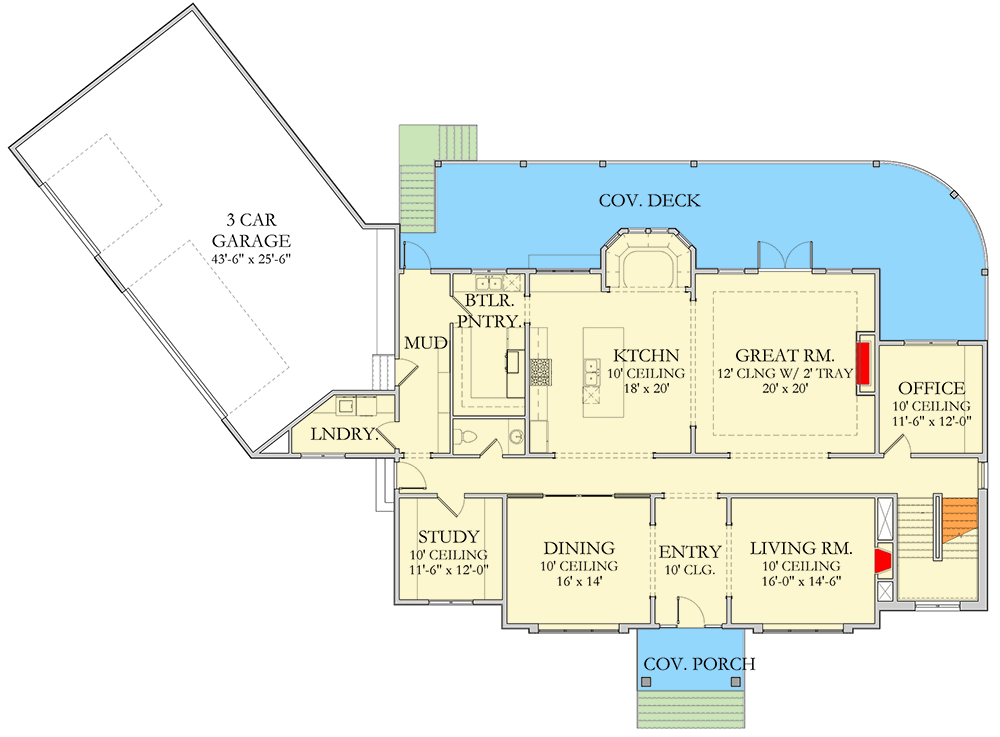

Main Level
slide image 0

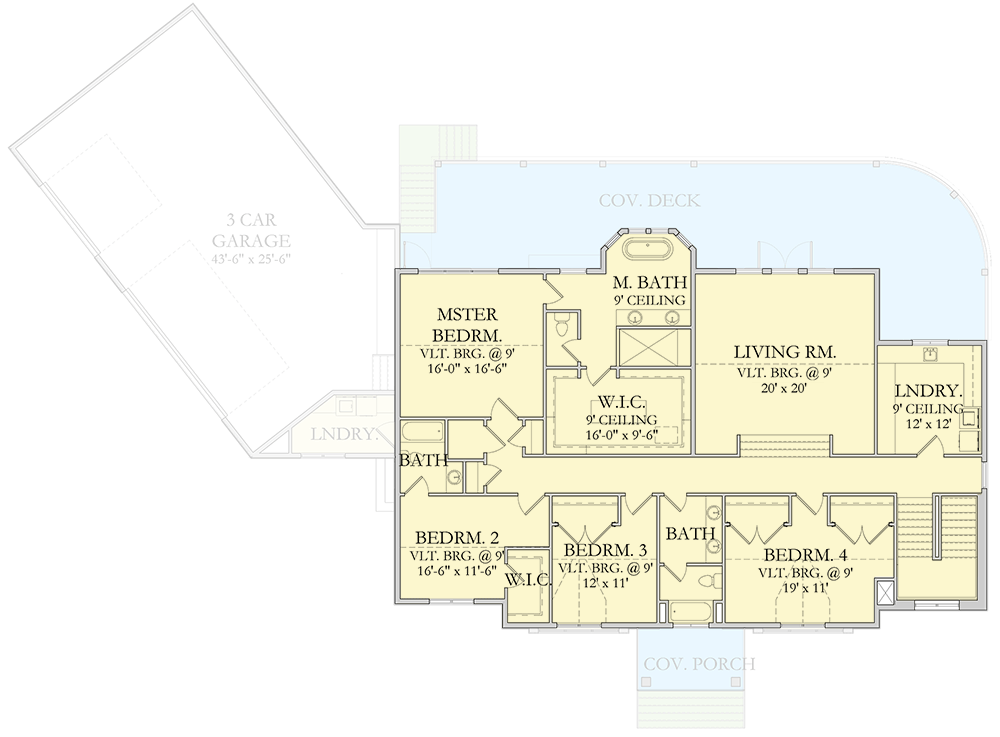

2nd Floor
slide image 1

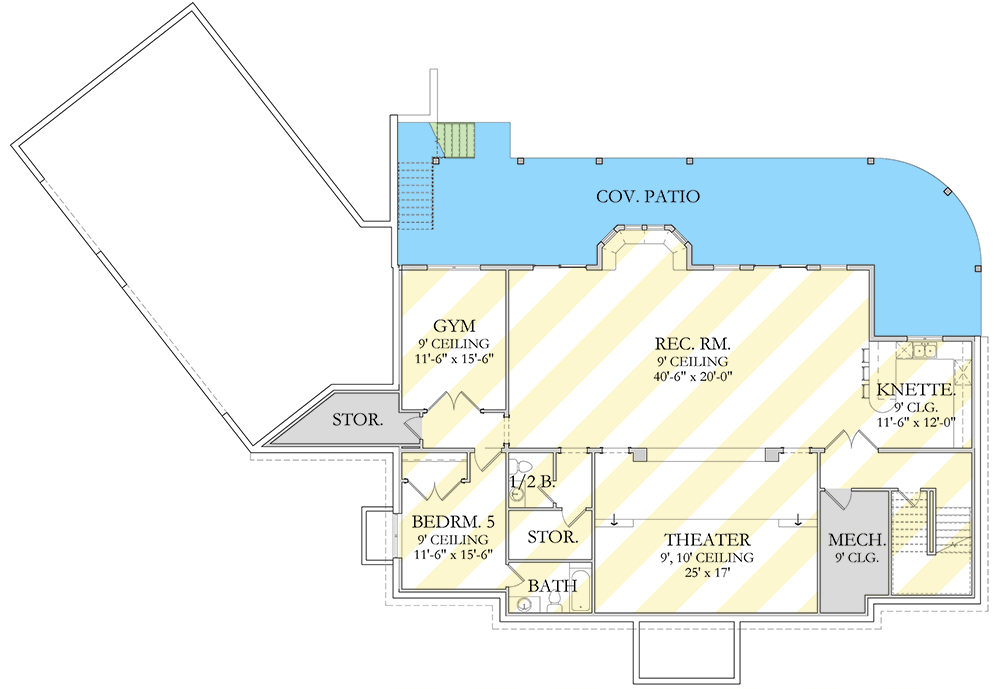

Optional Lower Level
slide image 2

Plan 490121NAH

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This two-story transitional house plan gives you 4,960 square feet, 4 bedrooms, and 3 full bathrooms.
  • Inside, you have a formal dining and living room. An open concept kitchen and great room creates a great space for guests.
  • A mudroom separates the kitchen from the 3-car garage, allowing for convenient access when unloading groceries.
  • The primary bedroom suite is on the second floor. It has a large walk in closet. Three additional bedrooms are upstairs with 2 full bathrooms.
  • This home plan offers basement expansion (2,307 square feet when finished as shown) with a rec room, theater room, exercise room, sauna, kitchenette, one bedroom, and plenty of storage.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,960 sq. ft.

1st Floor

2,943 sq. ft.

2nd Floor

2,017 sq. ft.

Optional Lower Level

2,307 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

81' 6"

Depth

44' 0"

Garage

Type

Attached

Area

1260 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Architectural Style

Transitional

Special Features

Angled Garage

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

Home Theater

Laundry - Main Level

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor

Mudroom

Stacked Porches

Wet Bar

Square Footage Breakdown

Total Heated Area

4,960 sq. ft.

1st Floor

2,943 sq. ft.

2nd Floor

2,017 sq. ft.

Optional Lower Level

2,307 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

81' 6"

Depth

44' 0"

Garage

Type

Attached

Area

1260 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Architectural Style

Transitional

Special Features

Angled Garage

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

Home Theater

Laundry - Main Level

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor

Mudroom

Stacked Porches

Wet Bar
