Plan 833022WAT

Exclusive

Two-Story Transitional House Plan with Bonus Space Above - 2384 Sq Ft
Heated S.F.
2,106
Beds
3 - 4
Baths
2
Stories
2
Cars
3
Tour
Floor Plan

Plan 833022WAT

Main Level
slide image 0
2nd Floor
slide image 1

Plan 833022WAT

1-800-854-7852

1-262-521-4596

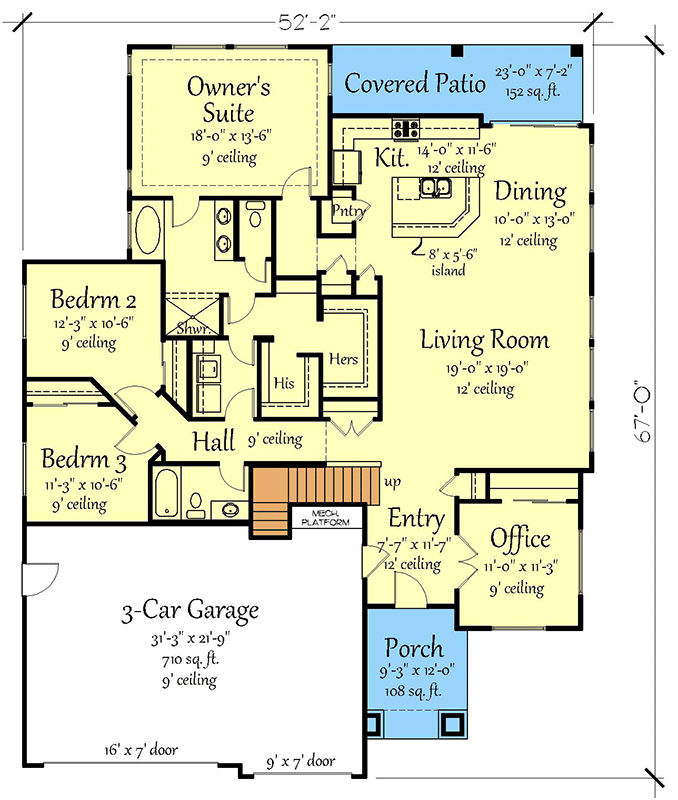

Main Level
floor plan image Main Level

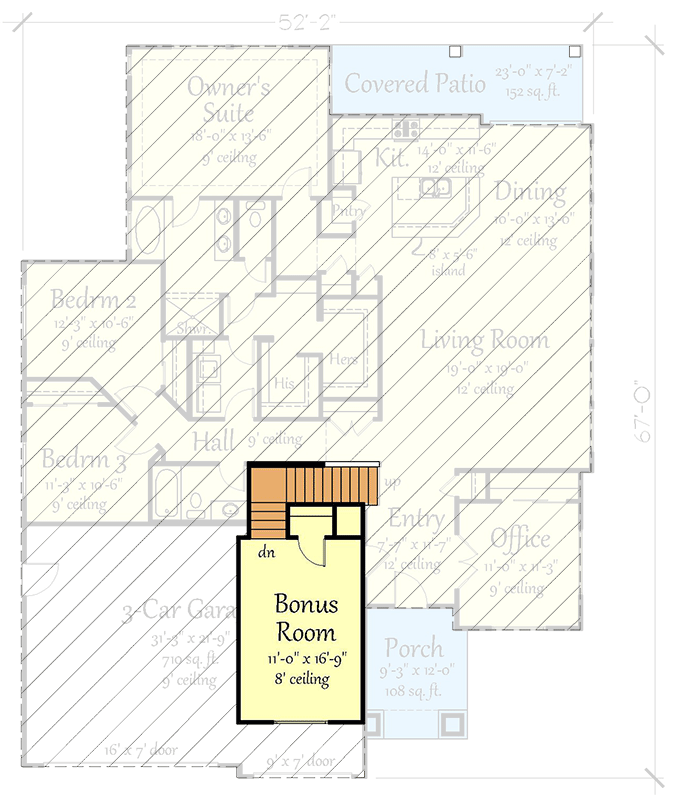

2nd Floor
floor plan image 2nd Floor
Plan Details

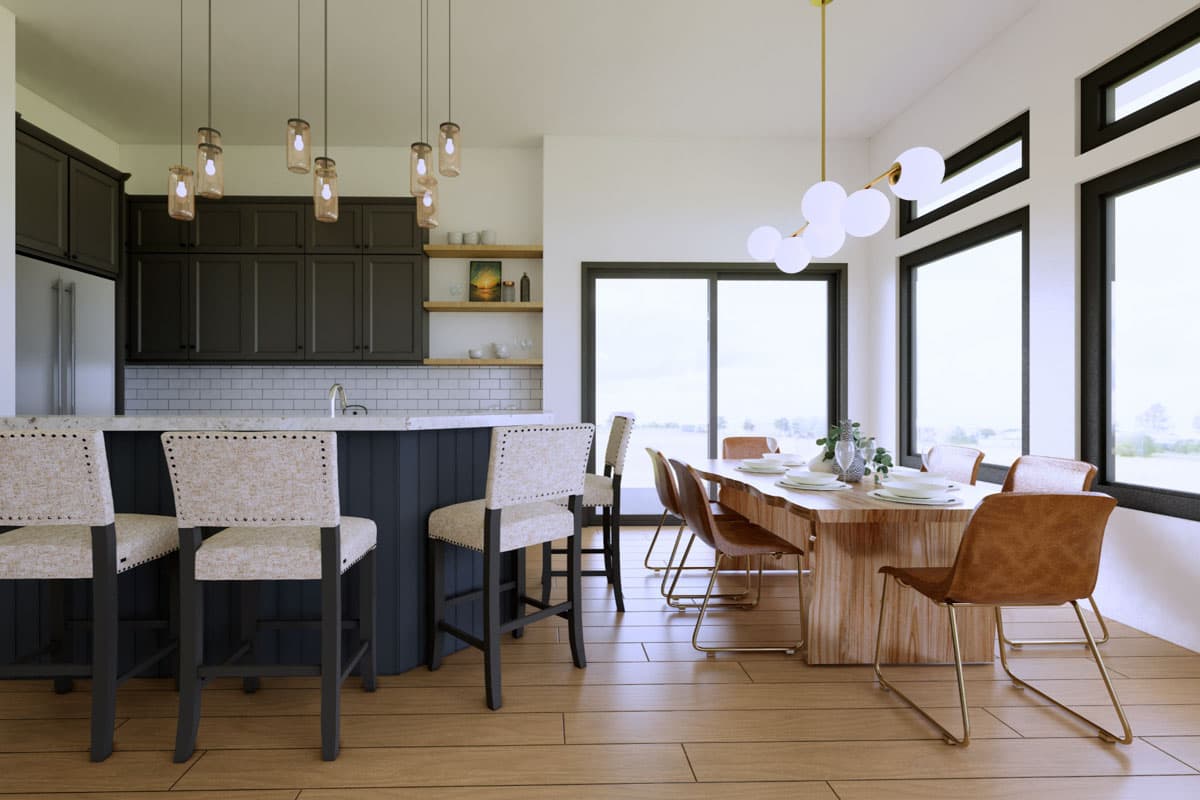

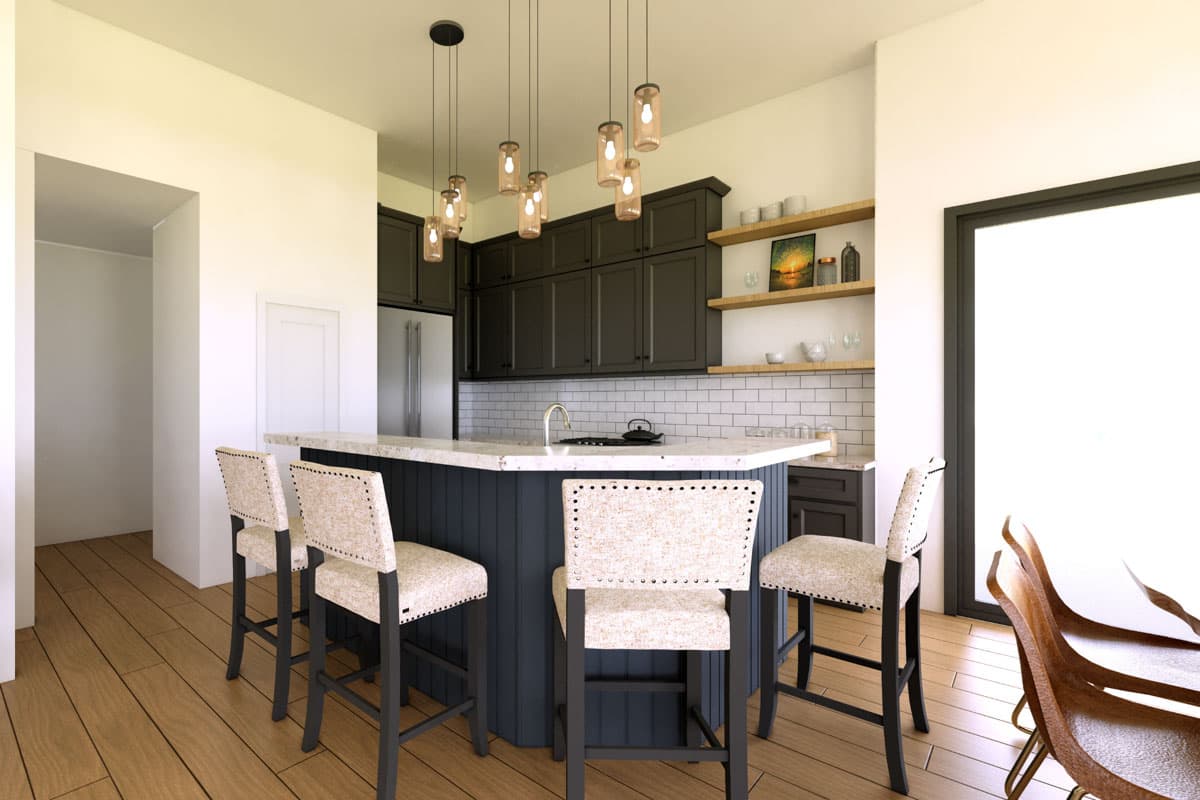

  • This 3-bedroom transitional house plan features a functional design with a galley kitchen, large island, and walk-in pantry, ideal for daily life and entertaining.

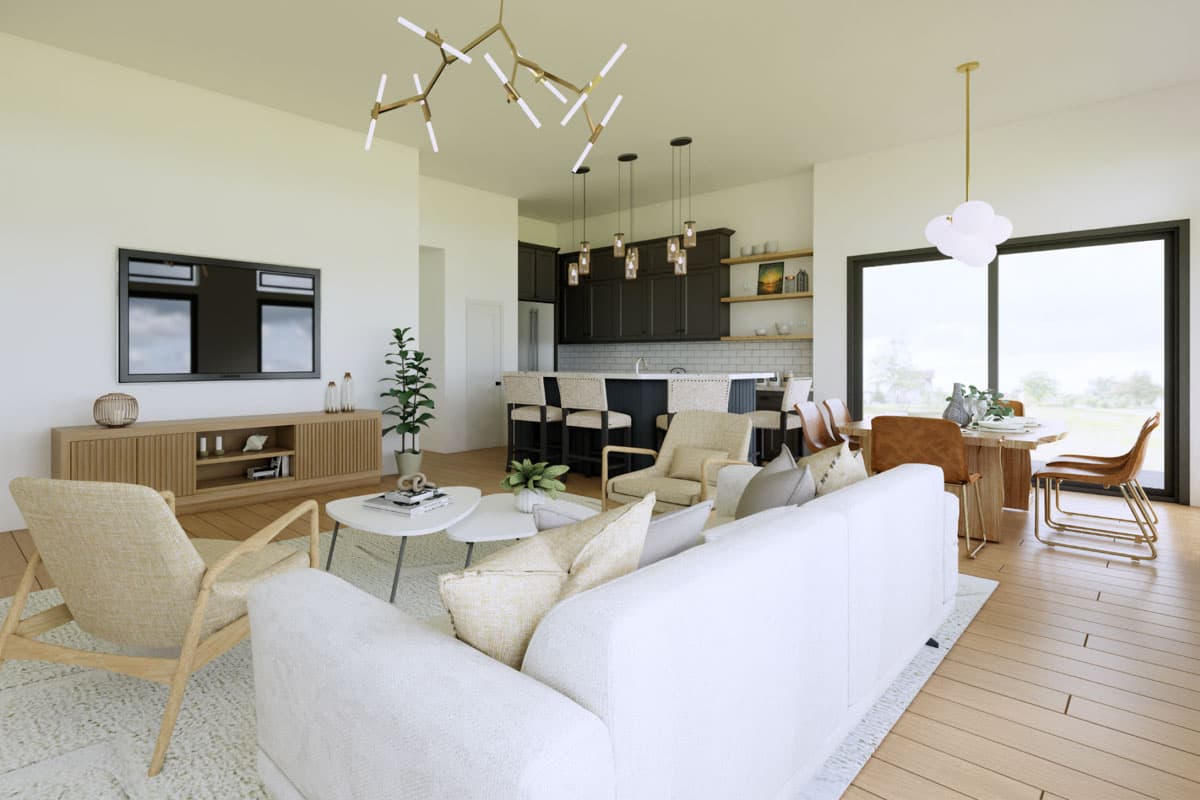

  • The open living room, with side-view windows, connects to a dining room with backyard access, perfect for indoor-outdoor gatherings.

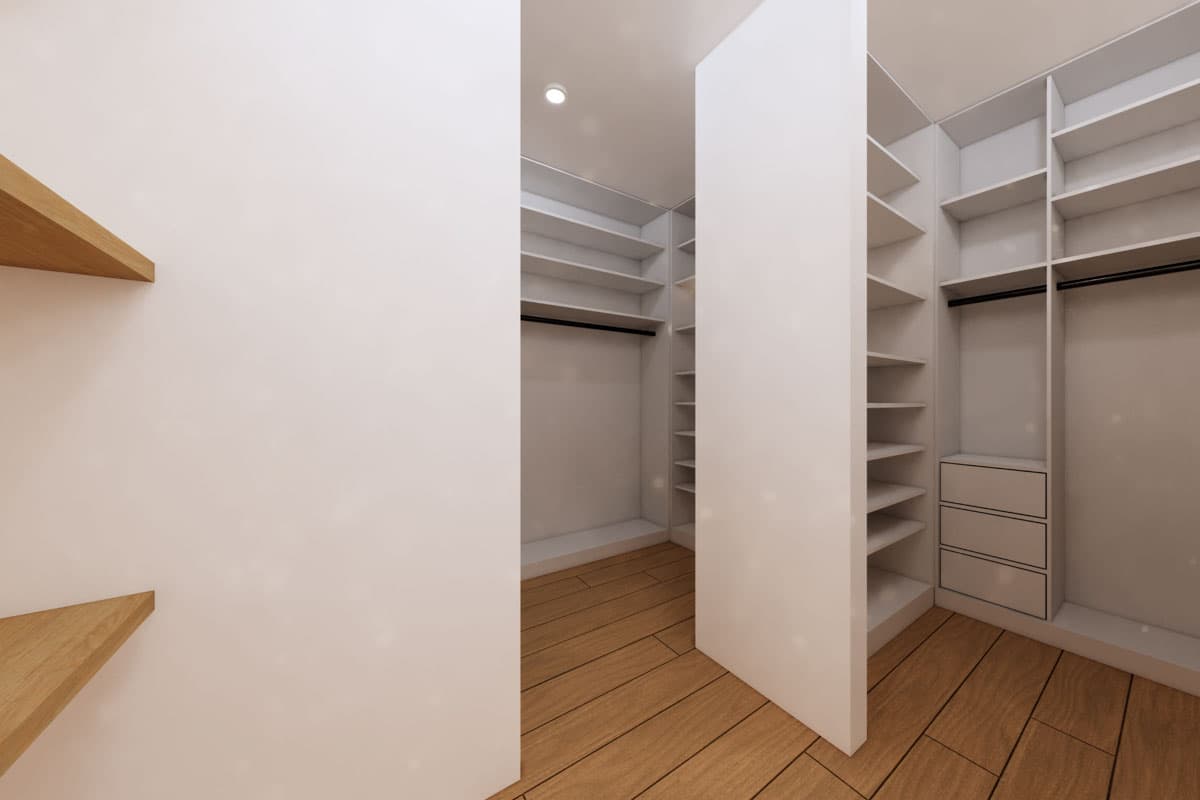

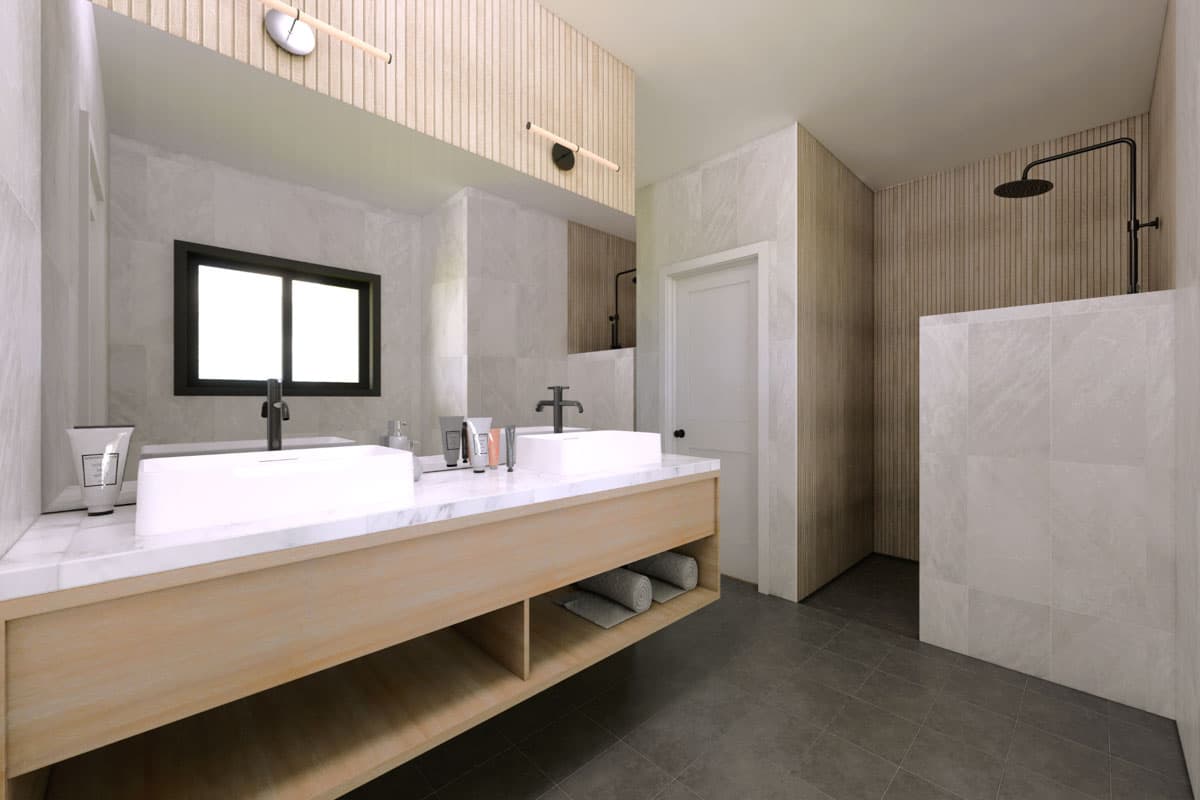

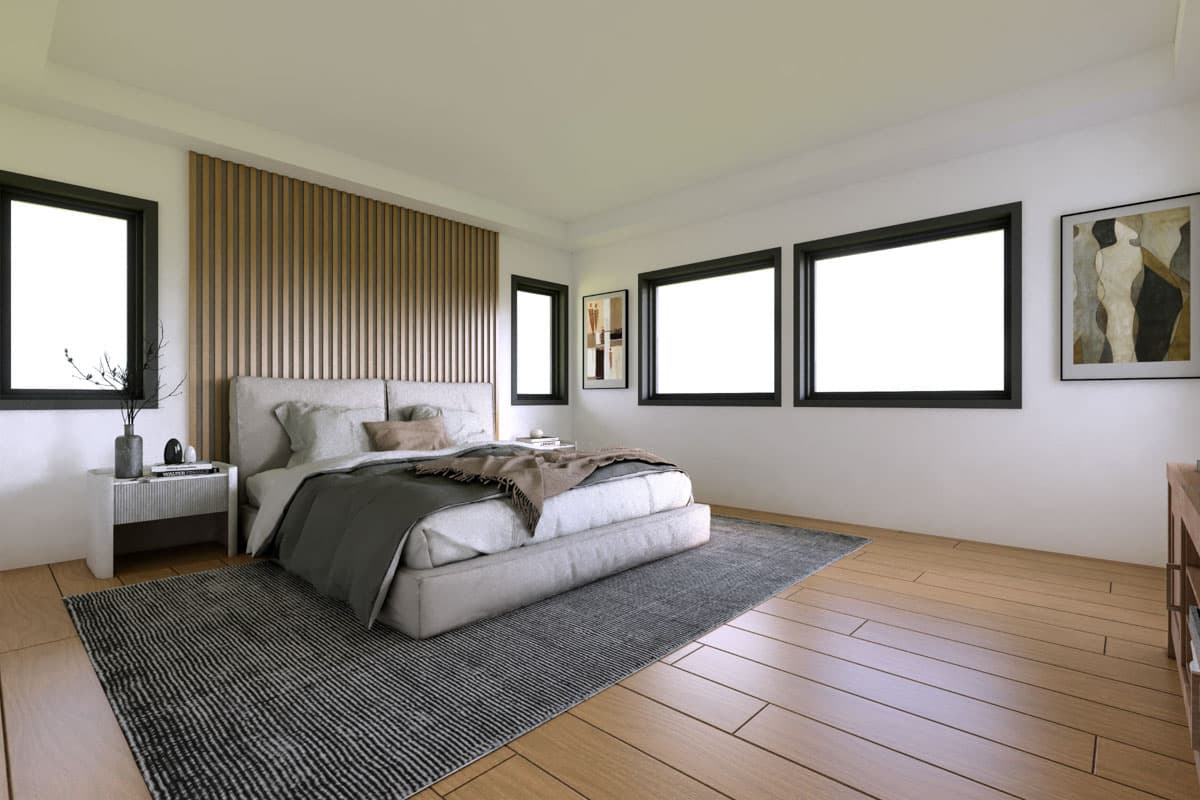

  • The private master suite includes a convenient flow-through layout from the bathroom to the closet, laundry, and entry.

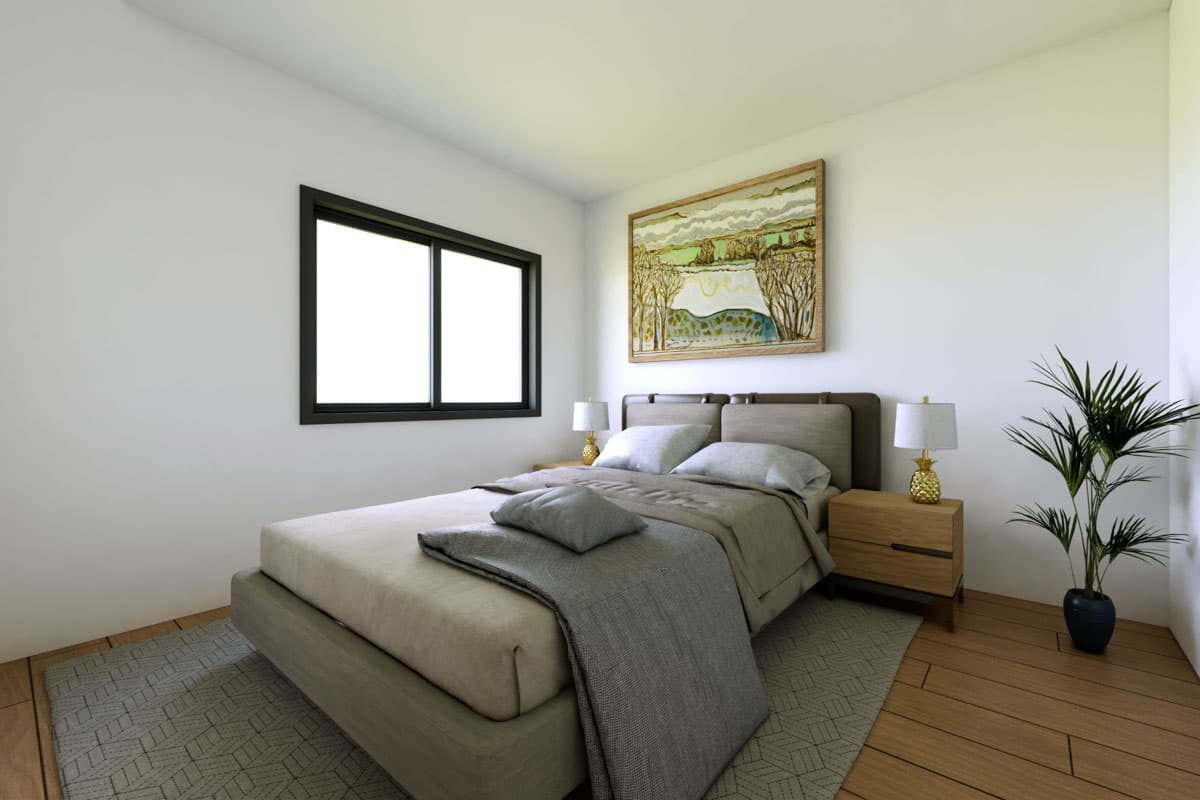

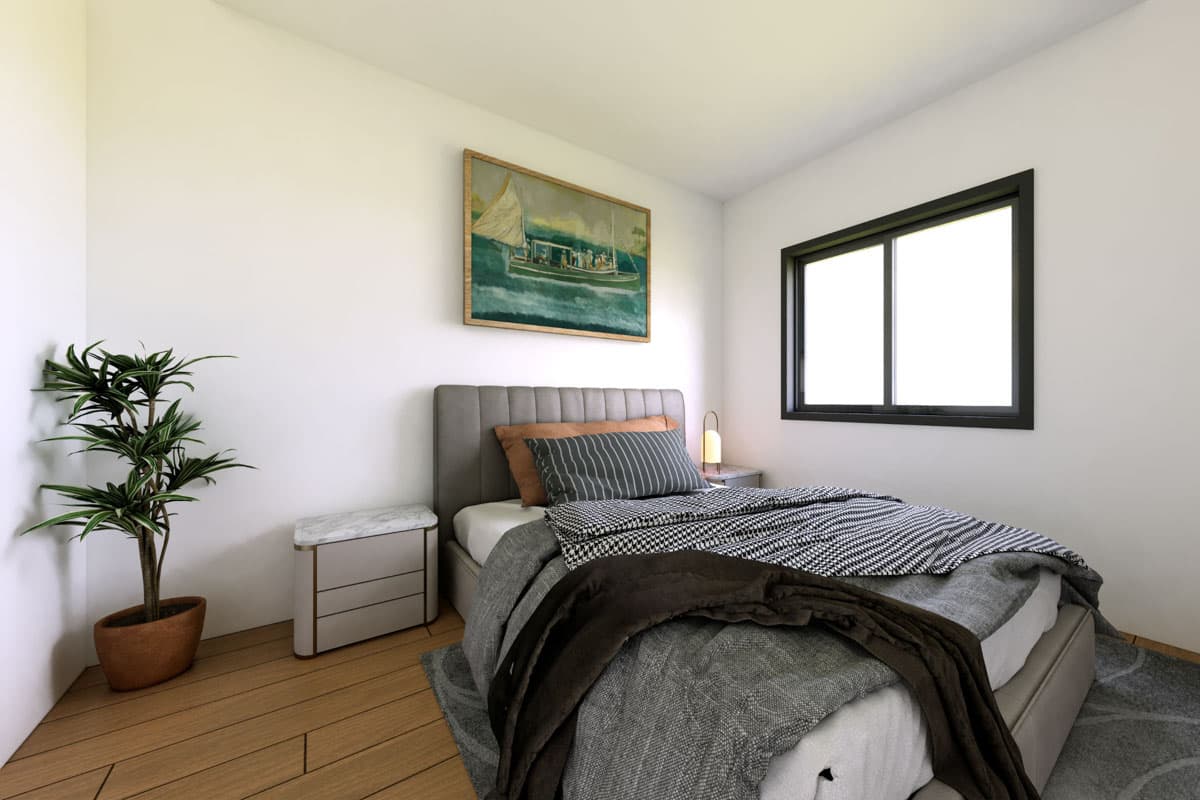

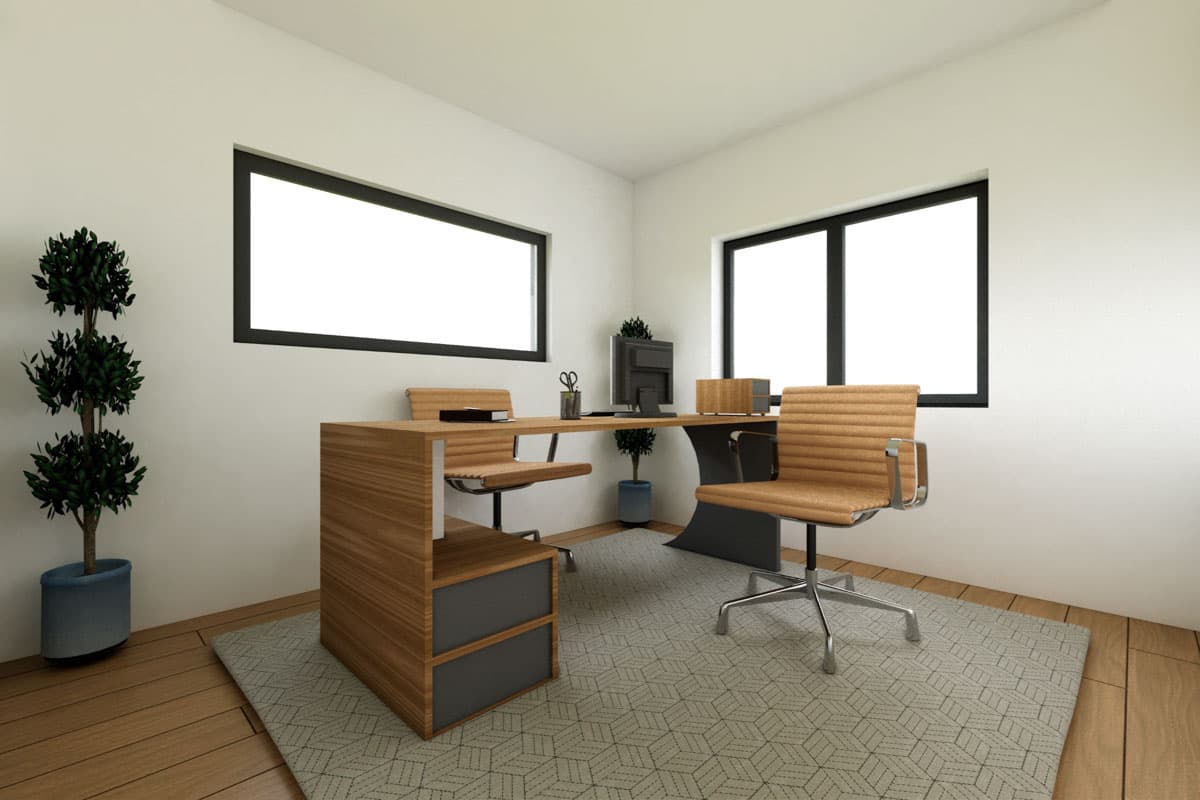

  • Two additional bedrooms are on the opposite side of the house for added privacy, along with a front office for a quiet workspace.

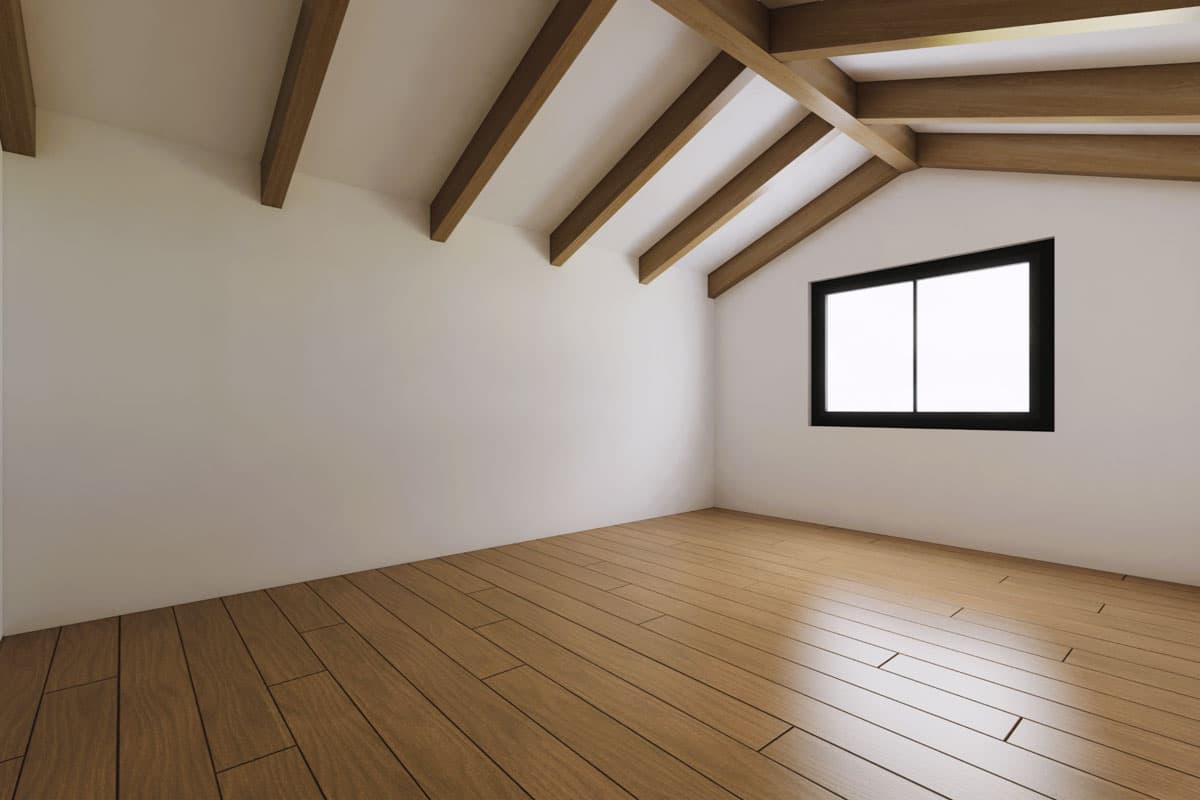

  • A bonus room upstairs offers flexible space for activities, and the 3-car garage provides ample room for vehicles and storage.
  • Related Plan: Get an alternate exterior without a bonus room with house plan 833023WAT (1,900 sq. ft.).
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet
  • Floor Plan
  • Elevations
  • Roof Plan
  • Thermal Envelope Plan (General Prescriptive Energy Compliance)
  • Detail Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,106 sq. ft.

1st Floor

2,106 sq. ft.

Bonus

278 sq. ft.

Porch, Front

108 sq. ft.

Porch, Rear

153 sq. ft.

Porch, Combined

261 sq. ft.

Entry

100 sq. ft.

Covered Patio

153 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 2"

Depth

67' 0"

Max Ridge Height

20' 10"

Garage

Type

Attached

Area

710 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Living

12' 0''

Entry

12' 0''

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Country

New American

Transitional

Special Features

Bedrooms - Clustered

Bonus Room

Breakfast Nook

Flex Room

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Media Room
