Plan 623373DJ
Two-Story Victorian Home Plan with Clustered Bedrooms - 1583 Sq Ft
Heated S.F.
1,583
Beds
3
Baths
2.5
Stories
2
Cars
1

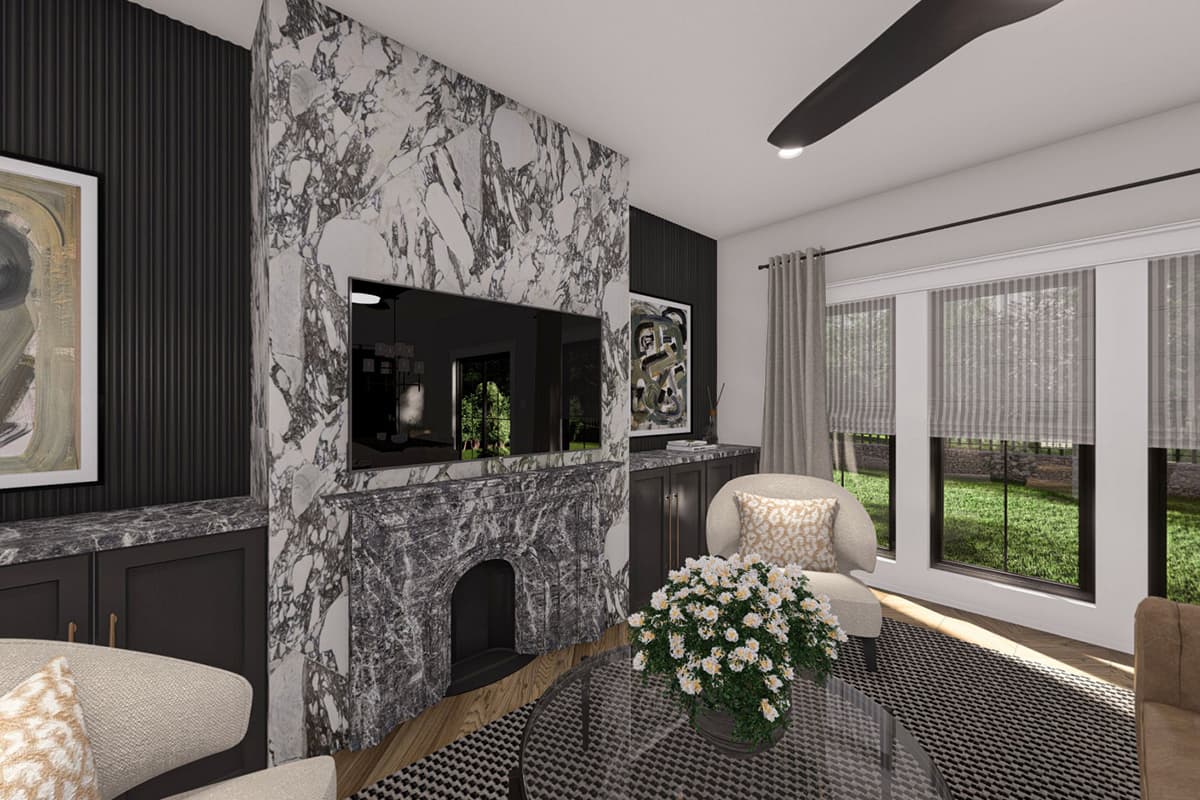

Tour
Floor Plan

Plan 623373DJ

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 623373DJ

1-800-854-7852

1-262-521-4596

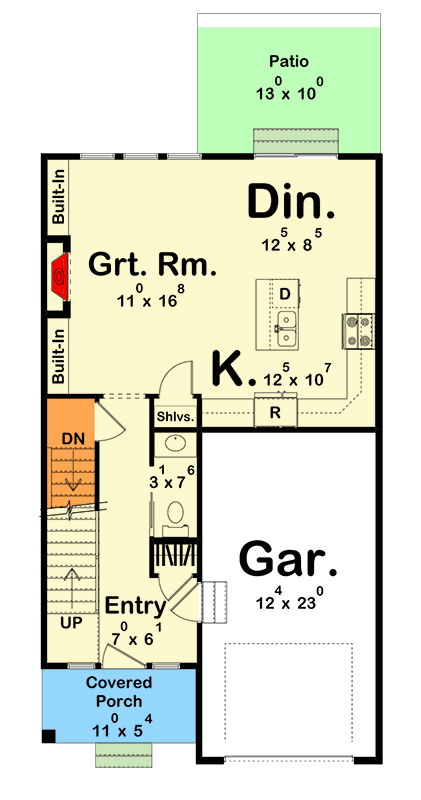

Main Level
floor plan image Main Level

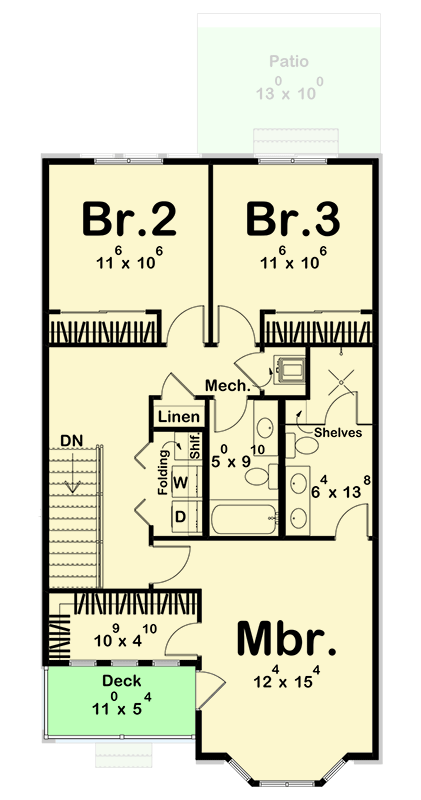

2nd Floor
floor plan image 2nd Floor

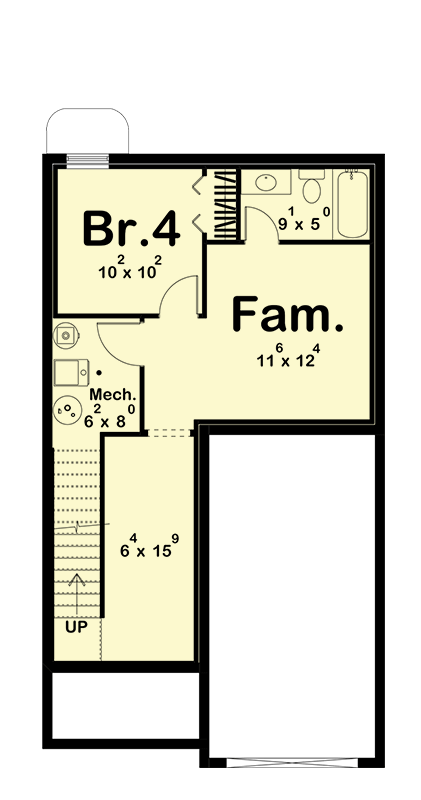

Lower Level
floor plan image Lower Level
Plan Details

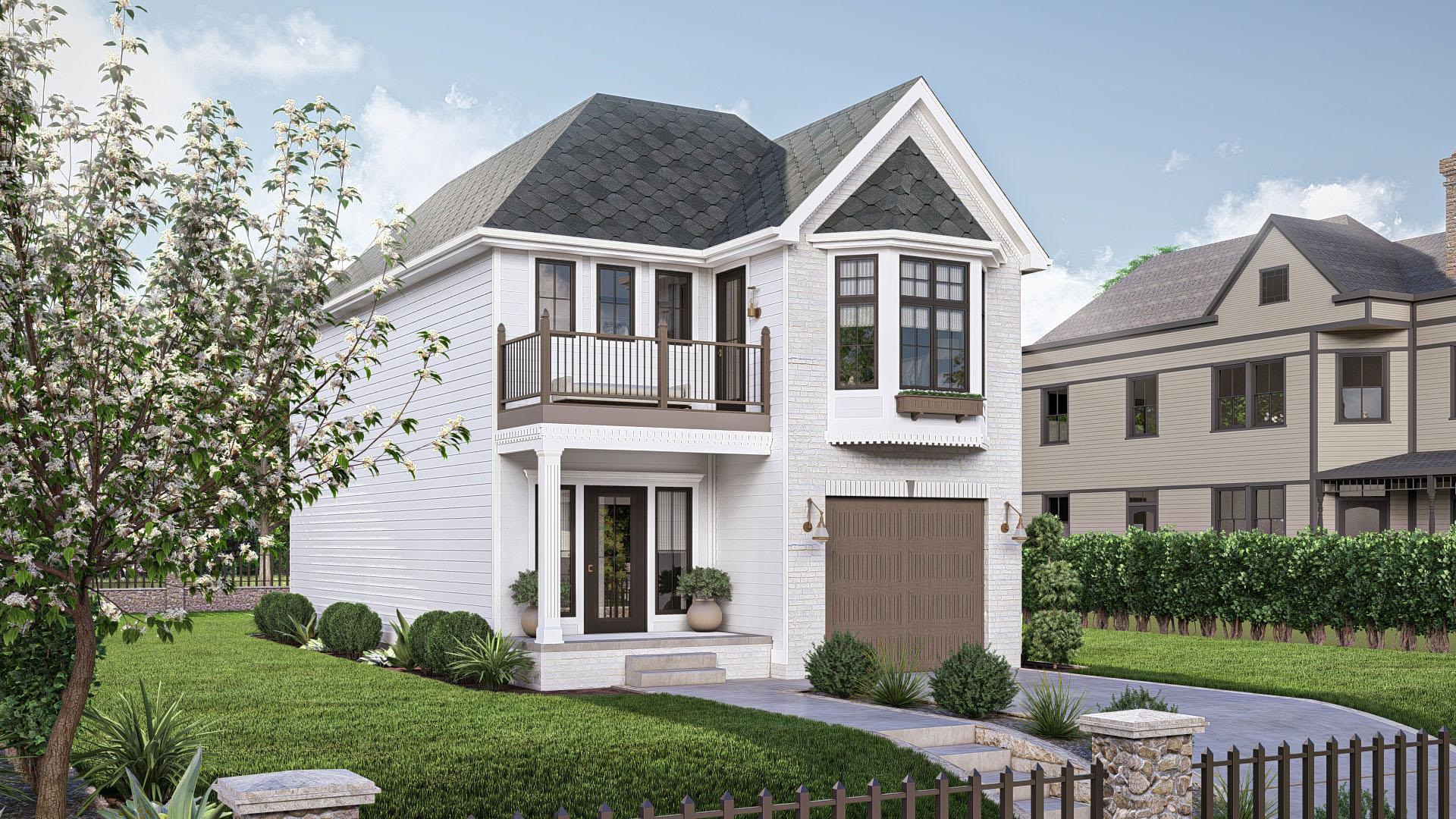

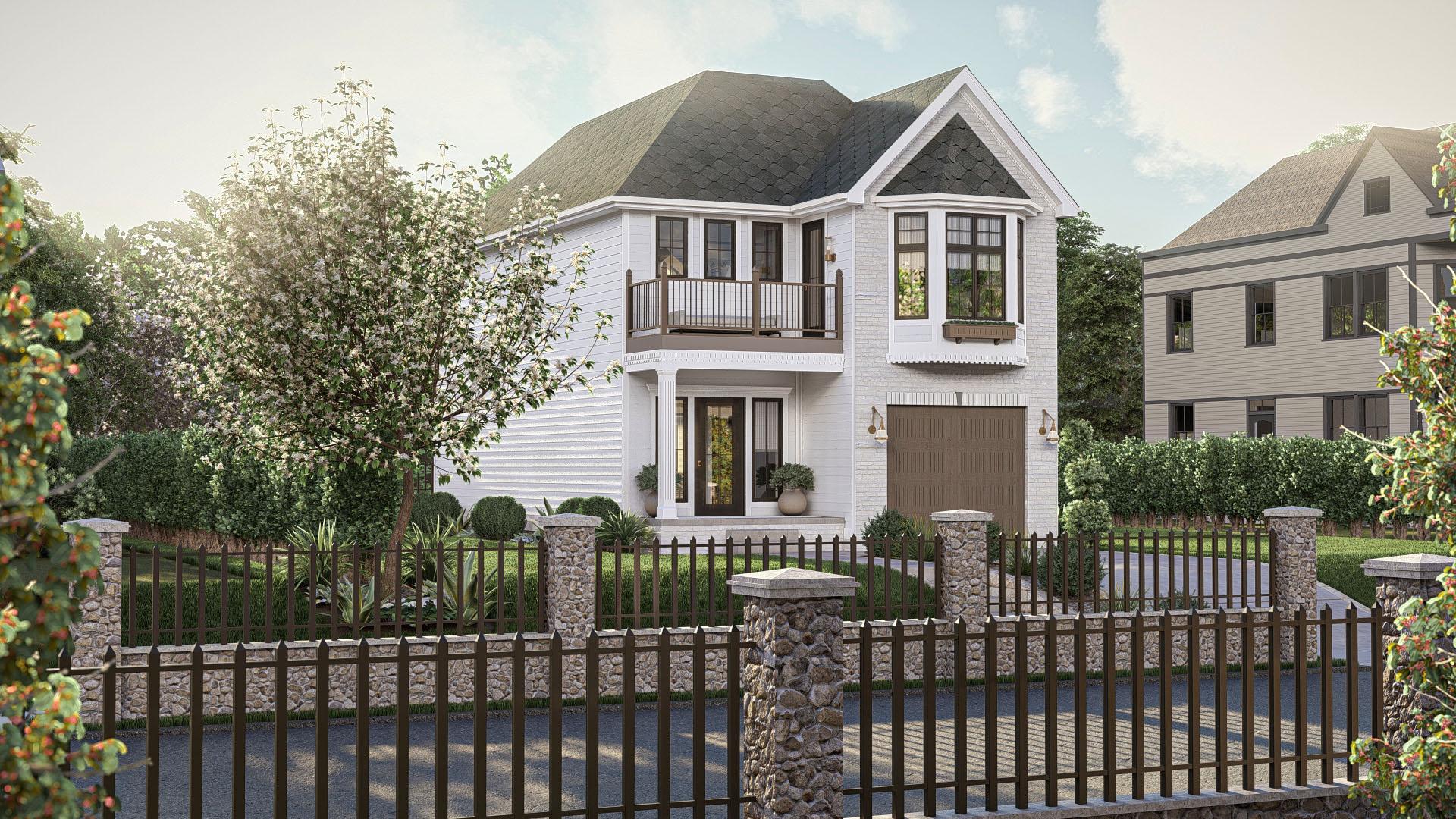

  • This Victorian blends timeless elegance with modern comfort in a quaint, tree-lined neighborhood.

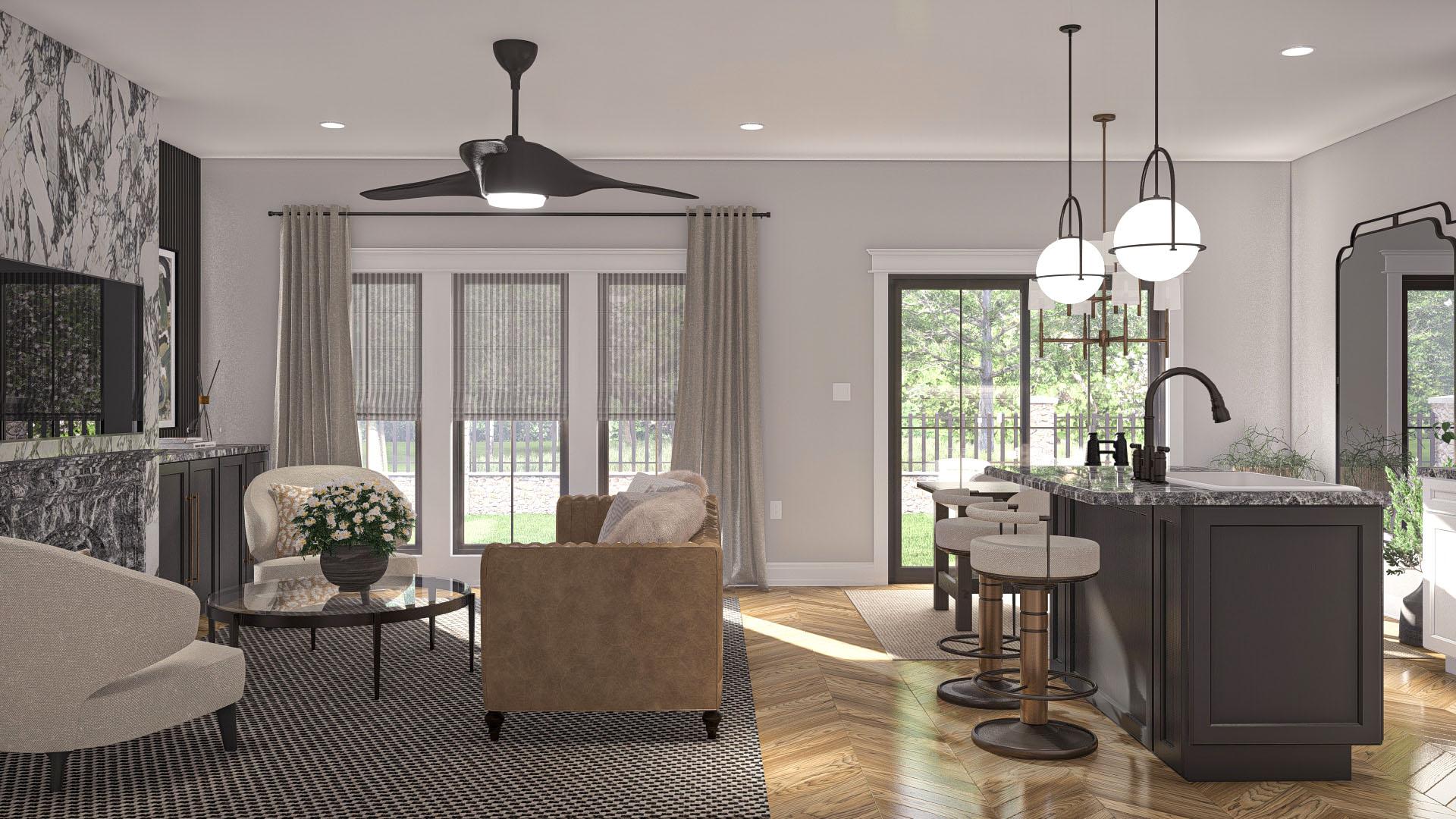

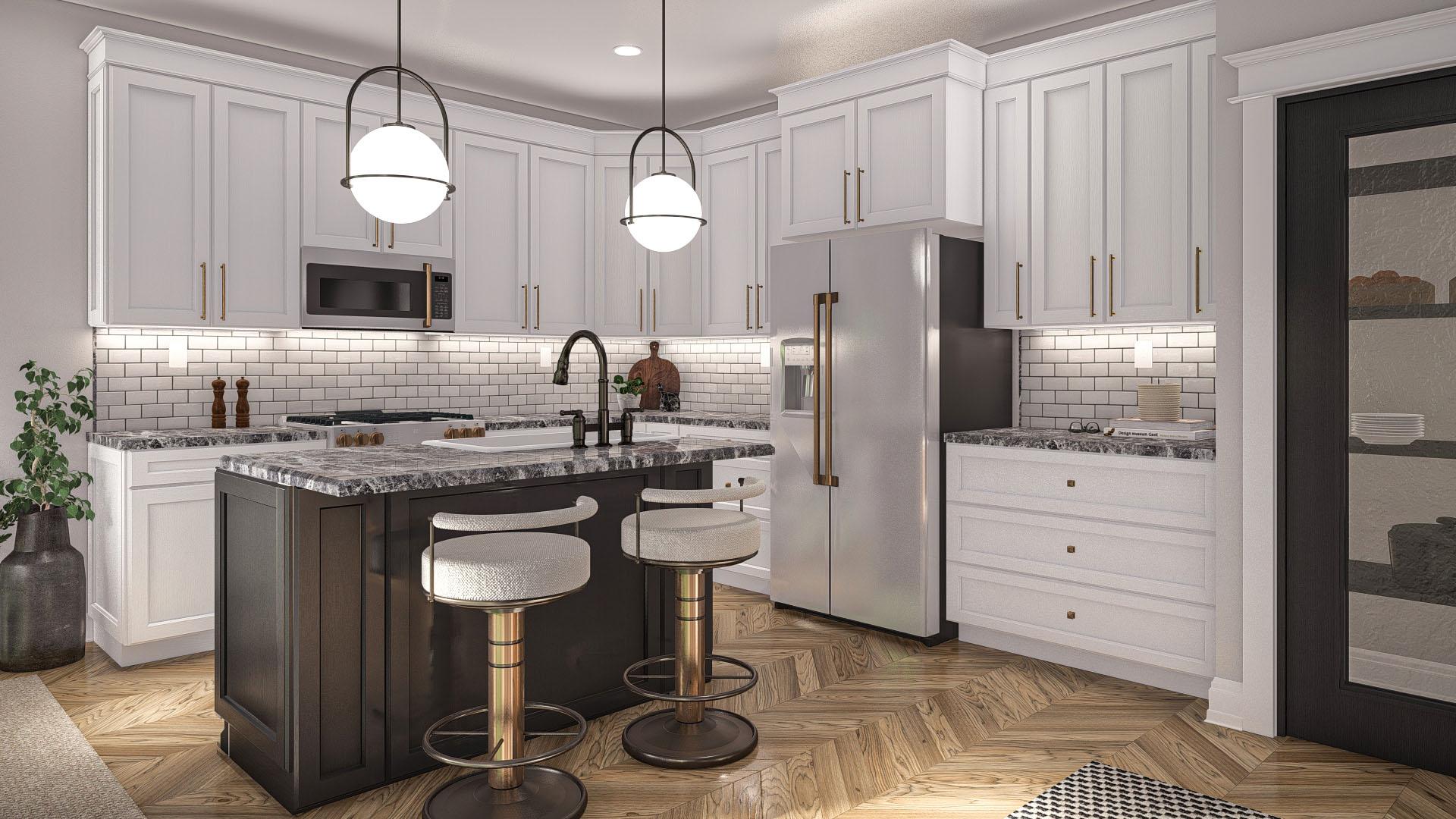

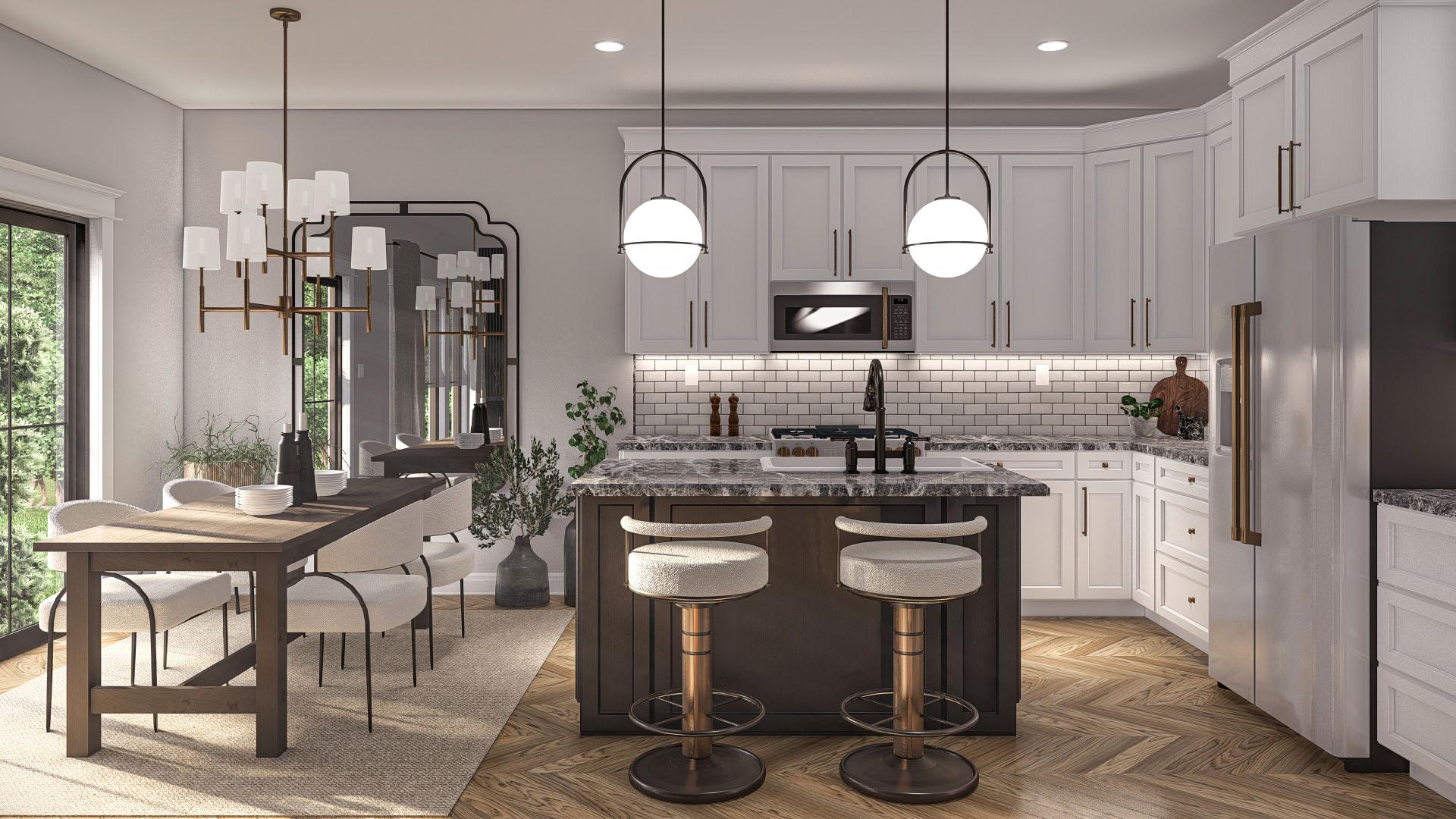

  • Seamlessly connects living, dining, and kitchen spaces, ideal for both entertaining and daily living.

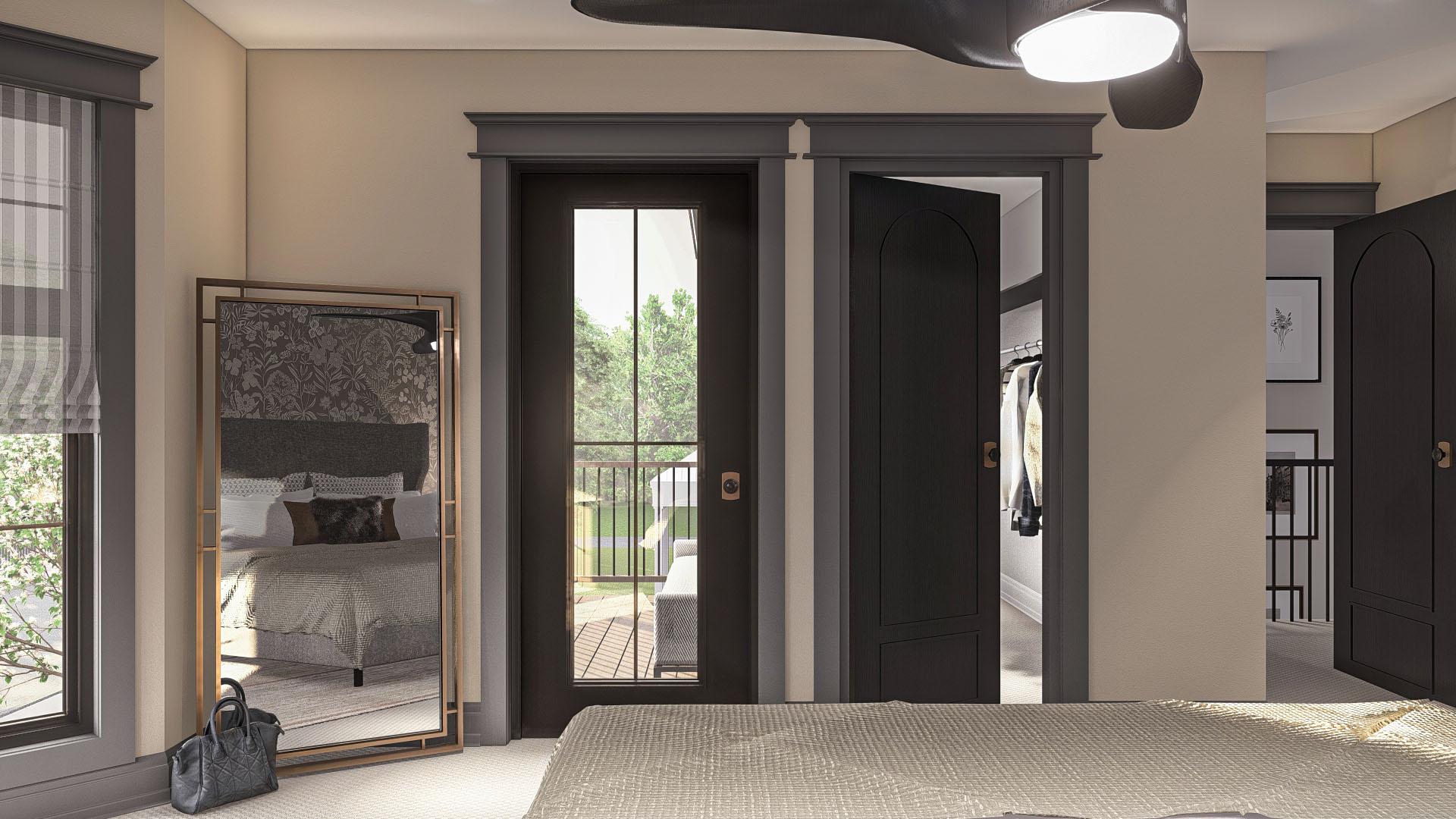

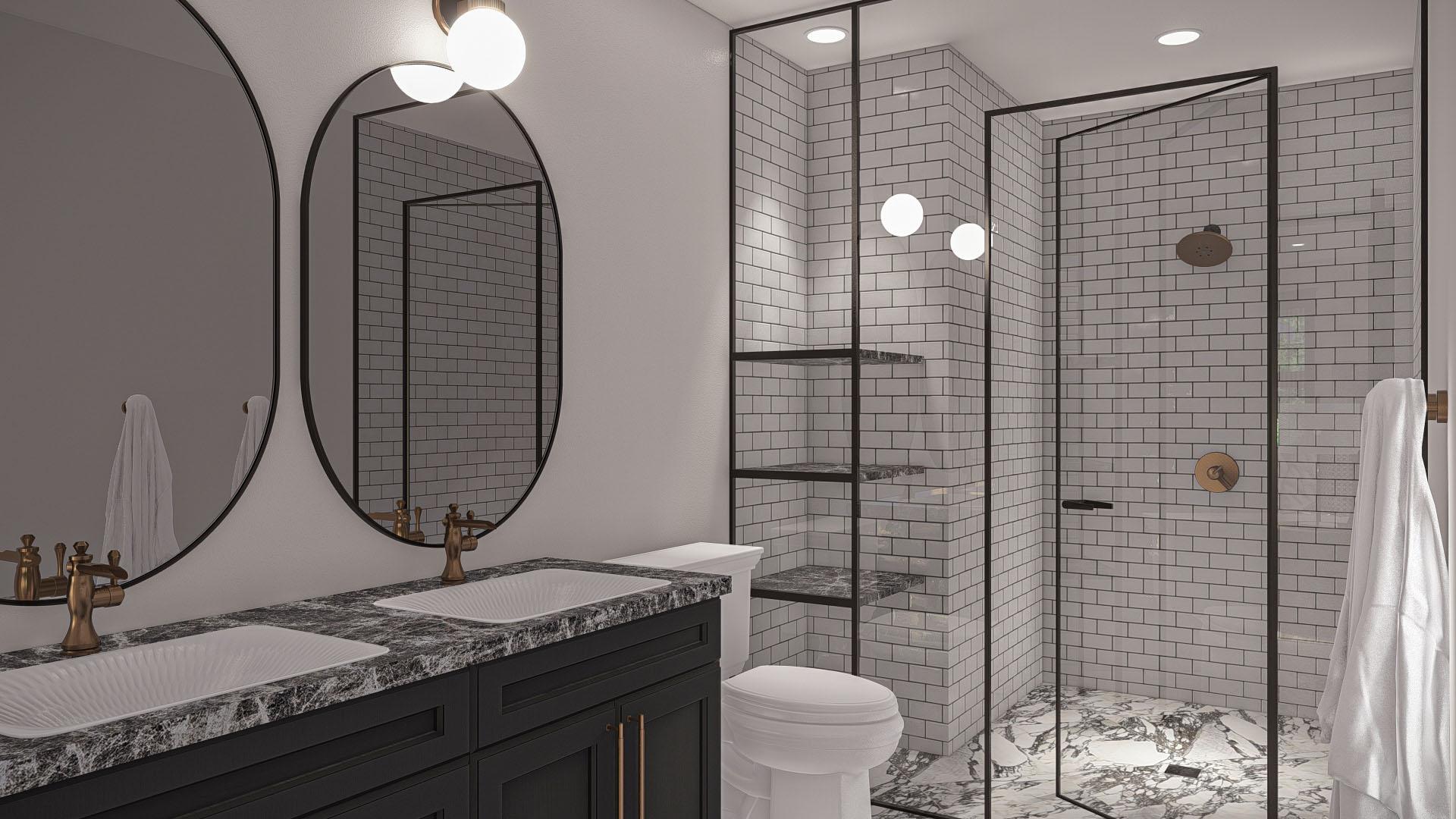

  • Upstairs you will find the masters suite that includes an ensuite bathroom with a walk-in shower, complemented by two additional bedrooms.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,583 sq. ft.

1st Floor

661 sq. ft.

2nd Floor

922 sq. ft.

Porch, Combined

59 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

43' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

298 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Architectural Style

European

Victorian

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

1,583 sq. ft.

1st Floor

661 sq. ft.

2nd Floor

922 sq. ft.

Porch, Combined

59 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

43' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

298 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Architectural Style

European

Victorian

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - 2nd Floor
