Name: Plan 36379TX: Ultra-Luxurious European Home
SKU: 36379TX
Price: 1700.0 USD
Availability: InStock

Plan 36379TX

Ultra-Luxurious European Home

Heated S.F.

4,977

Beds

Baths

3.5+

Stories

Cars

Floor Plan

Main Level

Plan Details

This very special European home plan is filled with luxuries such as special ceiling treatments, transom windows and built-ins.
The impressive barrel-vaulted foyer is huge and opens to the circular family room with a 17' high ceiling.
Only columns separate the foyer from the huge formal dining room with a piano alcove.
The media room has a big storage closet for your equipment and a triple window that can be closed off with black-out blinds.
Homeowners will be pampered with their luxurious master suite with a separate sitting room and huge spa bath.
All the remaining bedrooms are located in the rear of the home by the game room.

What's Included

Cover sheet
Foundation Plan - schematic only

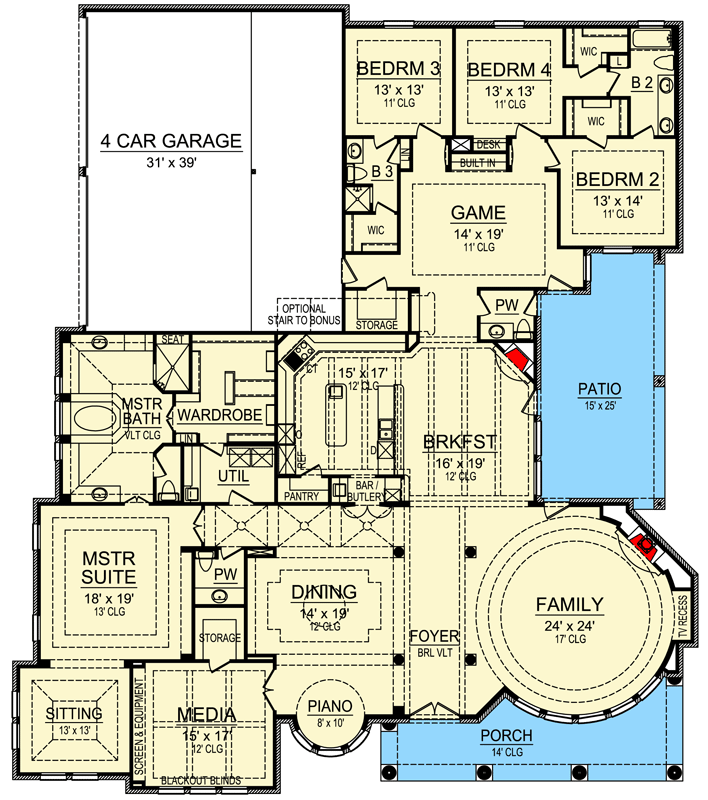

First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

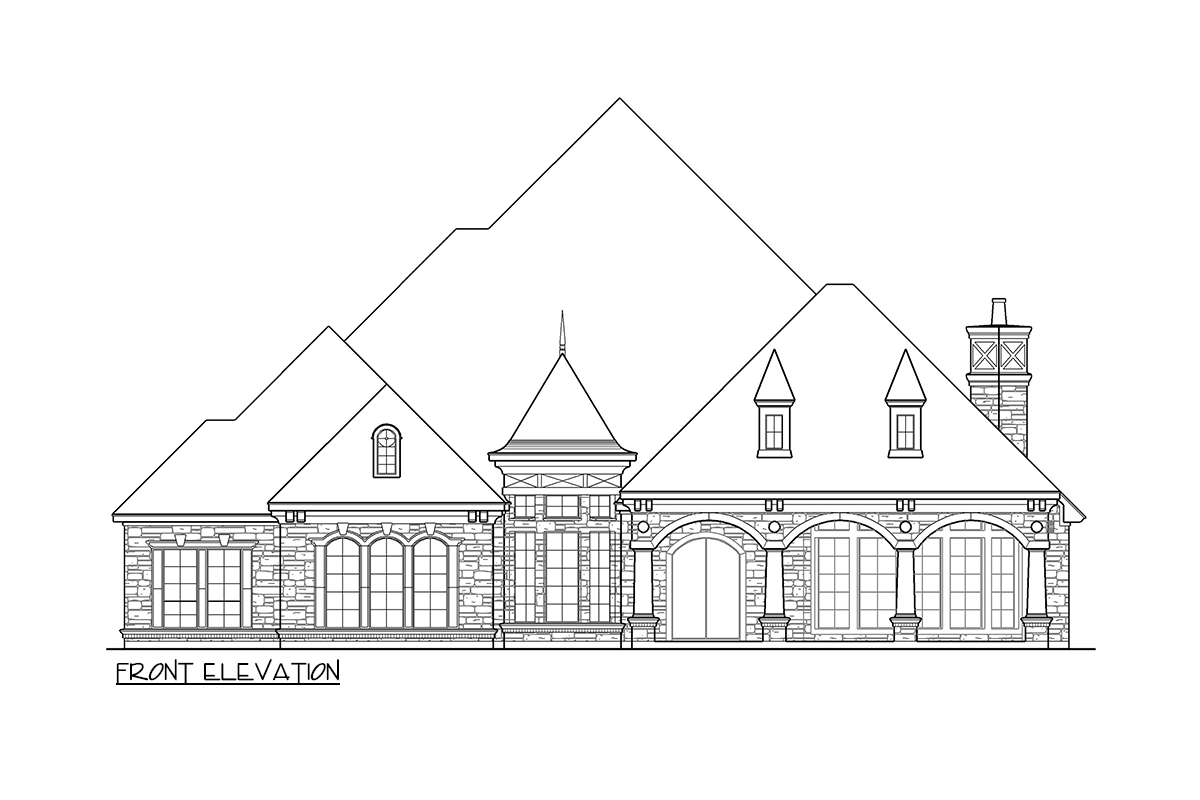

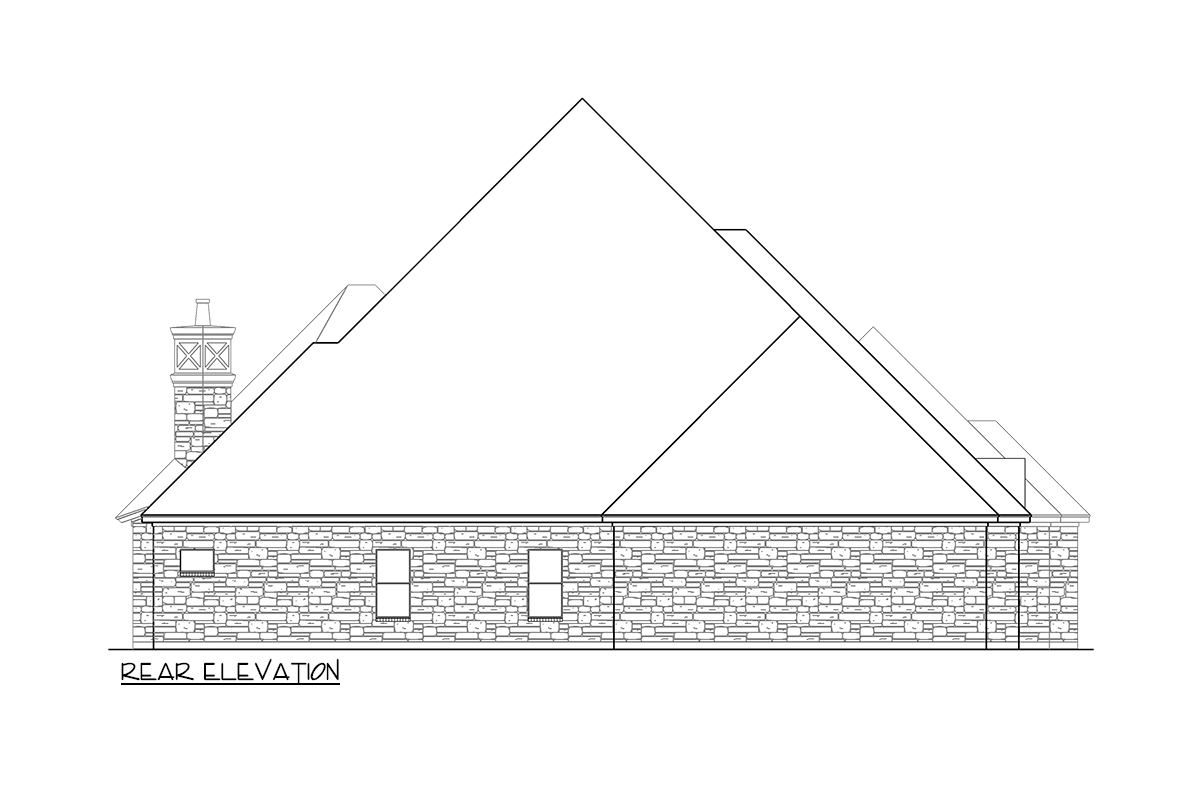

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

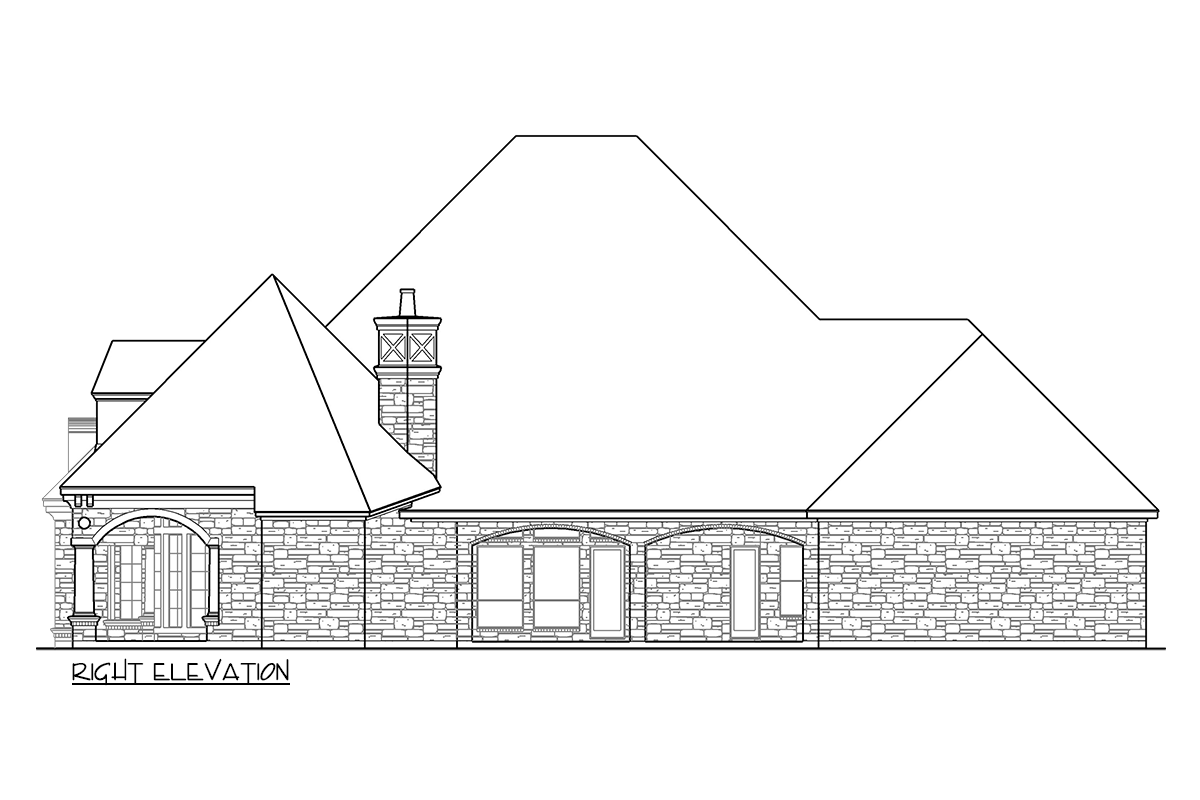

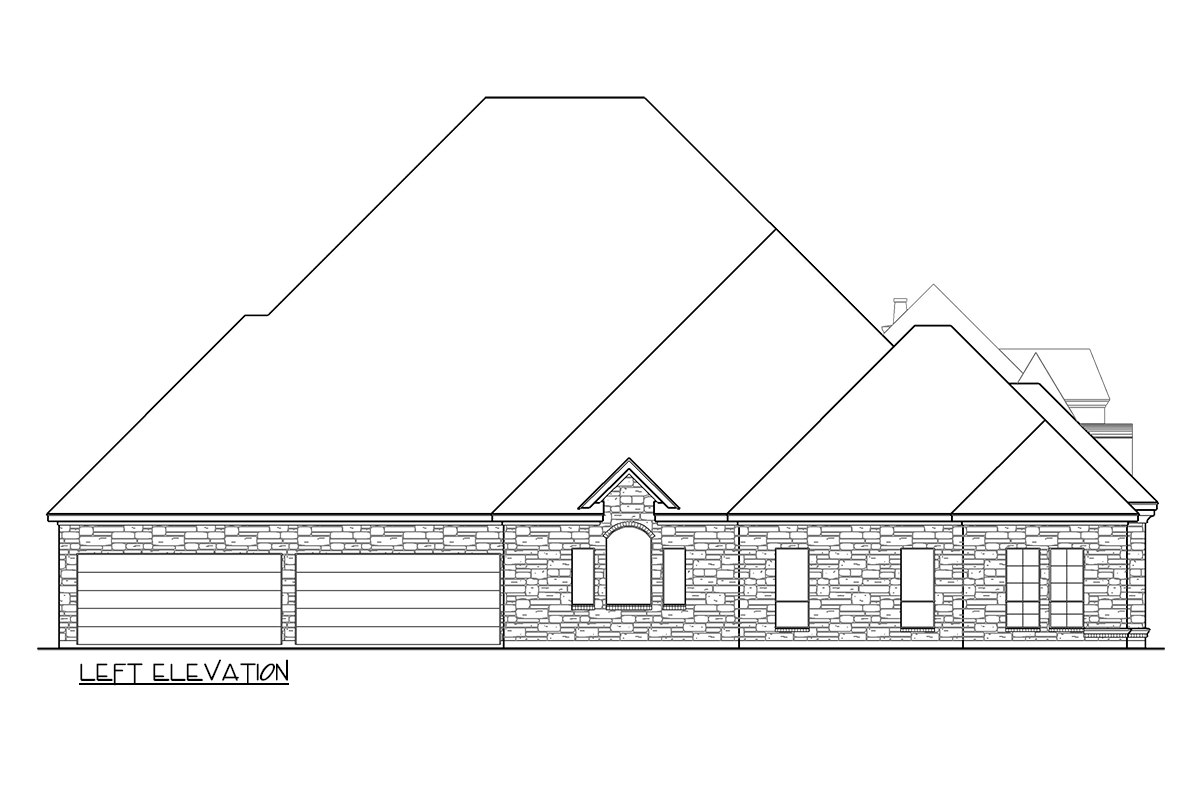

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
