Plan 36313TX
Unique Courtyard Living
Heated S.F.
3,689
Beds
4
Baths
4.5
Stories
2
Cars
1
Floor Plan

Plan 36313TX

Main Level
slide image 0
2nd Floor
slide image 1

Plan 36313TX

1-800-854-7852

1-262-521-4596

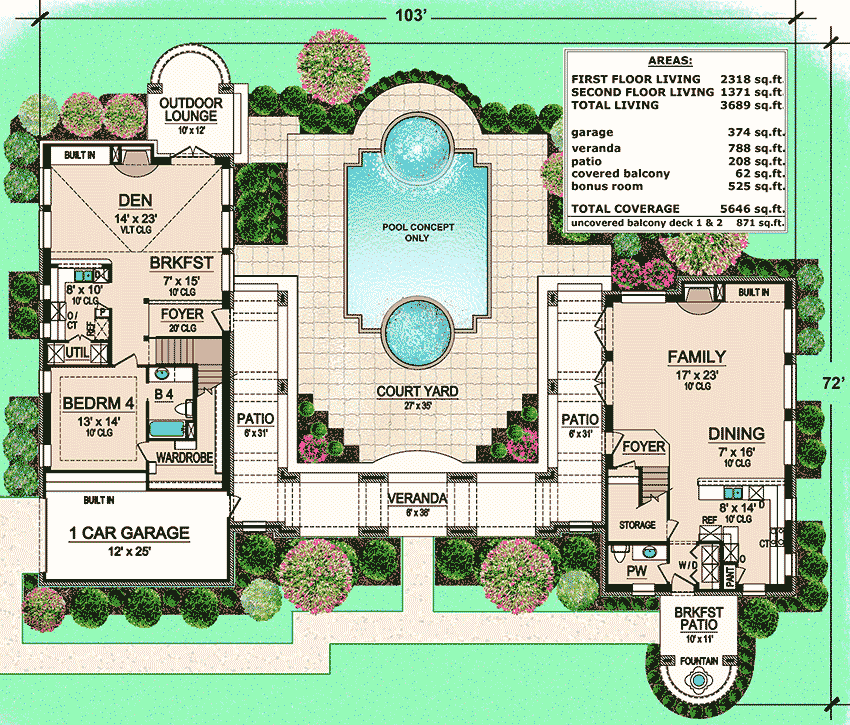

Main Level
floor plan image Main Level

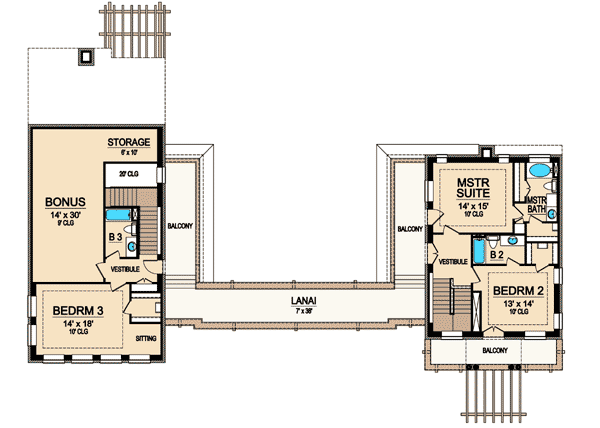

2nd Floor
floor plan image 2nd Floor
Plan Details
  • With separate living structures bridged by a covered lanai this unique house plan offers the utmost in privacy.
  • Each side of this home has its own kitchen and open living space and take advantage of the beautiful courtyard created by this one-of-a-kind layout.
  • The master suite balcony overlooks the courtyard and a matching one off the family structure does the same.
  • The courtyard offers both open air and covered options taking advantage of your warmer climate location.
  • Related Plan: Get a 2-car garage and 2-story studio with house plan 36329TX (2,728 sq. ft.).
What's Included
  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

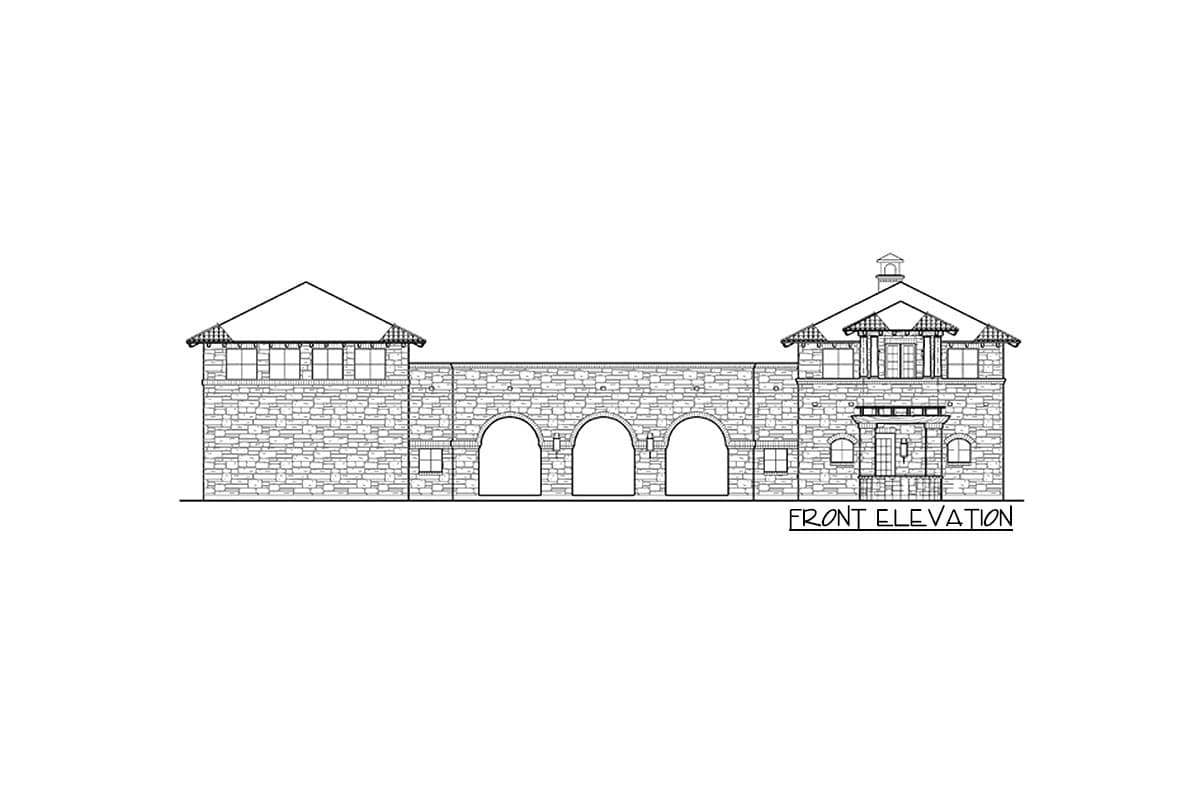

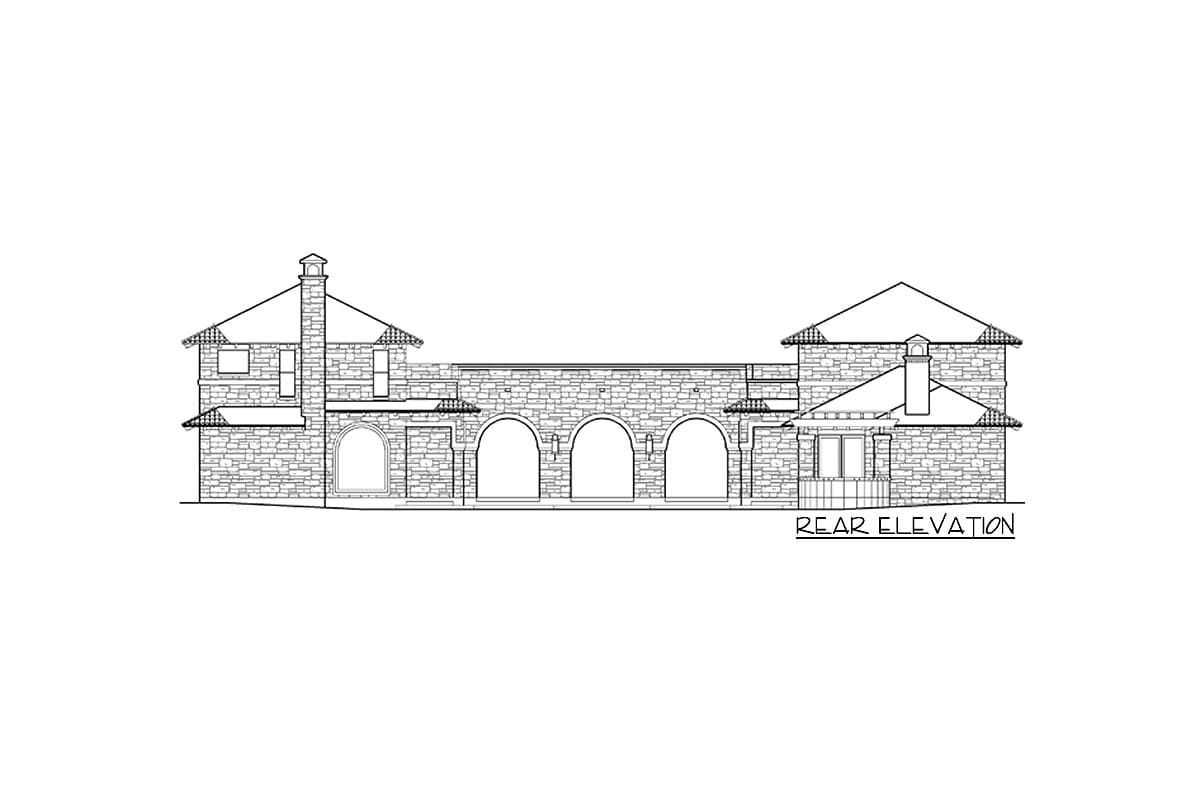

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

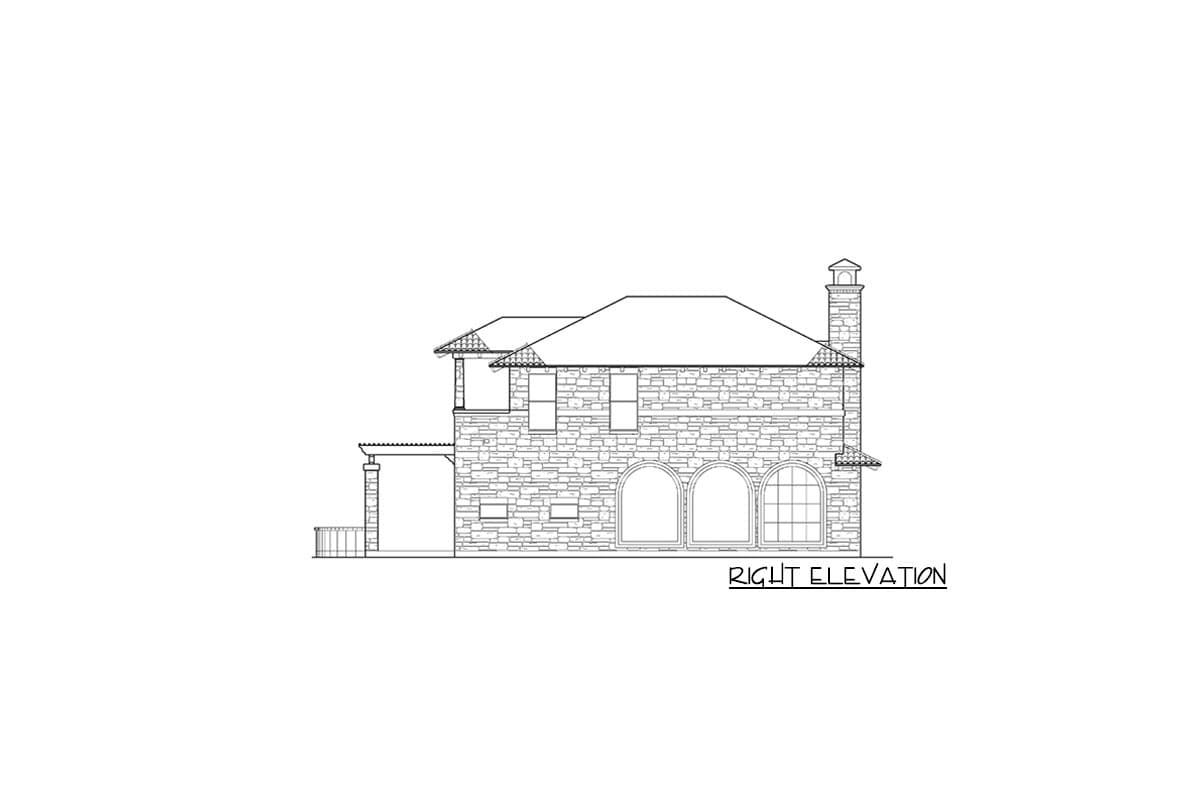

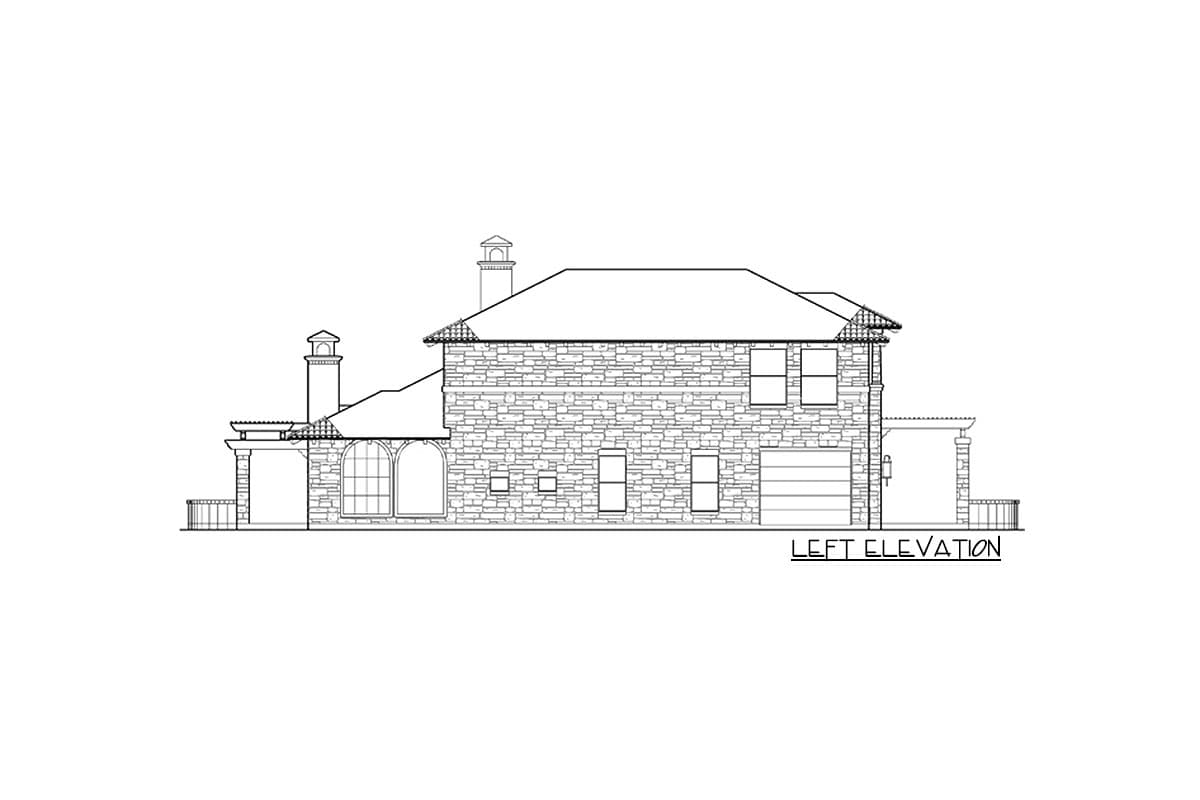

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,689 sq. ft.

1st Floor

2,318 sq. ft.

2nd Floor

1,371 sq. ft.

Bonus

525 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

103' 0"

Depth

72' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

374 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

European

Mediterranean

Tuscan

Special Features

Bonus Room

Courtyard

In-Law Suite

Laundry - Main Level

Master Suite - 2nd Floor

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

3,689 sq. ft.

1st Floor

2,318 sq. ft.

2nd Floor

1,371 sq. ft.

Bonus

525 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

103' 0"

Depth

72' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

374 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

European

Mediterranean

Tuscan

Special Features

Bonus Room

Courtyard

In-Law Suite

Laundry - Main Level

Master Suite - 2nd Floor

Plan Collections

Luxury
